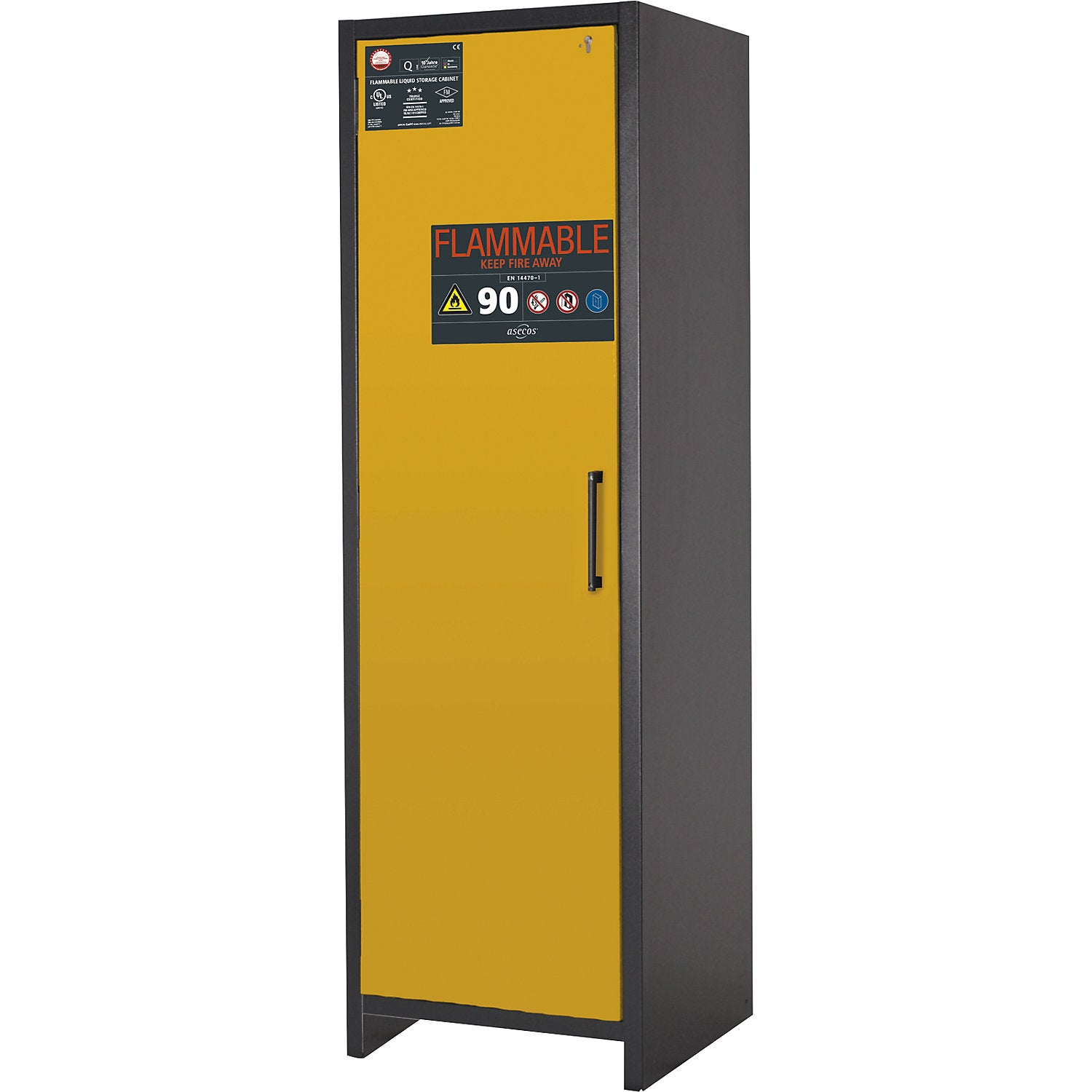

FM/UL/ULC/Type 90 fire resistant hazardous goods storage cupboard, 1 door, HxWxD 1953 x 599 x 615 mm, grey/yellow.

Estimated delivery: 111 days

FM/UL/ULC/Type 90 fire resistant hazardous goods storage cupboard, 1 door, HxWxD 1953 x 599 x 615 mm, grey/yellow

• Supplied = assembled
• Fire resistance = 90 minutes
• Material = special fire resistant boards, sheet steel, powder coated
• Height = 1953 mm
• Width = 599 mm
• Depth = 615 mm
• Body colour = charcoal
• Door colour = safety yellow
• Internal height = 1647 mm
• Internal width = 450 mm
• Internal depth = 522 mm
• Container size = small containers
• Hazard class = for flammable media in work rooms in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3)
• Ventilation = ventilation connection (NW 75)
• Door type = hinged door
• Lock type = profile cylinder
• Number of doors = 1 pcs

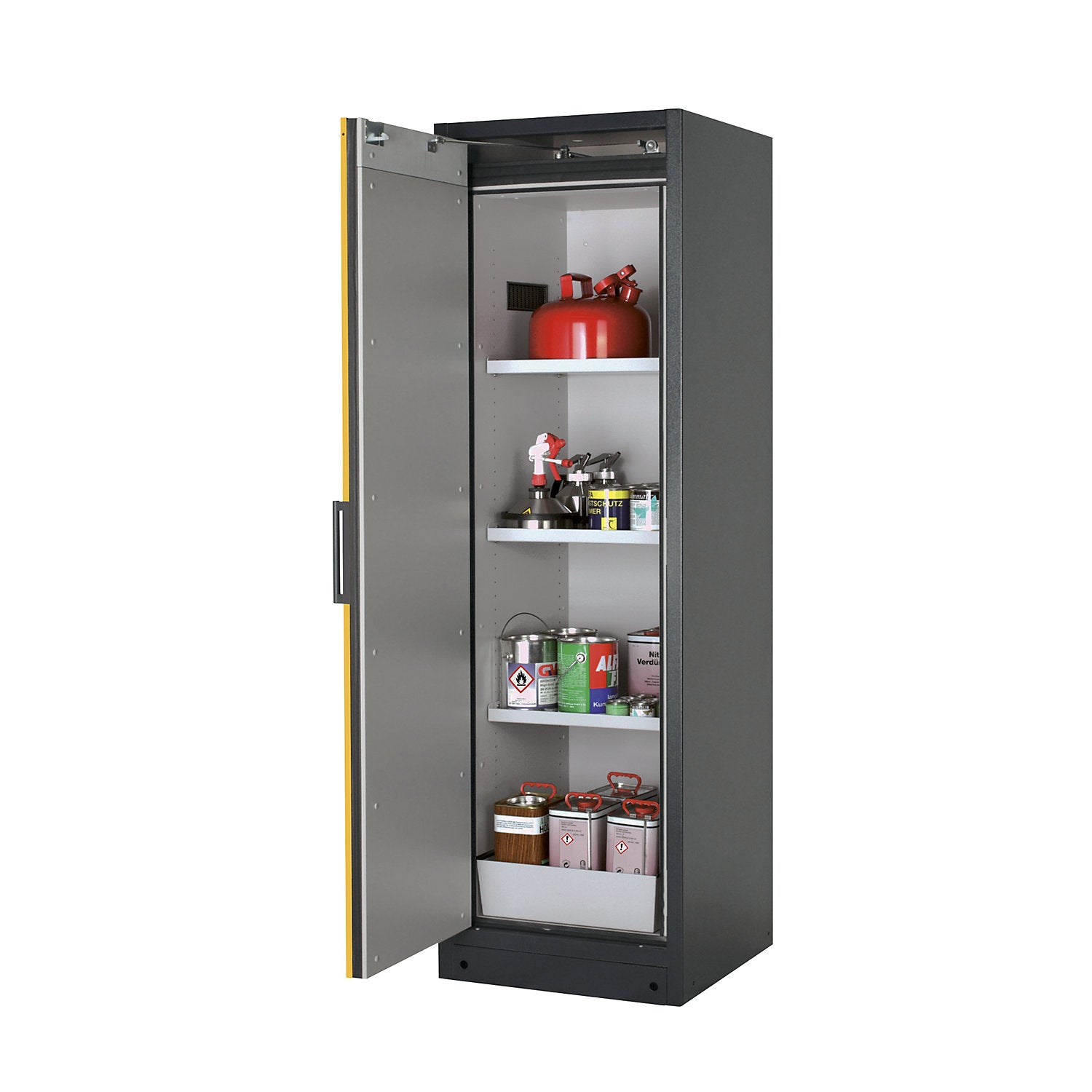

• Number of shelves = 3 pcs
• Shelf material = sheet steel
• Max. shelf load = 75 kg
• Shelf height adjustment increments = 32 mm
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 317.932 kg
• Weight = 293 kg
• Sustainability = CO 2 footprint calculated
• For regulation compliant storage of flammable media in laboratories in accordance with DIN EN 14470-1 and TRGS 510 (appendix 3)
• Proven protection against fire for 90 minutes, GS tested, FM 6050 and UL/ULC 1275 certified - self-closing in case of fire
• Robust, durable construction with textured powder coated outer body
• Door stop system
• Ventilation connection
• Transport base for moving within the company
• Type 90 fire resistant hazardous goods storage cupboard - additionally certified in accordance with FM and UL/ULC (US-American test certificates)
• Safe and regulation compliant storage of flammable hazardous goods in work rooms
• The asecos fire resistant hazardous goods storage cupboard FM/UL/ULC/type 90 makes an impression with its robust and durable design
• The high quality outer body with a powder coated textured surface is stable and scratch resistant
• The hazardous goods storage cupboard features 3-point door hinges and the entire locking mechanism and safety elements have been installed on the outside of the storage space to protect them from corrosion
• It is convenient to use: the door stops at any required opening angle and closes automatically in the event of a fire
• The Wing Door Arrest System (WDAS) allows the door to be securely locked in the door stop system, ensuring practical and safe storage and retrieval of the containers
• The lockable door with a profile cylinder provides additional protection from unauthorised access
• The door is compatible with locking systems and features a locking status indicator that allows the status to be immediately identified using the red and green colour indicators
• The integrated transport base (plinth cover available as an accessory) ensures easy transport for moving it within the company, while levelling feet make levelling on uneven flooring easier
• The hazardous goods storage cupboard is also equipped with an integrated ventilation system that can be connected to a technical exhaust air system (NW 75)
• A rotating wheel in the exhaust air grille provides an indicator for sufficient forced ventilation
• Certificates: - Fireproof for 90 minutes - Tested model in accordance with EN 14470-1 - Compliant with EN 16121/16122 - GS certified - Compliant with CE - FM 6050 certified - Certified according to UL/ULC 1275 Interior fittings: - 3 shelves, max. load 75 kg, powder coated sheet steel - 1 perforated sheet insert for use in StawaR sump trays, max. load 75 kg, powder coated sheet steel - 1 base sump, capacity 22 l, powder coated sheet steel
