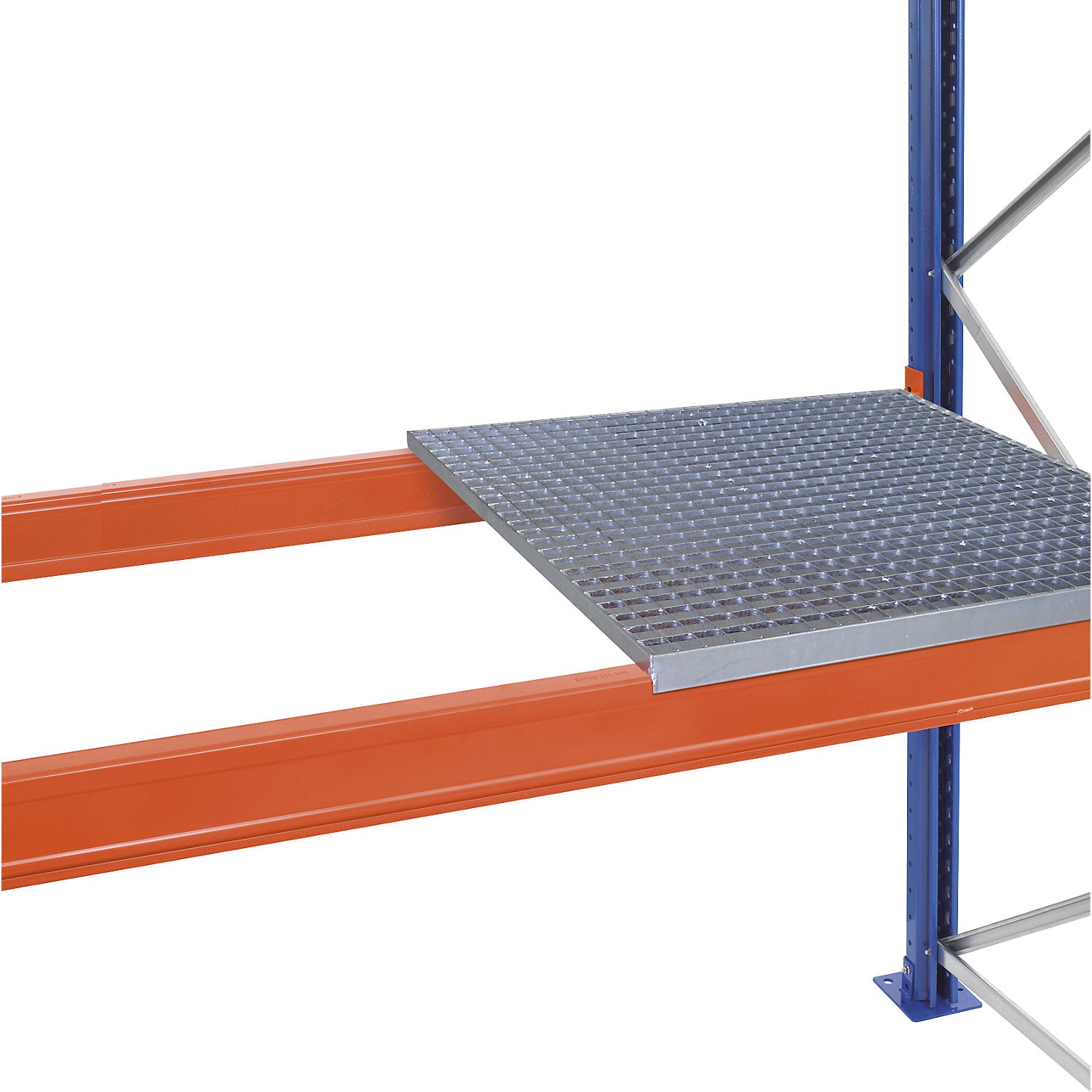

Mesh shelf, detached, for beam length 3900 mm, for shelf unit depth 1100 mm.

Estimated delivery: 56 days

Mesh shelf, detached, for beam length 3900 mm, for shelf unit depth 1100 mm

• Supplied = flat pack
• Width = 3900 mm
• Depth = 1100 mm
• For depth = 1100 mm
• Material = steel
• Finish = hot dip galvanised
• Max. load = 4200 kg
• For beam length = 3900 mm

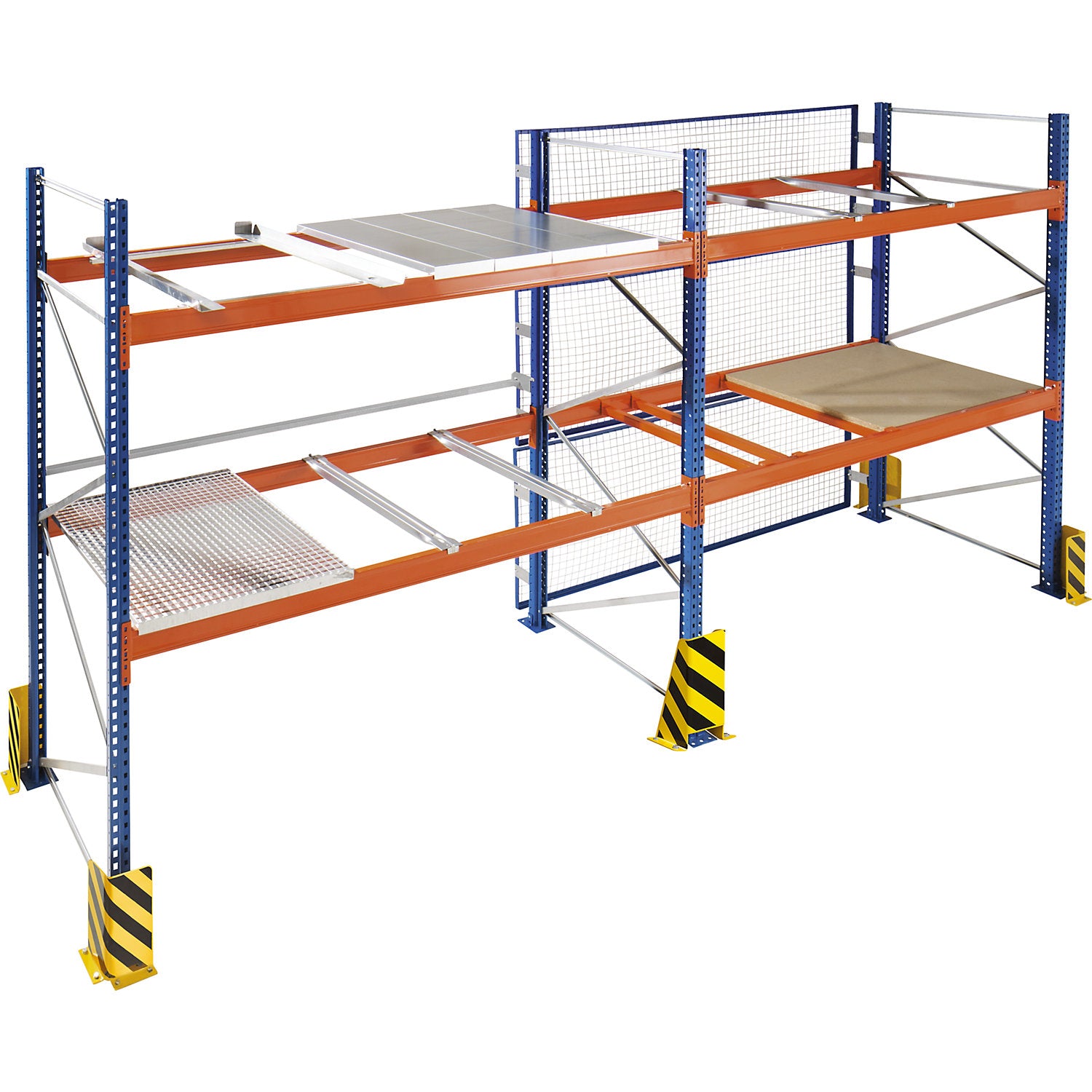

• Product type = accessories for pallet racking
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 83.78 kg
• Weight = 60.9 kg
• Sustainability = CO 2 footprint calculated
• Ends of panel overlap beams for secure placement
• Also provides protection for passageways and aisles
• Mesh size 60 x 40 mm, 50 mm outer edge, carrying rails 30 / 2 mm
• If mesh grid shelves are used, the overall shelf load may not exceed the specified max. load for the pair of support beams used
• The respective specified pallet racking max. bay loads must always be observed
• All specified max. loads apply with uniform load distribution
• Support rod 40 x 1.7 mm.
