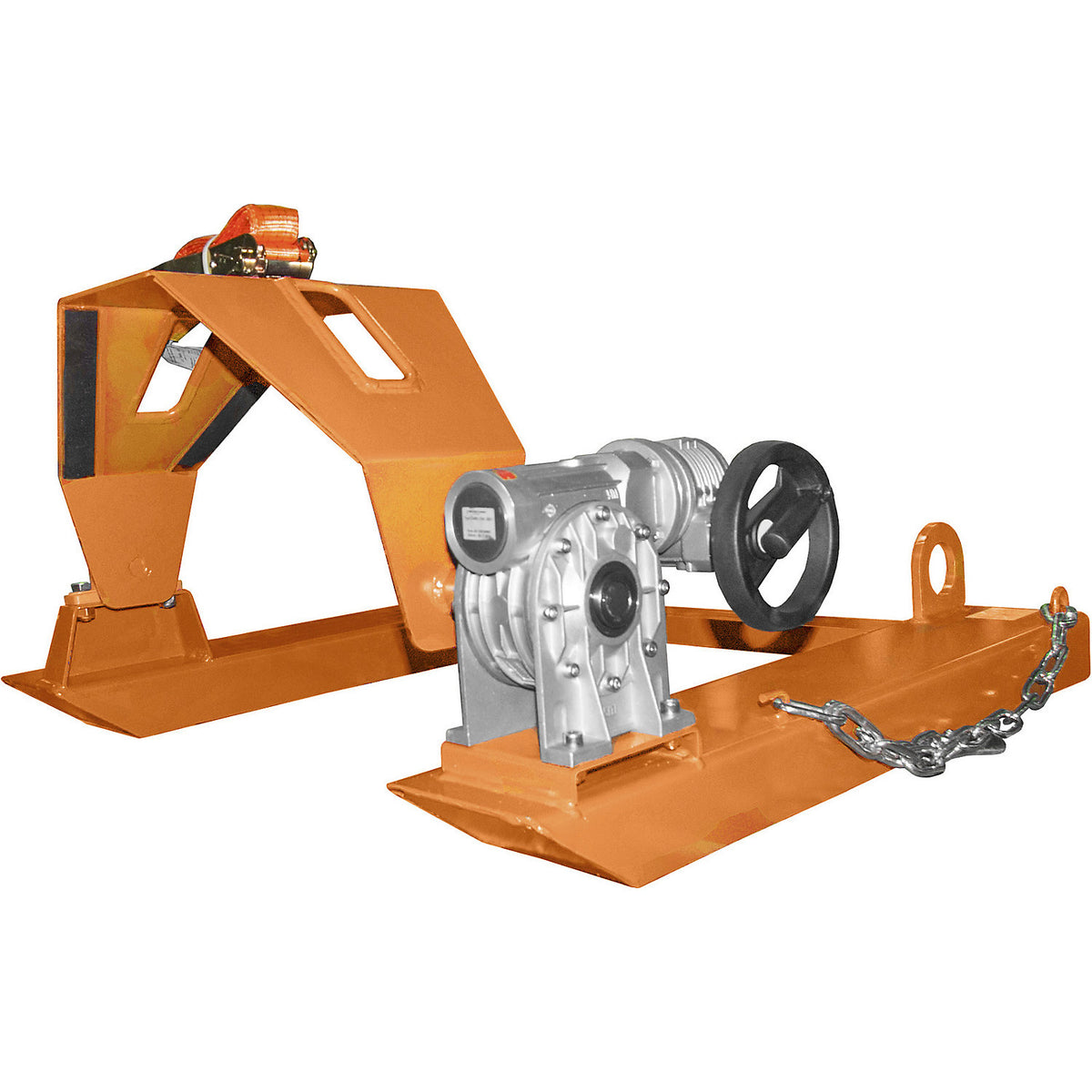

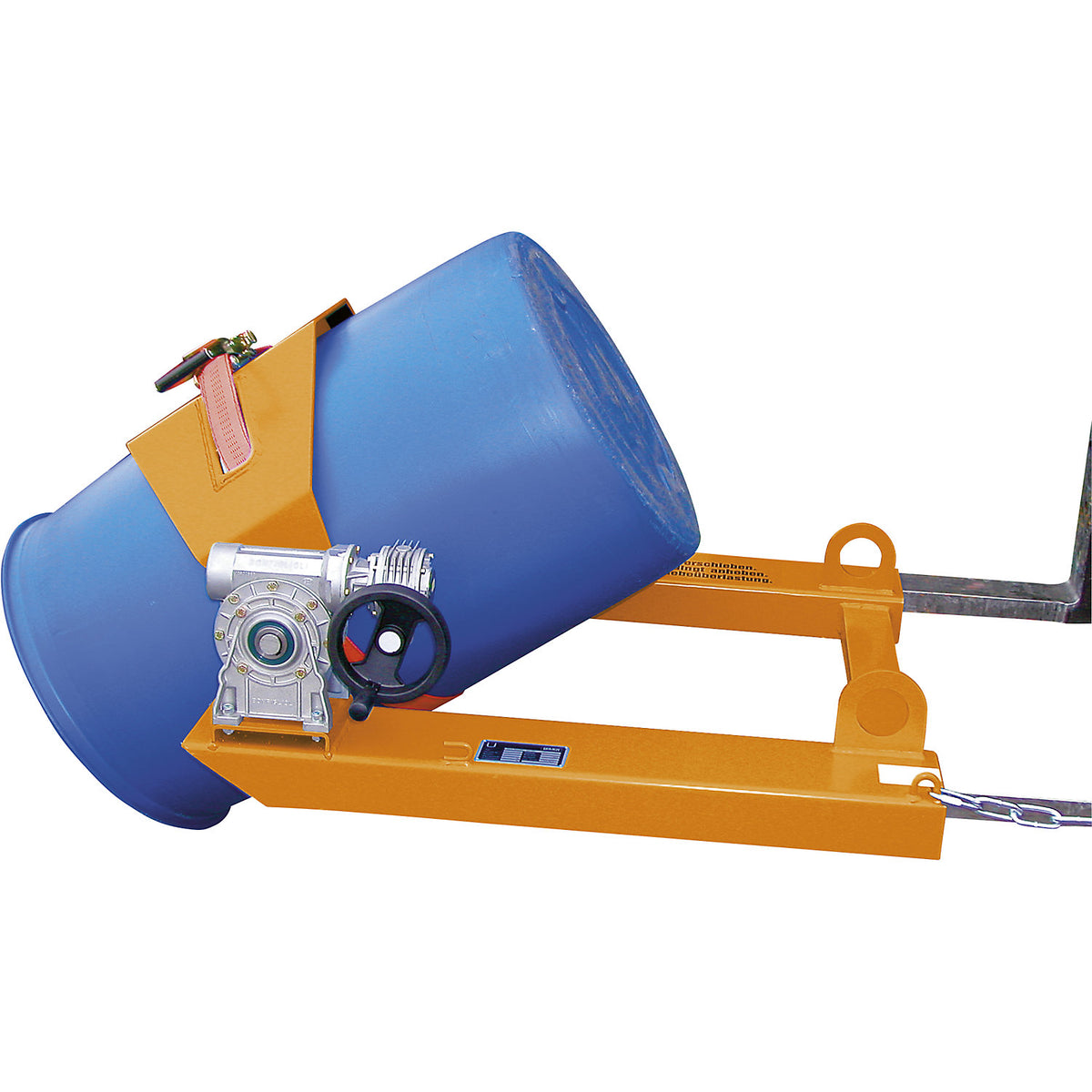

Drum tipper, for forklift and crane operation, with hand crank, painted yellow orange.

Estimated delivery: 51 days

Drum tipper, for forklift and crane operation, with hand crank, painted yellow orange

• Supplied = assembled
• Model = for forklift and crane operation
• Drum holder = 60 - 220 l drums, 120/240 l waste containers
• Finish = painted
• Colour = yellow orange RAL 2000
• Max. fork cross section = 150x60 mm
• Distance across forks = 650 mm
• Height = 405 mm
• Length = 1000 mm
• Width = 1090 mm
• Max. load = 300 kg
• Forklift pocket spacing = 650 mm
• Fork pocket dimensions = 170x75 mm
• Material = steel
• Weight = 70 kg
• Product type = drum tippers
• Customs tariff number = 84312000
• Country of origin = ---
• Gross weight = 70 kg
• Weight = 70 kg
• Sustainability = CO 2 footprint calculated
• For steel and plastic drums from 60 - 220 litres and waste containers
• Drum holder with rotary mechanism. 360° rotation range
• Tipping process with hand crank
• Mounts for forklift trucks, wheel loaders and cranes

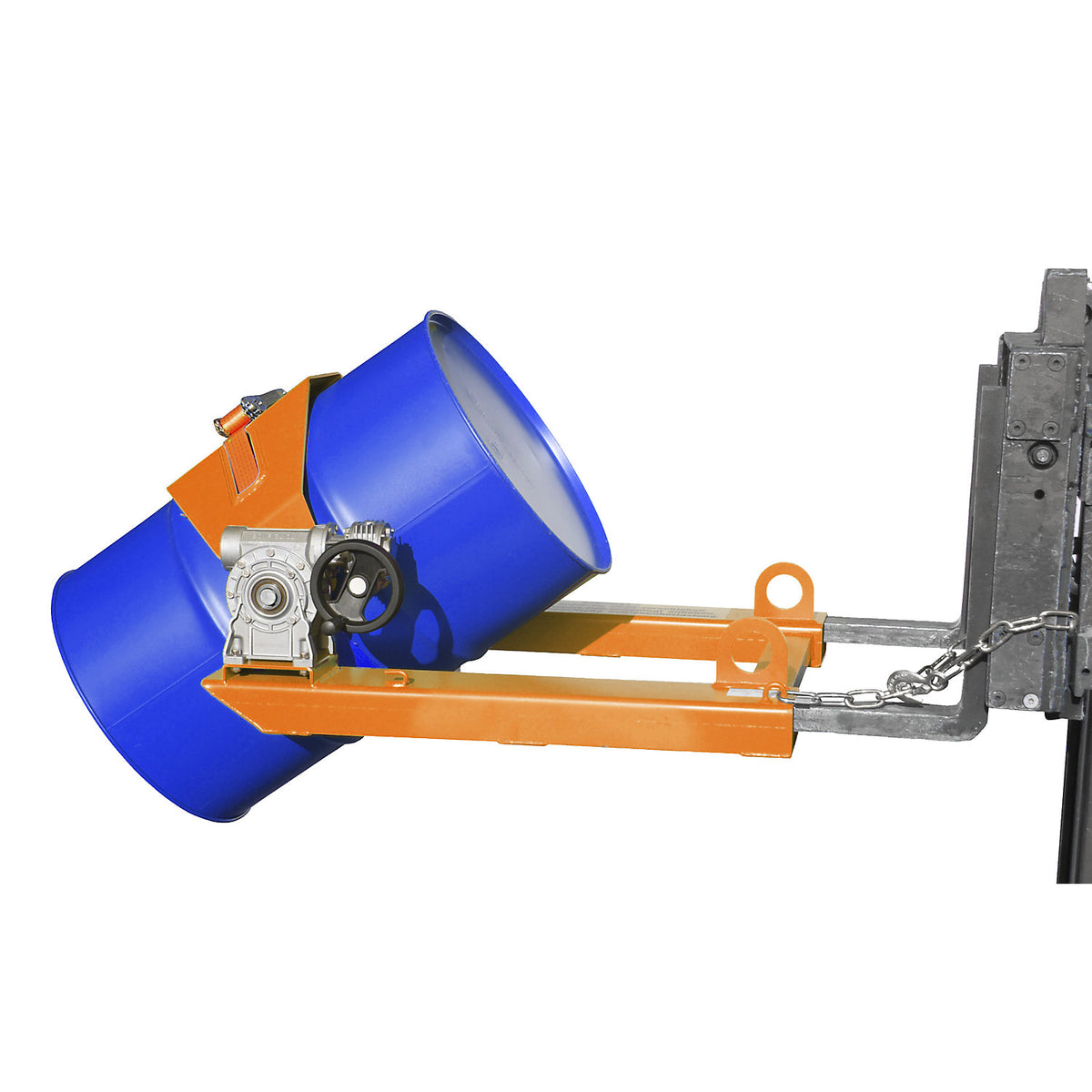

• The drum tipper for stacker and crane operation with a hand crank enables safe picking up, transporting, tilting, turning and setting down of a wide variety of containers

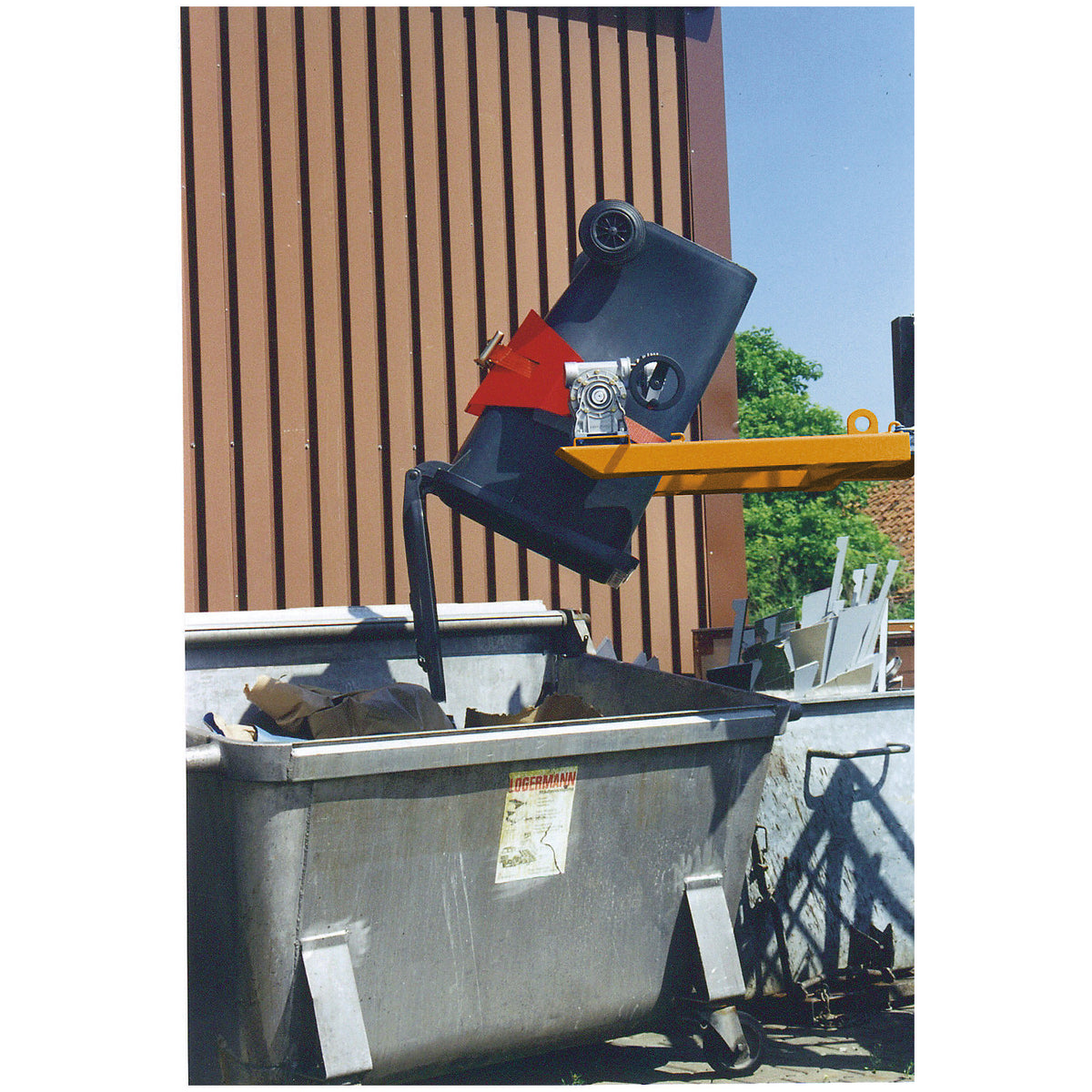

• The robust drum handling device is suitable for steel and plastic drums from 60 to 220 litres as well as for 120- and 240-litre waste containers
• Pick-up can be carried out with a forklift truck, wheel loader or crane
• The drum holder with turning mechanism offers a 360° turning range
• This allows drums to be turned completely and the contents to be emptied in a targeted manner
• The tilting process is controlled via a hand crank
• This enables controlled positioning of the container and supports metered pouring
• A prism with a tensioning strap holds the drum securely in the mount
• This prevents the container from shifting during transport or tilting
• The double-worm gear supports reliable power transmission and makes turning heavy drums easier
• An additional safeguard protects against accidental slipping off the lifting device
• The sturdy steel base frame is designed for regular use in the warehouse, production, disposal and workshop
• The forklift pockets are designed for fork arms with a cross-section of 150 x 60 mm and a clear distance of 650 mm
• The drum tipper is available with an optional painted surface in yellow orange RAL 2000 or in a zinc plated model.
