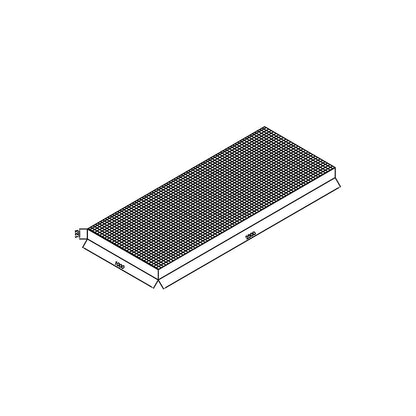

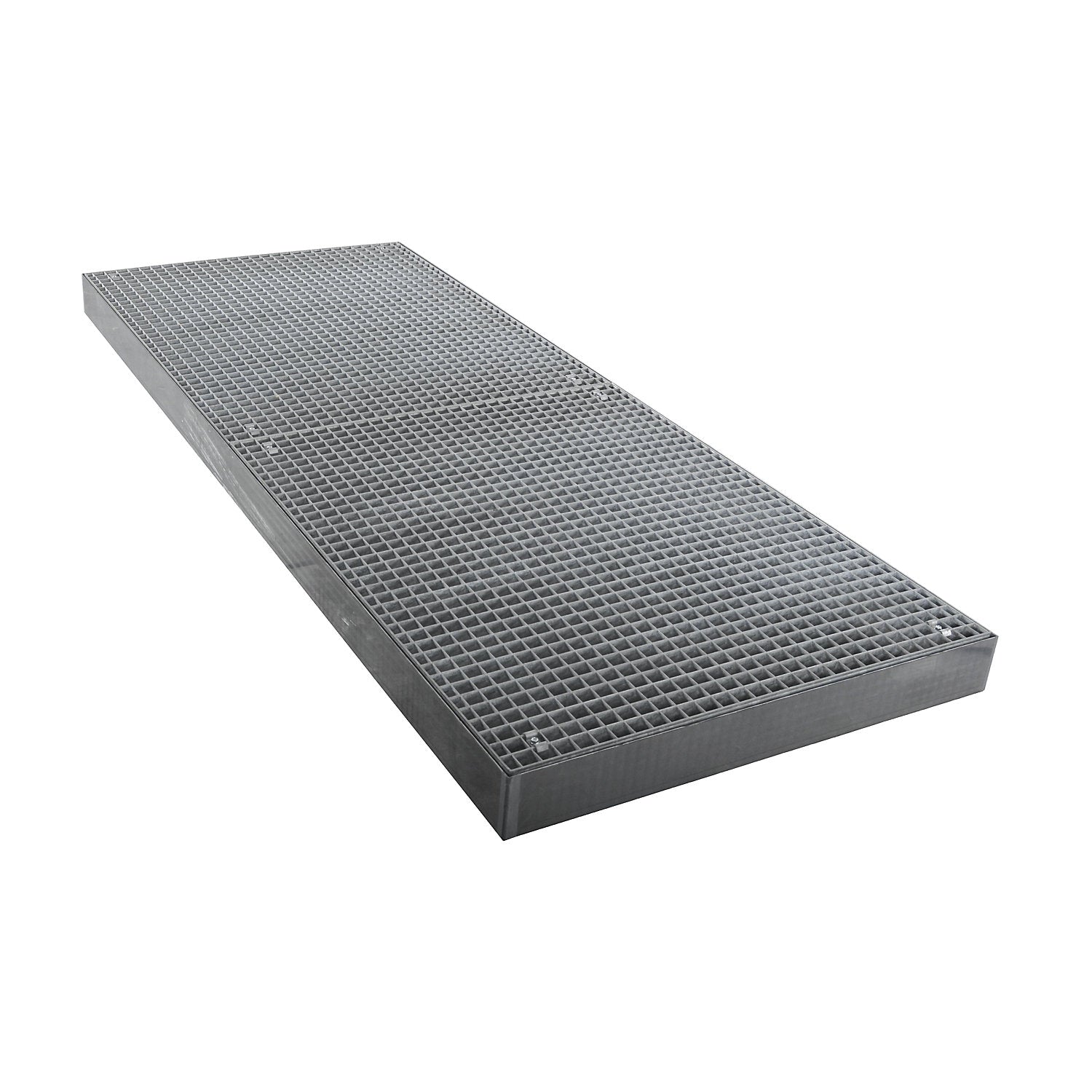

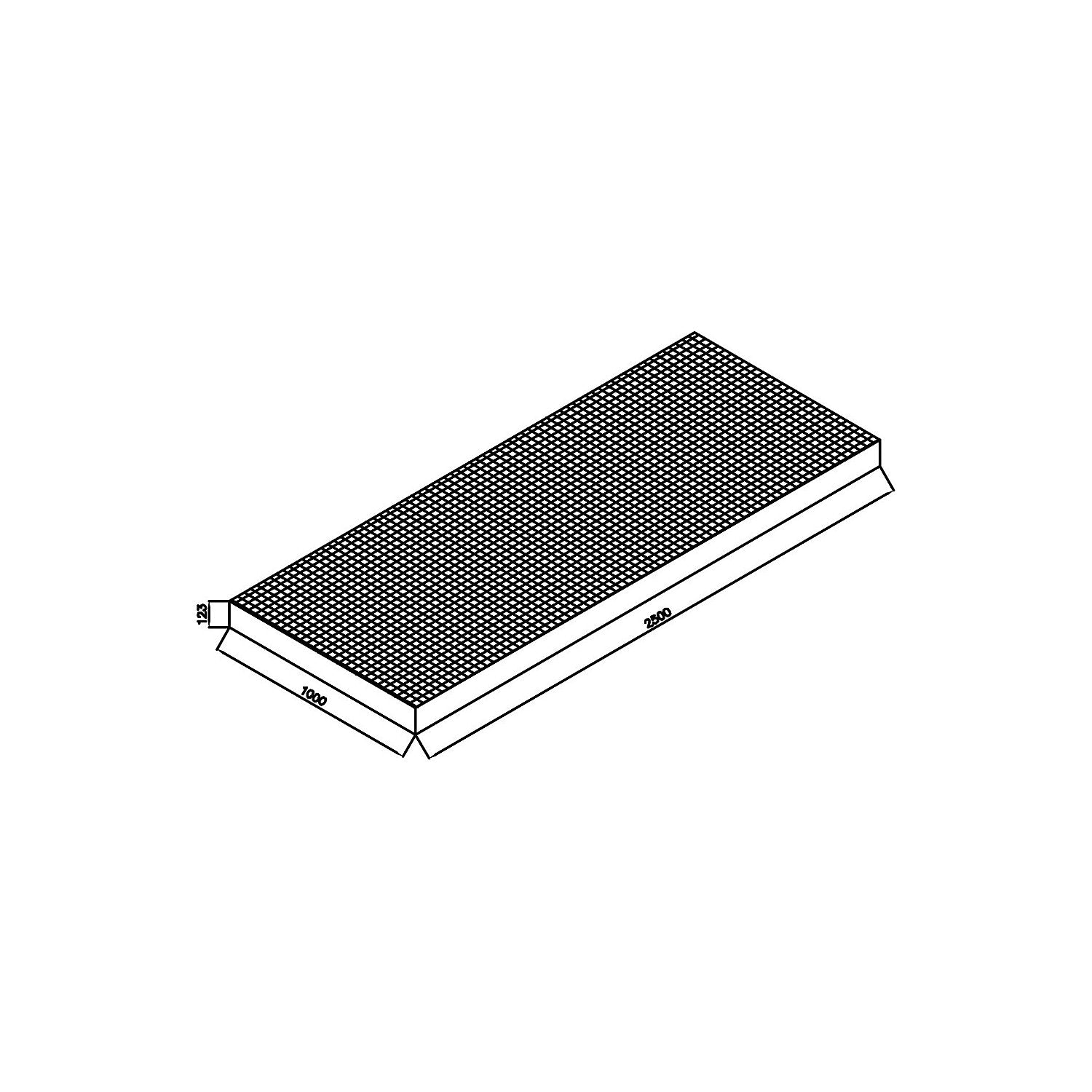

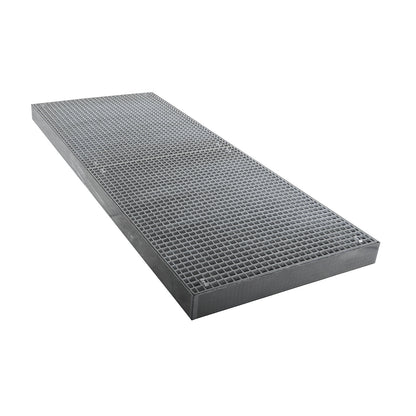

Zinc plated low profile steel sump trays, width 1000 mm, length 2500 mm, capacity 210 l.

Estimated delivery: 36 days

Zinc plated low profile steel sump trays, width 1000 mm, length 2500 mm, capacity 210 l

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 210 l
• Length = 2500 mm
• Width = 1000 mm
• Height = 123 mm
• Material = sheet steel
• Finish = zinc plated
• Colour = zinc plated
• Max. load = 5000 kg/m²
• Test symbol = manufacturer's declaration of conformity in accordance with German construction regulation list A, part 1, DIBt, Berlin
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Max. wheel load = 450 kg
• Customs tariff number = 73101000
• Country of origin = DEU
• Gross weight = 216 kg
• Weight = 198 kg
• Sustainability = CO 2 footprint calculated
• Ideal as protection in small areas - can be walked on and driven on with pallet trucks and forklifts
• Includes removable, heavy duty, hot dip galvanised grate

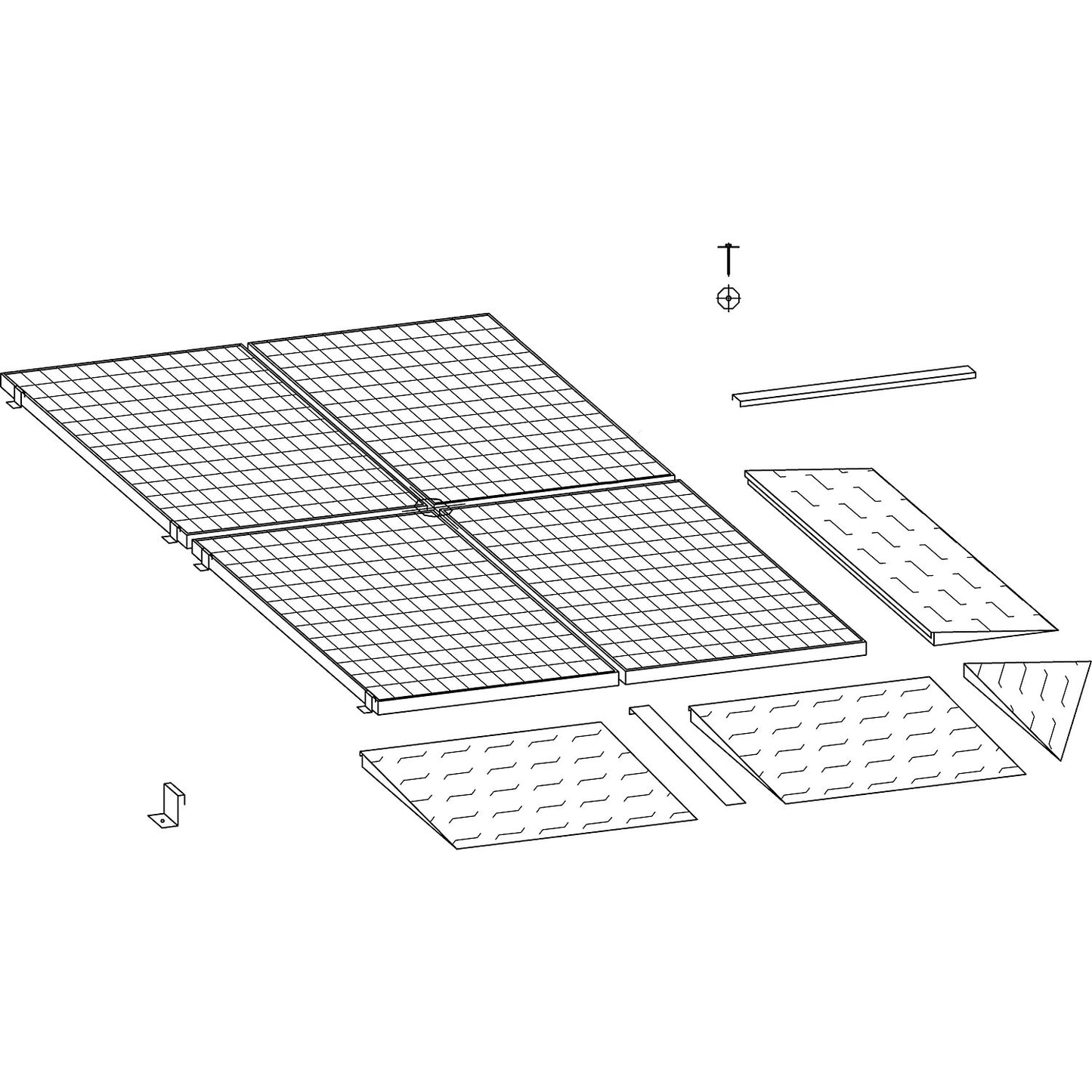

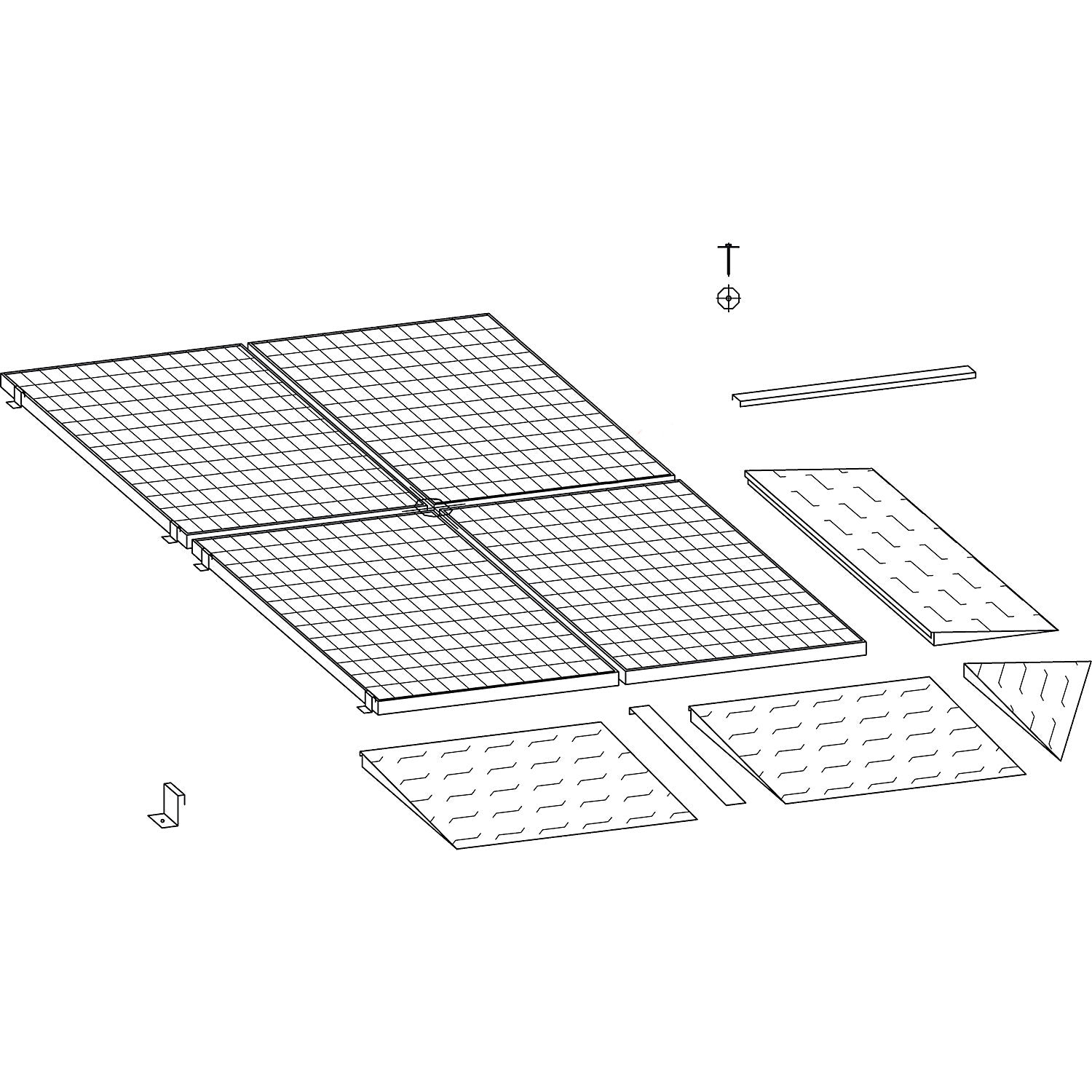

• All sections can be combined with each other as needed, spacing between sections 40 mm
• Made of 3 mm sheet steel - meets all water protection requirements
• Zinc plated for increased protection against corrosion
• Can be driven on with pallet trucks and forklifts (observe max. load and max. wheel load)
• Approved for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Zinc-plated steel flat tray - robust sump tray for reliable surface protection The zinc-plated steel flat tray provides effective surface protection when working with liquids and supports the safe design of storage, handling and filling areas
• Thanks to its modular design and resilient steel construction, the sump tray is suitable for numerous industrial applications
• Manufactured from 3 mm thick sheet steel, the sump tray meets the requirements of the Water Resources Act (WHG) and helps to safely retain escaping liquids
• It is suitable for flammable liquids of GHS categories 1 - 3 as well as for liquids hazardous to water of GHS categories 1 - 4
• As a result, the surface protection supports compliance with operational safety and environmental protection requirements
• The removable, heavy-duty grates are hot dip galvanised and enable convenient use in daily operation
• At the same time, they make cleaning and maintenance of the sump tray easier
• Due to the zinc plating, the construction has high corrosion protection and is designed for long-term use in demanding environments
• The elements can be combined with each other as desired and thus allow individual adaptation to existing working and storage areas
• The distance between the elements is 40 mm in each case
• The sump tray can also be driven on with pallet trucks and stackers (note max. load and wheel load), allowing materials and empties to be moved efficiently
• The surface protection is particularly suitable for collecting leaks, splashes and drips during the transfer, transport, handling or storage of containers and empties, and offers an economical solution for preventive liquid protection

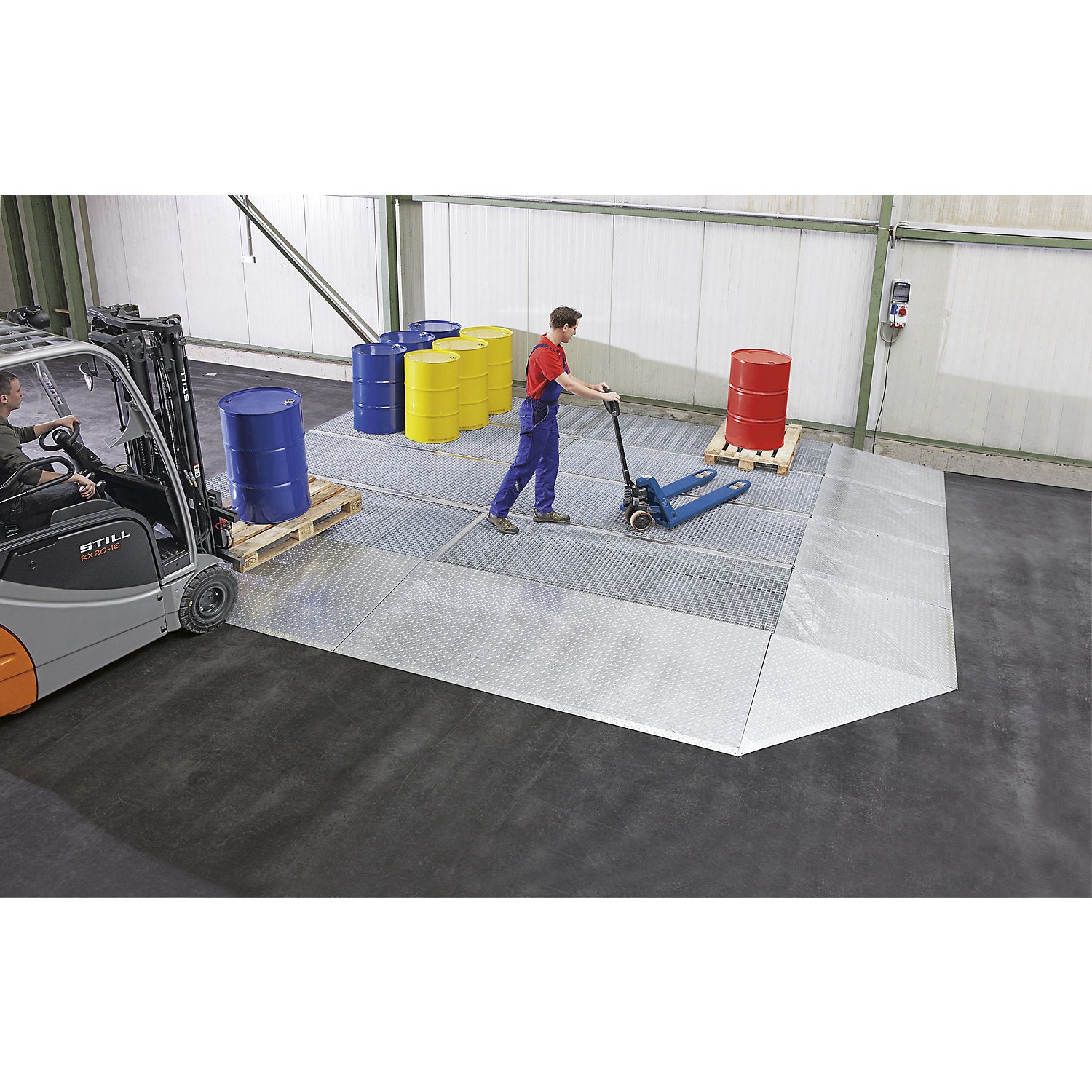

• Areas of application For lining empties storage areas and transport routes, during transformer maintenance, and as splash and leak protection
• Versions with 210 litre sump capacity are suitable for the storage of 200 litre drums
• Low profile sump trays with heavy duty grates are available for higher wheel loads
• Please enquire.
