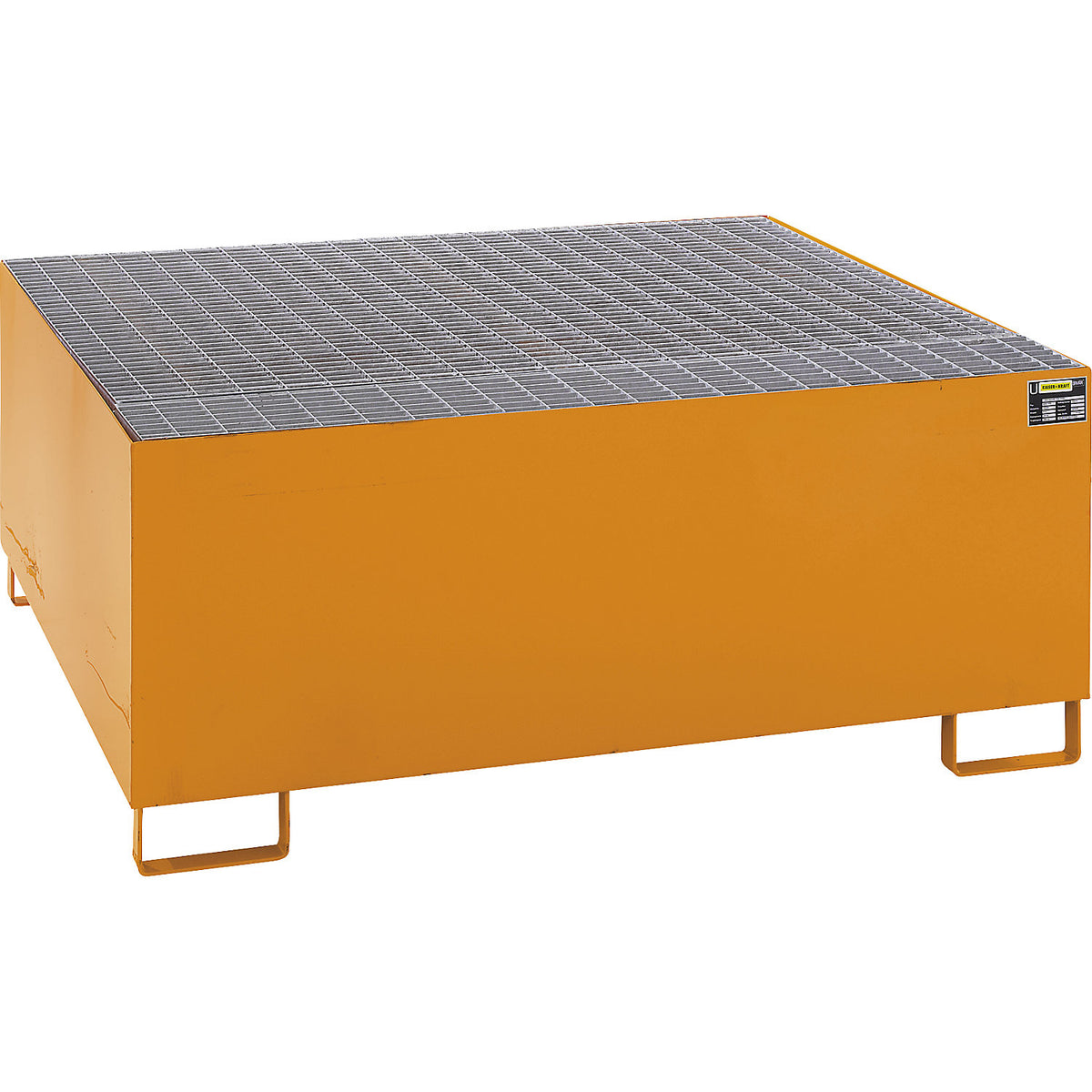

Steel sump tray for IBC/CTC tank containers, LxWxH 1460 x 1460 x 630 mm, sump capacity 1000 l, painted, orange RAL 2000.

Estimated delivery: 55 days

Steel sump tray for IBC/CTC tank containers, LxWxH 1460 x 1460 x 630 mm, sump capacity 1000 l, painted, orange RAL 2000

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 1000 l
• Drum capacity = 4x200 l. 1000 l container capacity = 1 pcs
• Length = 1460 mm
• Width = 1460 mm
• Height = 630 mm
• Colour = yellow orange RAL 2000
• Material = sheet steel
• Finish = painted
• Max. load = 1000 kg/m²
• Clearance height = 100 mm
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Distributed load = 1000 kg/m²
• Customs tariff number = 73090059
• Country of origin = DEU
• Gross weight = 180 kg
• Weight = 180 kg
• Sustainability = CO 2 footprint calculated
• Made of steel
• For IBC/CTC containers
• Protection against leaking liquids
• High mechanical load capacity
• Suitable for continuous use
• Corrosion-resistant surface

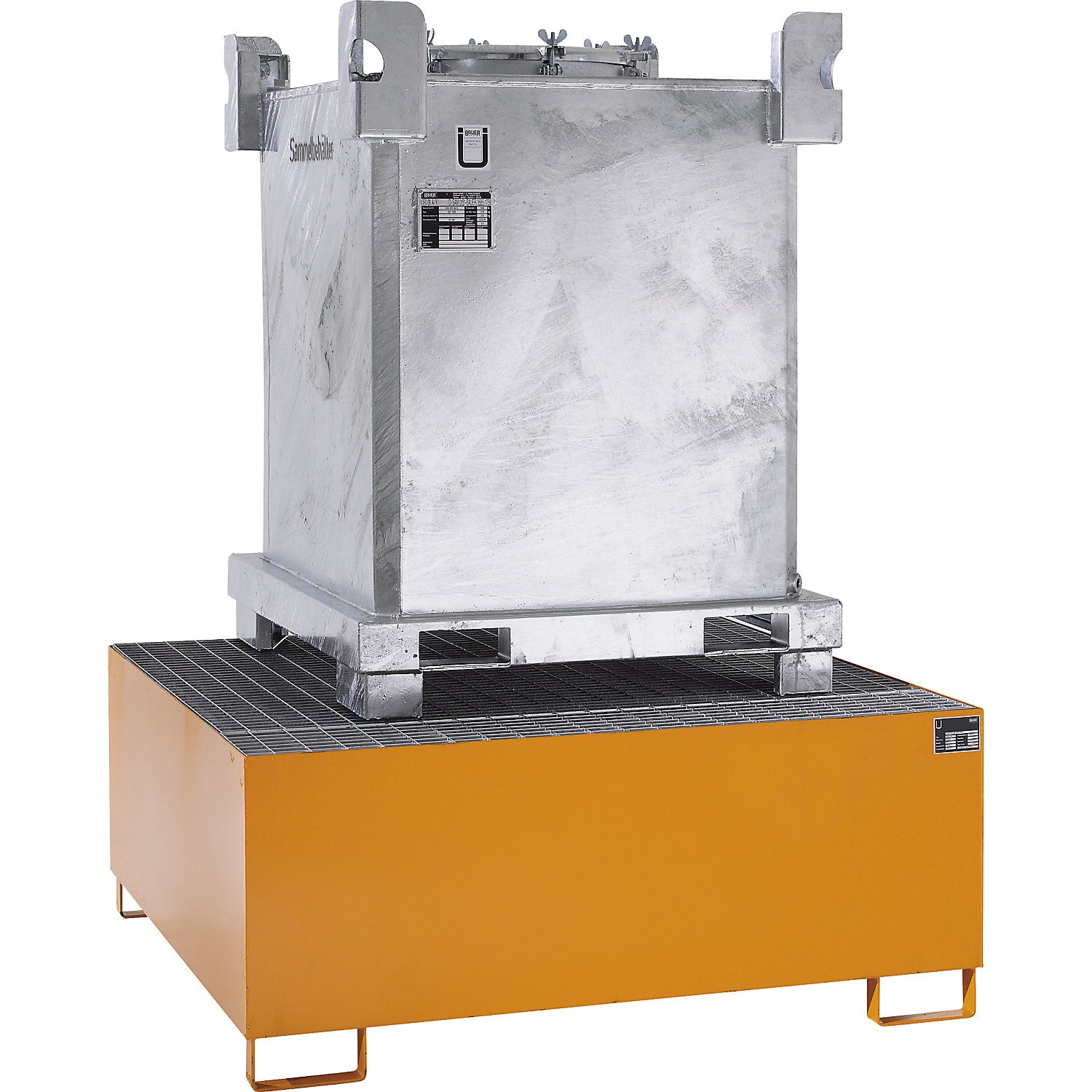

• With zinc plated support grates for storing drums and IBC/CTC containers
• The sump tray is made of steel and designed for the safe storage of tank containers (IBC/KTC)
• It is used to collect leaking liquids and thus contributes to protecting the ground and environment when storing substances hazardous to water
• The steel construction offers high mechanical strength, as required when used with heavy containers and when manoeuvring with industrial trucks
• The tray is intended for stationary use in storage, production and handling areas where tank containers are stored or filled
• It supports companies in complying with regulations on handling substances hazardous to water
• Due to its robust construction, the tray is designed for regular, continuous operational use
• The surface finish of the tray is adapted to the respective storage conditions and additionally contributes to corrosion protection
• Thanks to its sturdy design, the tray is suitable for permanent indoor and outdoor installation.
