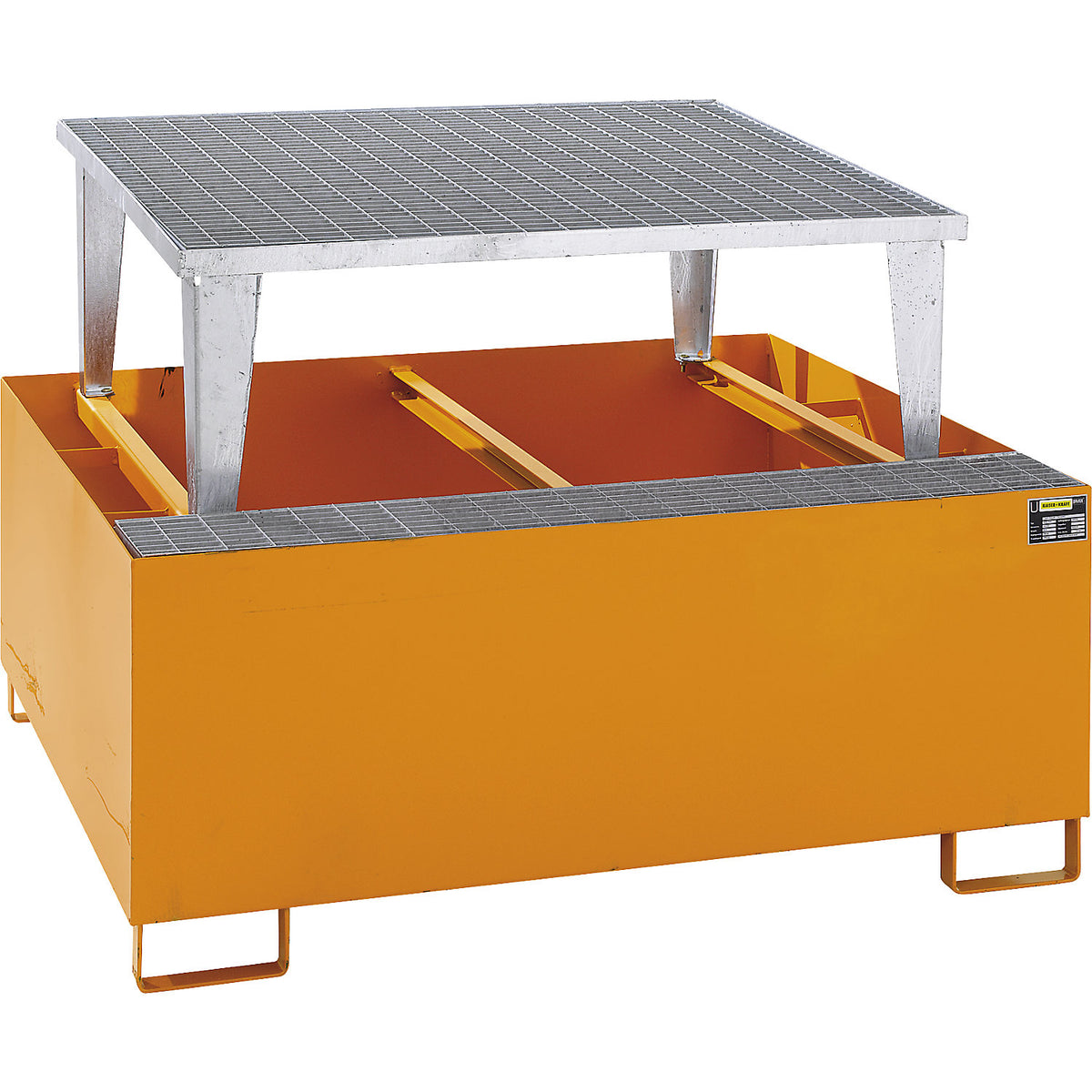

Steel sump tray for IBC/CTC tank containers, LxWxH 1460 x 1460 x 1090 mm, sump capacity 1000 l, painted, orange RAL 2000.

Estimated delivery: 48 days

Steel sump tray for IBC/CTC tank containers, LxWxH 1460 x 1460 x 1090 mm, sump capacity 1000 l, painted, orange RAL 2000

• Supplied = assembled
• Type of grate = with zinc plated grate
• Sump capacity = 1000 l
• Length = 1460 mm
• Width = 1460 mm
• Height = 1090 mm
• Filling attachment dimensions = 1250x1210x430 / 493 mm
• Quantity of filling attachments = 1 pcs
• Material = sheet steel
• Finish = painted
• Colour = yellow orange RAL 2000. 1000 l container capacity = 1 pcs
• Max. load = 1000 kg/m²
• Clearance height = 100 mm
• Test symbol = manufacturers declaration of conformity in accordance with StawaR
• Material thickness = 3 mm
• For media = flammable and water hazardous liquids
• Hazard class = for flammable liquids in GHS categories 1 - 3 as well as water hazardous liquids in GHS categories 1 - 4
• Distributed load = 1000 kg/m²
• Customs tariff number = 73090059
• Country of origin = DEU
• Gross weight = 199 kg
• Weight = 199 kg
• Sustainability = CO 2 footprint calculated

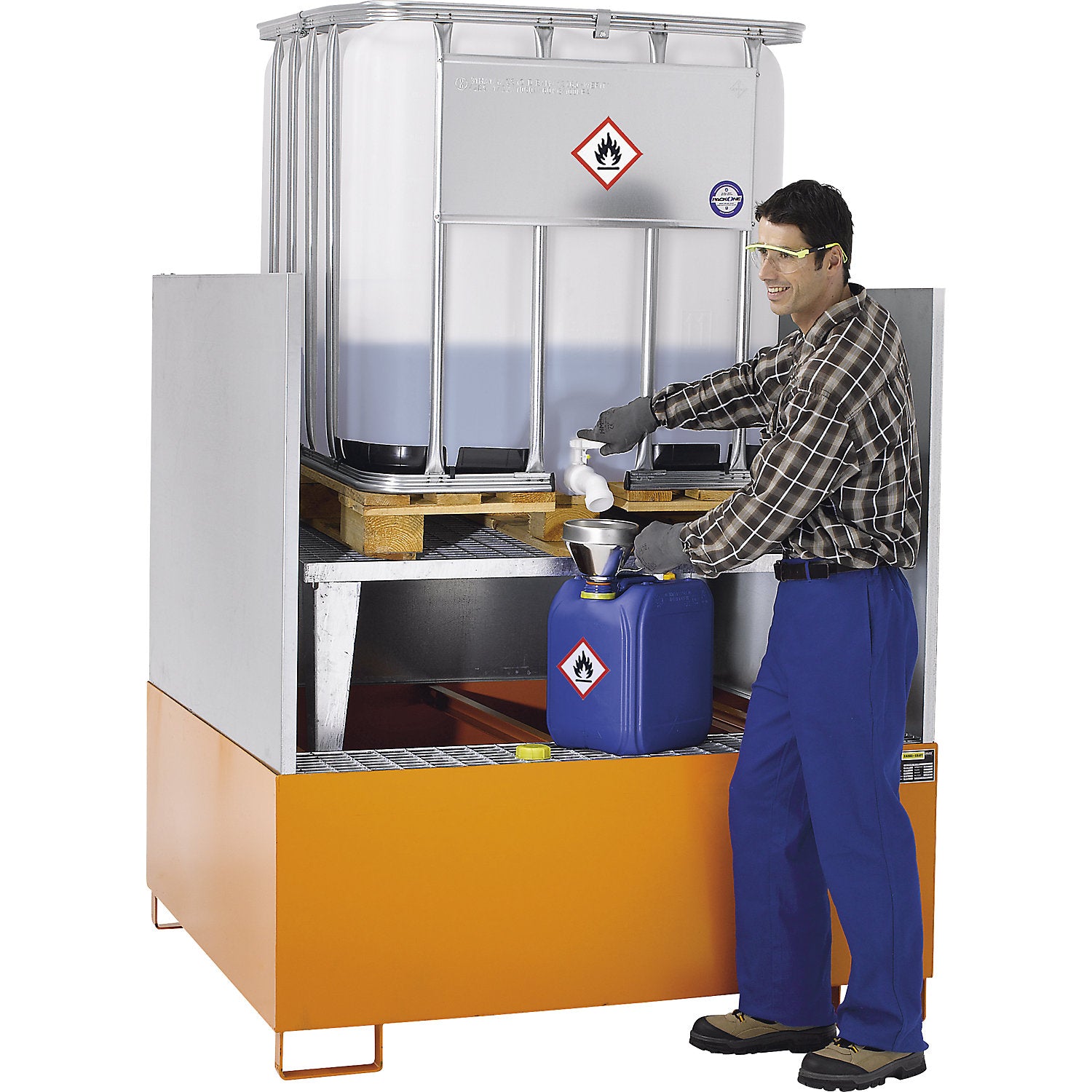

• With zinc plated support grates for storing drums and IBC/CTC containers, zinc plated filling attachments for easy filling of IBC/CTC containers
• The filling attachment can be positioned as needed
• For the regulation compliant storage and filling of water hazardous and flammable liquids in IBC / CTC containers and drums
• Fork guides provide 100 mm clearance height for easy, safe handling with lifting devices
• With zinc plated support grates for storing IBC/CTC and drums/CTC containers
• Sump tray made of 3 mm sheet steel
• Approved for flammable liquids in GHS categories 1 - 3 as well as for water hazardous liquids in GHS categories 1 - 4
• Manufacturers declaration of conformity in accordance with StawaR.
