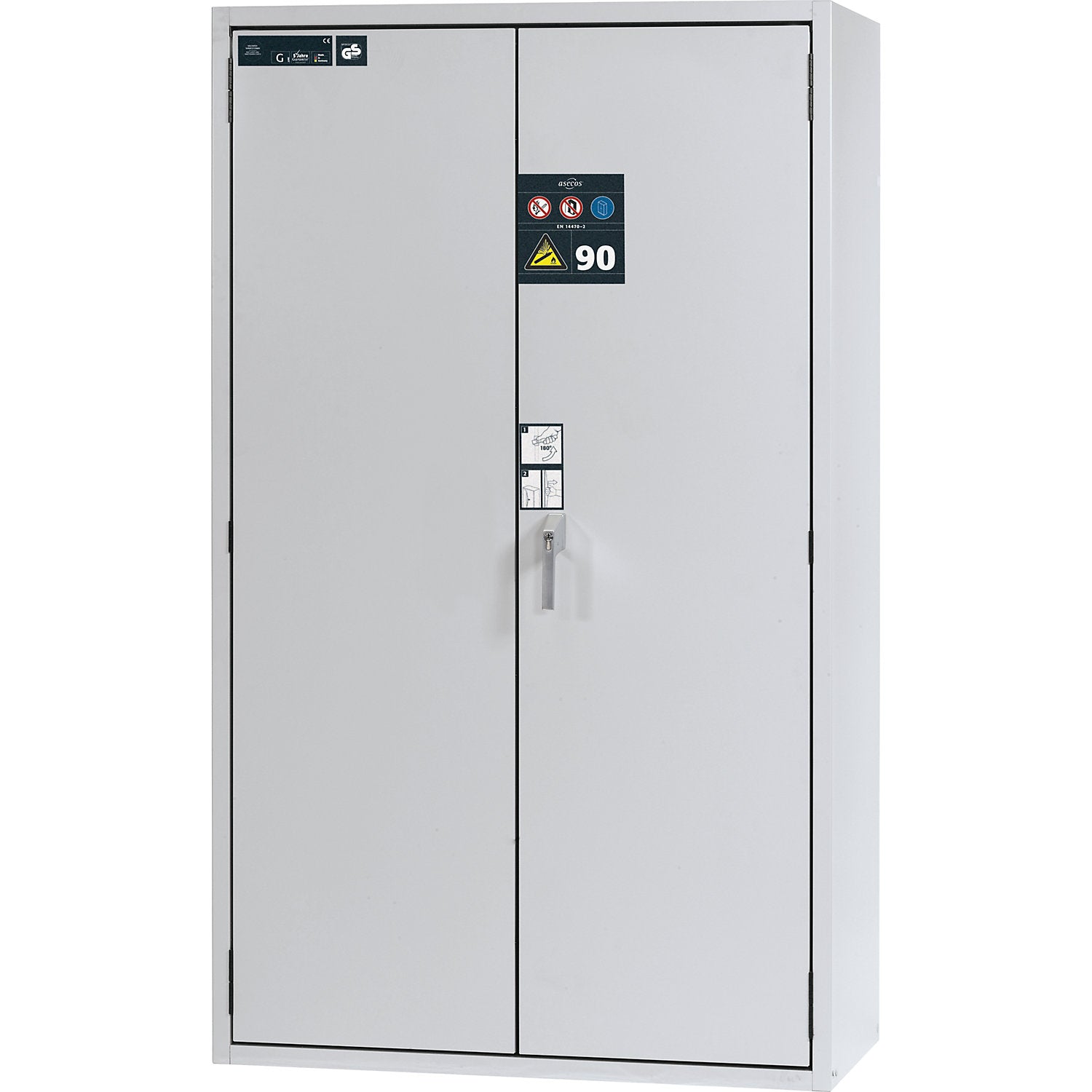

G90 fire-resistant pressurised gas cylinder cupboard, for storage in workrooms, for 4 x 50 l bottles, external width 1200 mm.

Estimated delivery: 111 days

G90 fire-resistant pressurised gas cylinder cupboard, for storage in workrooms, for 4 x 50 l bottles, external width 1200 mm

• Supplied = assembled
• Fire resistance = 90 minutes
• Material = special fire resistant boards, sheet steel, powder coated
• Height = 2050 mm
• Width = 1200 mm
• Depth = 615 mm
• Body colour = light grey
• Door colour = light grey
• Internal height = 1855 mm
• Internal width = 1040 mm
• Internal depth = 425 mm
• Cylinder capacity = 4x50 l
• Hazard class = for flammable and toxic gases in work rooms in accordance with EN 14470-2 and TRGS 510 (appendix 3)
• Ventilation = ventilation connection (NW 75)
• Door type = hinged door
• Lock type = profile cylinder in rotary handle
• Number of doors = 2 pcs
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 501 kg
• Weight = 485 kg
• Sustainability = CO 2 footprint calculated
• For the regulation-compliant storage of flammable and toxic compressed gas cylinders in workrooms
• Compliant with DIN EN 14470-2 and TRGS 510 (appendix 3)
• Fire resistance 90 minutes type-tested, GS-tested and CE-compliant
• Suitable for storage of 50 l pressurised gas cylinders
• The fire resistant G90 pressurised gas cylinder cupboard made by asecos allows flammable and toxic pressurised gas cylinders to be stored in workrooms in accordance with EN 14470-2 and TRGS 510 (Annex 3)
• With a fire resistance of 90 minutes, type tested, GS tested and CE compliant, this cupboard fulfils the highest safety standards
• It is perfect for storing 50 l pressurised gas cylinders
• The outer body is made of robust, powder coated sheet steel and provides long term protection and stability
• The lockable door with a profile cylinder ensures additional security and is compatible with locking systems
• The cupboard is particularly easy to set up using the integrated levelling feet, which can compensate for uneven flooring
• In addition, the large internal height and the extensive access openings in the top of the cupboard make it easy to install fittings and pipework
• The integrated ventilation system, which can be connected to a forced ventilation system (NW 75), ensures that the interior is uniformly ventilated from floor to ceiling
• As an option, the cupboard can be fitted with a high quality F90 glass section which makes it easy to check the fill level and pressure of the gas cylinders
• Tested and certified, the asecos G90 pressurised gas cylinder cupboard provides a high level of safety and functionality for daily use in working environments where flammable or toxic pressurised gases are used in workrooms

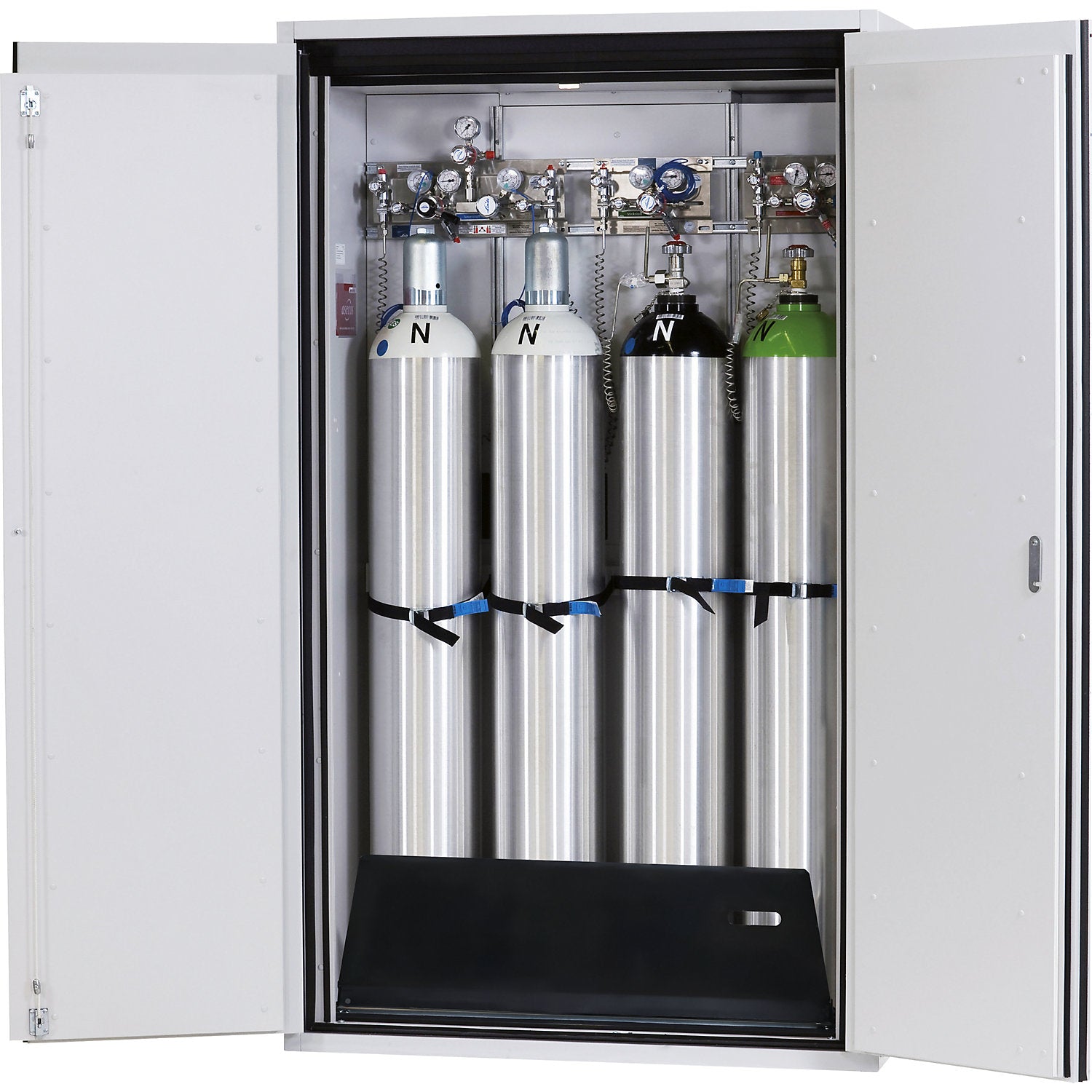

• Standard interior pressurised gas cylinder fittings for installation on the side wall, consisting of: - Mounting rails - Cylinder holder - Strap retractor Certificates: - Fireproof for 90 minutes - Tested model in accordance with EN 14470-2 - Compliant with EN 16121/16122 - GS certified - Compliant with CE Cylinders and fittings are not included.
