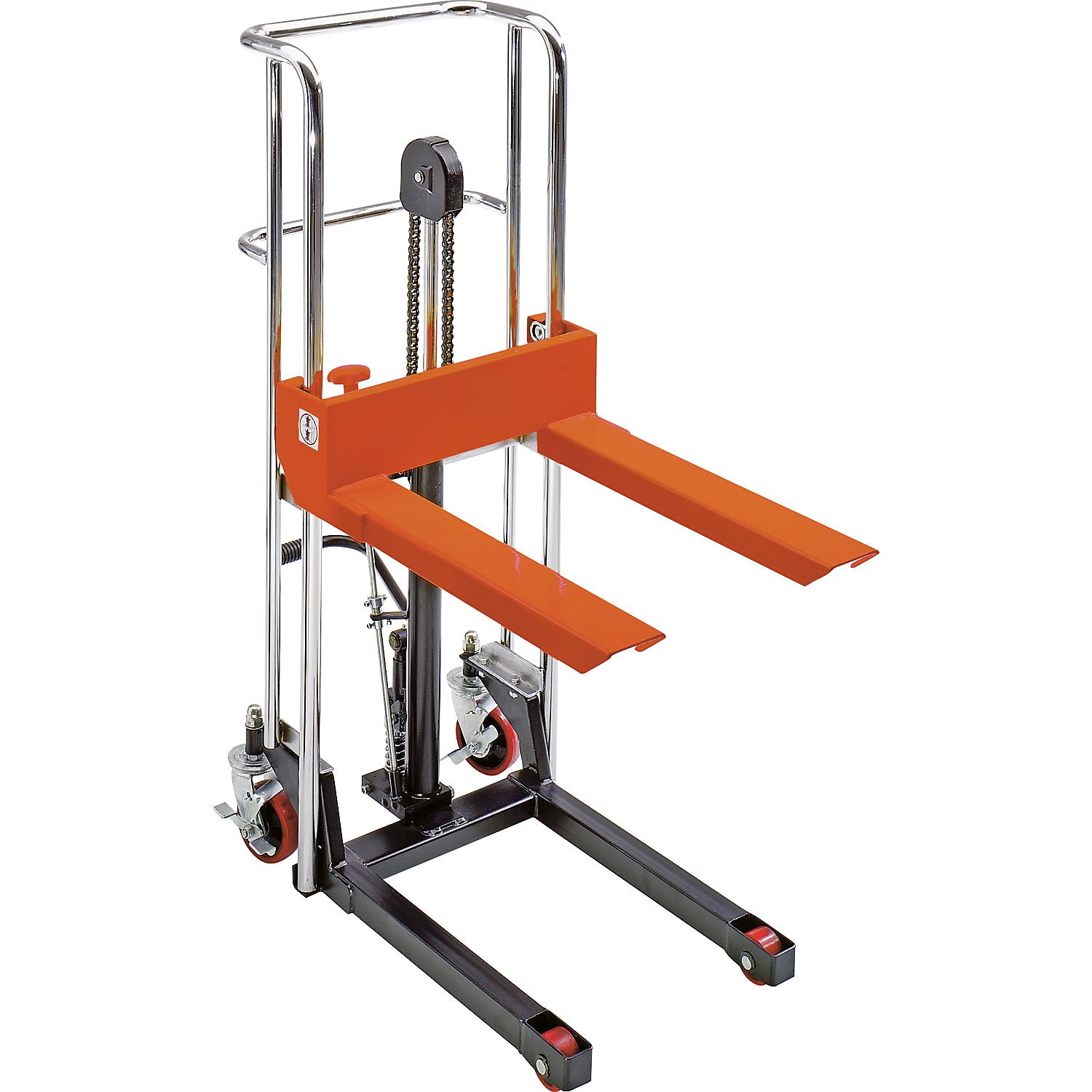

Budget stacker, pedal hydraulics, lifting range 85 - 765 mm.

Estimated delivery: 31 days

Budget stacker, pedal hydraulics, lifting range 85 - 765 mm

• Supplied = assembled
• Max. load = 400 kg
• Load centre = 350 mm
• Lifting range = 85 - 765 mm
• Fork length = 650 mm
• Distance across forks = 580 mm
• Fork width = 110 mm
• Length = 1035 mm
• Width = 580 mm
• Height = 955 mm
• Lift per pedal stroke = 10 mm
• Clearance height = 85 mm
• Material = steel
• Finish = powder coated
• Colour = pure orange RAL 2004
• Customs tariff number = 84279000
• Country of origin = CHN
• Gross weight = 75.5 kg
• Weight = 75 kg
• Sustainability = CO 2 footprint calculated
• Max. load 400 kg
• Lift and transport with a single device
• Platform included with delivery, easy to remove

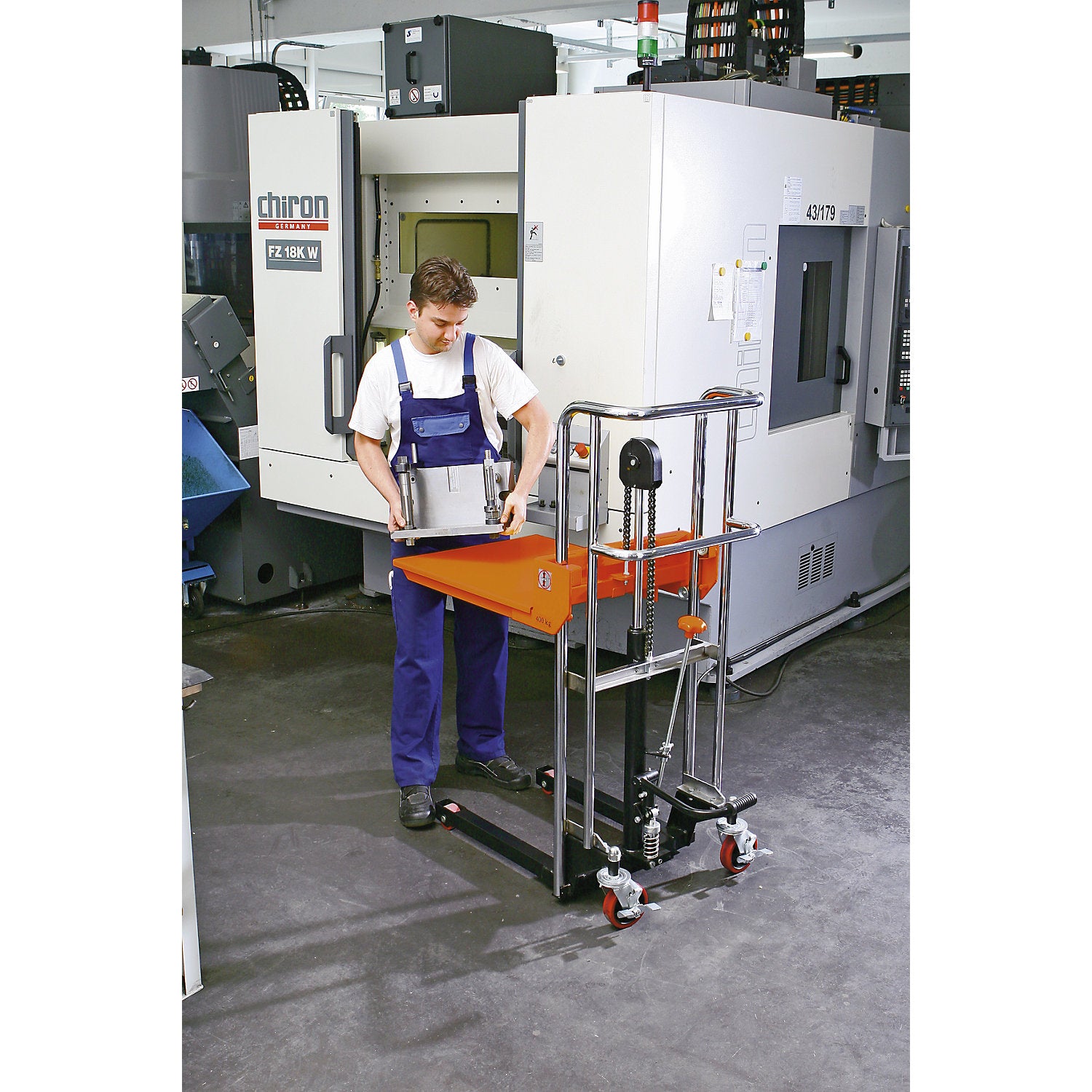

• The platform lift combines a function to transport and lift loads of up to 400 kg
• It is supplied complete with an easy to remove platform, making it versatile to adapt to different transport requirements

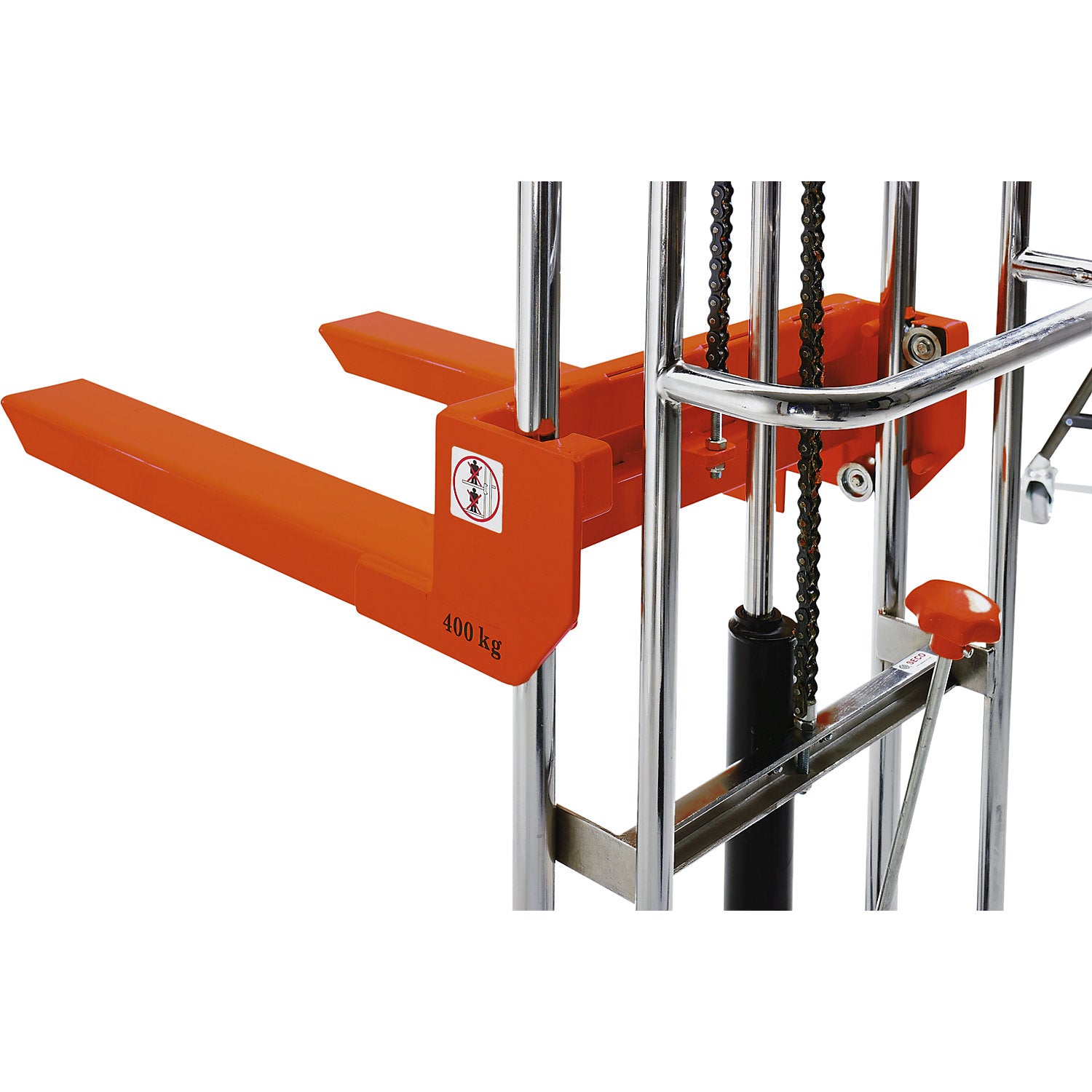

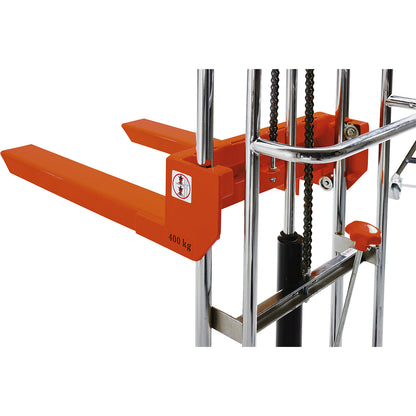

• The fork carrier bracket runs smoothly on a lifting runner along the chrome plated tubular frame, ensuring stable and precise handling
• The powder coating ensures the platform lift is particularly robust and durable
• Equipped with two swivel wheels with stops and fork rollers with polyurethane wheels, it has a low rolling resistance for good manoeuvrability and is gentle on sensitive floors
• The hydraulic cylinder, pump and tank are combined into one compact unit, which enables a powerful and precise lifting performance
• An integrated overload valve protects the device from overloading and provides additional safety when lifting heavy loads
• Pedal hydraulics Lift with folding pedal
• Lower with manual valve, millimetre accurate control.
