PRAKTIKUS PS post mounted jib crane, without electric chain hoist, max. load 250 kg, reach 5 m.

Estimated delivery: 59 days

PRAKTIKUS PS post mounted jib crane, without electric chain hoist, max. load 250 kg, reach 5 m

• Supplied = flat pack
• Swivel range = 270°
• Design of rotary crane = crane without electric chain hoist
• Flange width = 82 mm
• Overall height = 3290 mm
• Height of lifting gear = 433 mm
• Reach = 5000 mm
• Crane jib bottom edge = 2500 mm
• Colour = daffodil yellow RAL 1007
• Material = steel
• Product type = post mounted jib cranes
• Customs tariff number = 84261100
• Country of origin = DEU
• Gross weight = 295.6 kg
• Weight = 295 kg
• Ideally suited for raising, lowering and passing on loads
• High quality craftsmanship
• Flexible assembly fixtures with several versions
• This post mounted jib crane can be used for simple lifting jobs
• The braced design and the low weight of the beam makes it easy to swivel
• Regardless of whether it is used indoors or outdoors, the individual post height and the stabiliser length means it adapts perfectly to your needs
• With a swivel range of 270°, it can quickly and easily move loads or machine components to the workplace close by
• Included in delivery: Standard electrical system with lockable mains cut-off switch and current feed to hoist
• Cable holding bracket up to 3 m jib length
• Round trailing cable for min. jib length of 4 m
• Securing bolt system VAS2
• Signage and documentation

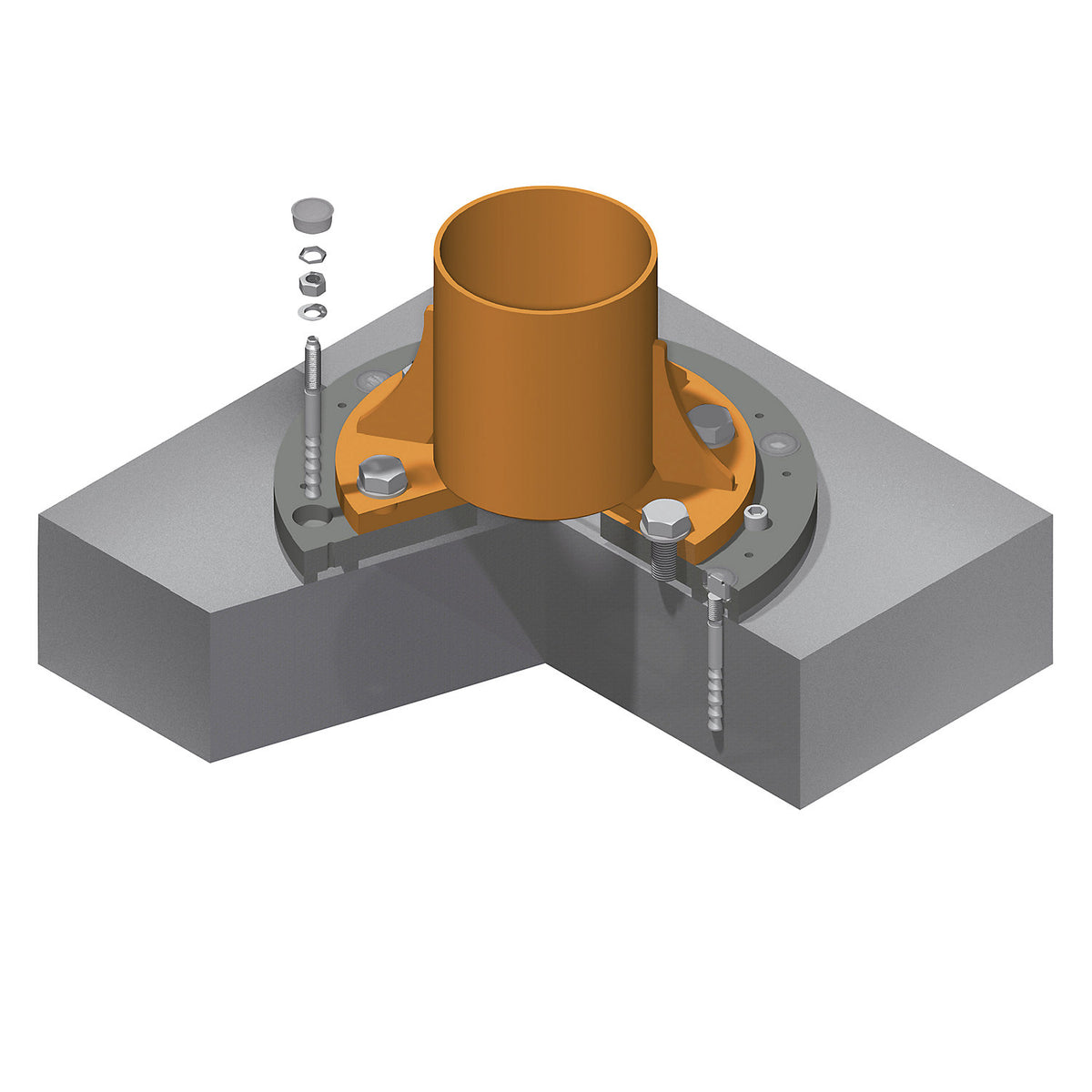

• Securing bolt system VAS2: For direct mounting to B25 concrete floors, min. thickness 170 mm
• Can be put into service immediately after assembly - no base casting required on even floor
• Uneven flooring (up to 10 mm) compensated by underlay
• Includes recessed plugs - no tripping hazard
• Does not include chassis and electric chain hoist
• The technical specifications for these cranes makes it necessary to manufacture them to order - no right of return
• You couldn't find the right model? Other load capacities, reaches, overall heights, paint coats and mounting systems available on request.
