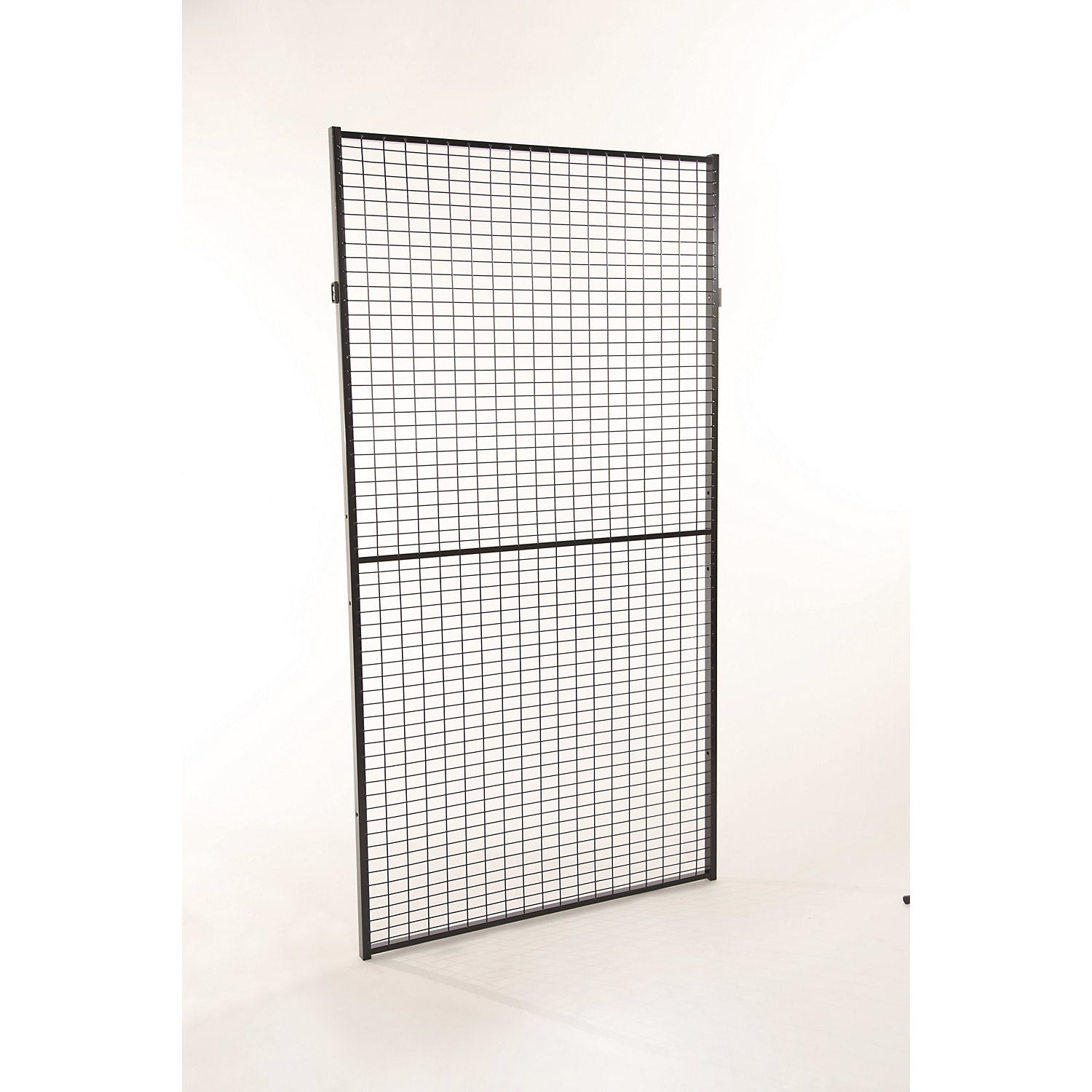

X-GUARD CLASSIC machine protective fencing, wall section, height 2200 mm, width 900 mm.

Estimated delivery: 51 days

X-GUARD CLASSIC machine protective fencing, wall section, height 2200 mm, width 900 mm

• Supplied = assembled
• Height = 2200 mm
• Width = 900 mm
• Colour = graphite black RAL 9011
• Mesh size = 30x50 mm
• Finish = powder coated
• Frame profile = 20x30 mm
• Material = steel, wire mesh
• Stiffening profile = 25x15 mm
• Thickness of wire = 3.0 / 2.5 mm
• Product type = machine protective fencing made of steel
• Customs tariff number = 73143900
• Country of origin = SWE
• Gross weight = 9.57 kg
• Weight = 9.57 kg
• Sustainability = CO 2 footprint calculated

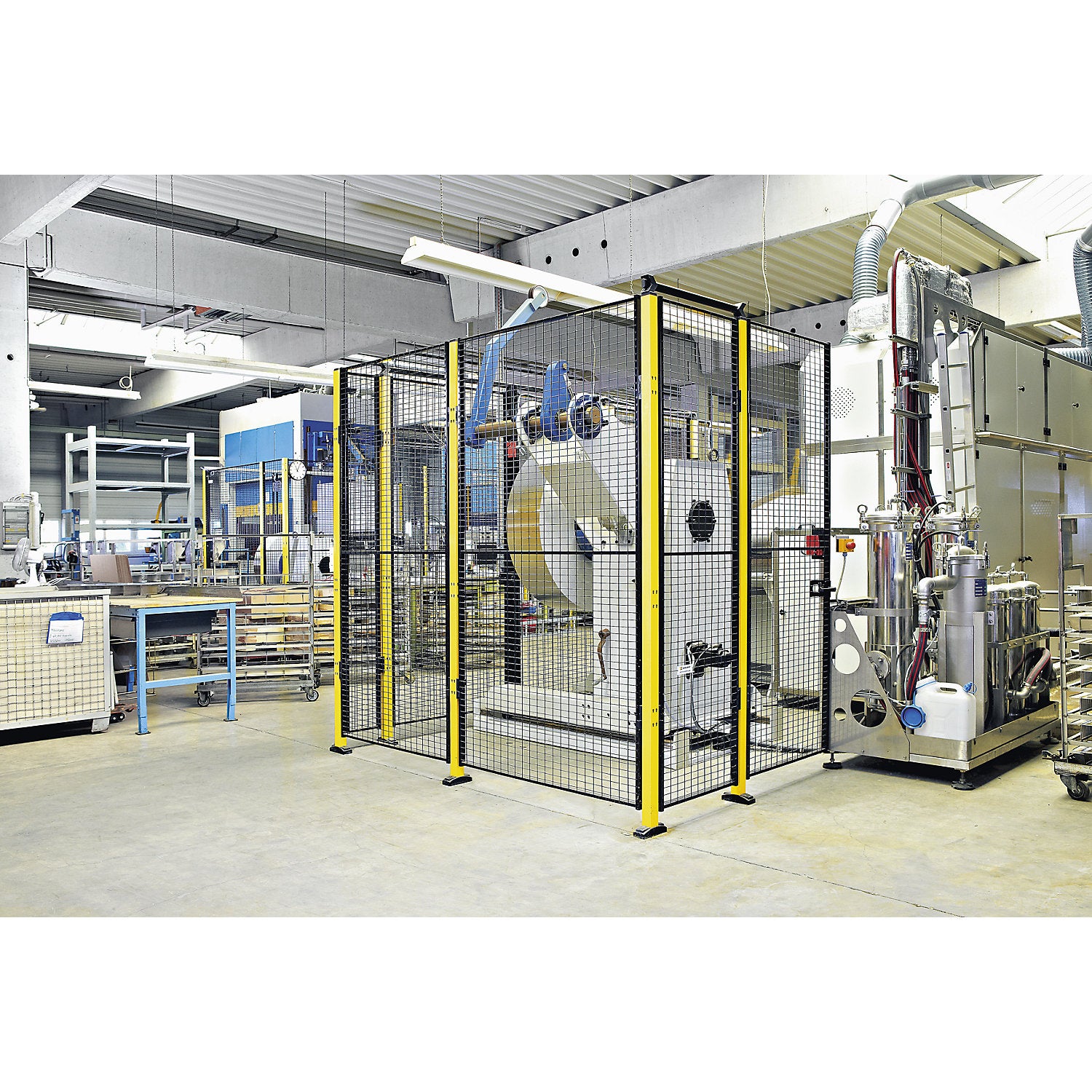

• The protective fencing system for machines, systems and robots - 200 mm safety clearance from source of danger
• Fulfils machine directive 2006/42/EC
• Regulation compliant mesh size of 30 x 50 mm - cannot be reached through
• High quality powder coating
• Add-on door kit converts wall sections into single/double hinged doors or sliding doors
• Quick assembly - versatile expansion options
• Powder coated in graphite black RAL 9011
• Wire mesh welded to a solid, rectangular tubular frame
• Vertical tubing 20 x 30 mm, horizontal tubing 25 x 15 mm, mesh size 30 x 50 mm, wire thickness 3.0/2.5 mm

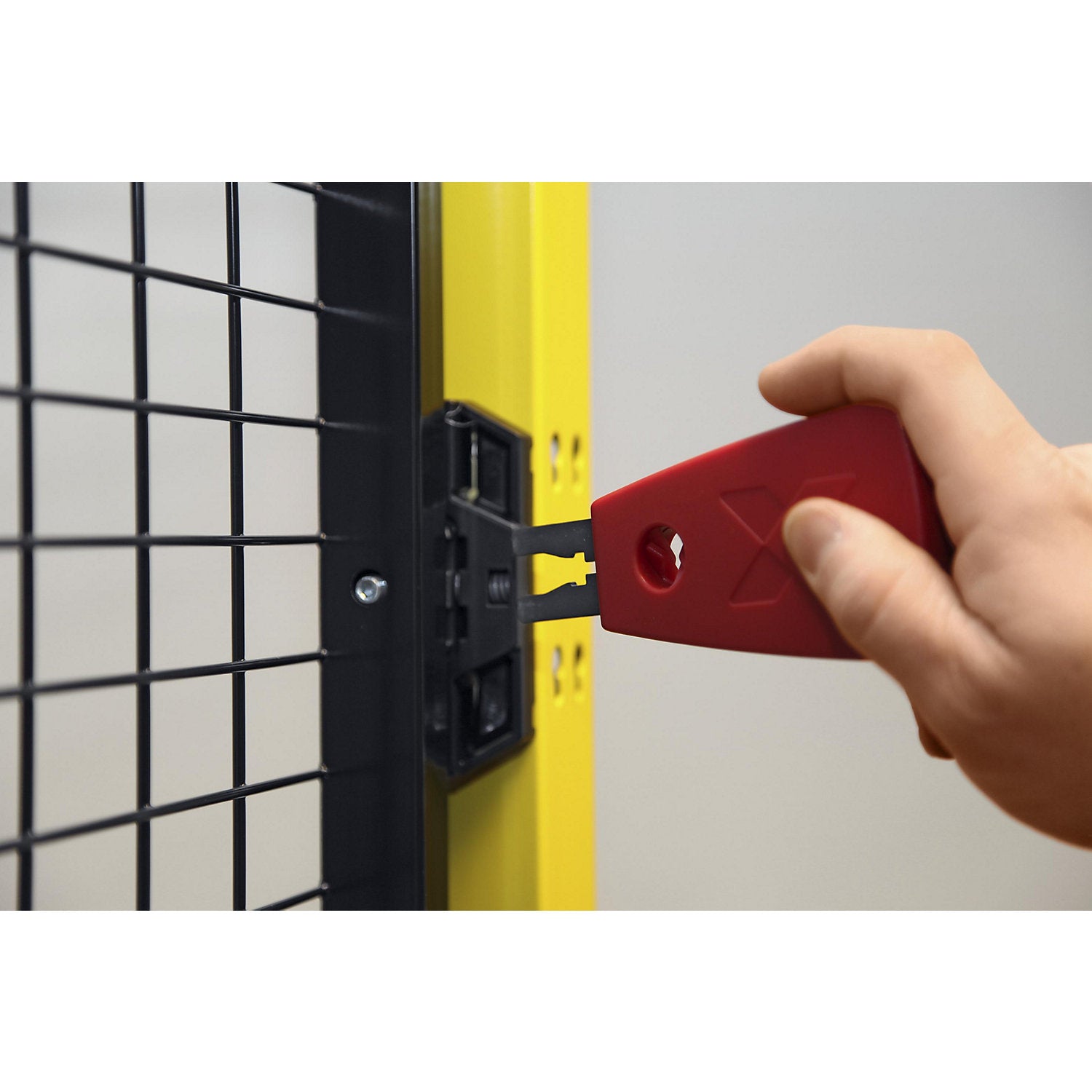

• Easy fastening to the uprights due to click-fit feature
• Custom dimensions available on request.
