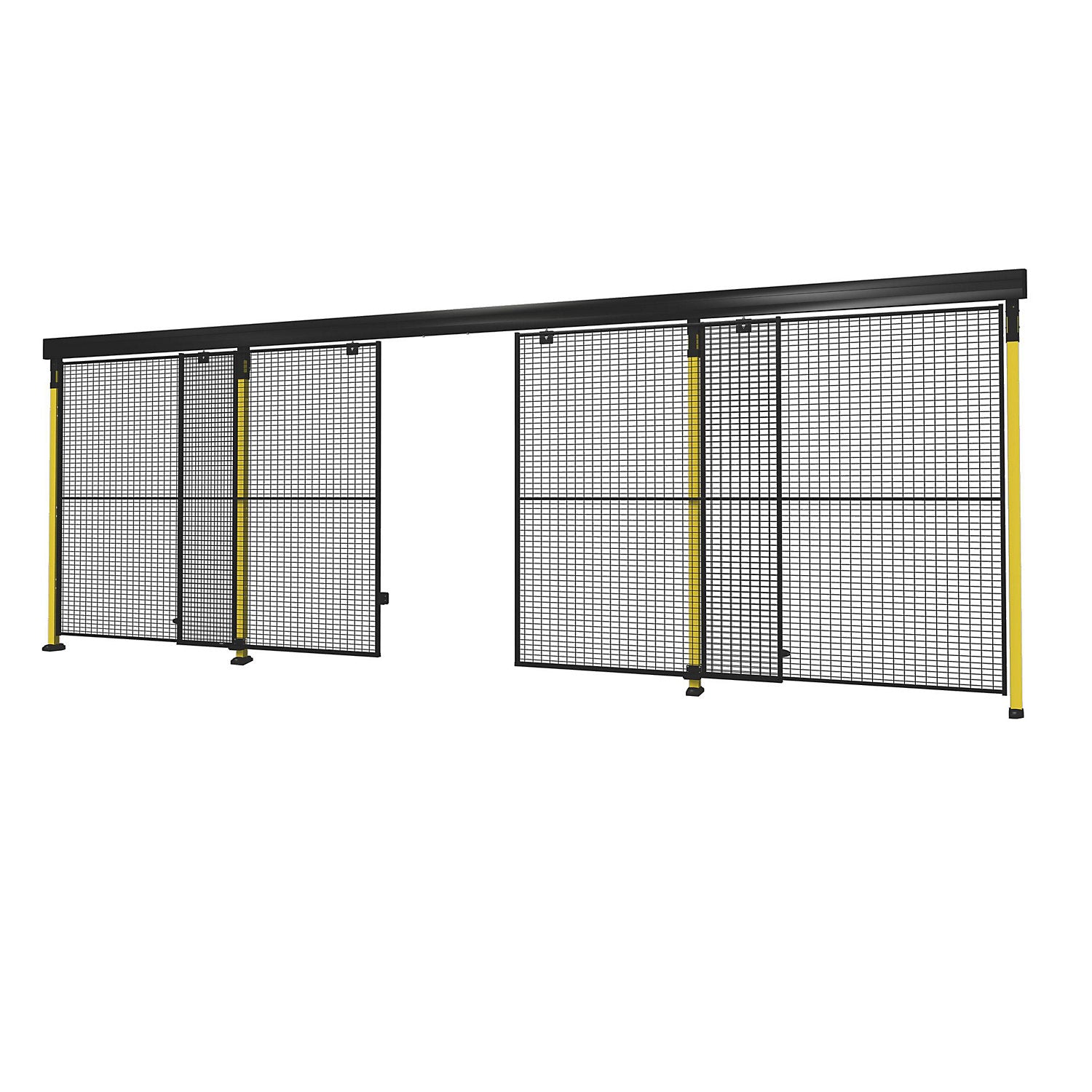

X-Guard door add-on kit (without door wall element, supports and locking mechanism), double door as sliding door, HxW 2500 x max. 5900 mm.

Estimated delivery: 51 days

X-Guard door add-on kit (without door wall element, supports and locking mechanism), double door as sliding door, HxW 2500 x max. 5900 mm

• Supplied = flat pack
• Height = 2500 mm
• Width = 5900 mm
• Door type = sliding door
• Door hinge position = left or right
• Model = double door
• Finish = powder coated
• Mesh size = 30x50 mm
• Thickness of wire = 3.0 / 2.5 mm
• Material = rectangular steel pipe, steel wire
• Frame profile = 20x30 mm
• Lock type = without lock
• Stiffening profile = 25x15 mm
• Colour = graphite black RAL 9011
• Product type = machine protective fencing made of steel
• Customs tariff number = 73089098
• Country of origin = SWE
• Gross weight = 50.47 kg
• Weight = 50.47 kg
• Sustainability = CO 2 footprint calculated

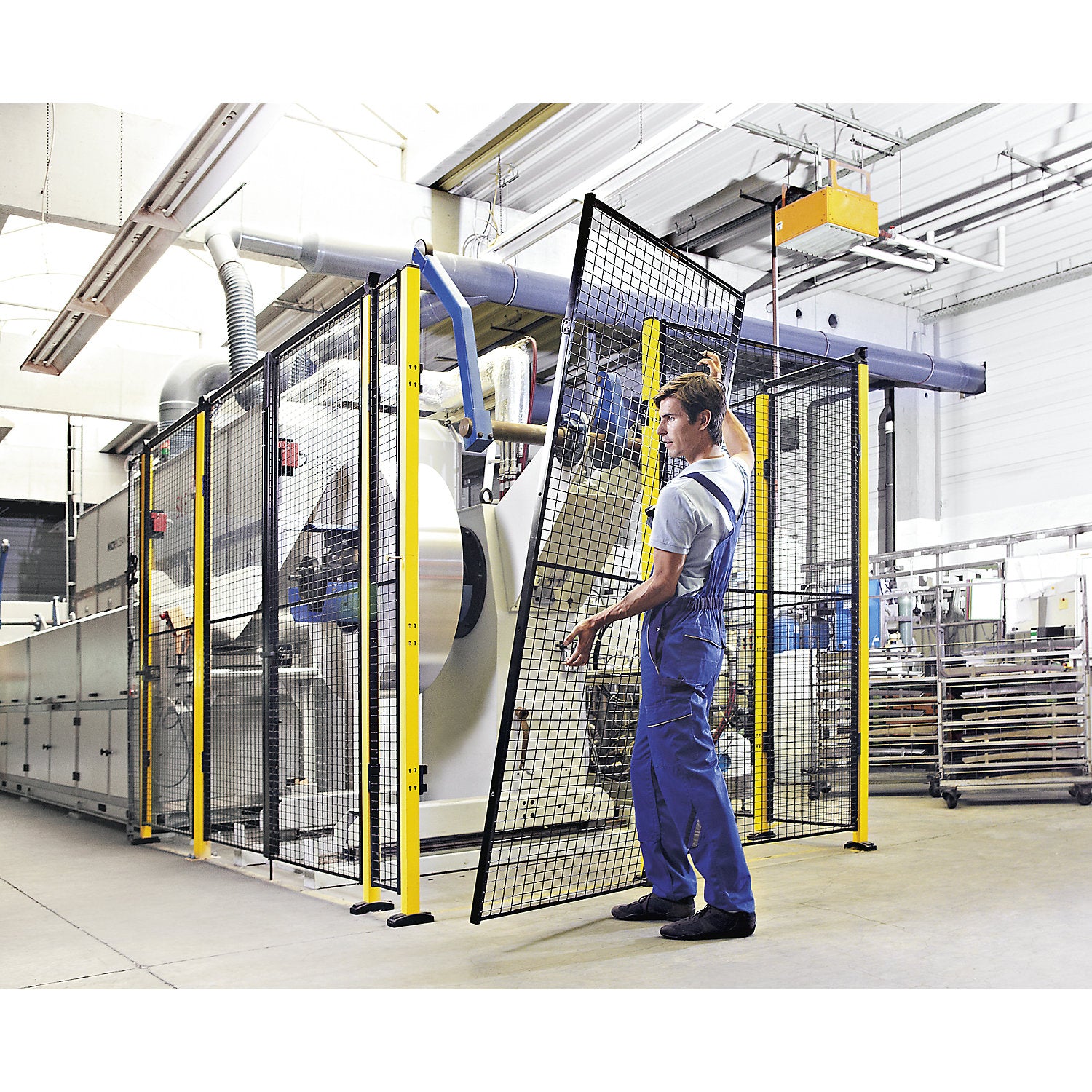

• X-GUARD - the protective fencing system for machines, systems, robots, storage and logistics - 200 mm safety clearance from source of danger
• Fulfils machine directive 2006/42/EC
• Regulation compliant mesh size of 30 x 50 mm - cannot be reached through
• High quality powder coating
• Add-on door kit converts wall sections into single/double hinged doors or sliding doors
• Quick and easy assembly
• Hinged doors and sliding doors are available in single and double door versions
• They are designed to enable versatile mounting options
• At least one wall section and two uprights are required for the add-on door kits offered
• Please order together with the necessary X-GUARD CLASSIC wall sections and uprights
• Lock housing and handle (for the installation of a Euro lock cylinder provided by the customer) can be included with your order as an accessory
• A Euro lock system cannot be fitted at a later stage
• Important ordering information for add-on door kits When ordering doors kits, the required X-GUARD CLASSIC door panels, uprights and the corresponding locking mechanism must be ordered at the same time
• X-Lock system incl. suitable safety switch is available on request
• With mechanical splint which holds the doors open
• The mechanism requires intentional activation from outside to open and close doors
• From inside, X-Lock can always be opened, but never closed
• In accordance with EN ISO 12100, section 5.5.3.
