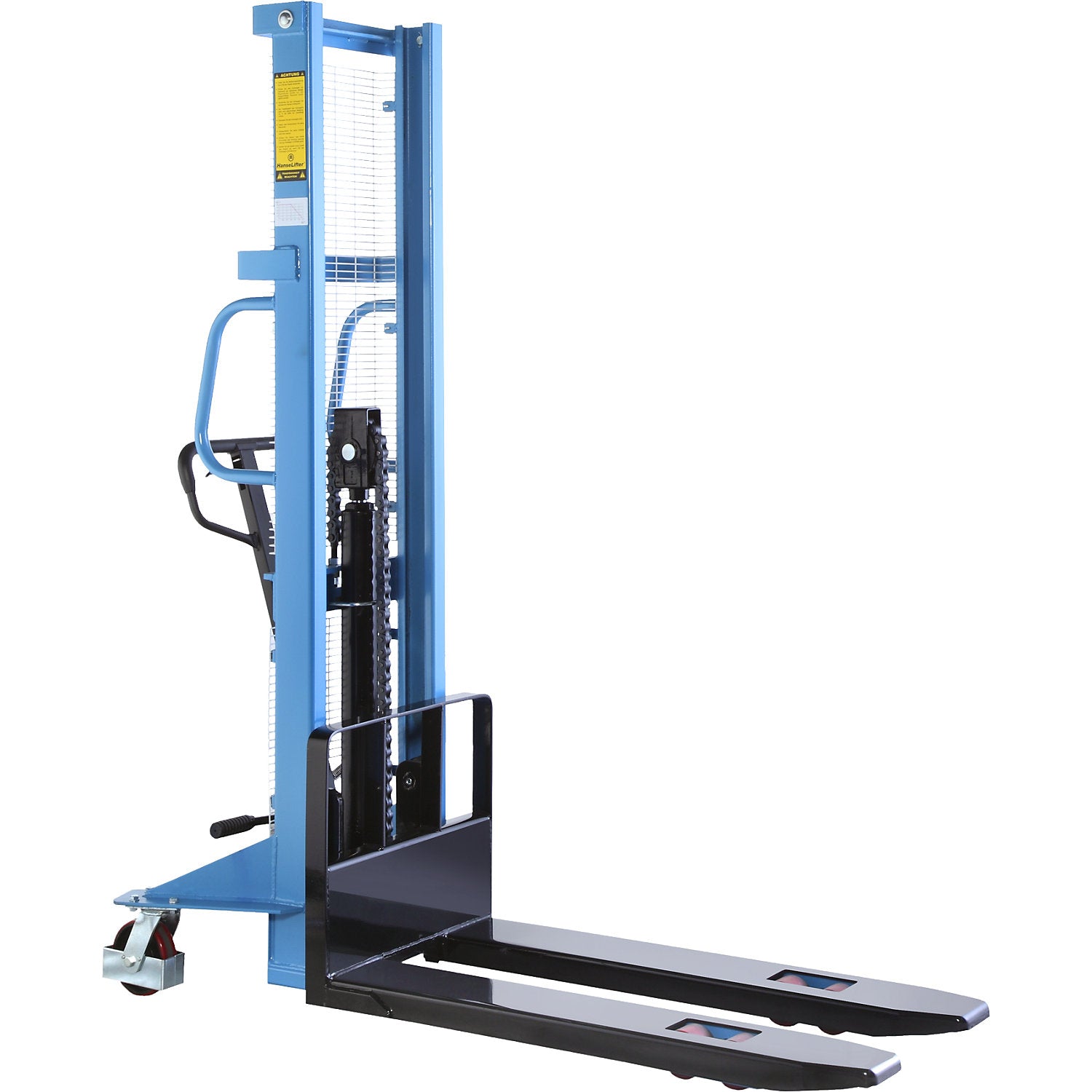

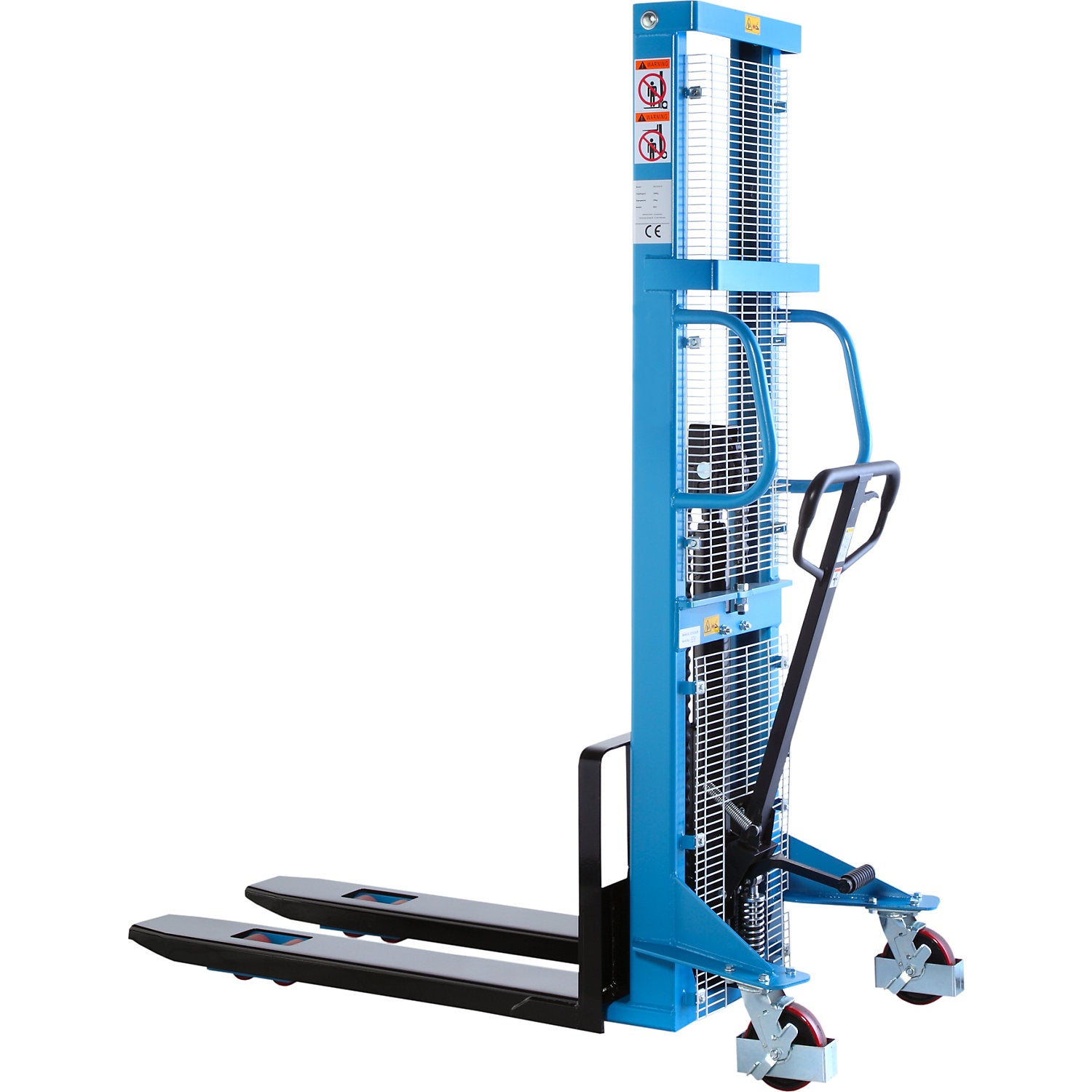

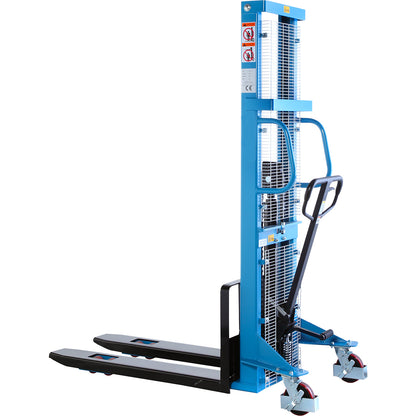

High lift stacker, lifting range 90 - 3000 mm, max. load 1000 kg, overall height 2090 mm.

Estimated delivery: 33 days

High lift stacker, lifting range 90 - 3000 mm, max. load 1000 kg, overall height 2090 mm

• Supplied = assembled
• Max. load = 1000 kg
• Load centre = 500 mm
• Lifting range = 90 - 3000 mm
• Fork length = 1150 mm
• Distance across forks = 550 mm
• Fork width = 170 mm
• Length = 1705 mm
• Width = 860 mm
• Overall height = 2090 mm
• Design of mast = telescopic mast
• Lift per pump stroke = 20 mm
• Wheel fittings = 2 swivel castors with wheel stops
• Wheel material = polyurethane
• Castor diameter front / rear = 83 / 150 mm
• Steering wheel width = 40 mm
• Fork roller version = tandem
• Fork roller width = 60 mm
• Finish = powder coated
• Colour = light blue RAL 5012
• Customs tariff number = 84279000
• Country of origin = CHN
• Gross weight = 311 kg
• Weight = 310 kg
• Sustainability = CO 2 footprint calculated
• Max. load 1000 kg
• Environmentally friendly: manual transport and lifting
• Robust construction with reinforced mast profile
• Load chain and hydraulic cylinder with guard screen for safety
• Excellent stability due to wheel stops on the steering wheels - even under full load
• High quality powder coating in light blue RAL 5012
• Lifting and lowering Energy saving lifting via drawbar or pedal
• Hardened, chrome plated hydraulic ram
• Progressive lowering via rubberised, ergonomically shaped drawbar handle
• Safety overload valve ensures a long service life.
