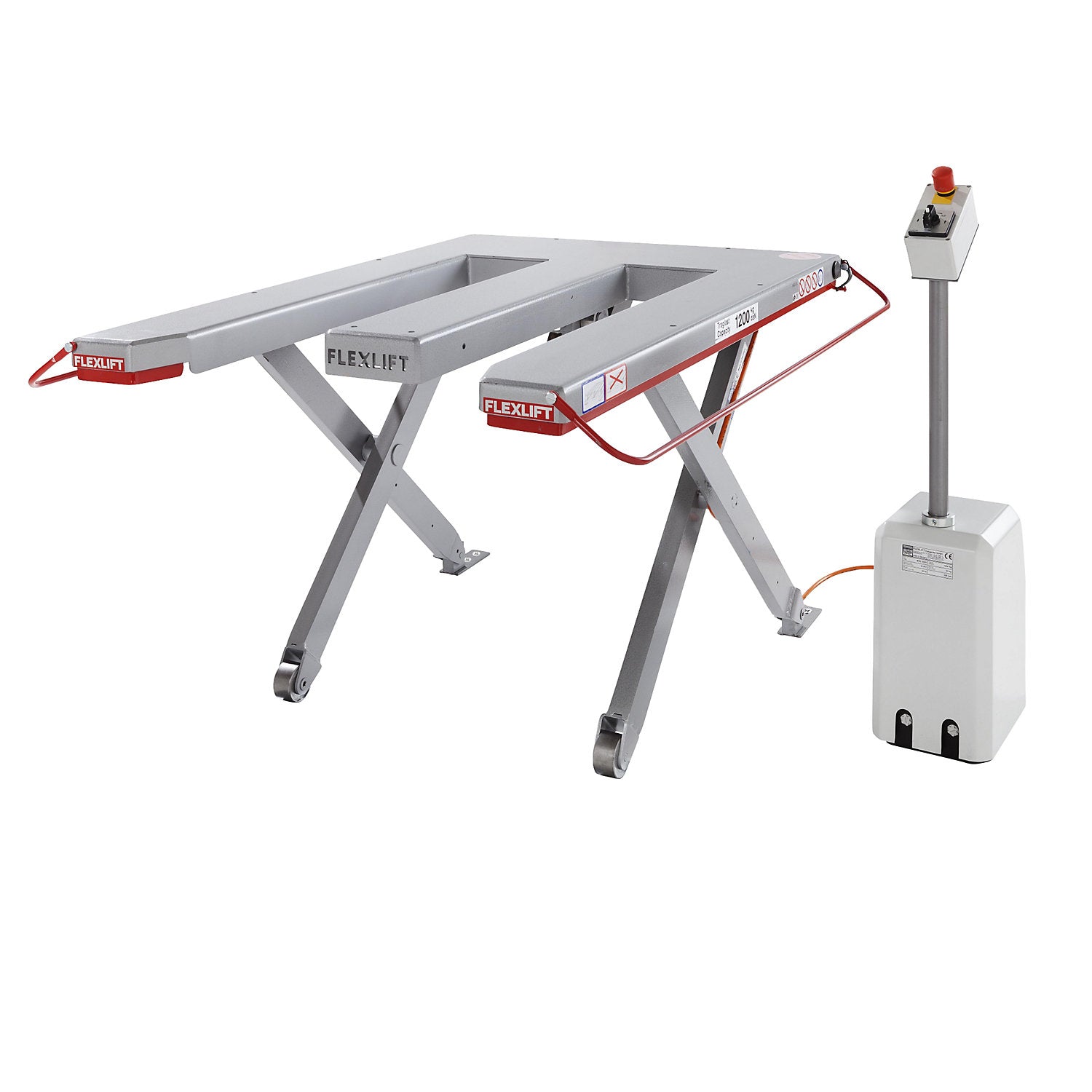

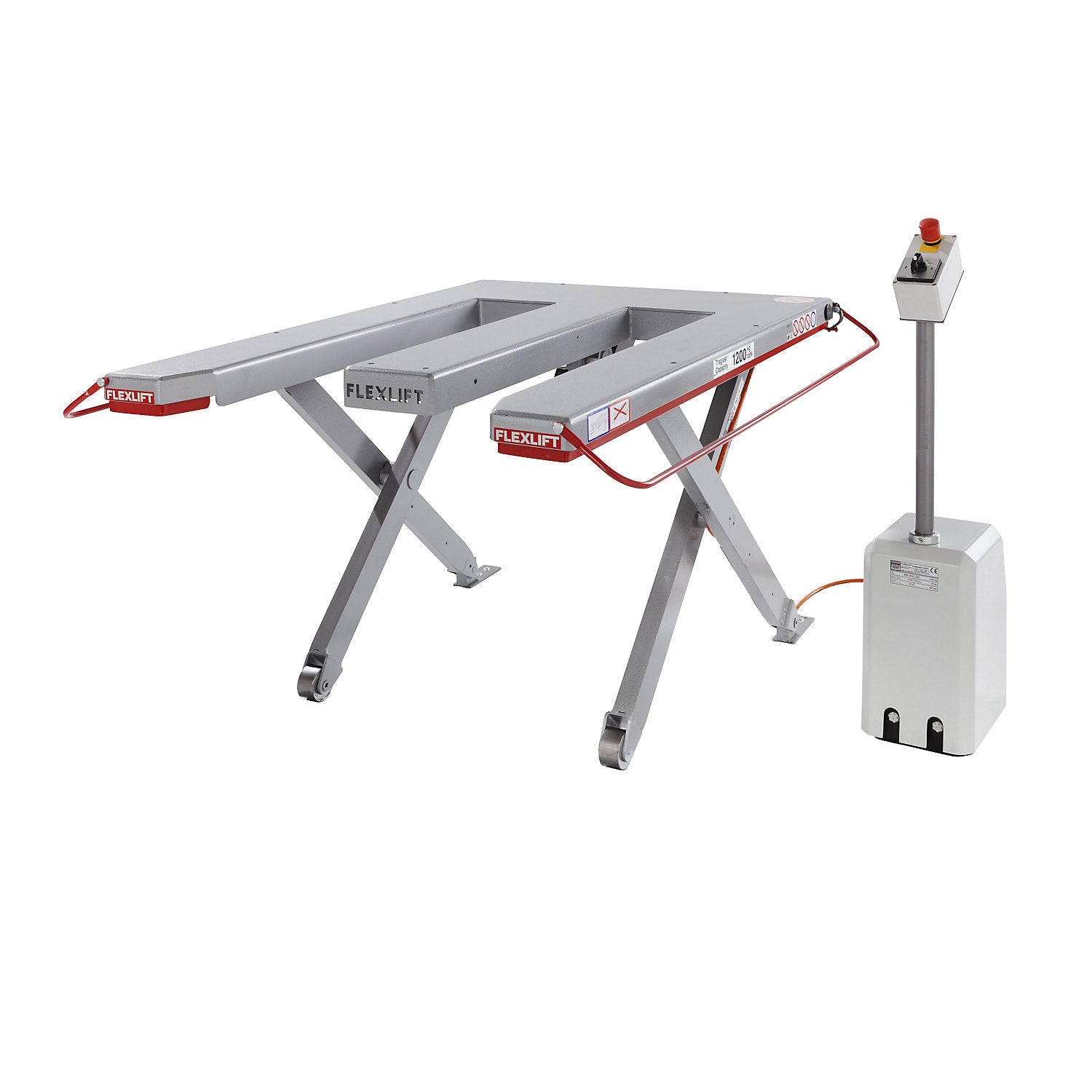

Low profile lift table, E series, max. load 1200 kg, LxW 1300 x 1150 mm, 400 V 3-phase.

Estimated delivery: 51 days

Low profile lift table, E series, max. load 1200 kg, LxW 1300 x 1150 mm, 400 V 3-phase

• Supplied = assembled
• Max. load = 1200 kg
• Lifting range = 80 - 750 mm
• Platform design = E-shaped
• Lifting time = 19 sec
• Operating voltage = 400 V 3-phase AC
• Lift drive = compact hydraulics
• Platform colour = hammer tone silver
• Platform material = sheet metal
• Material = ST 52 tool steel
• Finish = painted
• Frame colour = hammer tone silver
• Lifting capacity at full load in 1 shift operations = max. 20 cycles per hour
• Lifting capacity at full load in multiple-shift operations = max. 10 cycles per hour
• Platform width = 1150 mm
• Platform length = 1300 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = DEU
• Gross weight = 311 kg
• Weight = 290 kg
• Sustainability = CO 2 footprint calculated
• Made in Germany by FLEXLIFT
• For Euro pallets, industrial pallets, mesh pallets

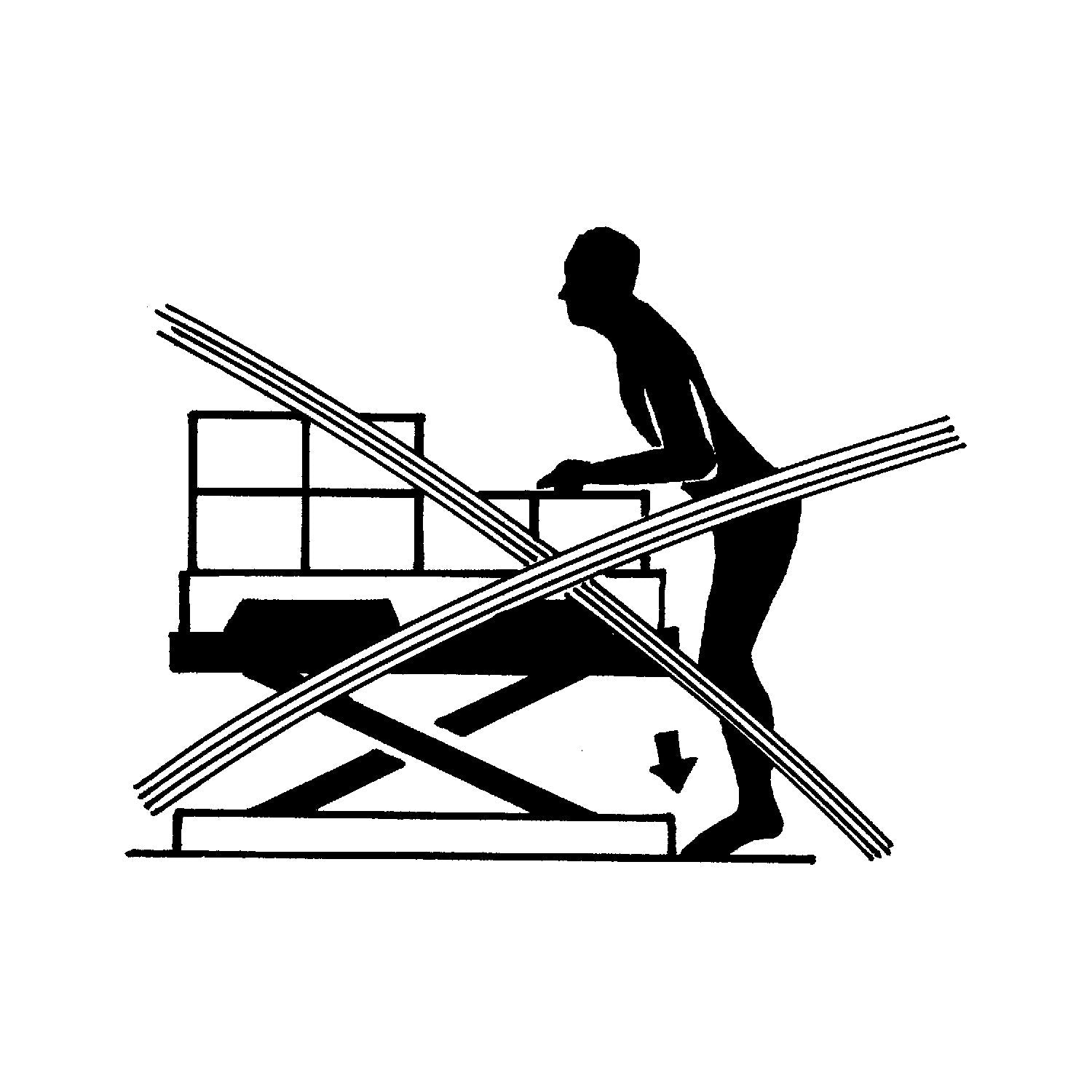

• All-round foot clearance without a floor frame for top ergonomics
• Portable compact hydraulic power unit with manual operation on the stand
• E-shaped platform
• Premium quality hydraulic components
• Non-electric foot contact rail, completely hydraulic operation
• Extraordinarily stable! Solid full steel scissor mechanism made of ST-52 tool steel
• The entire drive technology and the hydraulic cylinders are protected from shock and dirt by a 5 or 6 mm thick sheet metal platform
• High quality 2 layer paint finish in Hammerite silver
• The tables are loaded by entering the floor-level E-shape with the pallet truck
• E-platform
• The centre strut prevents the pallet from bending
• Includes fix point bearing for anchoring to floor
• Low overall height of 80 mm
• Safety rails are not required for a platform width of 1150 mm
• Complies with EN 1570-1
• Options available at no extra cost: Hand control with 3 m cable or foot switch
• Stationary model can also be made mobile by means of a fixed point bearing. 10 year guaranteed provision with replacement parts for all Flexlift lifting tables
• On request: Lift and tilt, lift and turn, lift and transport
• Other dimensions, lifting heights, max. loads, reduced lifting time, zinc plated or made of V2A stainless steel, ribbed sheet steel platform, ATEX compliant explosion protection.
