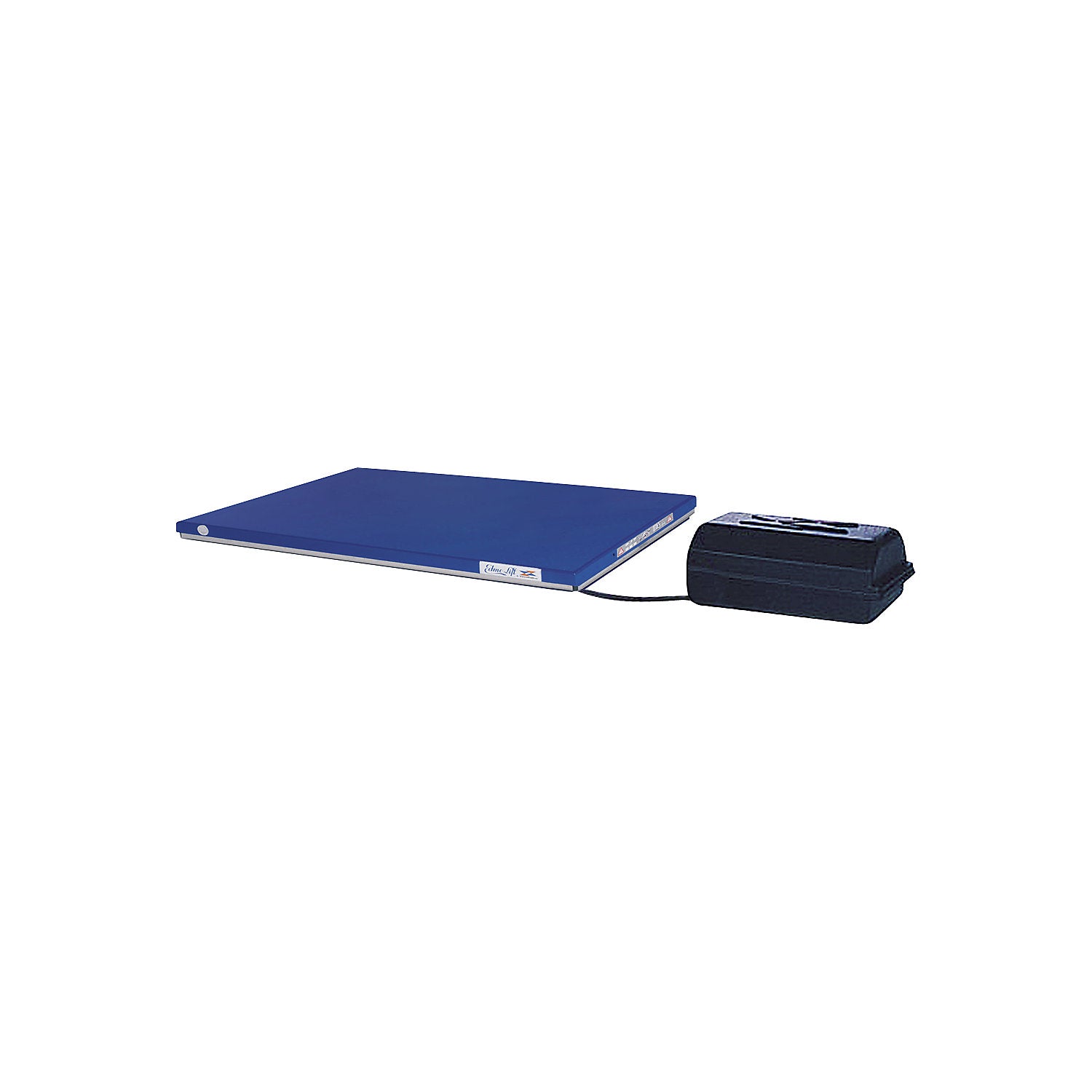

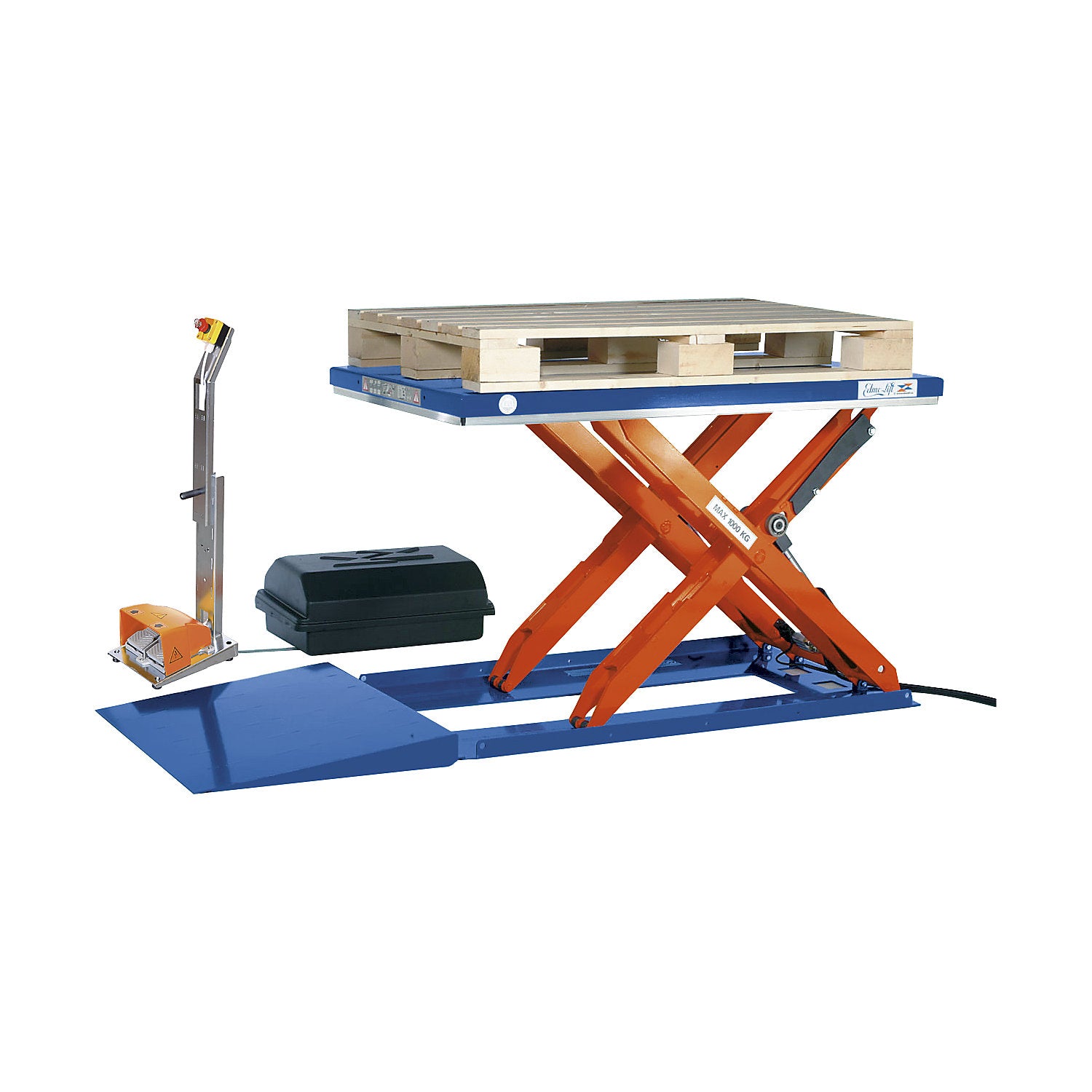

Low profile lift table, LxW 1500 x 1000 mm, lifting range up to 800 mm, closed platform, 230 V, with hand operated control unit.

Estimated delivery: 71 days

Low profile lift table, LxW 1500 x 1000 mm, lifting range up to 800 mm, closed platform, 230 V, with hand operated control unit

• Supplied = flat pack
• Max. load = 1000 kg
• Lifting range = 85 - 800 mm
• Platform design = closed
• Lifting time = 13 sec
• Power = 1.5 kW
• Operating voltage = 230 V
• Control voltage = 24 V
• Platform colour = ultramarine blue RAL 5002
• Material = steel
• Finish = powder coated
• Frame colour = signal orange RAL 2010
• Fittings = with hand operated control unit
• Lifting capacity at full load in multiple-shift operations = 3 - 4 cycles per hour
• Platform width = 1000 mm
• Platform length = 1500 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84289090
• Country of origin = SWE
• Gross weight = 215 kg
• Weight = 215 kg
• Sustainability = CO 2 footprint calculated
• Increased lift range from a shorter platform
• No pit required
• Lifting eyelets in the base frame for problem free transport and installation
• Overload protection
• Maintenance free bearings
• The newly developed, patented lifting mechanism enables an extremely low height when collapsed
• Pushing a button drives the table smoothly and quickly to the ergonomically correct height
• The hydraulic motor is in a robust, easy to transport plastic box and is connected to the table via quick connectors
• High quality powder coating, frame and platform in ultramarine blue RAL 5002, scissor mechanism in signal orange RAL 2010
• Supplied complete with control unit
• With emergency off switch
• Control voltage 24 V, 3 m long cable
• All lift tables are fitted with safety rails and safety valves, and comply with EN 1570-1 as well as VDE requirements
• Alternative models available on request
• Other max. loads up to 2000 kg available in the webshop.
