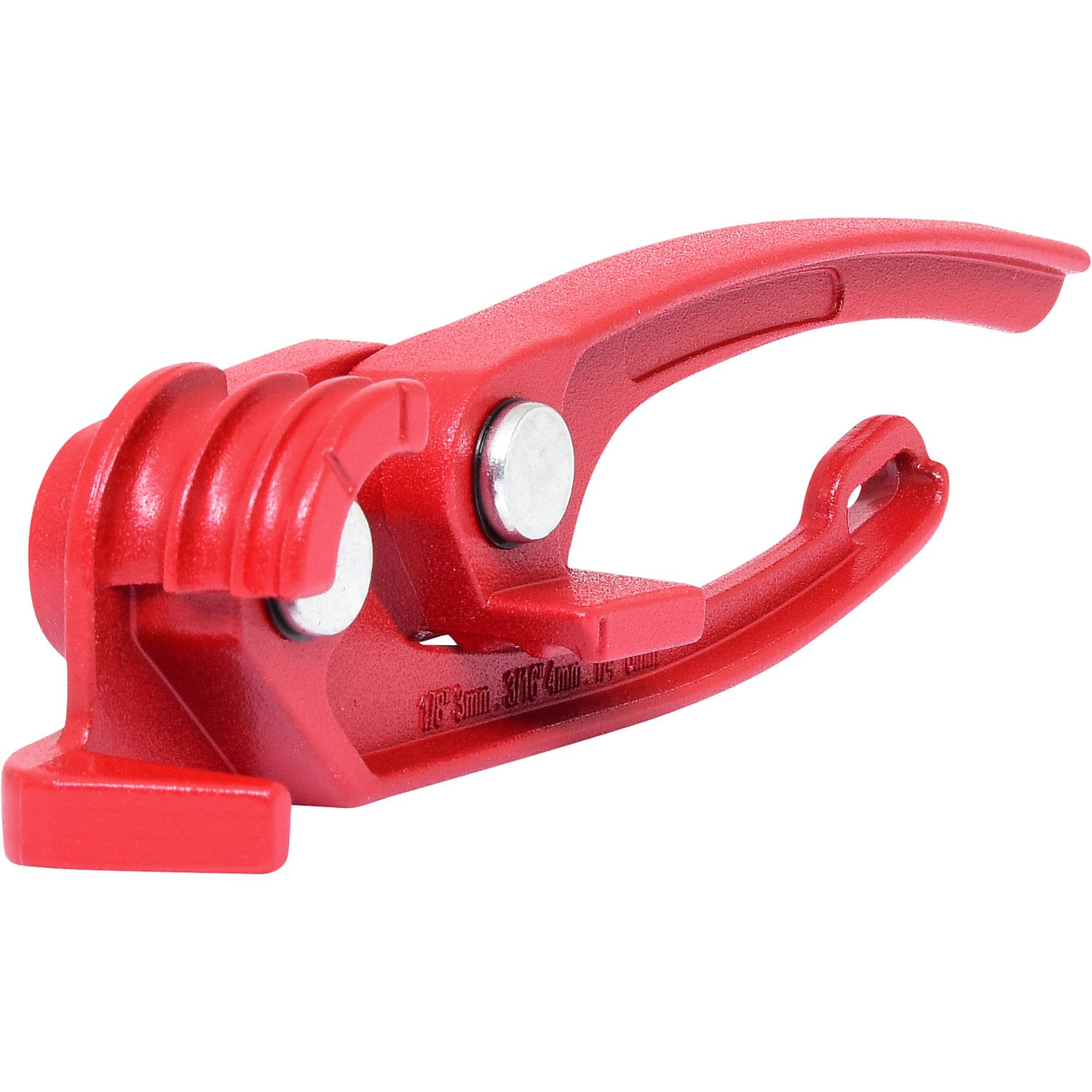

Mini brake line bender tool, metric, Ø 3.0 + 4.75 + 6.0 mm.

Estimated delivery: 39 days

Mini brake line bender tool, metric, Ø 3.0 + 4.75 + 6.0 mm

• Supplied = assembled
• Length = 140 mm
• Diameter = 3,0 + 4,75 + 6,0 mm
• Colour = red
• Material = steel
• Product type = one-hand benders
• Customs tariff number = 82055980
• Country of origin = TWN
• Gross weight = 0.262 kg
• Weight = 0.15 kg
• Lightweight and handy, for 3 + 4.75 + 6 mm brake lines
• For 3 dimensions without replacing bending segments

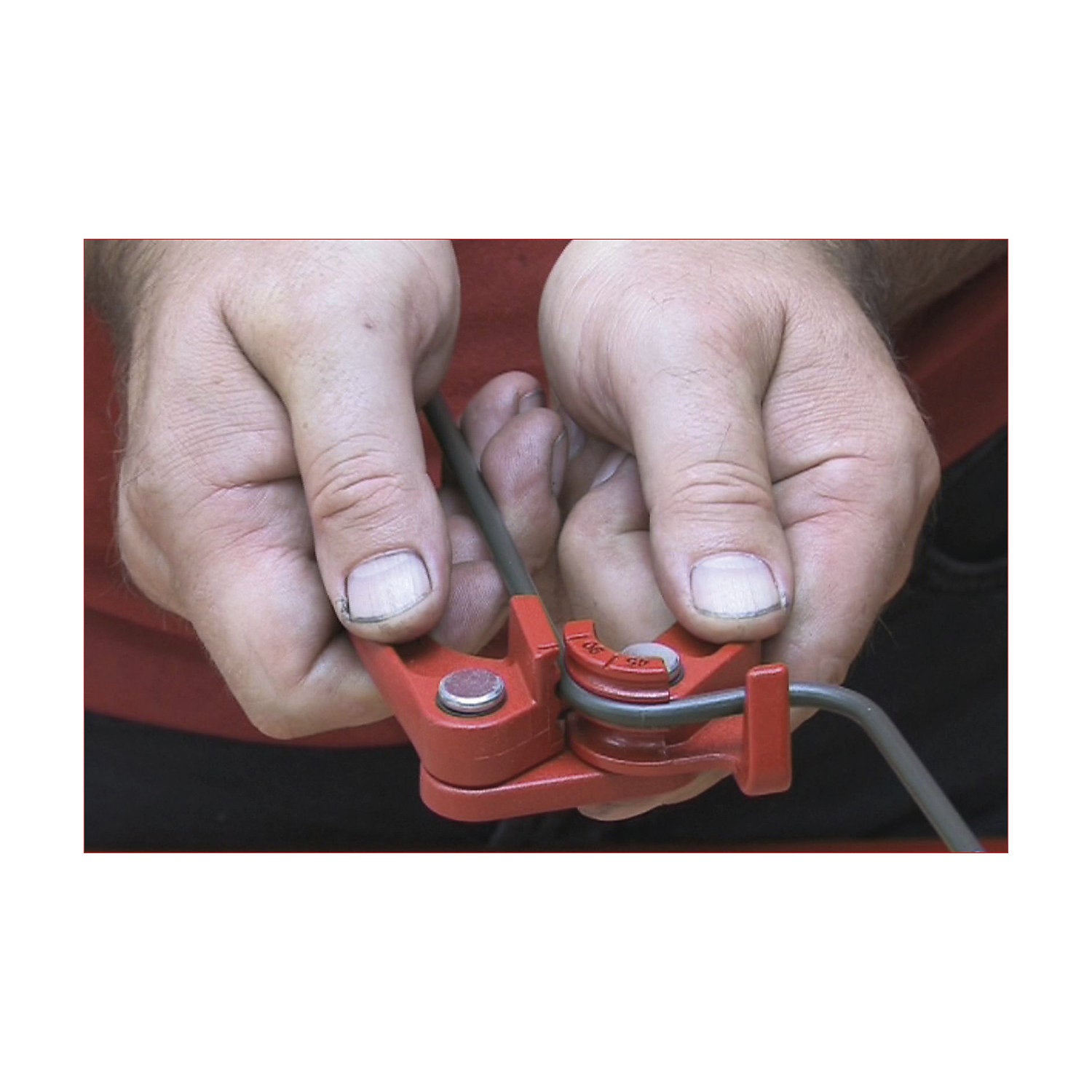

• Two-handed bending up to 90° for copper, aluminium, brass and mild steel pipes
• Enables use directly on the vehicle
• Minimum dimension and bending radius on the bending mould
• Special tool steel
• The mini brake line bending tool enables dimensionally accurate bends up to 90° in three line dimensions without the need to replace bending segments
• Thanks to its compact, lightweight design, it can be used directly on the vehicle and facilitates work in confined spaces
• The two-handed bender is suitable for brake lines with 3.00, 4.75 and 6.00 mm diameters
• Copper, aluminium, brass and mild steel tubes can be brought into the required shape in a controlled manner using the hand tool
• The uniform two-handed bending supports precise power transmission and facilitates the exact alignment of the line
• Specifications on deduction and bending radius are located directly on the bending form
• This ensures that important values are clearly visible and available during the working process
• This reduces measuring effort and supports reproducible results
• Since all three dimensions can be processed with the same bending tool, time-consuming tool and segment changes are eliminated
• The robust special tool steel is tailored to the requirements of regular bending work
• The mini brake line bending tool is particularly suitable for automotive workshops, maintenance companies and vehicle service enterprises
• It assists with the adaptation, replacement and routing of brake lines
• Direct use on the vehicle can reduce unnecessary dismantling work and facilitates precise corrections in hard-to-reach areas
• The handy format also enables space-saving storage in the tool trolley or assembly case.
