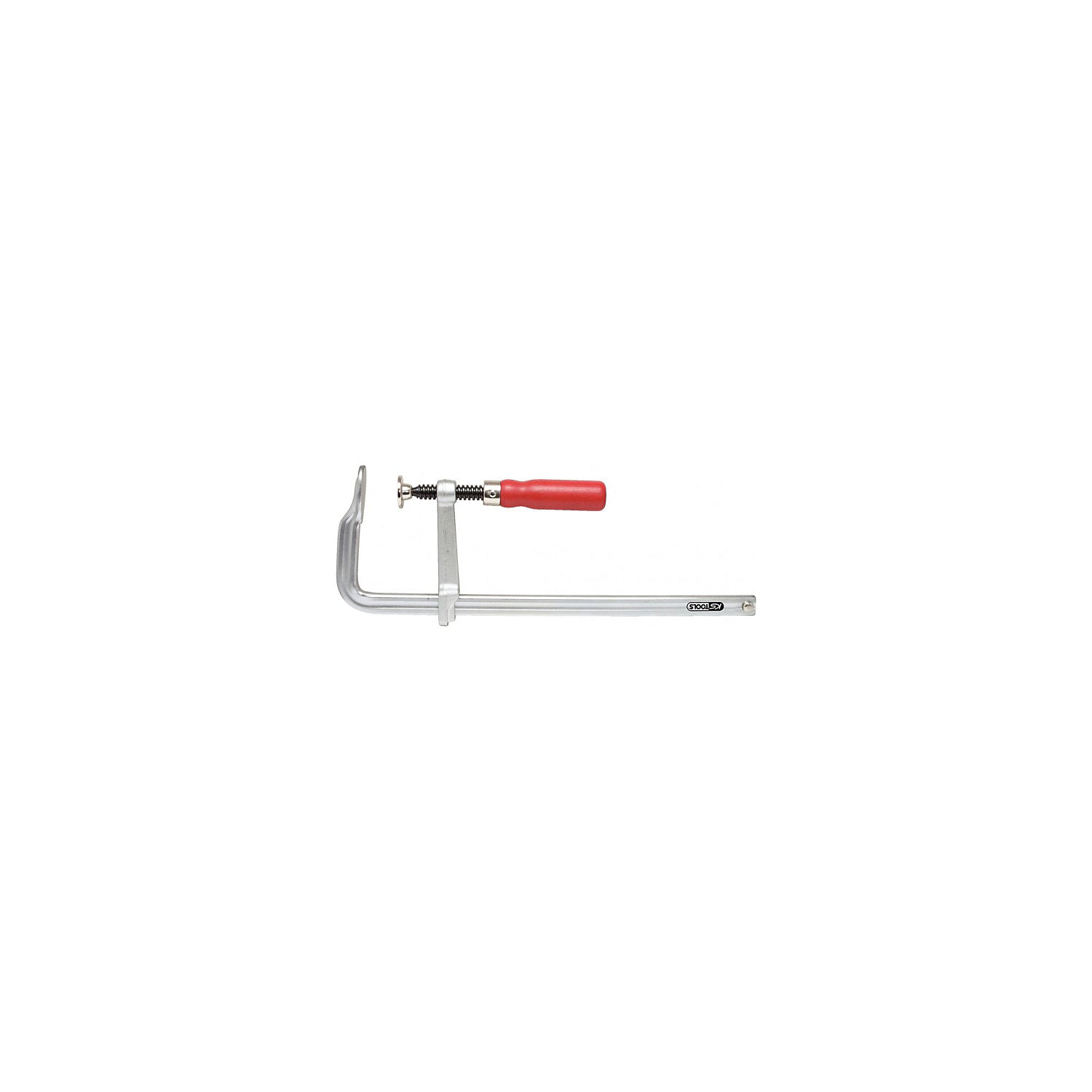

Cast iron screw clamp, wooden handle, max. width 300 mm.

Estimated delivery: 39 days

Cast iron screw clamp, wooden handle, max. width 300 mm

• Supplied = assembled
• Model = double T-profile rail with rear dovetailing
• Tensioning force = 6700 N

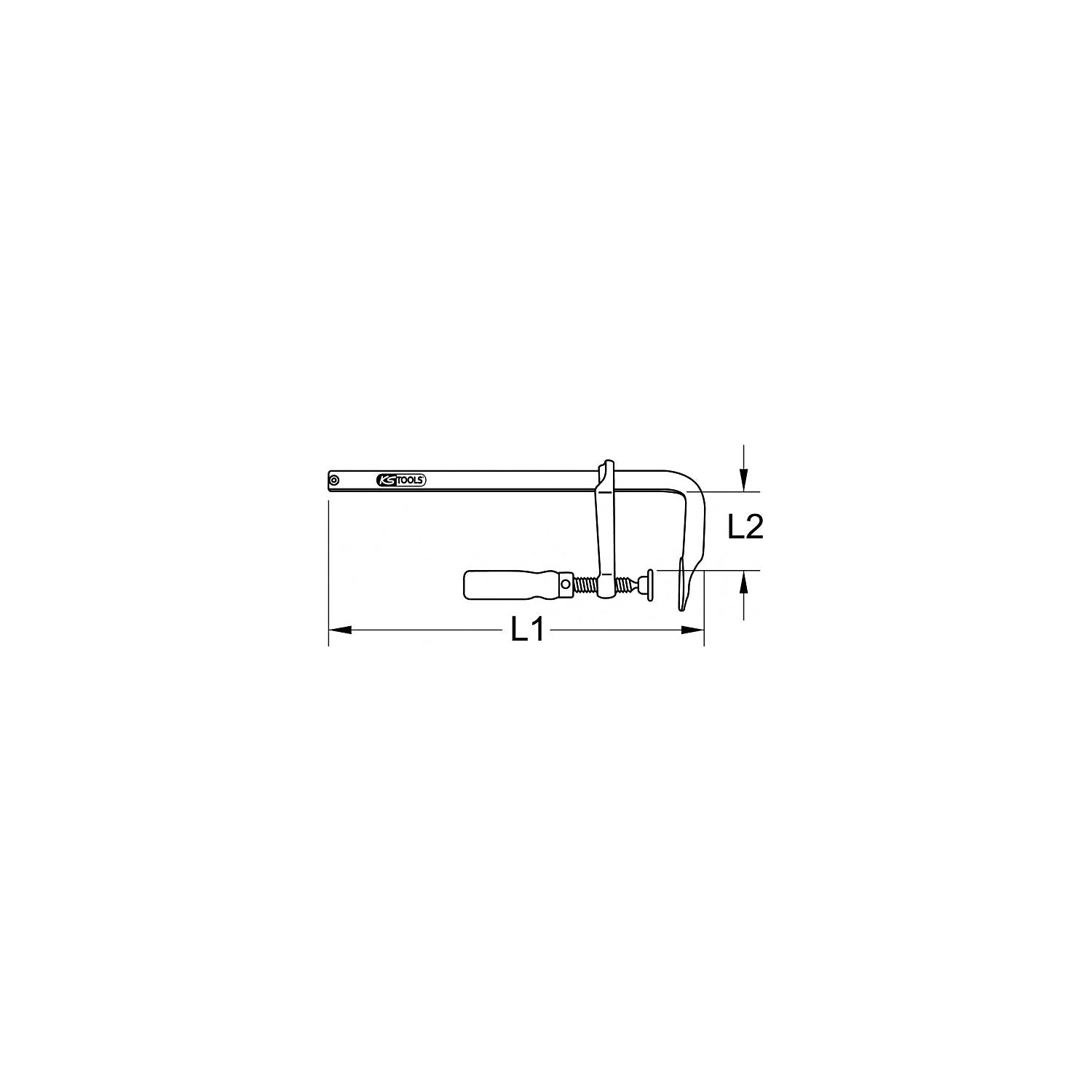

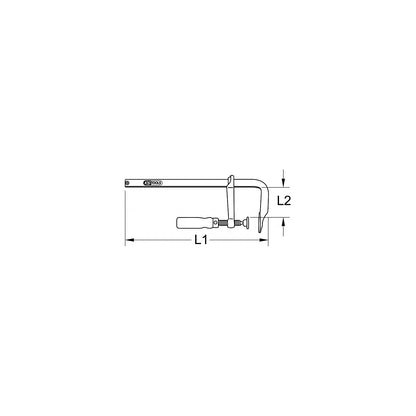

• Max. jaw width = 300 mm
• Max. jaw depth = 140 mm
• Handle = wooden handle
• Material = steel, zinc plated
• Colour = silver, red
• Product type = screw clamps
• Customs tariff number = 82057000
• Country of origin = TWN
• Gross weight = 1.97 kg
• Weight = 1.7 kg
• Double T-profile rail with rear dovetailing
• Movable pressure plate
• High stability, extremely robust thread
• With wooden handle, steel profile rail
• Forged fixed and moving heads
• Zinc plated
• The KS Tools all-steel screw clamp combines a high clamping force of 6700 N with a sturdy all-steel construction
• This makes the clamping tool particularly suitable for demanding work in structural steel and vehicle construction
• The double-T profile rail features back serrations that reliably hold the sliding arm in the desired position
• Together with the very robust spindle, this design enables powerful and controlled clamping of different workpieces
• A movable pressure plate adapts to the respective contact surface and supports targeted transmission of the clamping force
• With a maximum clamping width of 300 mm and a throat depth of up to 140 mm, the screw clamp provides sufficient leeway for a wide variety of components
• This allows workpieces to be held together securely during assembly, repair or machining work
• The wooden handle allows controlled operation of the spindle and facilitates precise adjustment of the required contact pressure
• The fixed and sliding arms are forged and designed for heavy loads
• The profile rail is made of steel, while the zinc plated surface protects the construction against external influences
• At the same time, the solid model ensures high stability during recurring clamping work
• The all-steel screw clamp is a heavy-duty clamping tool ready for immediate use in workshops, production areas, as well as structural steel and vehicle construction.
