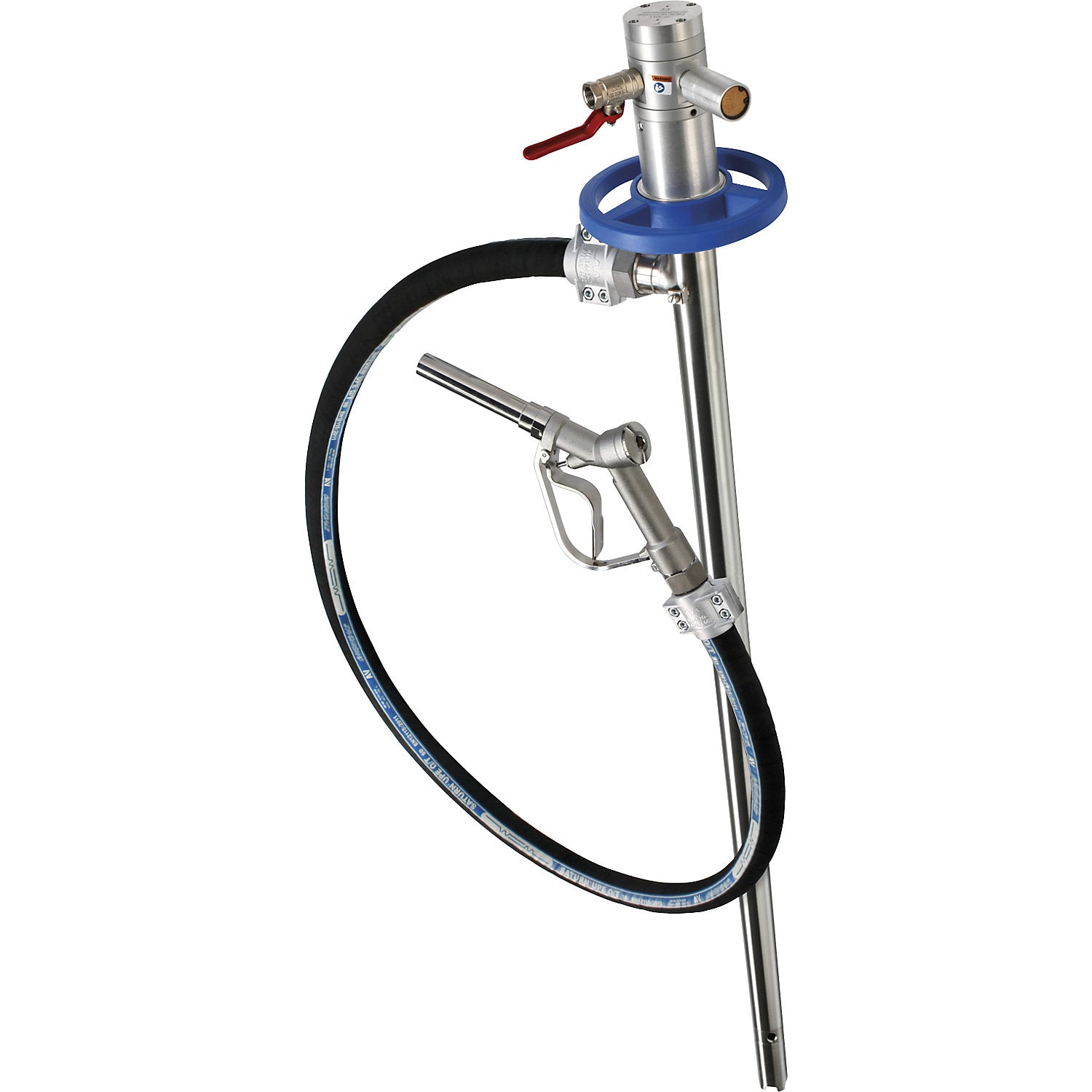

Compressed air container pump set, for flammable media 78 l/min, 300 W, explosion protected.

Estimated delivery: 34 days

Compressed air container pump set, for flammable media 78 l/min, 300 W, explosion protected

• Supplied = pre-assembled, final assembly by customer
• Connection type = 1 1/4 inch
• Pump rate = 78 l/min
• Operating pressure min./max. = max. 6 bar
• Power = 300 kW
• For media = for flammable media, solvents (explosion protected), flammable hydrocarbons, such as ethanol, petrol, butanol, isopropanol, kerosene, methanol, petroleum, highly flammable/flammable/high purity liquids explosion hazard zone 0
• Design of pump = no-seal version without mechanical seal
• Material of pump = stainless steel / PTFE / FKM
• Drive shaft material = stainless steel
• Immersion depth = 1200 mm
• Immersion tube diameter = 41 mm
• Pumping height = 9 m wc
• Immersion tube length = 1200 mm
• Nominal hose diameter = 25
• Max. viscosity at +20 °C = 400 mPas
• Feature = explosion protected
• Discharge hose length = 2000 mm
• Colour = black, blue, silver
• Product type = compressed air pumps
• Customs tariff number = 84137081
• Country of origin = DEU
• Gross weight = 11.72 kg
• Weight = 10.42 kg

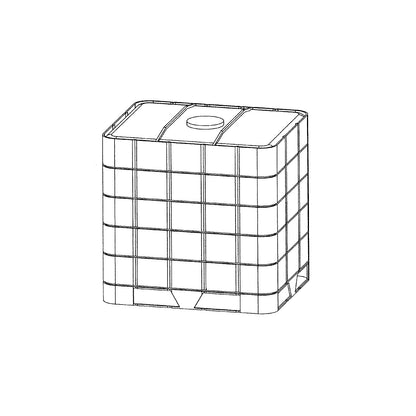

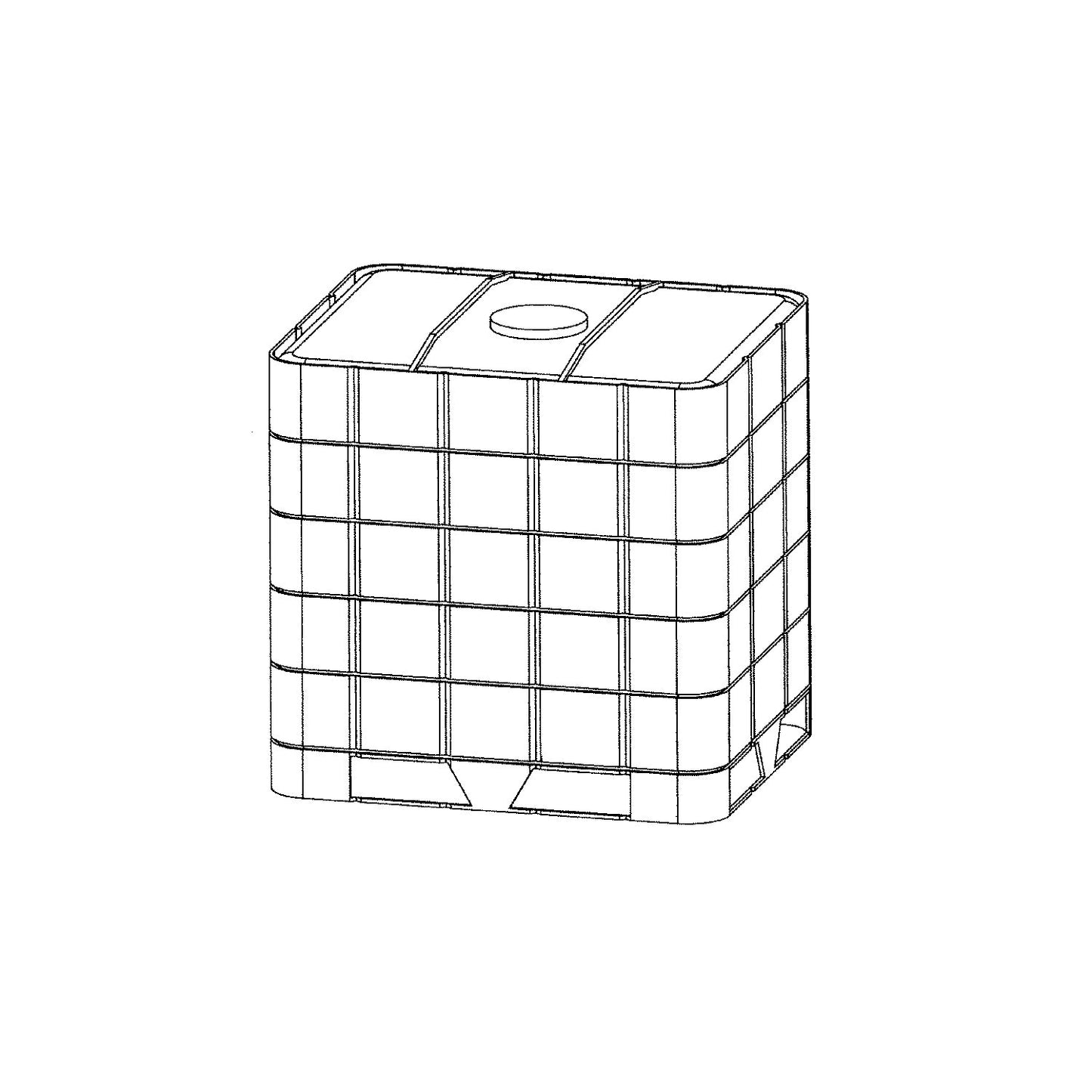

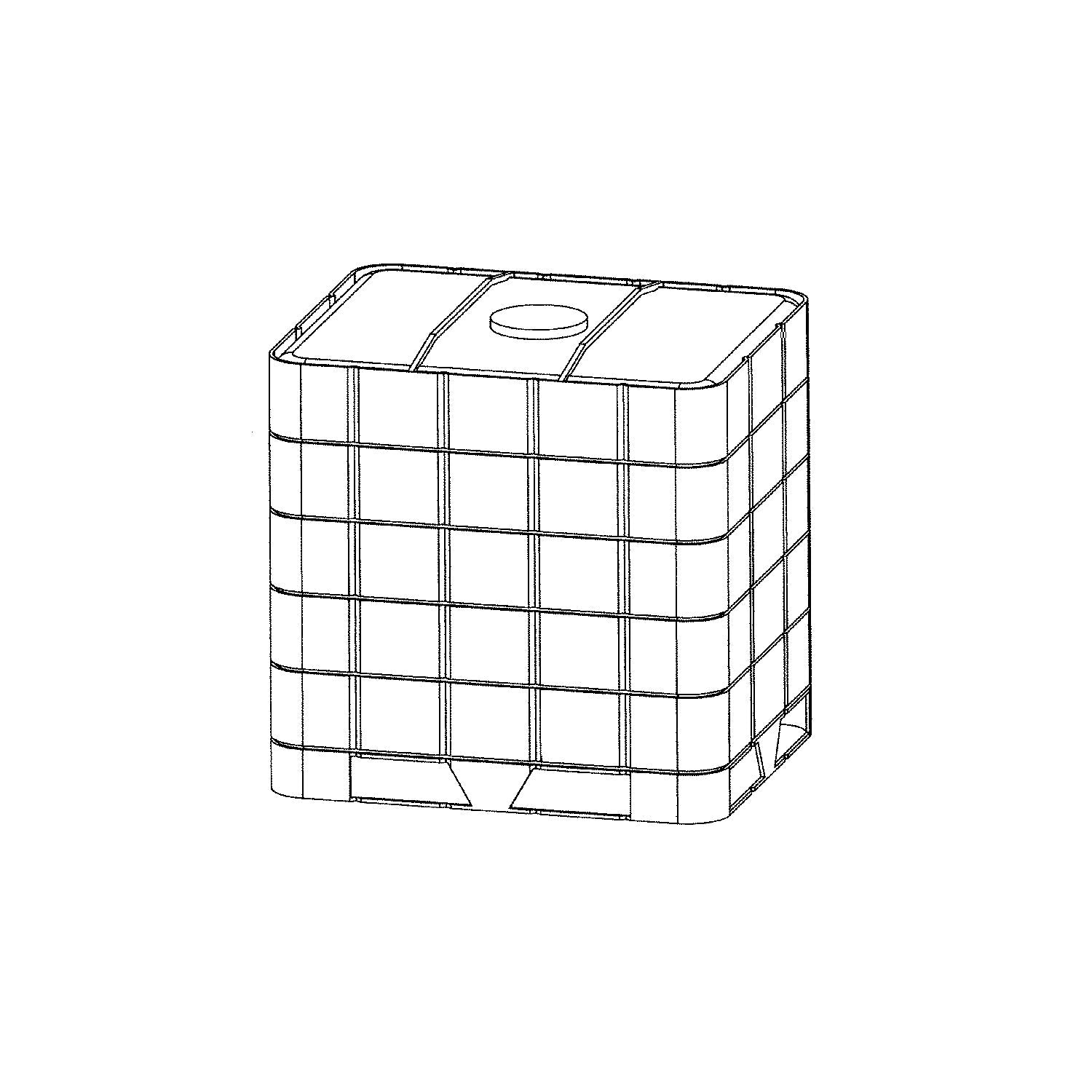

• For IBC/CTC tank containers
• High level of safety when flammable media are used in hazardous areas
• Low weight - easy handling
• Compressed air pump set for IBC/CTC tank containers
• For flammable media in explosion hazard zone 0 or for use in explosion hazard zones 1 or 2. - No-seal version without mechanical seal - Pump unit made of stainless steel 1.4571 - 2 m conductive multi-purpose hose 1'' (NW 25) made of crosslinked polyethylene - 2 stainless steel hose connections with 1 1/4'' and 1'' internal threads - 1 nickel plated brass nozzle with PTFE seals - 1 potential equalisation cable set for earthing the drum pump For flammable media: Alcohol, petrol, brake cleaner, butyl acetate, antifreeze concentrate, isopropanol, kerosene, concentrated formic acid, acetic acid or propionic acid, solvents such as acetone, butanol, ethanol, methanol, toluene etc
• Aluminium compressed air motor, 300 W at max. 6 bar operating pressure
• Motor with ball cock and silencer, Ex II 2 GD c IIC (80 °C) X
• Special seals available upon request.
