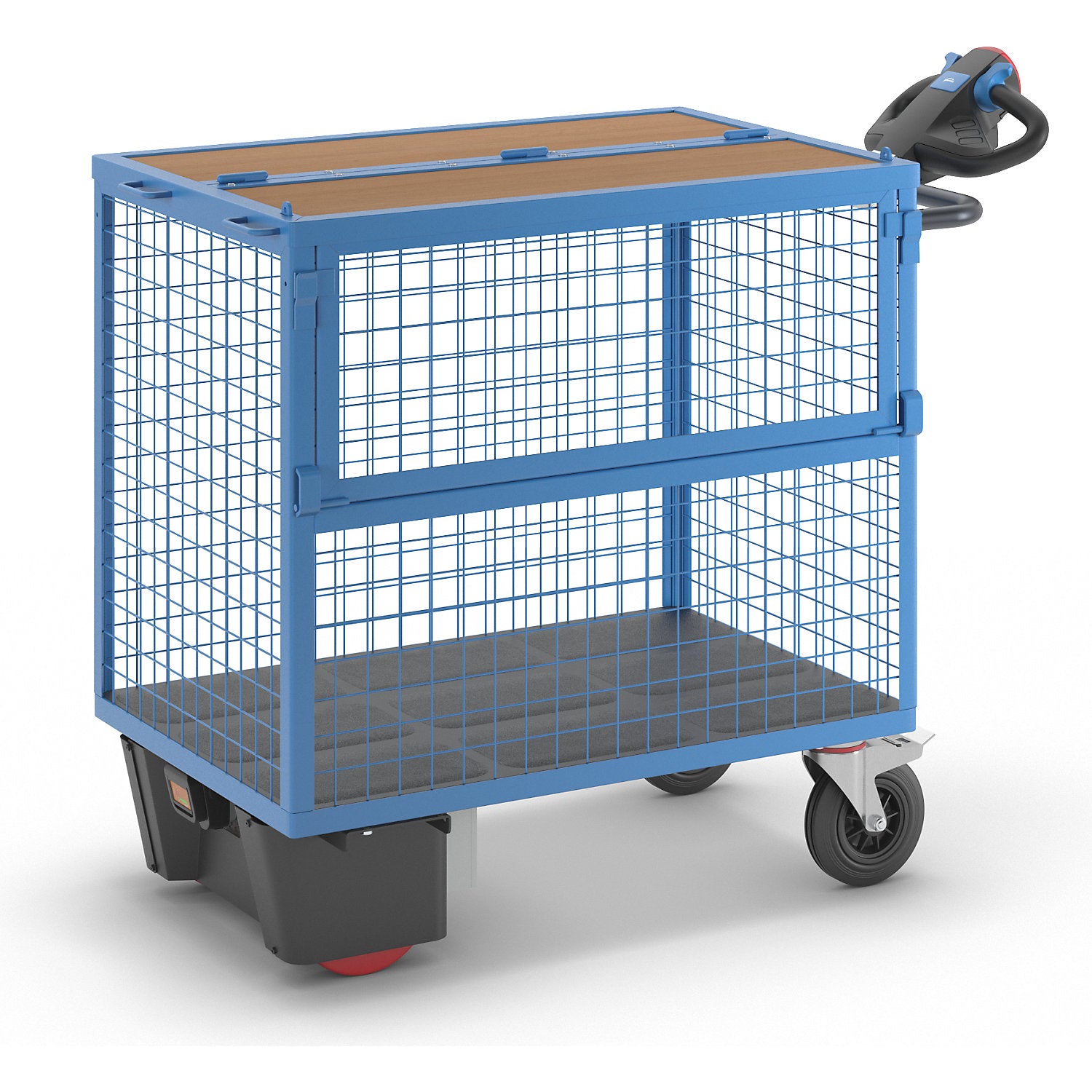

Box truck with electric drive, panels made of steel mesh, with lid, LxWxH 1430 x 730 x 1200 mm.

Estimated delivery: 41 days

Box truck with electric drive, panels made of steel mesh, with lid, LxWxH 1430 x 730 x 1200 mm

• Supplied = partially assembled
• Model = angled steel construction, half drop gate on one long side
• Shelf material = recycled plastic
• Max. load = 500 kg
• Length = 1430 mm
• Width = 730 mm
• Height = 1200 mm
• Internal length = 1028 mm
• Internal width = 678 mm
• Internal height = 785 mm
• Filling height = 800 mm
• Capacity = 545 l
• Side panel material = steel mesh
• Finish = powder coated
• Colour = light blue RAL 5012
• Fittings = with lid
• Wheel type = solid rubber / polyurethane
• Wheel fittings = 2 swivel castors with brakes, 2 drive wheels
• Wheel diameter = 200 / 230 mm
• Wheel bearing = roller bearing
• Battery capacity = 12 Ah
• Charging time = 6 hrs
• Power = 0,25 kW
• Voltage = 24 V
• Max. speed = 5 km/h
• Product type = box trolleys with electric drive
• Customs tariff number = 87091190
• Country of origin = DEU
• Gross weight = 119.1 kg
• Weight = 103.6 kg
• Sustainability = CO 2 footprint calculated
• Highly versatile use due to modular design
• The replaceable, rechargeable battery system allows unlimited operating time
• Intuitive operation, perfect steering control
• Drawbar head with precise speed control, creep speed button, belly switch and horn
• Integrated foot protection on the e-module
• The electric module is easy to retrofit to equip transport trolleys with an electric drive

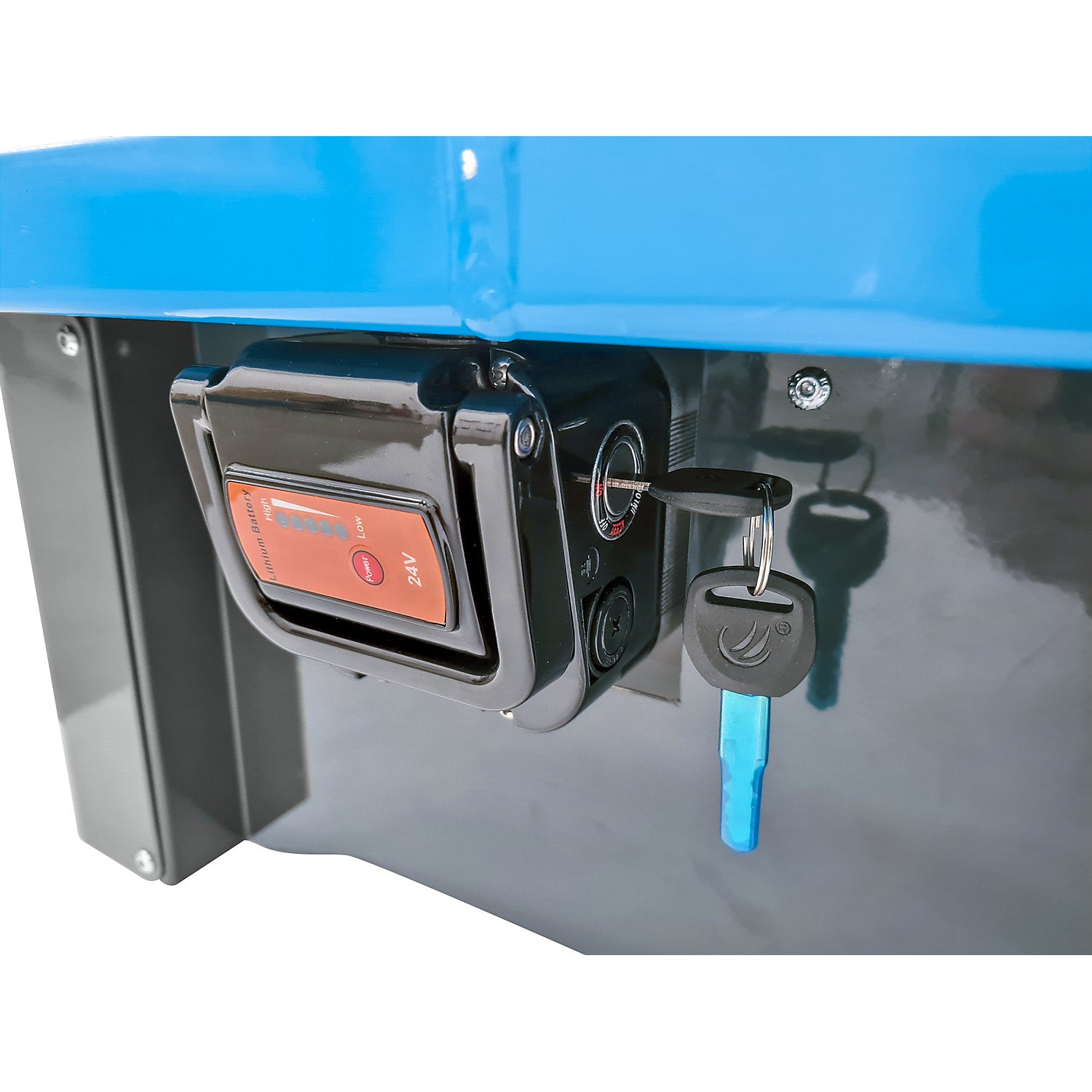

• Complete with powerful lithium ion rechargeable battery and battery charger
• Wireless - the control panel controls the drive via Bluetooth
• Easy assembly: highly versatile modular design Drive battery: replaceable lithium-ion battery Charging status: indicated visually and acoustically by a battery level indicator Full mobility: up to 8 h of operation with one battery charge Replaceable battery system: simply replace the drained battery with a fully charged one to ensure continuous operation Pairing: via Bluetooth, wireless, fleet operation possible Charging time: 6 h until fully charged Easy navigation Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head Easy steering: due to sturdy tubular handles Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h) Creep speed: can be activated as required, for high precision forward and reverse motion Warning function: horn on drawbar head Safety belly switch: prevents entrapment when reversing Integrated foot protection: prevents being caught under the drive unit For everyone: no certificate of competence (driver's licence) required Protection against theft: access control by means of lock Base plate Made of recycled plastic
• Non-slip and hardwearing surface
• Weather resistant
• Oil resistant and largely acid-proof
• Recyclable
• German registered design
• Available in almost any RAL colour
• Surcharge of just 10%
• Custom colours are manufactured to individual customer specifications and are therefore excluded from the right of cancellation and return
• All specified max. loads apply with uniform load distribution.
