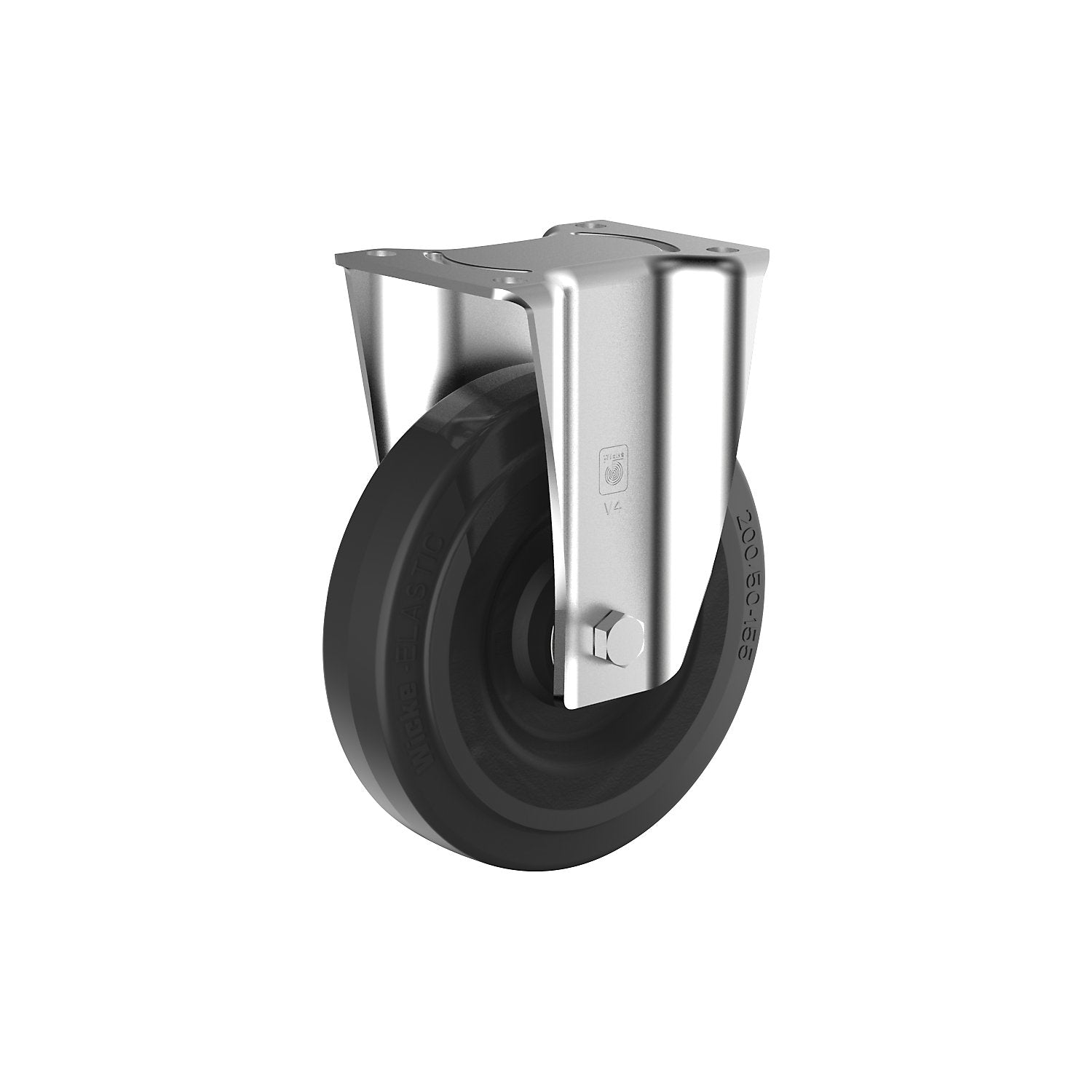

Elastic solid rubber wheel on steel rim, wheel Ø x width 160 x 50 mm, fixed castor.

Estimated delivery: 32 days

Elastic solid rubber wheel on steel rim, wheel Ø x width 160 x 50 mm, fixed castor

• Supplied = assembled
• Wheel diameter = 160 mm
• Structure = fixed castor
• Wheel material = rubber - solid rubber - elastic
• Material of rim = sheet steel
• Type of mounting = with top plate
• Housing material = steel
• Max. load at 4 km/h = 400 kg
• Wheel width = 50 mm
• Overall height = 205 mm
• Wheel bearing = ball bearing
• Temperature resistance = -20 °C to +80 °C
• Screw hole diameter = 11 mm
• Fixed castor plate dimensions = 135x114 mm
• Screw hole spacing = 105x75/80 mm
• Housing surface = zinc plated
• Shore hardness = 63 A
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 3.02 kg
• Weight = 3.02 kg
• Sustainability = CO 2 footprint calculated
• On a heavy sheet steel rim
• High maximum load
• Smooth running
• Hardness 63 Shore A
• Temperature resistant from -20 °C to +80 °C
• Swivel bearing with double ball race, swivel bearing protection
• Vulcanised running surface
• Black rubber may leave marks or stains due to contact.
