X-STORE 2.0 partition system, wall section, height 1100 mm, width 1000 mm.

Estimated delivery: 61 days

X-STORE 2.0 partition system, wall section, height 1100 mm, width 1000 mm

• Supplied = pre-assembled, final assembly by customer
• Height = 1100 mm
• Width = 1000 mm
• Colour = papyrus white RAL 9018
• Mesh size = 60x50 mm
• Finish = powder coated
• Frame profile = 19x19 mm
• Material = rectangular steel pipe, steel
• Stiffening profile = 15x15 mm
• Thickness of wire = horizontal 2.5 mm, vertical 3.0 mm
• Floor clearance = 100 mm
• Product type = machine protective fencing partition systems
• Customs tariff number = 73143900
• Country of origin = SWE
• Gross weight = 4.07 kg
• Weight = 3.77 kg
• Sustainability = CO 2 footprint calculated
• Modular concept - height and width can be adapted
• Safety fence can be structured to reach the ceiling
• Disassembly of one wall section without affecting other sections
• Quick and easy fastening of the wall sections
• Available in six different widths
• X-STORE 2.0 partition wall system - flexible space partitioning for warehouse and industry The wall element of the X-STORE 2.0 partition system from Axelent enables secure demarcation of warehouse, production and work areas tailored to requirements
• The element is particularly suitable for clear protective and partitioning solutions where flexible adaptation to spatial conditions is required
• The modular system can be planned variably in height and width
• Widths of 250, 400, 800, 1000, 1200 and 1500 mm are available for different plant and room concepts
• With the help of suitable floor supports, extensions and an adjustable compensation plate, the partition can be individually adapted and, if required, extended up to the ceiling
• Corner areas can also be created using the same support variant
• A particular advantage is the independent fastening of wall elements and floor supports
• As a result, an individual element can be dismantled without affecting the rest of the partition
• The quick and simple fastening supports short assembly times and facilitates subsequent modifications
• In addition, door solutions from the X-GUARD CLASSIC system are available, the matching door wall elements and locks are required separately for this

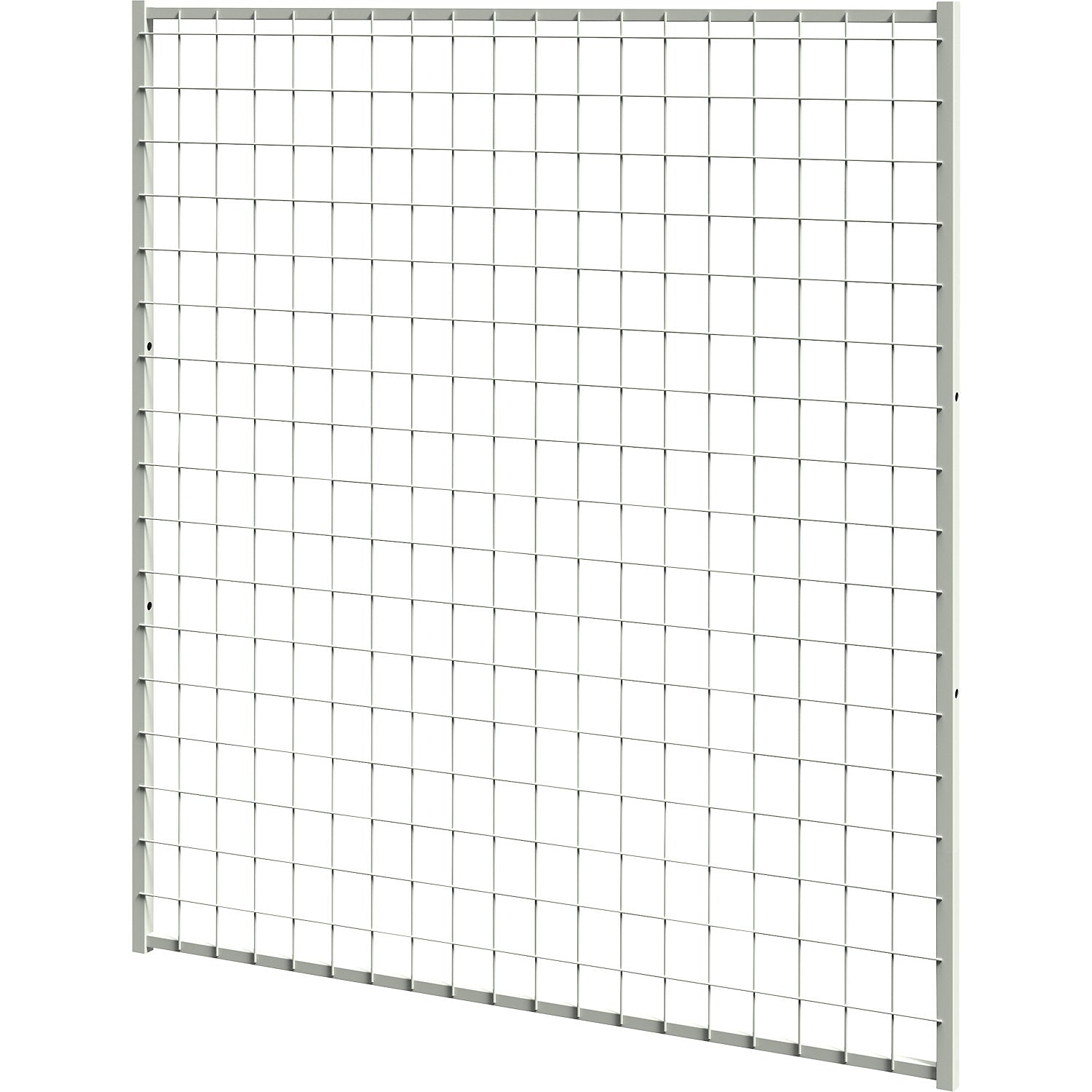

• The wall element consists of a steel frame with welded wire mesh
• The surface is phosphated and powder coated in papyrus white according to RAL 9018
• The mesh size is 60 x 50 mm, the ground clearance 100 mm
• The element is delivered pre-assembled and is ideal for warehouse partitions, internal demarcations and modular protective fencing solutions
• Combination with a door package The wide range of locking mechanisms, locks and doors of the market-tested Axelent X-GUARD CLASSIC safety fence series provide ideal door solutions
• When ordering doors kits, the required X-Guard Classic door panel elements and the corresponding locking mechanisms must be included in your order
• For the correct installation of an add-on door kit, the door upright KK no. 650208 and the bracket KK no. 650210 for connecting an X-Store 2.0 element to the door support are required.
