Drum unwinder, with manual hydraulics, for drum Ø 900 - 2000 mm.

Estimated delivery: 36 days

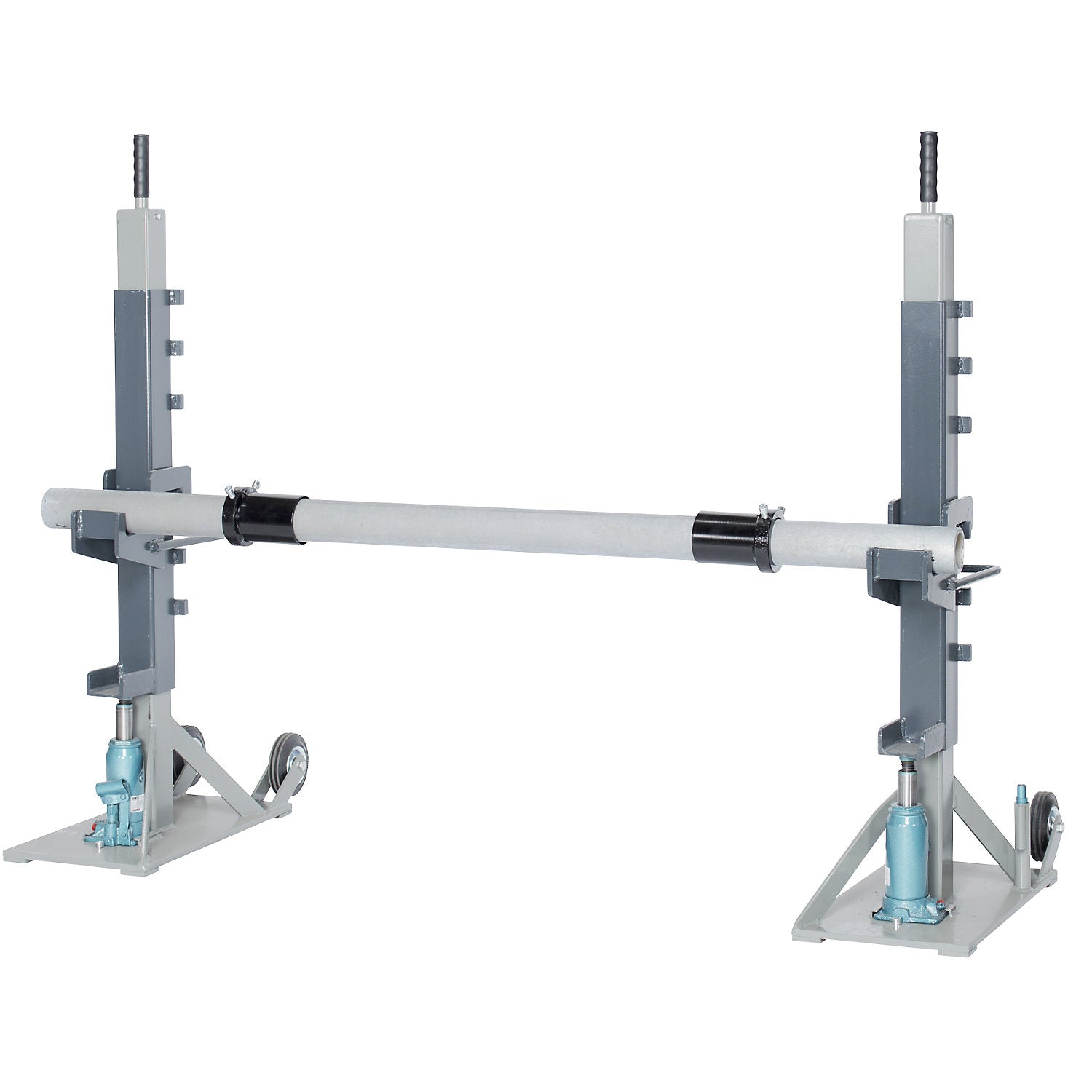

Drum unwinder, with manual hydraulics, for drum Ø 900 - 2000 mm

• Supplied = pre-assembled, final assembly by customer
• Max. load = 4000 kg
• Finish = powder coated
• Colour = mouse grey RAL 7005
• Length = 550 mm
• Width = 300 mm
• Height = 1520 mm
• Drum diameter = 900 - 2000 mm
• Drum axle diameter x length = 76x1700 mm
• Material = steel
• Product type = drum unwinders
• Customs tariff number = 84798997
• Country of origin = DEU
• Gross weight = 151.52 kg
• Weight = 126 kg
• Sustainability = CO 2 footprint calculated
• For heavy drums

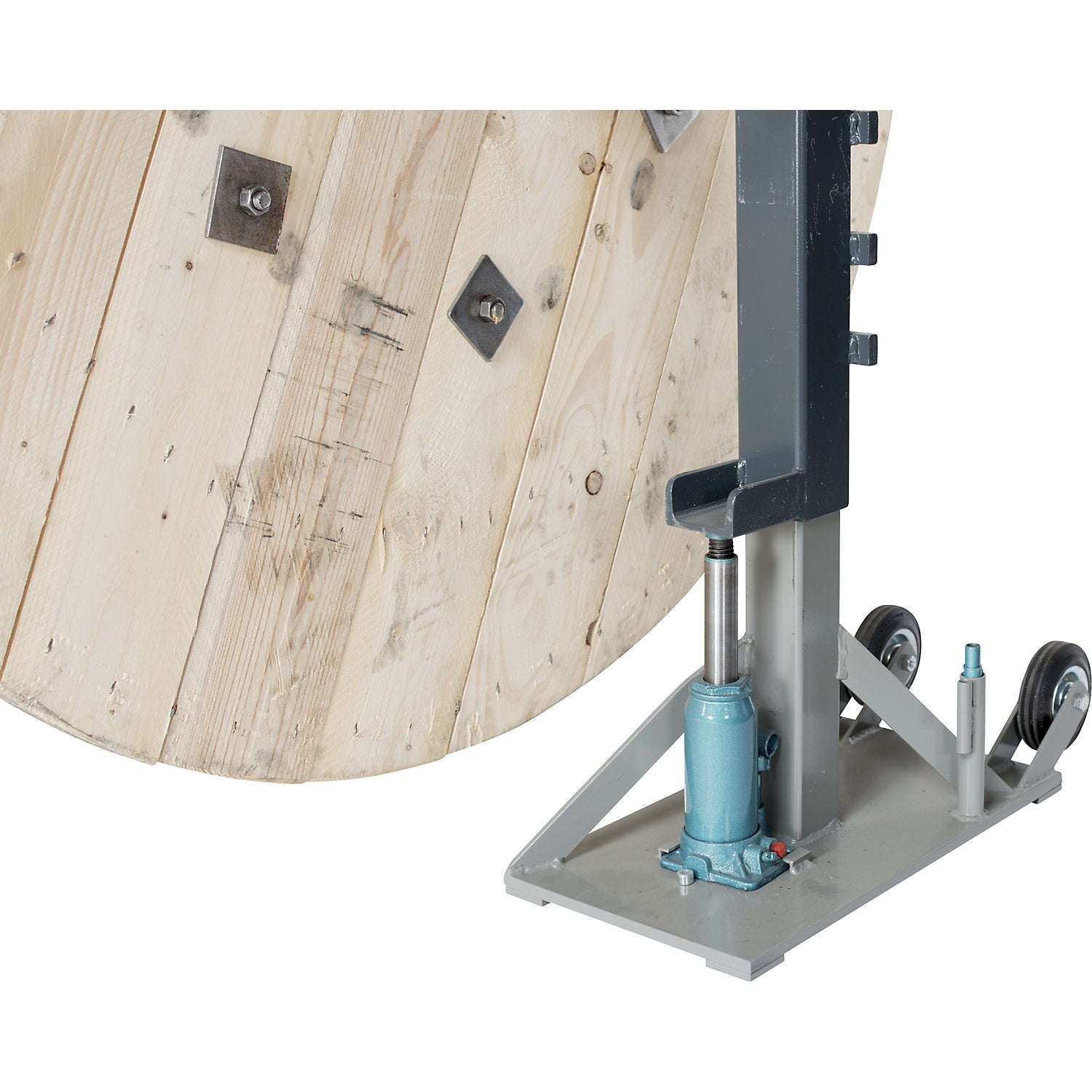

• Drums can be lifted hydraulically
• Lowered by bleed screw
• The shaft is first pushed into the drum
• Adjust the height of the shaft supports
• Then lift the drum hydraulically and hook it into the stable shaft supports
• Easy unwinding without twisting, even when drums are damaged
• For wound materials on a construction site, for laying cables, for use in a warehouse or in the mailing area.
