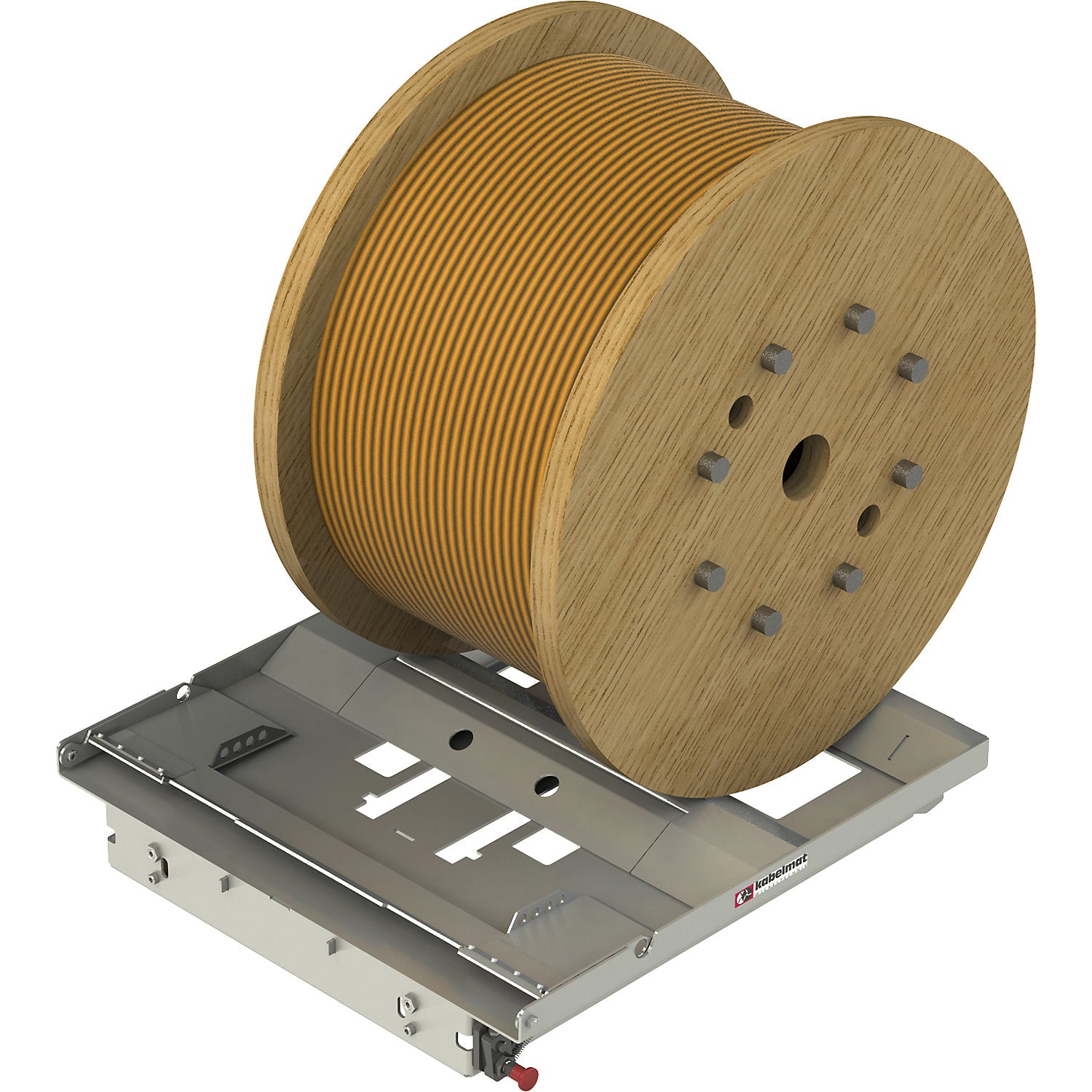

Cable drum loading platform, for stacker, with bolt locking mechanism.

Estimated delivery: 41 days

Cable drum loading platform, for stacker, with bolt locking mechanism

• Supplied = assembled
• Finish = zinc plated by galvanization
• Colour = silver
• Max. fork cross section = 45x89 mm
• Height = 135 mm
• Length = 788 mm
• Width = 780 mm
• Max. load = 900 kg
• Weight = 40 kg
• Fork entry clearance = 590 mm
• Material = steel
• Product type = cable drum loading platforms
• Customs tariff number = 73269098
• Country of origin = DEU
• Gross weight = 65.52 kg
• Weight = 40 kg
• Sustainability = CO 2 footprint calculated
• Secure transport
• Save time
• With loading ramp
• This cable drum loading platform enables efficient and safe transport of cable drums
• It makes loading drums into shelving units easier -and is an indispensable aid everywhere
• How it works: the forks of the lifting device are inserted below the loading platform
• As soon as the forks have reached the end of the platform, a safety bolt underneath the platform locks in place - ensuring the platform is properly secured
• The drum for transport can now be rolled up onto it using loading ramps that fold open
• Predefined centring points ensure a stable drum position that corresponds to the load centre of the lifting device
• Once the drum has been rolled onto the platform, the loading ramps, which are adjustable in width, are folded in and transport can begin.
