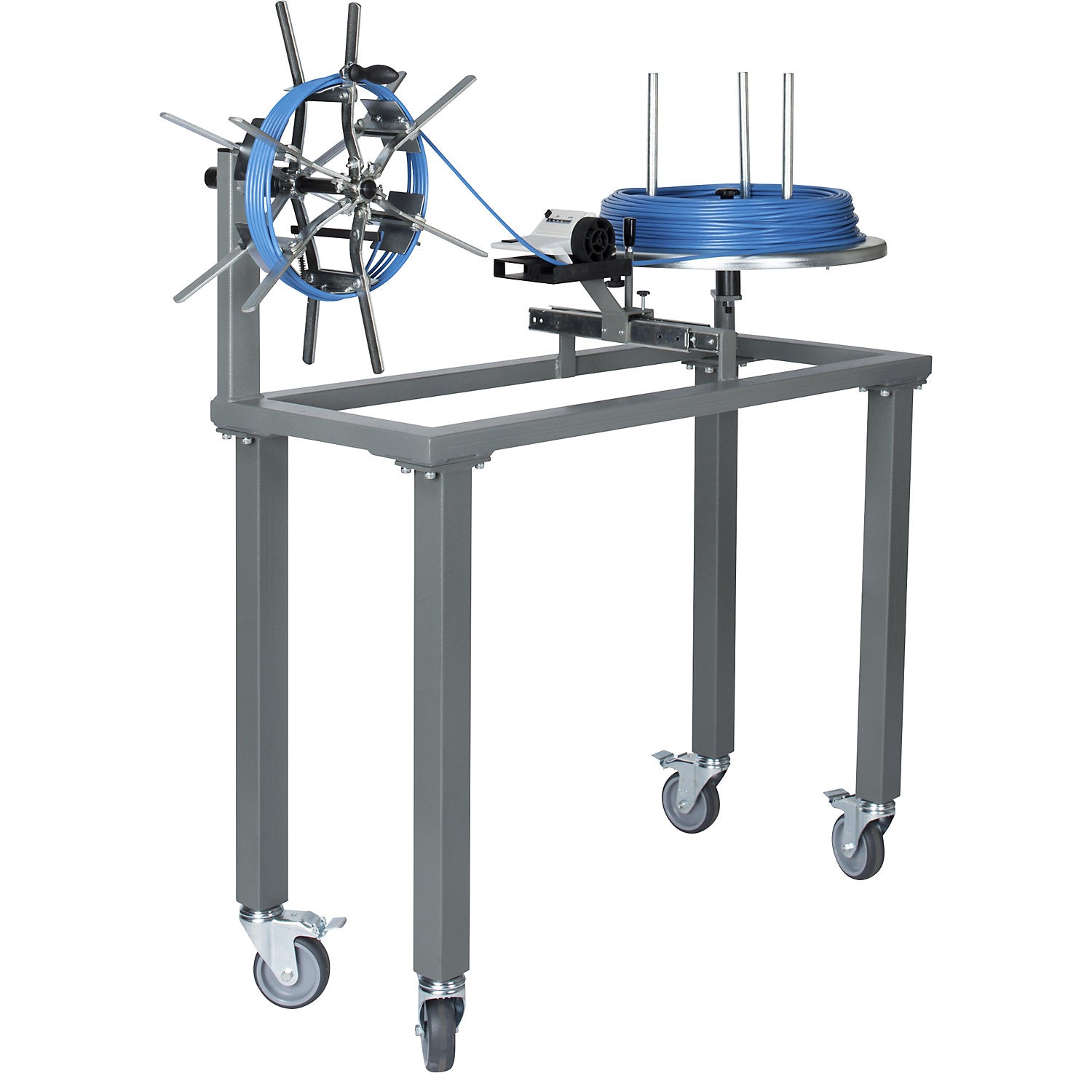

MESSROLL ring and coil rewinder, complete device with turntable, for cable Ø 1 - 15 mm.

Estimated delivery: 41 days

MESSROLL ring and coil rewinder, complete device with turntable, for cable Ø 1 - 15 mm

• Supplied = assembled
• Accuracy = +/- 0,5 %
• Height = 1200 mm
• Width = 1000 mm
• Depth = 400 mm
• Colour = mouse grey RAL 7005
• Material = plastic, metal
• Product type = measuring tools
• Customs tariff number = 84798997
• Country of origin = DEU
• Gross weight = 65.02 kg
• Weight = 40 kg
• Sustainability = CO 2 footprint calculated
• Non-twist winding with length measurement
• Ring turntable with overrun brake
• Easy to operate
• Complete device, consisting of wheeled base and components
• With adjustable turntable incl. brake, winder and cable metering unit
• Turntable: holds rings up to 470 mm in diameter and 250 mm high
• The core diameter of the cable ring should be 140 - 320 mm
• Winder: produces cable coils up to max. 400 mm with a core diameter of 130 mm
• Winding width 70 mm
• Cable metering unit:for cables up to 15 mm in diameter
• Measuring tolerance ±0.5%
• Modular system: can be customised upon request according to your individual usage and requirements
• Please enquire.
