MESSROLL ring and coil rewinder, complete unit with infeed roller cage, for cable Ø 1 - 40 mm.

Estimated delivery: 41 days

MESSROLL ring and coil rewinder, complete unit with infeed roller cage, for cable Ø 1 - 40 mm

• Supplied = assembled
• Accuracy = +/- 0,5 %
• Height = 1210 mm
• Width = 880 mm
• Depth = 680 mm
• Colour = mouse grey RAL 7005
• Material = plastic, metal
• Product type = measuring tools
• Customs tariff number = 84798997
• Country of origin = DEU
• Gross weight = 105.02 kg
• Weight = 80 kg
• Sustainability = CO 2 footprint calculated
• Non-twist winding with length measurement
• Ring turntable with overrun brake
• Easy to operate
• Complete device, consisting of wheeled base and components

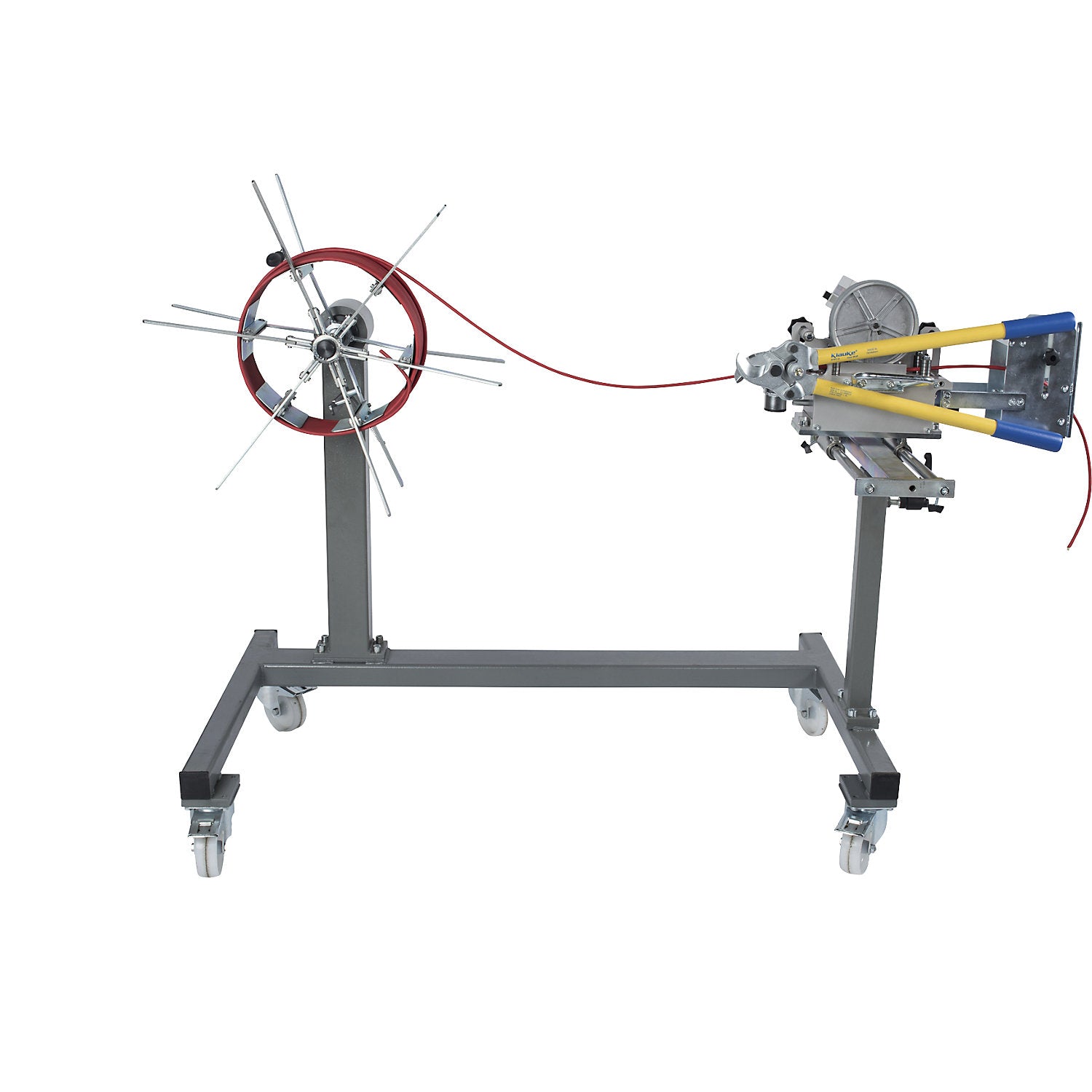

• Shown here with adjustable infeed roller cage, cable metering unit and bolt cutter as well as winder
• Roller cage for infeed into the cable metering unit
• Cable metering unit: for cables 1 - 40 mm in diameter
• Measuring tolerance ±0.5%
• Winder: produces cable coils up to max. 600 mm with a core diameter of 300 mm
• Winding width 120 mm
• Modular system: can be customised upon request according to your individual usage and requirements
• Please enquire.
