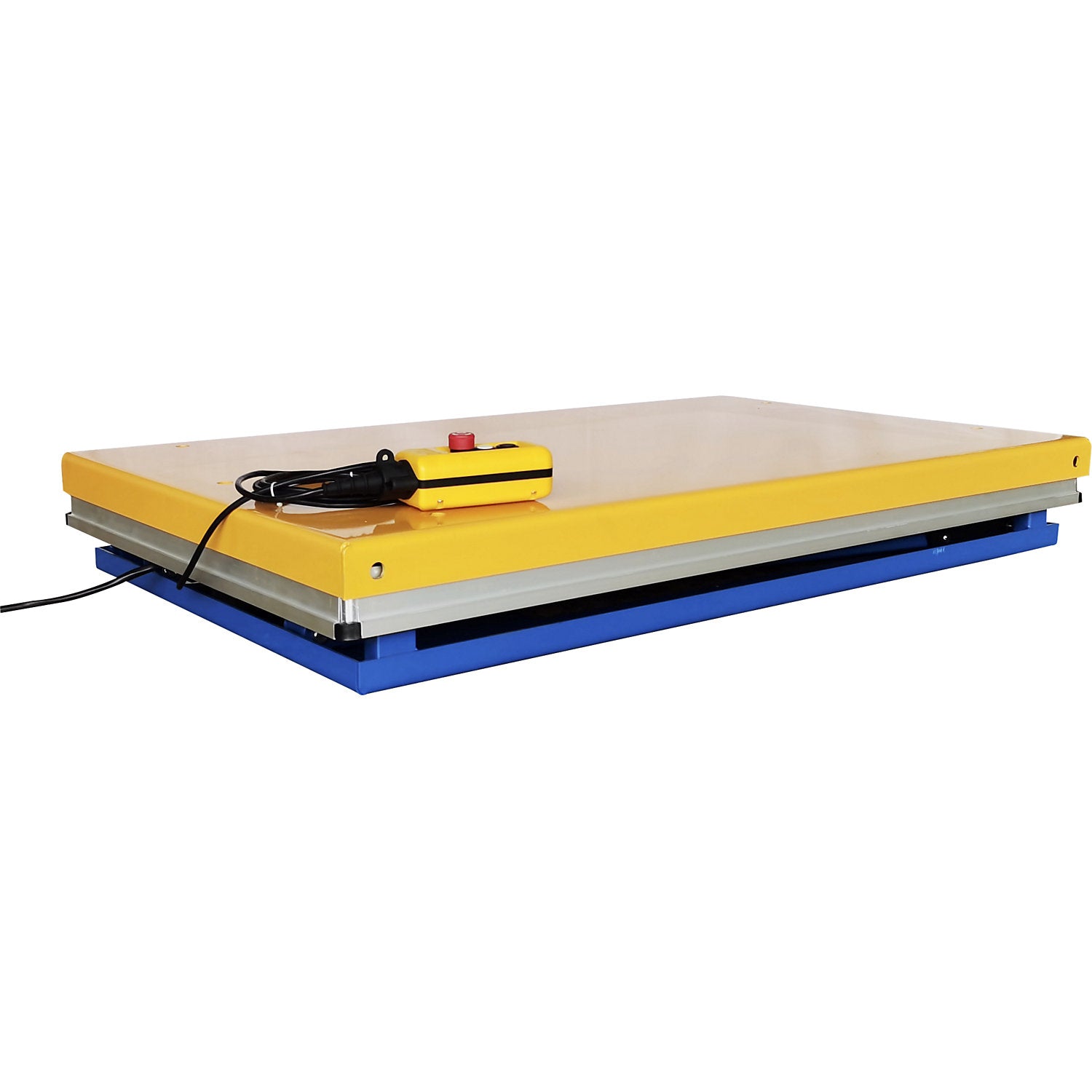

Lift table, max. load 2200 kg, platform LxW 1350 x 1000 mm.

Estimated delivery: 31 days

Lift table, max. load 2200 kg, platform LxW 1350 x 1000 mm

• Supplied = assembled
• Max. load = 2200 kg
• Lifting range = 230 - 1120 mm
• Platform design = closed
• Lifting time = 21 sec
• Power = 2,2 kW
• Operating voltage = 400 V / 50 Hz
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = melon yellow RAL 1028
• Platform material = steel
• Material = steel
• Finish = powder coated
• Frame colour = signal blue RAL 5005
• Fittings = with hand operated control unit
• Lifting capacity at full load in multiple-shift operations = 6 cycles per hour
• Platform width = 1000 mm
• Platform length = 1350 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84254200
• Country of origin = CHN
• Gross weight = 279 kg
• Weight = 255 kg
• Sustainability = CO 2 footprint calculated
• Reliable Bucher hydraulics
• Reliable, sensitive, fast

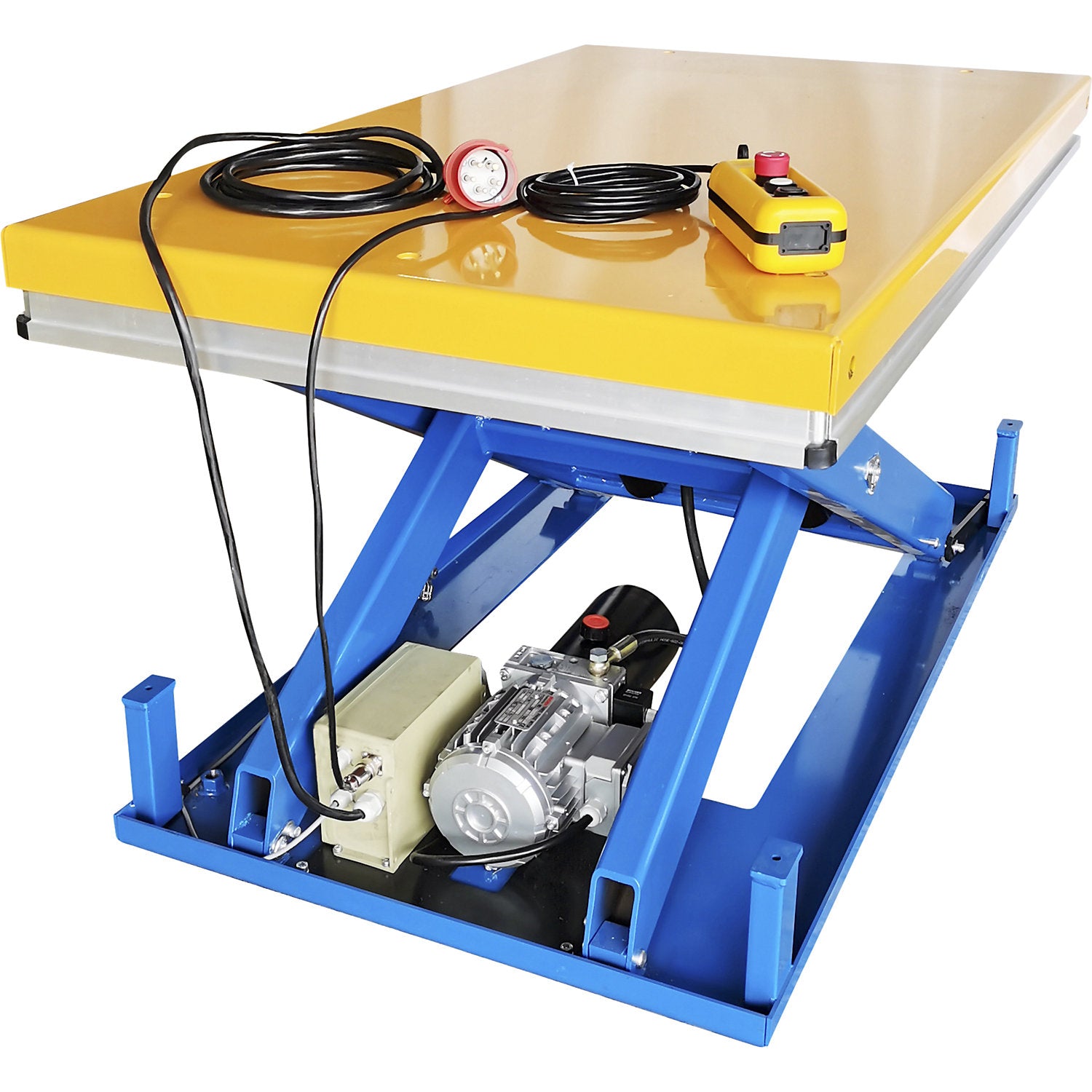

• Torsion resistant scissor mechanism
• Solidly built, stationary lift table
• Torsion resistant scissor mechanism made of rectangular tubing for high lateral stability
• Manual control unit with up-down button and emergency off
• Infinite lifting and lowering
• Smooth running due to safe guidance of the scissor mechanism by means of nylon rollers on the smooth lower frame
• Complete safety equipment in compliance with EN 1570-1
• CE compliant
• Ambient temperature of indoor area 0 - 40 °C
• Connection using 4.5 m cable and a red 16 A CEE plug.
