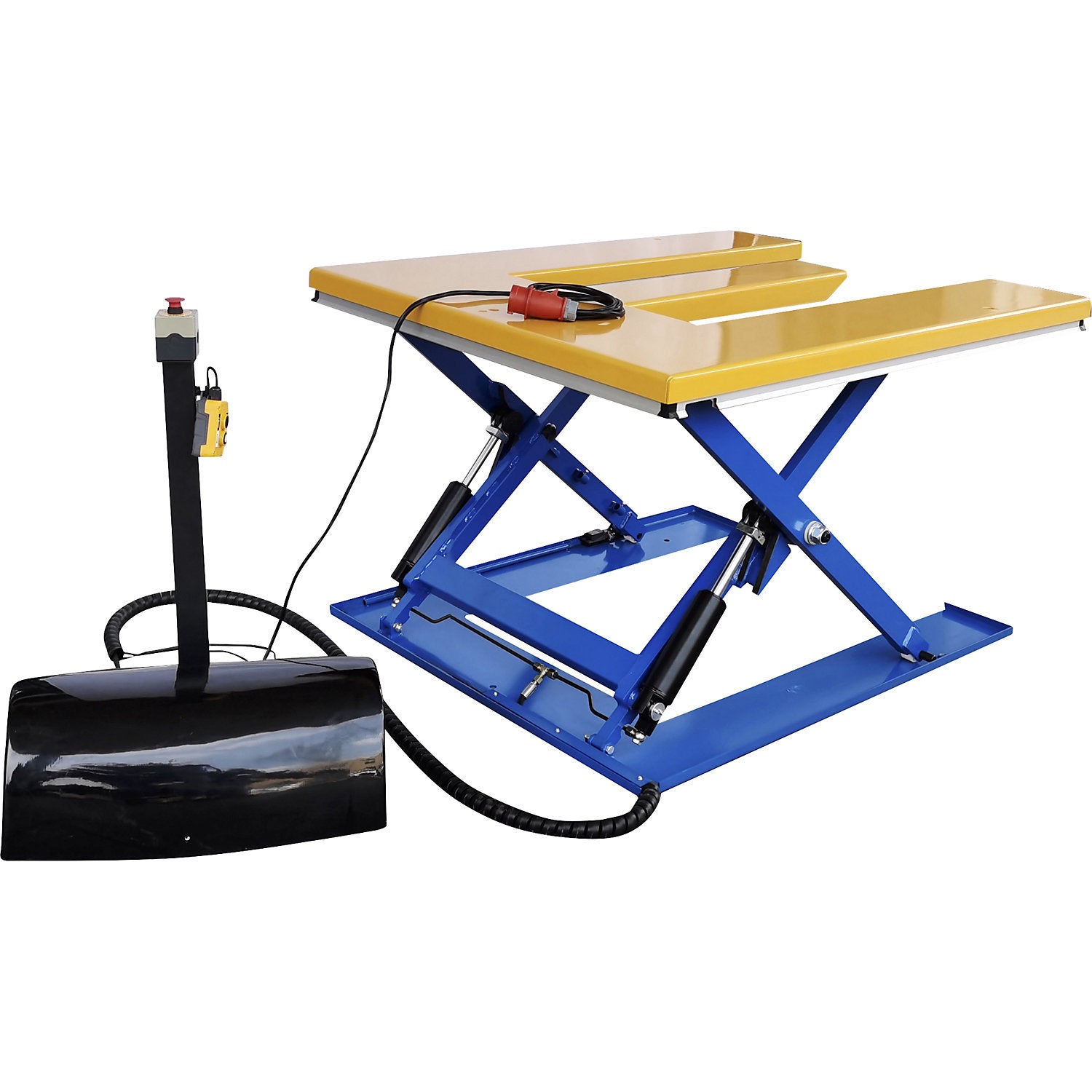

Low profile lift table, E shaped, max. load 1200 kg, hand operated control unit.

Estimated delivery: 31 days

Low profile lift table, E shaped, max. load 1200 kg, hand operated control unit

• Supplied = pre-assembled, final assembly by customer
• Max. load = 1200 kg
• Lifting range = 85 - 860 mm
• Platform design = E-shaped
• Lifting time = 15 sec
• Power = 0,37 kW
• Operating voltage = 400 V / 50 Hz
• Control voltage = 24 V
• Lift drive = electro-hydraulic
• Platform colour = melon yellow RAL 1028
• Platform material = steel
• Material = steel
• Finish = powder coated
• Frame colour = signal blue RAL 5005
• Fittings = with hand operated control unit
• Internal width = 586 mm
• Lifting capacity at full load in multiple-shift operations = 6 cycles per hour
• Platform width = 1140 mm
• Platform length = 1450 mm
• Feature = stationary, electro-hydraulic
• Customs tariff number = 84254200
• Country of origin = CHN
• Gross weight = 313.05 kg
• Weight = 246.05 kg
• Sustainability = CO 2 footprint calculated
• Supports the outside and centre of the pallet

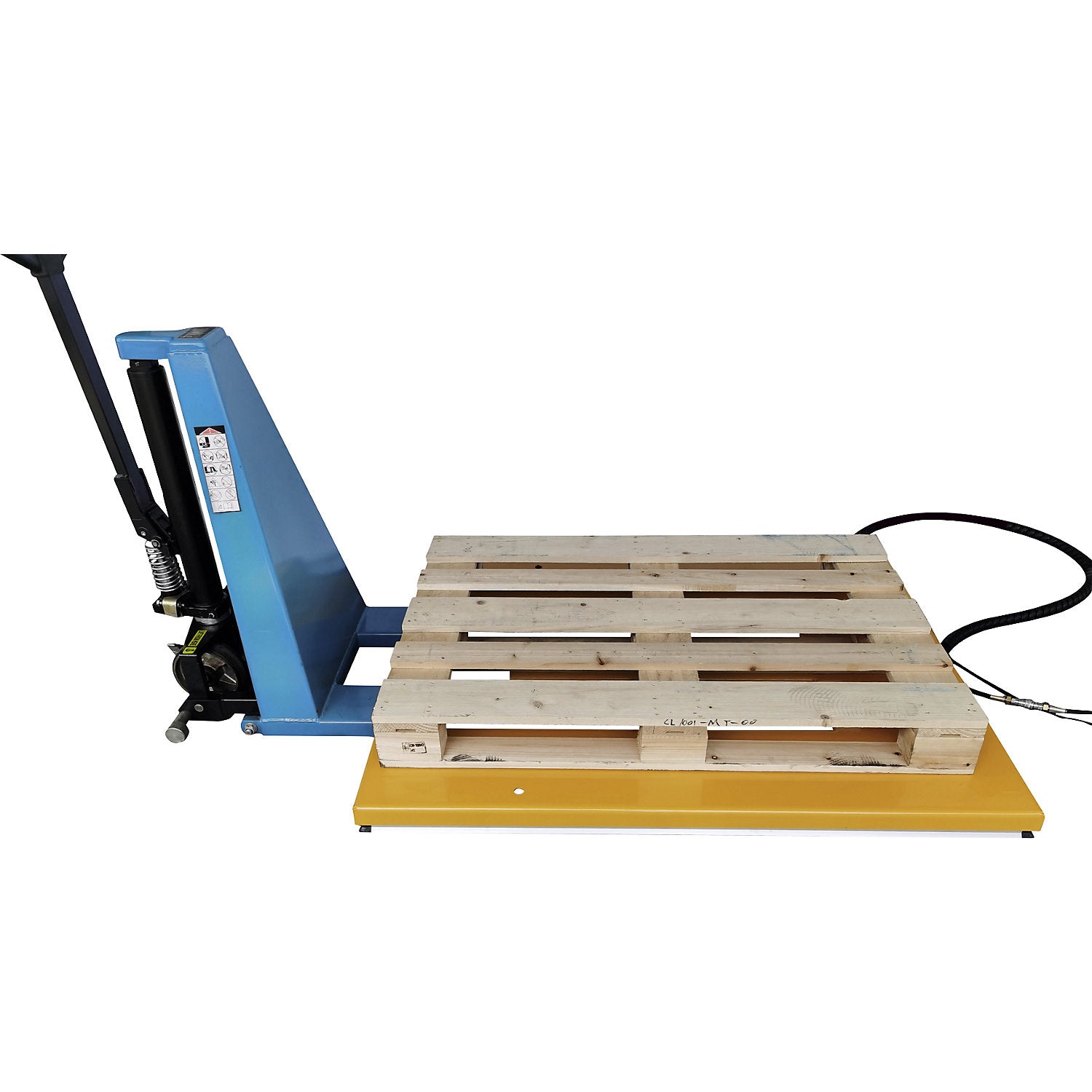

• Loaded using pallet truck
• Reliable Bucher hydraulics
• Low profile lift table, max. load 1200 kg, for lifting Euro and industrial pallets
• Excellent quality hydraulics, foot operated control unit with up-down button
• Emergency off switch
• Infinite lifting and lowering
• Smooth running due to safe guidance of the scissor mechanism by means of nylon rollers on the smooth lower frame
• Complete safety equipment in compliance with EN 1570-1
• CE compliant
• Ambient temperature of indoor area 0 - 40 °C

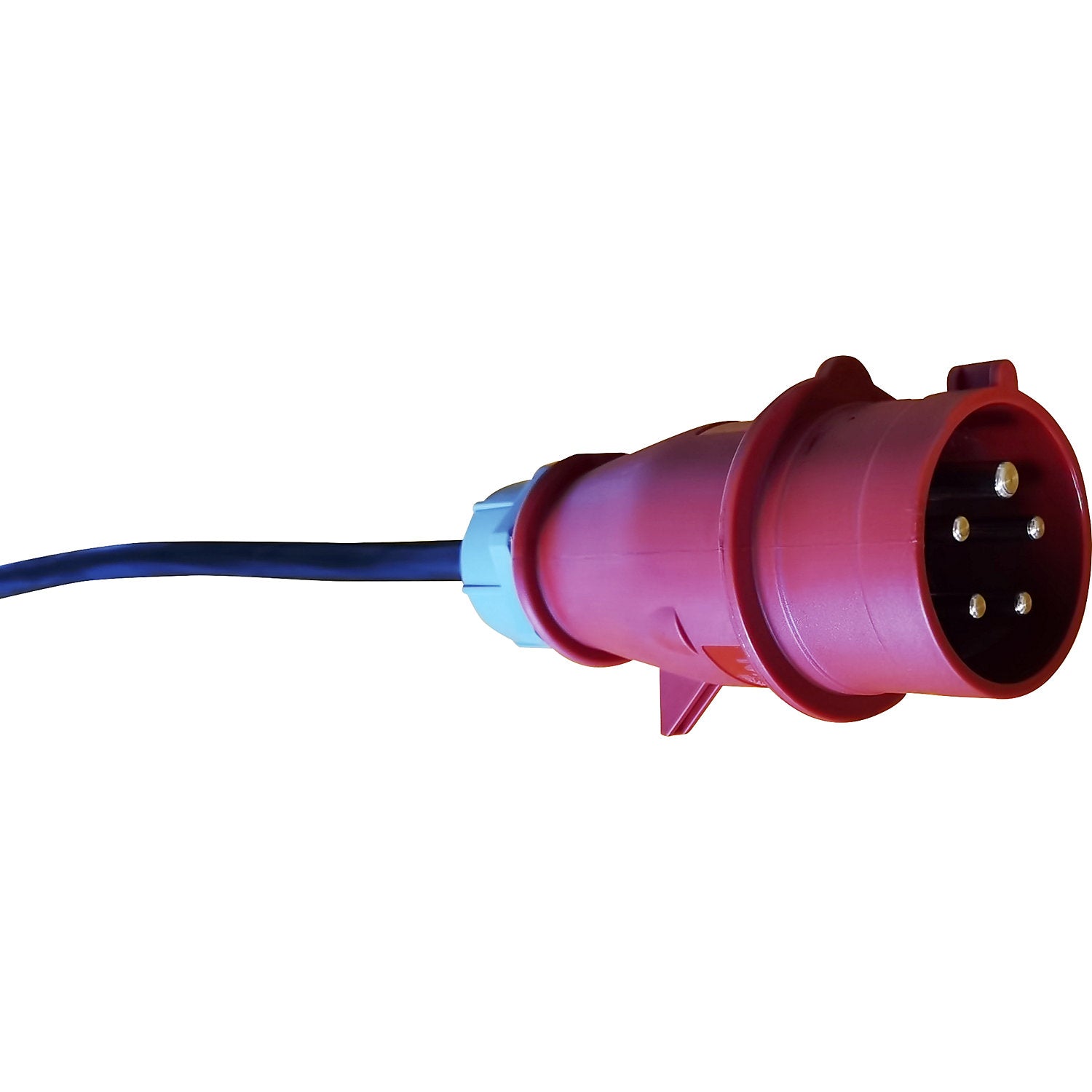

• Connection using 4.5 m cable and a red 16 A CEE plug
• With additional, central support for the pallet
• Weak, defective or very heavy pallets are protected from bending and breakage.
