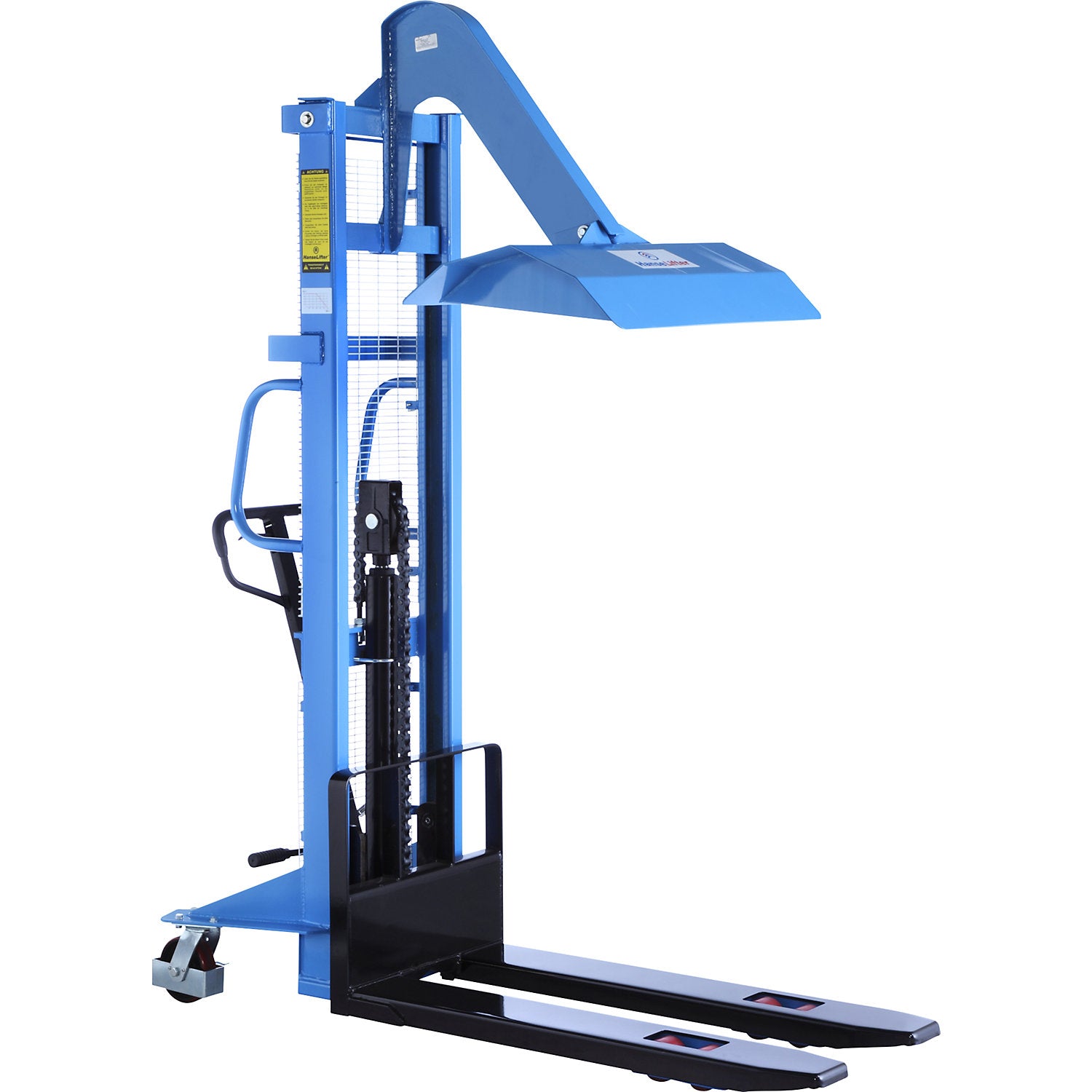

High lift stacker with waste compactor, for 800 and 1100 l waste containers, lifting range 90 - 1600 mm.

Estimated delivery: 33 days

High lift stacker with waste compactor, for 800 and 1100 l waste containers, lifting range 90 - 1600 mm

• Supplied = flat pack
• Max. load = 1000 kg
• Load centre = 600 mm
• Lifting range = 90 - 1600 mm
• Fork length = 1150 mm
• Distance across forks = 565 mm
• Fork width = 170 mm
• Length = 1705 mm
• Width = 755 mm
• Overall height = 2205 mm
• Design of mast = single mast
• Lift per pump stroke = 20 mm
• Lift drive = manual
• Wheel fittings = 2 steering wheels
• Castor diameter front / rear = 150 mm
• Material of rim = aluminium
• Steering wheel material = polyurethane
• Steering wheel width = 40 mm
• Fork roller version = tandem
• Roller material = polyurethane
• Fork roller width = 60 mm
• Finish = powder coated
• Colour = light blue RAL 5012
• Customs tariff number = 84279000
• Country of origin = CHN
• Gross weight = 271 kg
• Weight = 269 kg
• Sustainability = CO 2 footprint calculated
• Waste compaction by up to 50%
• Quick and easy assembly
• Long service life due to safety overload pressure valve
• Suitable for 1100 litre waste containers

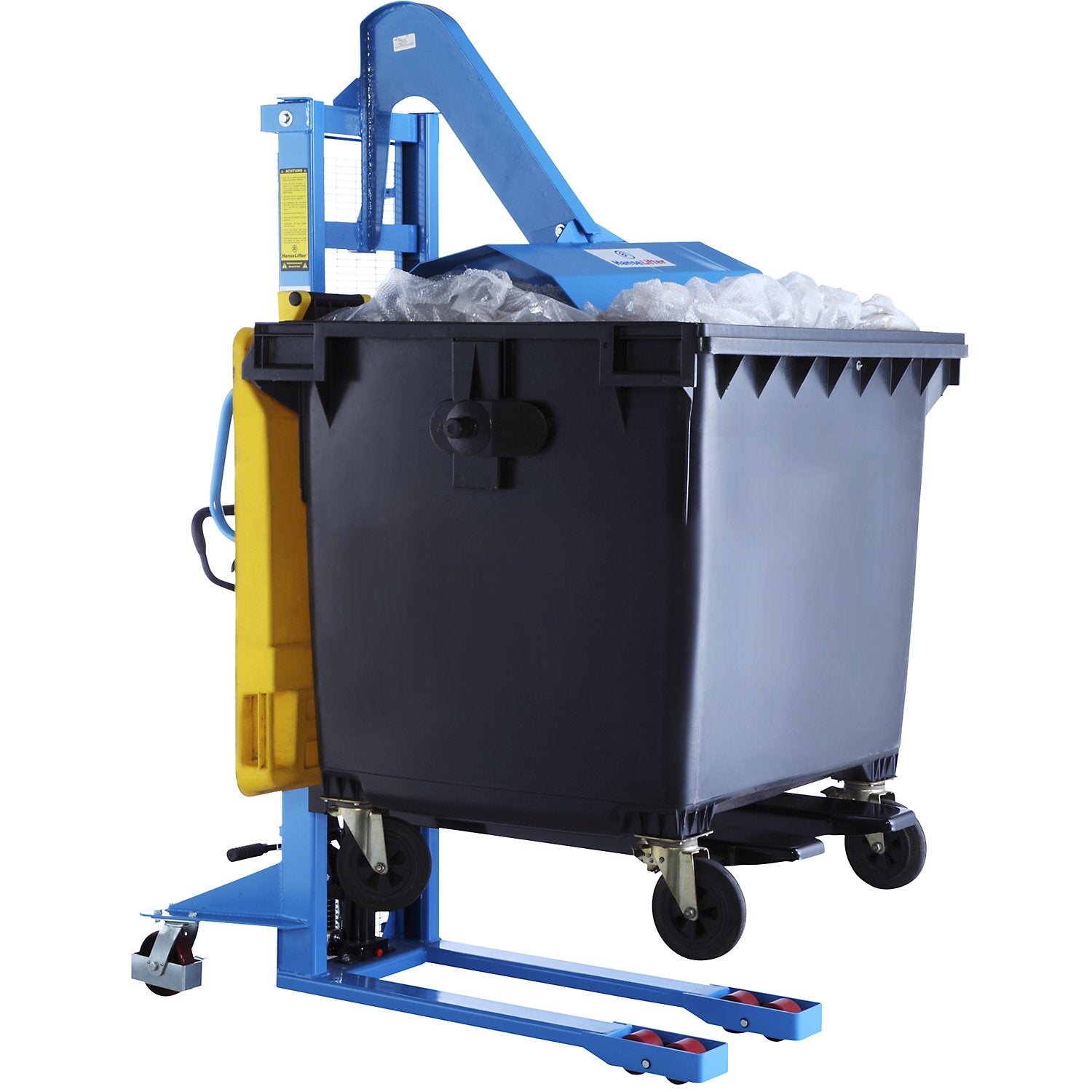

• The waste compactor for standard waste containers with a capacity of 800 l and 1100 l, consisting of a high lift stacker and the LiftPress
• The high lift stacker without a LiftPress attachment is ideal for stacking and retrieving pallets weighing up to 1.0 t
• The LiftPress compactor attachment consists of 2 parts and is simple to fit onto the high lift stacker
• The LiftPress waste compactor operates from below, i.e. the container is pushed against a press plunger from below
• This allows waste of all kinds to be compacted without damaging the waste container and rollers, and guarantees bulk handling of the waste material
• Robust construction with reinforced mast profile
• Load chains and hydraulic cylinders secured with protective guards
• Excellent stability due to wheel stops on the steering wheels - even under full load.
