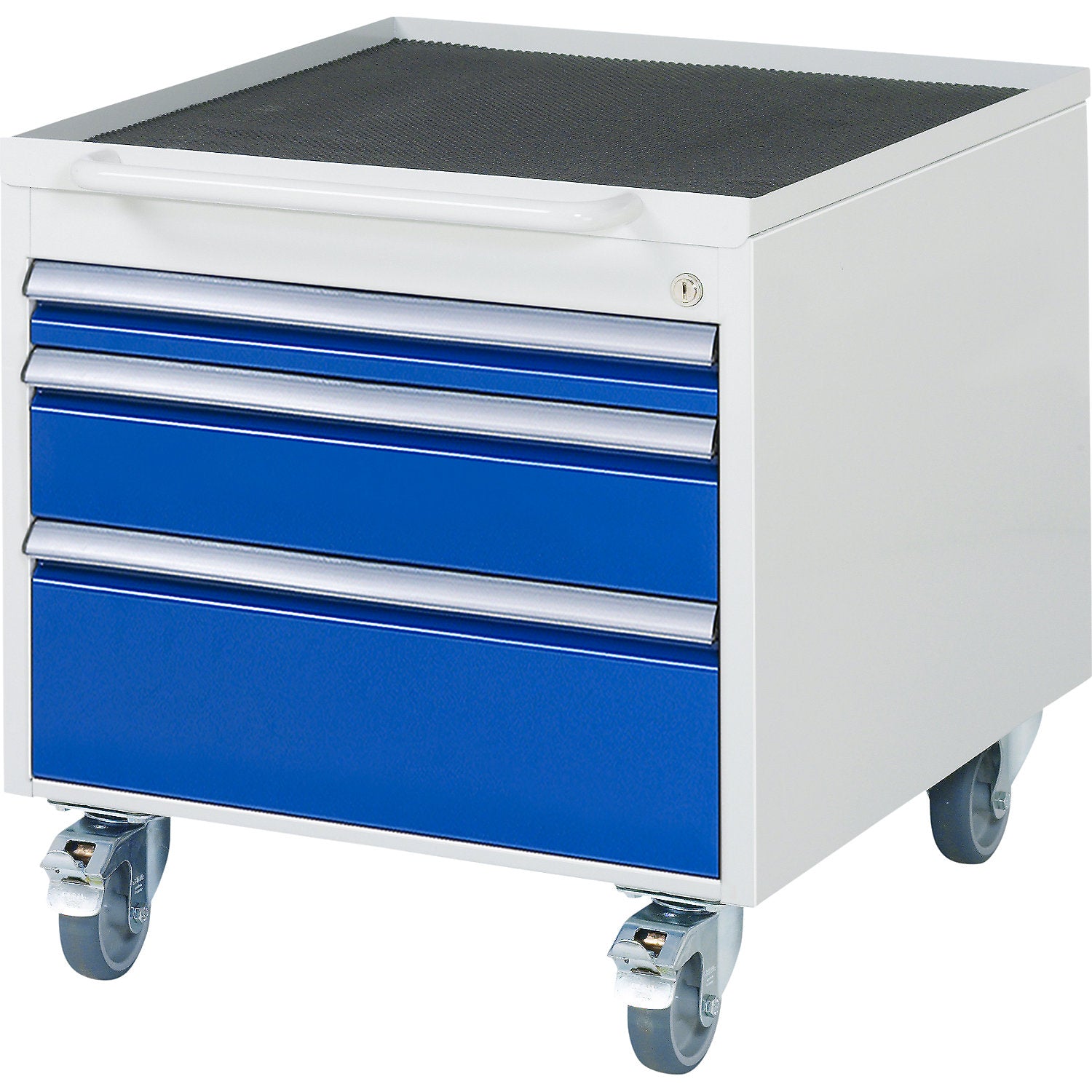

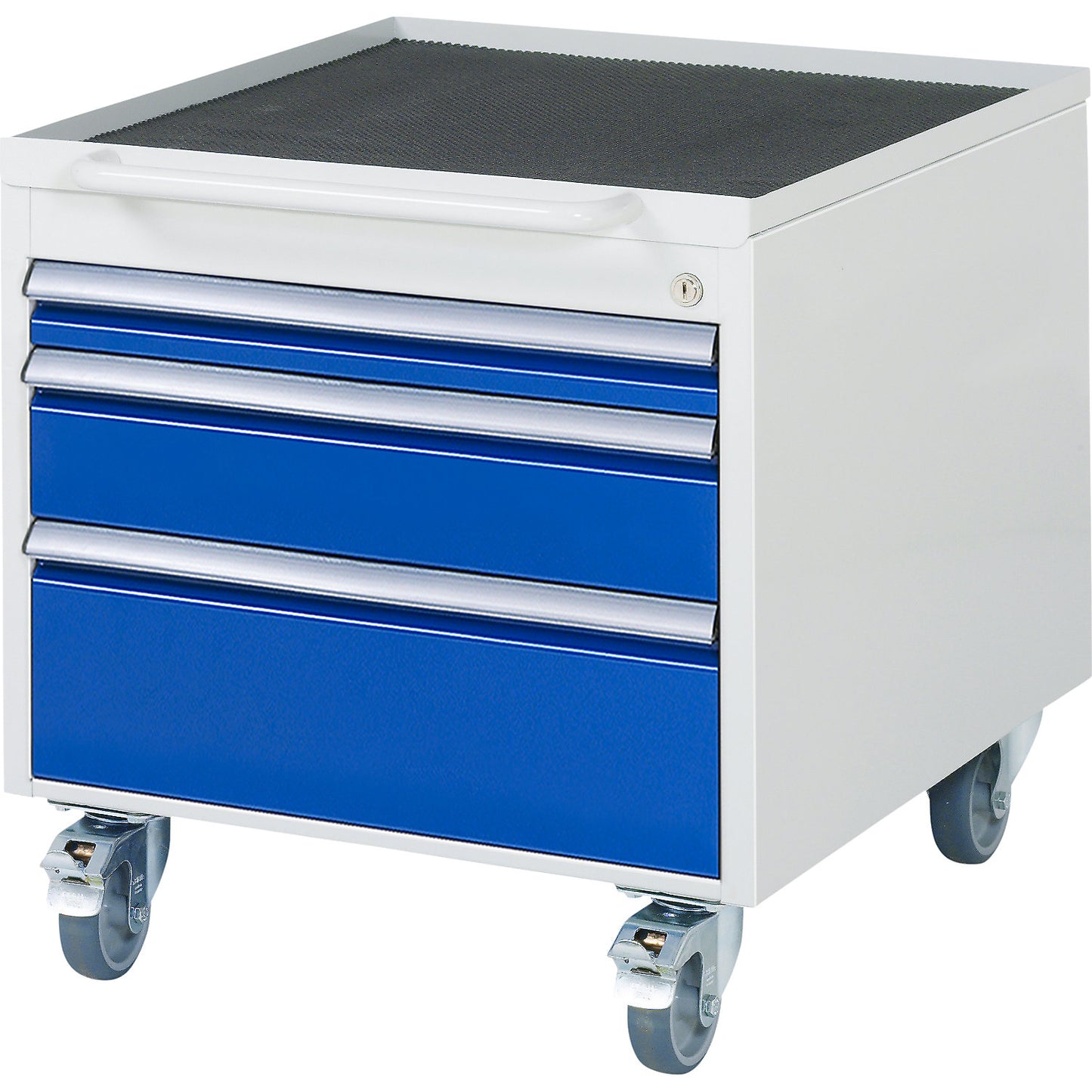

Series 7000 mobile pedestal, with 3 drawers, internal drawer height 1 x 60/120/180 mm.

Estimated delivery: 36 days

Series 7000 mobile pedestal, with 3 drawers, internal drawer height 1 x 60/120/180 mm

• Supplied = pre-assembled, final assembly by customer
• Height = 565 mm
• Width = 580 mm
• Depth = 650 mm
• Number of drawers = 3 pcs
• Drawer extension = 90%
• Internal drawer dimensions = 490x560 mm
• Product type = mobile drawer units
• Material = sheet steel, powder coated
• Body colour = light grey RAL 7035
• Drawer material = sheet steel
• Drawer colour = gentian blue RAL 5010
• Max. drawer load = 100 kg
• Number/size of drawers = 1x60 mm, 1x120 mm, 1x180 mm
• Drawer guide = roller guide
• Feature = mobile
• Wheel fittings = 2 fixed castors, 2 swivel castors with stops
• Wheel diameter = 80 mm
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 43 kg
• Weight = 41 kg
• A practical extension to your workplace with electric height adjustment
• Drawers with high max. load for tools and small parts, including labelling option
• Lockable - valuable items can be kept under lock and key
• Cupboard incl. metal shelf at the top with a raised edge on four sides and an anti-slip mat, height 20 mm
• Drawer size L (internal WxD 490 x 560 mm, max. load 100 kg)
• The effective height of the drawer is equivalent to the front height minus 15 mm
• Roller bearing mounted semi-telescopic rails (90% extension) with self-retraction and non-return system
• Full length ErgoScript® handle: sheet steel base with aluminium coloured overlay and integrated clear view cover (incl. labelling strips)
• Central locking (pin cylinder lock with 2 keys)
• Push handle attached to the front of the metal base (push handle protrudes 50 mm). 2 fixed and 2 swivel castors with wheel stops, each fitted to wheel plates that have been welded on
• Wheel diameter 80 mm, overall height 105 mm, running surface made of thermoplastic rubber (grey, non marking, 85° shore), wheel body made of polypropylene
• Fixed castors at rear (left and right), swivel castors with wheel stops at front (left and right)
• Overall max. load 450 kg
• Set of castors supplied (easy assembly)
• Supplied fully assembled.
