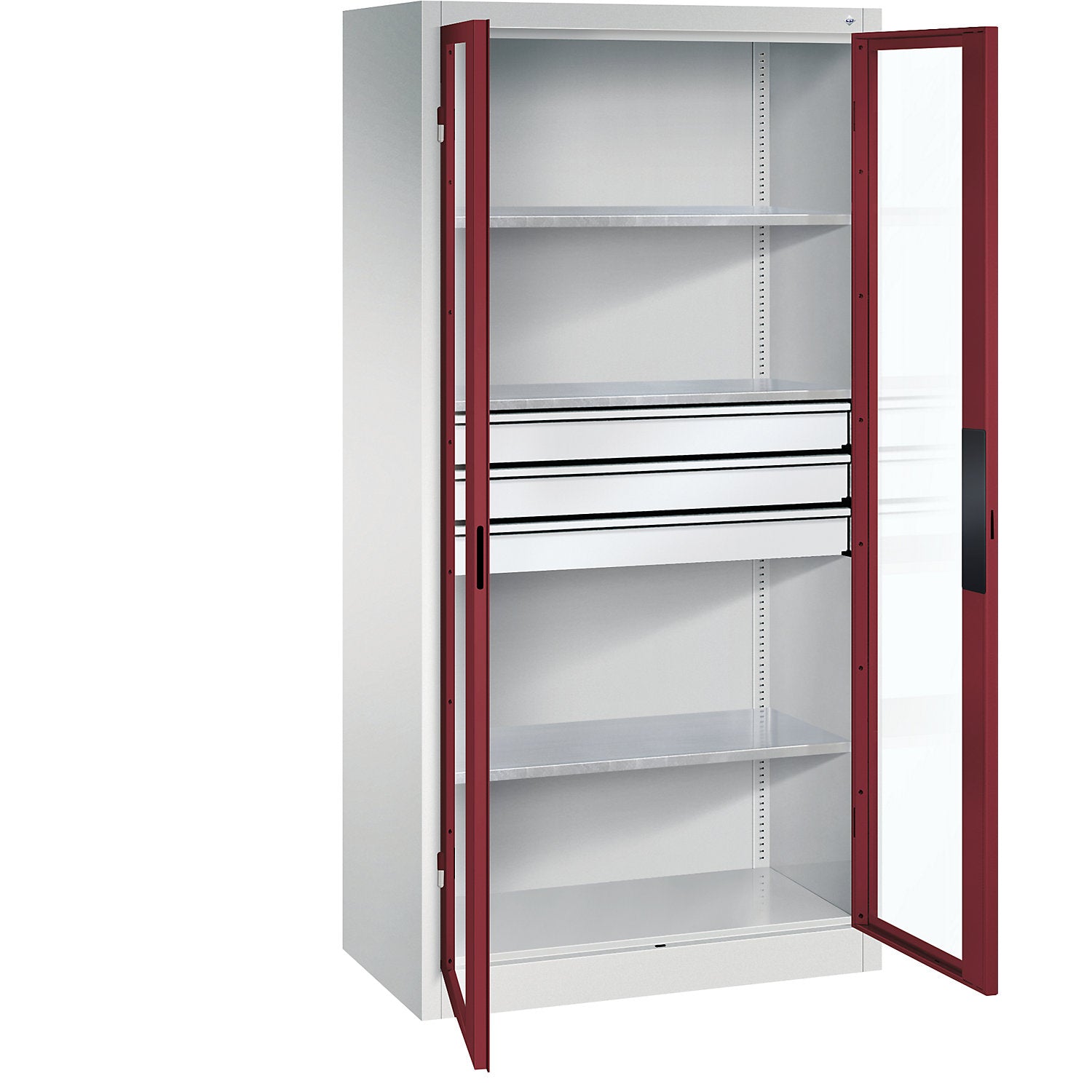

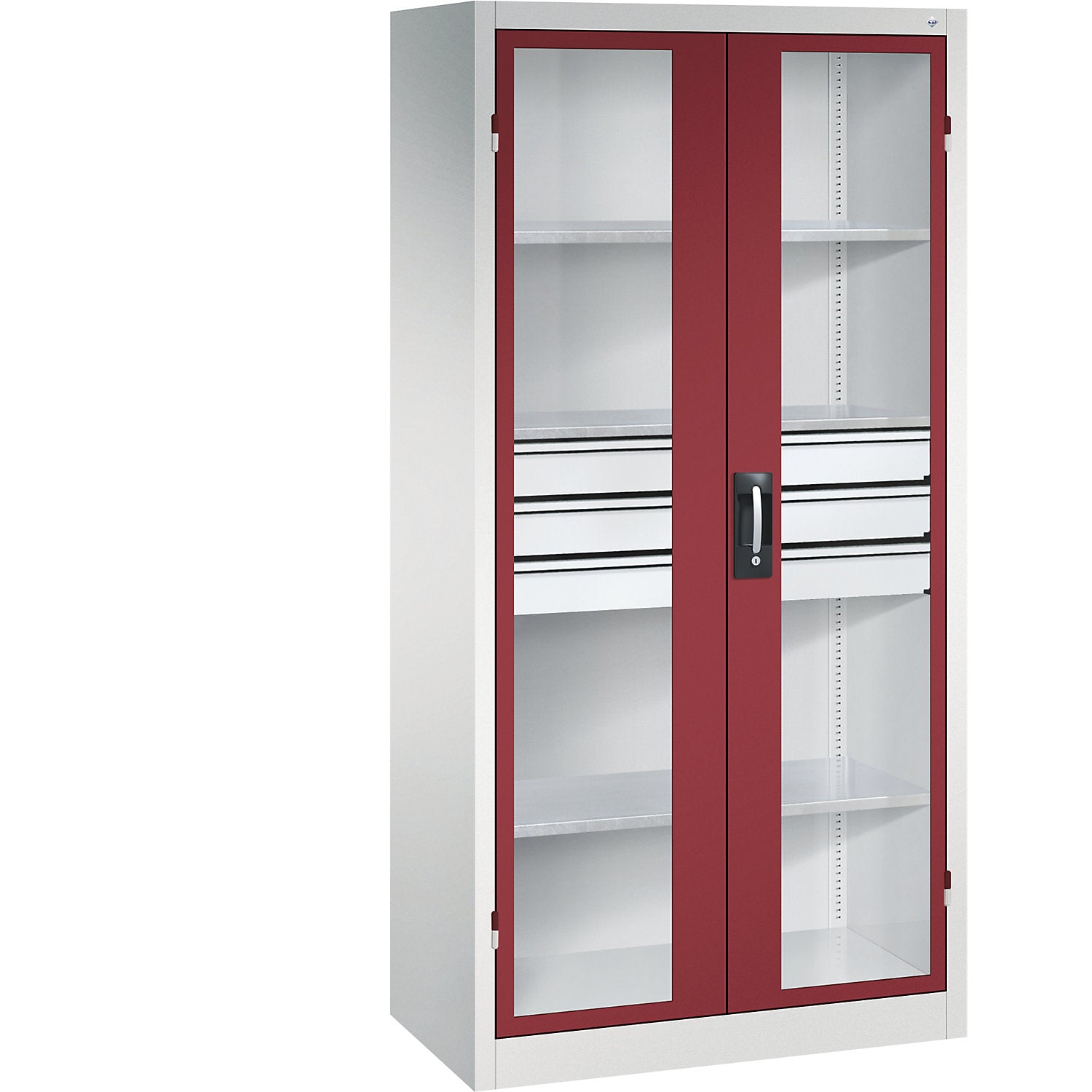

Vision panel double door cupboard, HxWxD 1950 x 930 x 500 mm, with 3 shelves, 3 drawers, light grey / ruby red.

Estimated delivery: 51 days

Vision panel double door cupboard, HxWxD 1950 x 930 x 500 mm, with 3 shelves, 3 drawers, light grey / ruby red

• Supplied = assembled
• Height = 1950 mm
• Width = 930 mm
• Depth = 500 mm
• Door type = vision panel double doors
• Door version = with vision panel
• Body colour = light grey RAL 7035
• Door colour = ruby red RAL 3003
• Number of shelves = 3 pcs
• Number of drawers = 3 pcs
• Internal fittings = 3 shelves, 3 drawers
• Max. shelf load = 70 kg
• Shelf height adjustment increments = 15 mm
• Lock type = cylinder lock
• Locks = triple
• Shelf colour = silver
• Shelf material = sheet steel, galvanised
• Housing material = steel
• Door material = acrylic glass, steel
• Finish = stove enamelled
• Internal height = 1840 mm
• Internal width = 928 mm
• Internal depth = 453 mm
• Shelf width = 925 mm
• Shelf depth = 452 mm
• Customs tariff number = 94031091
• Country of origin = DEU
• Gross weight = 101.06 kg
• Weight = 96.06 kg
• Sustainability = CO 2 footprint calculated
• Workshop cupboards with vision panels for organisation and efficiency as well as short searches
• Also ideal for the implementation of KAIZEN and KVP
• High max. housing load of 450 kg, max. shelf load of 70 kg
• Door opening angle 180° - no protruding doors in passageways etc
• The practical storage cupboards with vision panels made of acrylic glass and hinged doors in hinges on the outside (door opening angle 180°)
• Sturdy steel construction with high quality stove enamelling
• Ingeniously simple: a direct view of the contents of the cupboard saves you time spent searching or attaching labels
• The cupboards with vision panels automatically helps keep things organised
• Concealed lock linkage

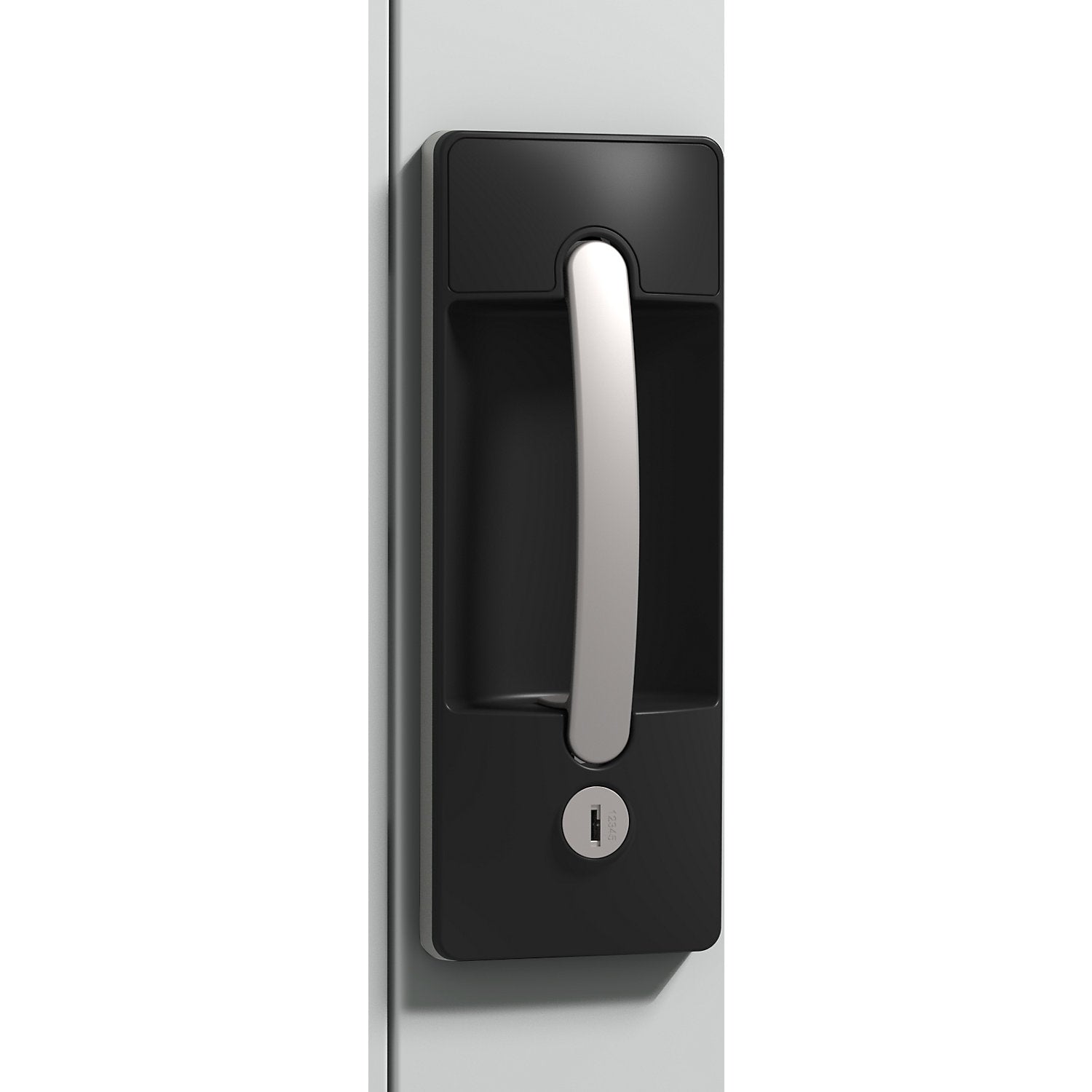

• Triple bolt Ergo-Lock 4.0 handle lock: simply press to close, easy to operate even with gloves
• Acrylic glass doors, direct view of the contents of the cupboard results in less time spent searching and better organisation. 3 zinc plated, height adjustable shelves. 3 drawers with telescopic guide rails, fully extendable, 50 kg max. load/drawer
• Internal dimensions: HxWxD 100 x 1000 x 440 mm
• Must be bolted to a wall! Also available with a PIN code or transponder lock upon request
• In addition: more than 150 colour combinations available at no extra charge!
