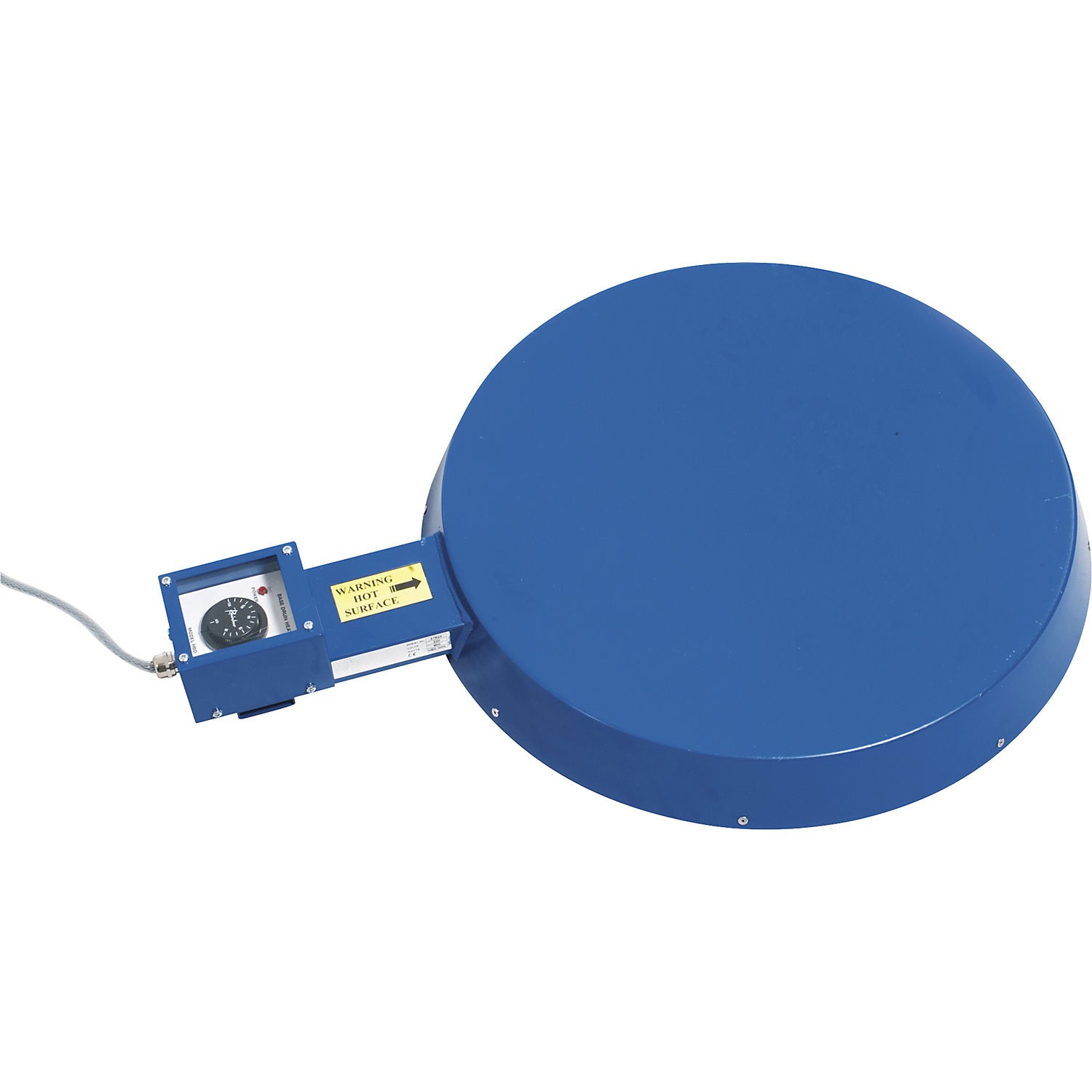

PRO drum base heater, 200 - 220 l steel drums, 900 W, steel, max. 150 °C, IP40.

Estimated delivery: 41 days

PRO drum base heater, 200 - 220 l steel drums, 900 W, steel, max. 150 °C, IP40

• Supplied = assembled
• Suitable for = 200 - 220 l steel/plastic drums
• Purpose of use = warming up/keeping warm
• For container circumference = 600 mm
• Height = 105 mm
• Width = 600 mm
• Depth = 880 mm
• Control range = 150 °C
• Power = 900 watt
• Nominal voltage = 230 V
• Protection type = IP40
• Test symbol = EC Directive (manufacturer's declaration)
• Fittings = analogue temperature controller
• Cable length = 2000 mm
• Type of mounting = for freestanding setup
• Material = steel
• Finish = powder coated
• Place of use = indoor use
• Colour = blue
• Product type = floor heating systems
• Customs tariff number = 85168020
• Country of origin = GBR
• Gross weight = 15.5 kg
• Weight = 14.8 kg
• Sustainability = CO 2 footprint calculated
• Heating plate for the base with a durable and resilient powder coating for heating and keeping steel drums warm
• With uniform heat distribution over the entire base plate
• Ideal for combining with insulation jackets to shorten the warm-up phase
• With 230 V earthed electrical connection and 2 metre connection cable for fixed positioning
• Can be loaded using a drum grip
• Thermostat continuously adjustable from 0 - 150 °C with analogue temperature controller
• Drum heating plate PRO - drum heater for even heating and keeping warm of steel drums The drum heating plate PRO quickly and reliably supports the warming up, heating and keeping warm of liquids in steel drums
• Thanks to the even heat distribution over the entire base area, this drum heater is particularly suitable for applications where constant temperatures and controlled heating processes are required
• As a powerful container heater, the drum base heating plate works with a medium heat output and ensures even heat transfer from below
• This makes viscous media easier to process and allows temperature-sensitive substances to be heated in a controlled manner
• The robust powder coating permanently protects the surface from the demands of everyday industrial use
• The drum heater features a continuously adjustable thermostat from 0 to 150 °C
• The desired temperature is easily set via the analogue temperature controller
• This allows precise adaptation to different media and process requirements
• The heating plate is equipped with a 230 V Schuko mains connection and a 2-metre-long mains cable

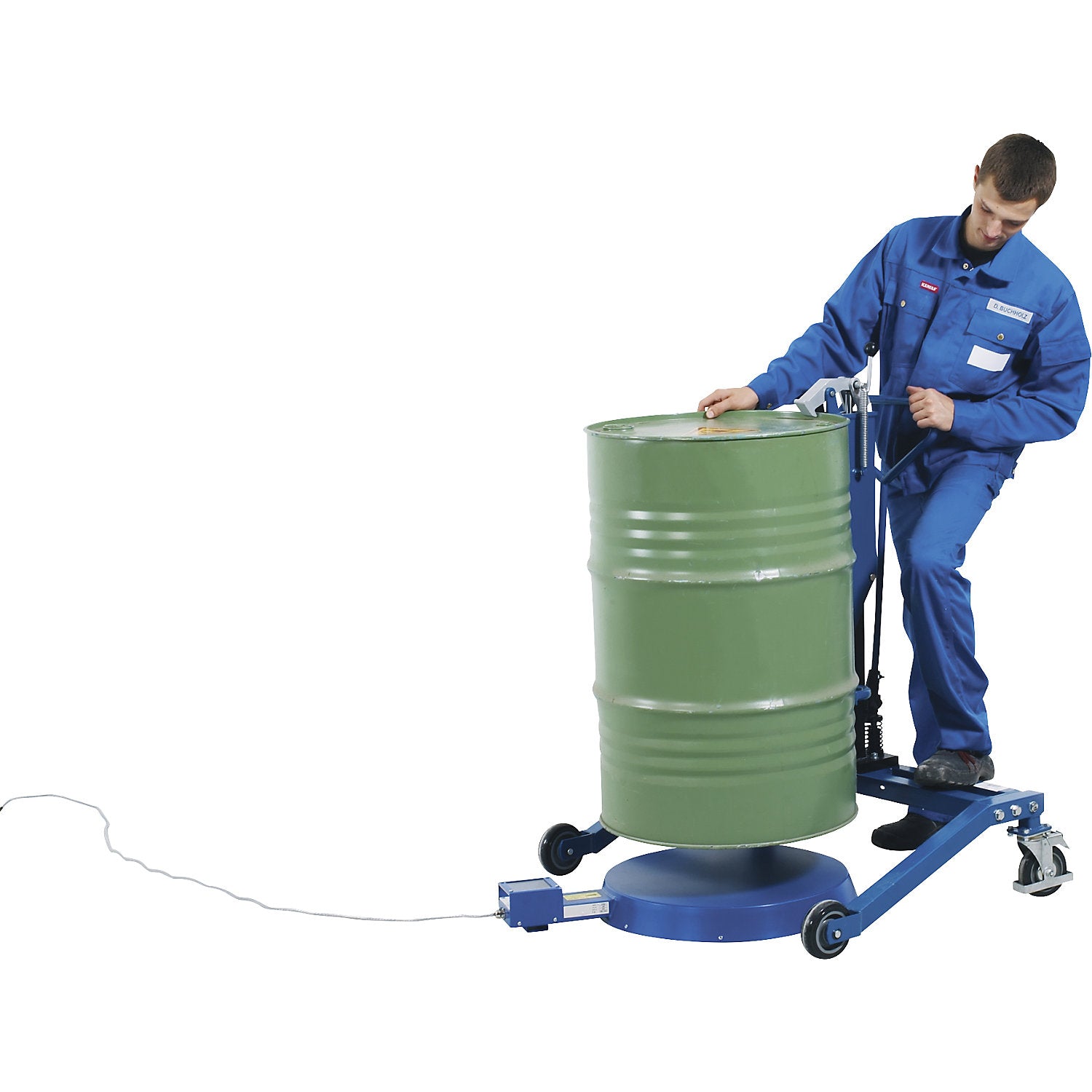

• The base heating plate can easily be loaded with drum grips and can therefore be easily integrated into existing workflows
• In combination with matching insulation jackets, the drum heater additionally shortens the warm-up phase and supports efficient temperature control
• As a container heater, the heating plate helps to improve the flowability of liquids and maintain desired processing temperatures over a longer period of time
• For 200 - 220-litre steel drums
• Please note: Check/observe the maximum temperature resistance of the container
• The temperatures specified are only values to provide orientation
• The temperatures that can be reached depend on many variables - for example, the ambient temperature, the supply voltage, the medium, the material that the container is made of, the container size, whether an agitator is used and many other factors.
