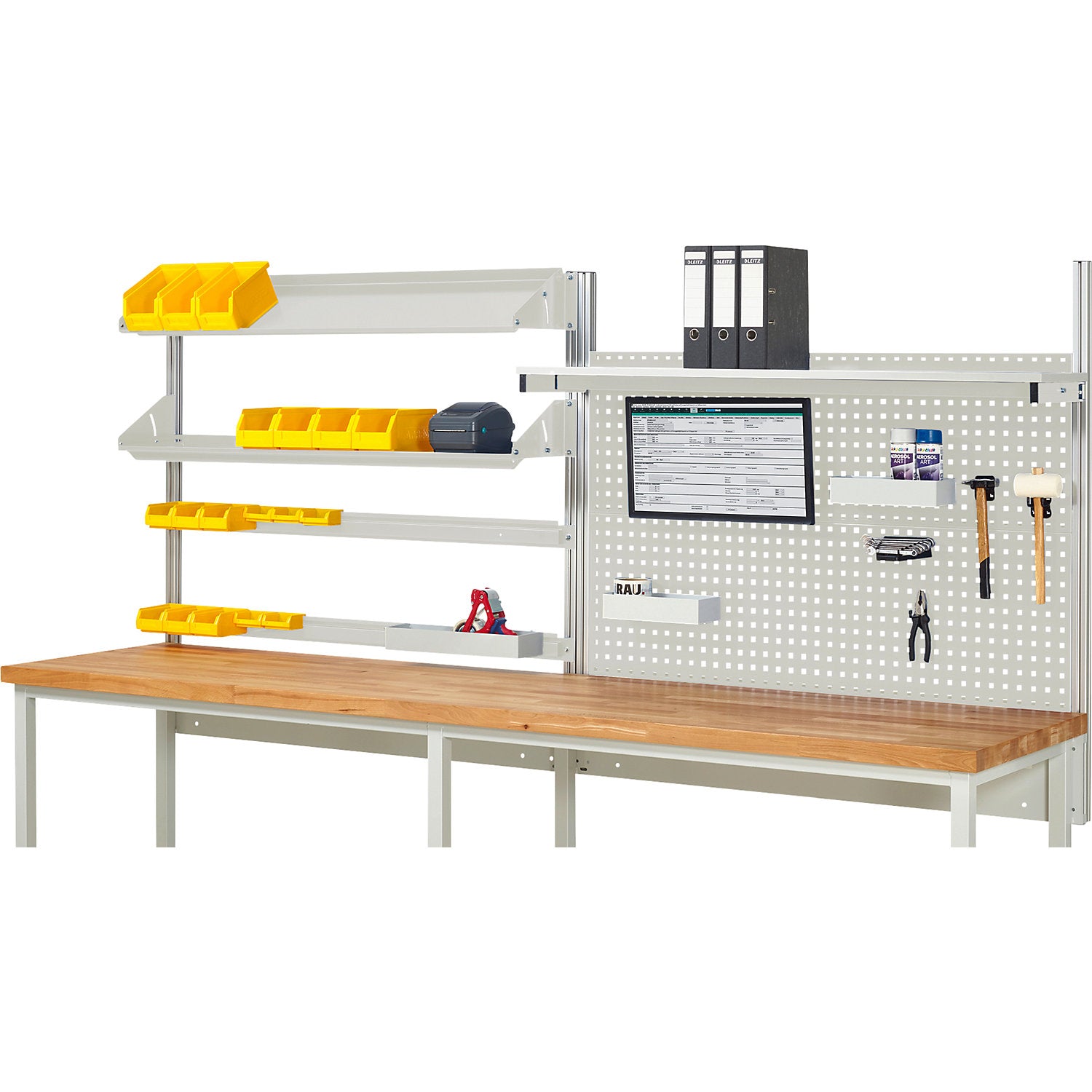

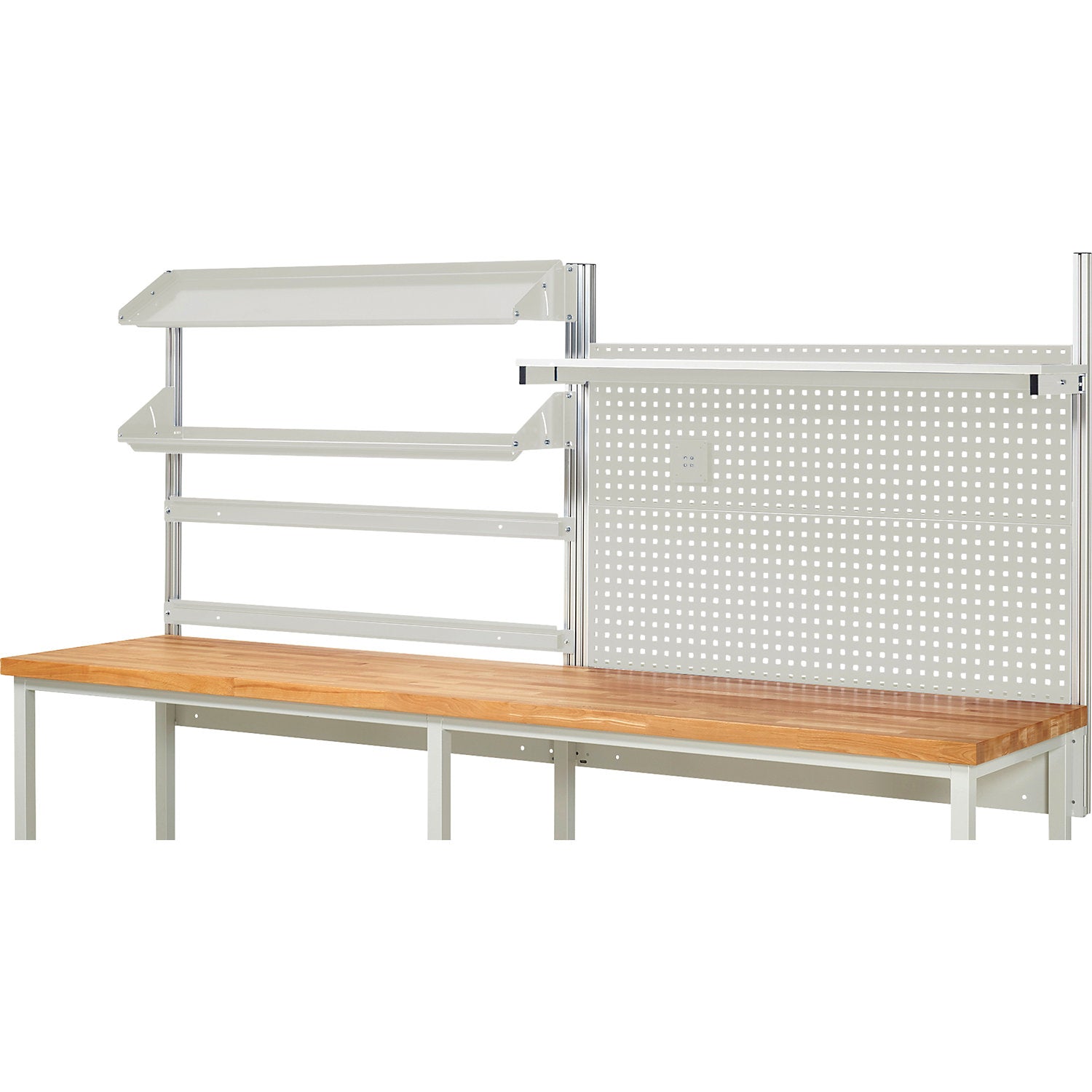

Complete modular system set 5, for workbench, width 3000 mm.

Estimated delivery: 36 days

Complete modular system set 5, for workbench, width 3000 mm

• Supplied = flat pack
• Width = 3000 mm
• Depth = 350 mm
• Colour = light grey RAL 7035
• For table width = 3000 mm
• Material = aluminium, wood, sheet steel
• Number of uprights = 4 pcs
• Max. load = 100 kg
• Bay width = 2x1500 mm
• Effective height = 1130 mm
• Height = 1400 mm
• Product type = accessories for workbenches
• Customs tariff number = 94032080
• Country of origin = DEU
• Gross weight = 42 kg
• Weight = 35 kg
• Sustainability = CO 2 footprint calculated
• Suitable for RAU workbenches/work tables and selected EUROKRAFTpro workbenches
• Ergonomics, tidiness and organisation at the workplace
• All interior fittings and attachment parts are adjustable in height
• Easy to add to or expand
• Indispensable for the implementation of LEAN management methods
• The complete modular system set 5 includes: - 1 x fastening set (cross bar) with 4 system uprights for workbench width 1500 - 2000 mm or 2 x fastening set for workbench width 2500 - 3000 mm - 2 x inclined metal shelf (WxD: bay width - 85 mm x 300 mm), raised edges on all sides - 2 x suspension rail to hold open fronted storage bins (open suspension edge at the rear of the open fronted storage bins required) and/or power strip - 2 x perforated panel (WxH: bay width - 85 mm x 450 mm) with square system perforation to integrate tool holders and accessories - 1 x flat screen holder with mounting adapter for perforated panel (VESA MIS-D 75/100) - 1 x shelf (WxD: bay width x 300 mm), melamine coated panel The installation height of the add-on units can be adapted on the system supports
• The fastening set (cross bar) is attached to the rear of the system frame under the worktop
• The system uprights (aluminium profile 40 x 40 mm) are screwed to the fastening set (cross bar) by means of slot nuts (height adjustable) and run upwards behind the worktop so that the entire depth of the worktop remains free (not bolted to the worktop)
• The system uprights feature a profile groove on all 4 sides to allow use from all sides
• This modular system is designed for RAU workbenches/work tables and selected EUROKRAFTpro workbenches, and cannot be connected to workbenches made by other manufacturers! When placing an order without an appropriate workbench, it is imperative to specify for which series the modular elements are intended.
