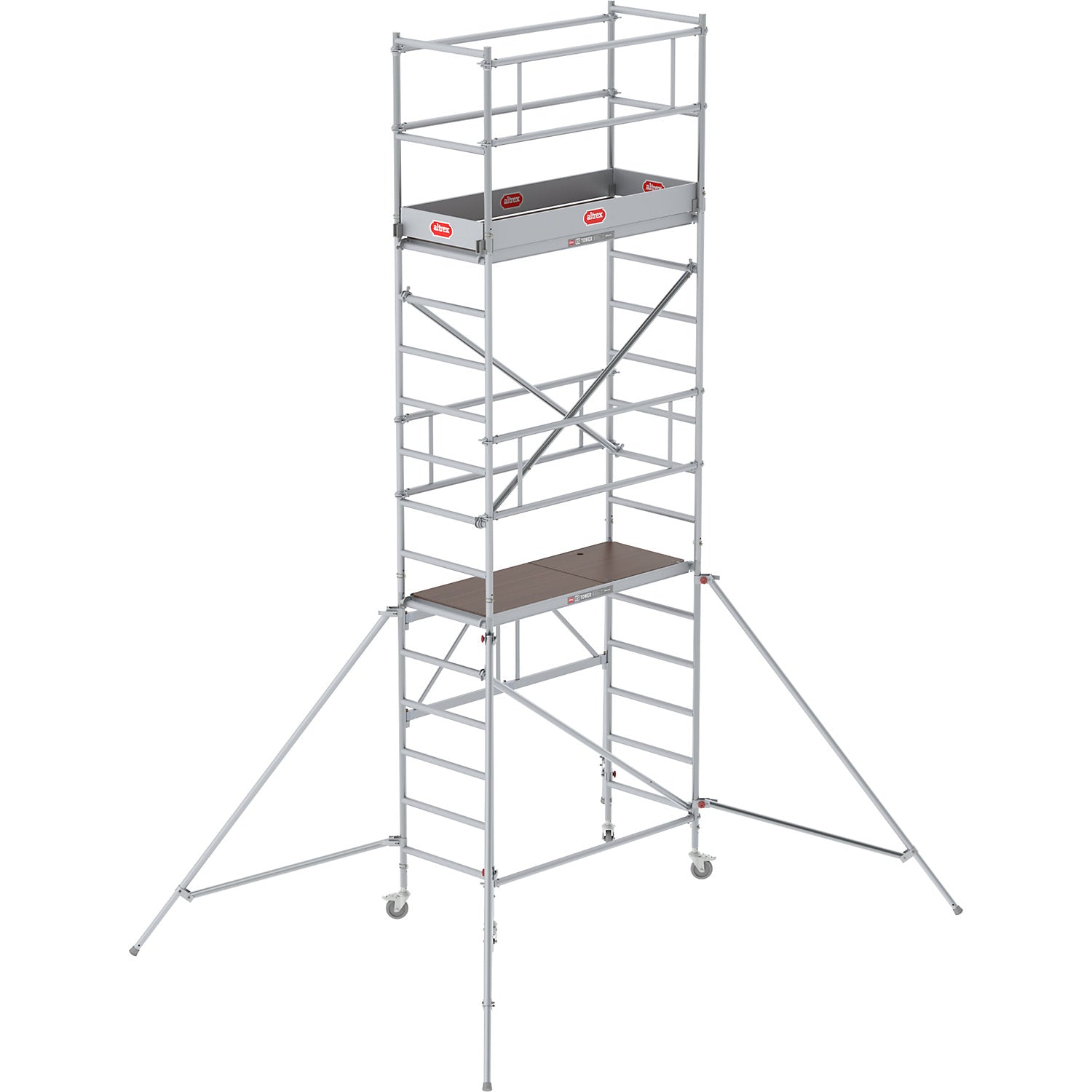

RS TOWER 34 folding tower, module 1+2+3, working height 5.80 m.

Estimated delivery: 36 days

RS TOWER 34 folding tower, module 1+2+3, working height 5.80 m

• Supplied = flat pack
• Platform length = 1650 mm
• Platform width = 750 mm
• Platform height = 3800 mm
• Working height = 5.8 m
• Standing height = 3800 mm
• Material = aluminium, wood
• Weight = 86.7 kg
• Max. load = 150 - 300 kg
• Conforms to = EN 1004 class 2
• Length = 1.7 m
• Width = 0.8 m
• Height = 5.04 m
• Wheel diameter = 125 mm
• Tube diameter = 40 mm
• Product type = rolling scaffolds, folding towers
• Customs tariff number = 76169990
• Country of origin = NLD
• Gross weight = 113.2 kg
• Weight = 86.7 kg
• Sustainability = CO 2 footprint calculated
• Narrow frame - fits through standard door frames
• Modular, can be extended
• Compact and lightweight - folds together into one piece
• Safe and stable - double stop swivel castors

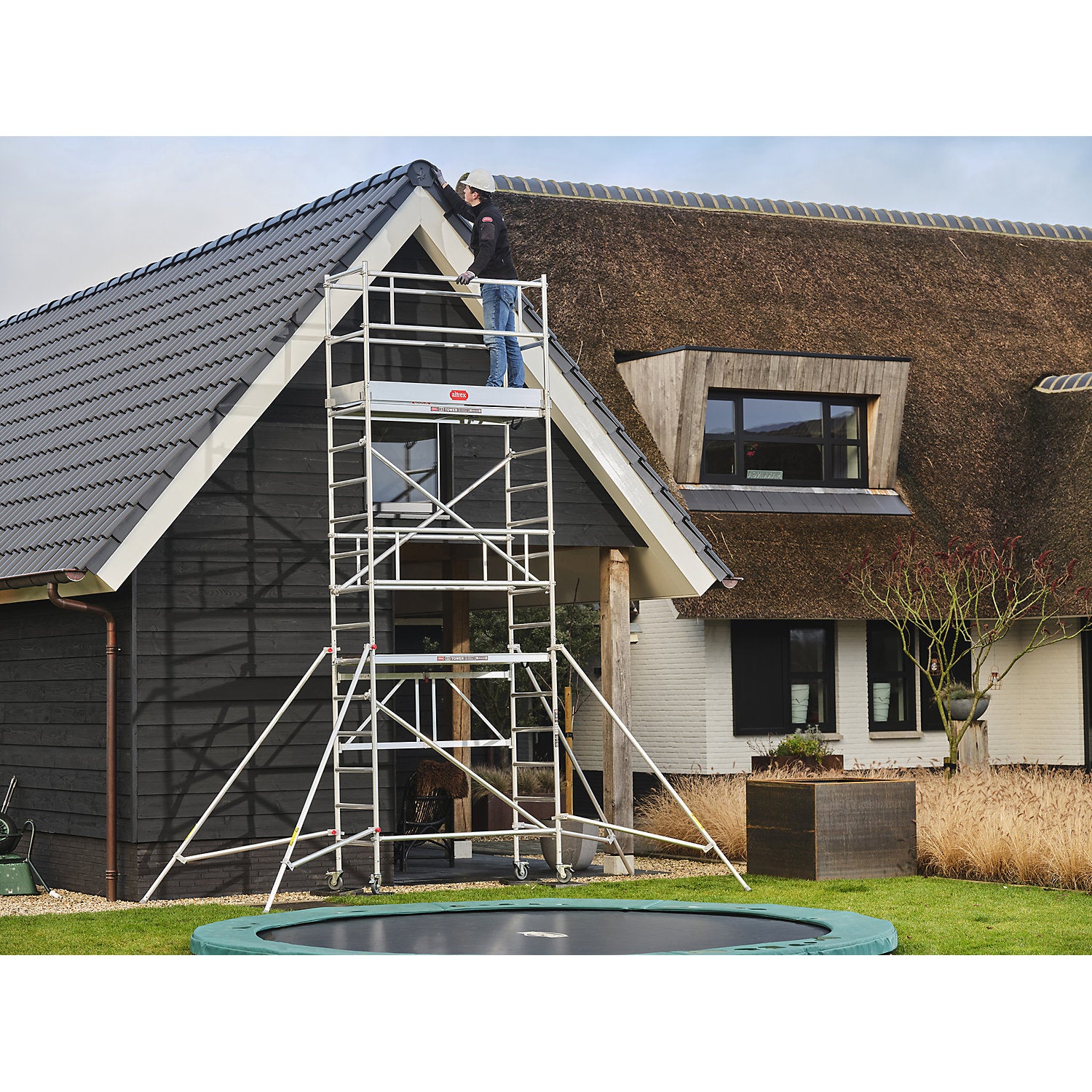

• Due to its compact format, the mobile, lightweight RS TOWER 34 scaffold is ideal for indoor use, but also for outdoor use
• The permissible maximum load is 150 kg
• The mobile access tower therefore complies with load class 2 according to standard EN 1004 as well as the side protection according to EN 1004-2 and is also particularly suitable for use by professional tradespeople

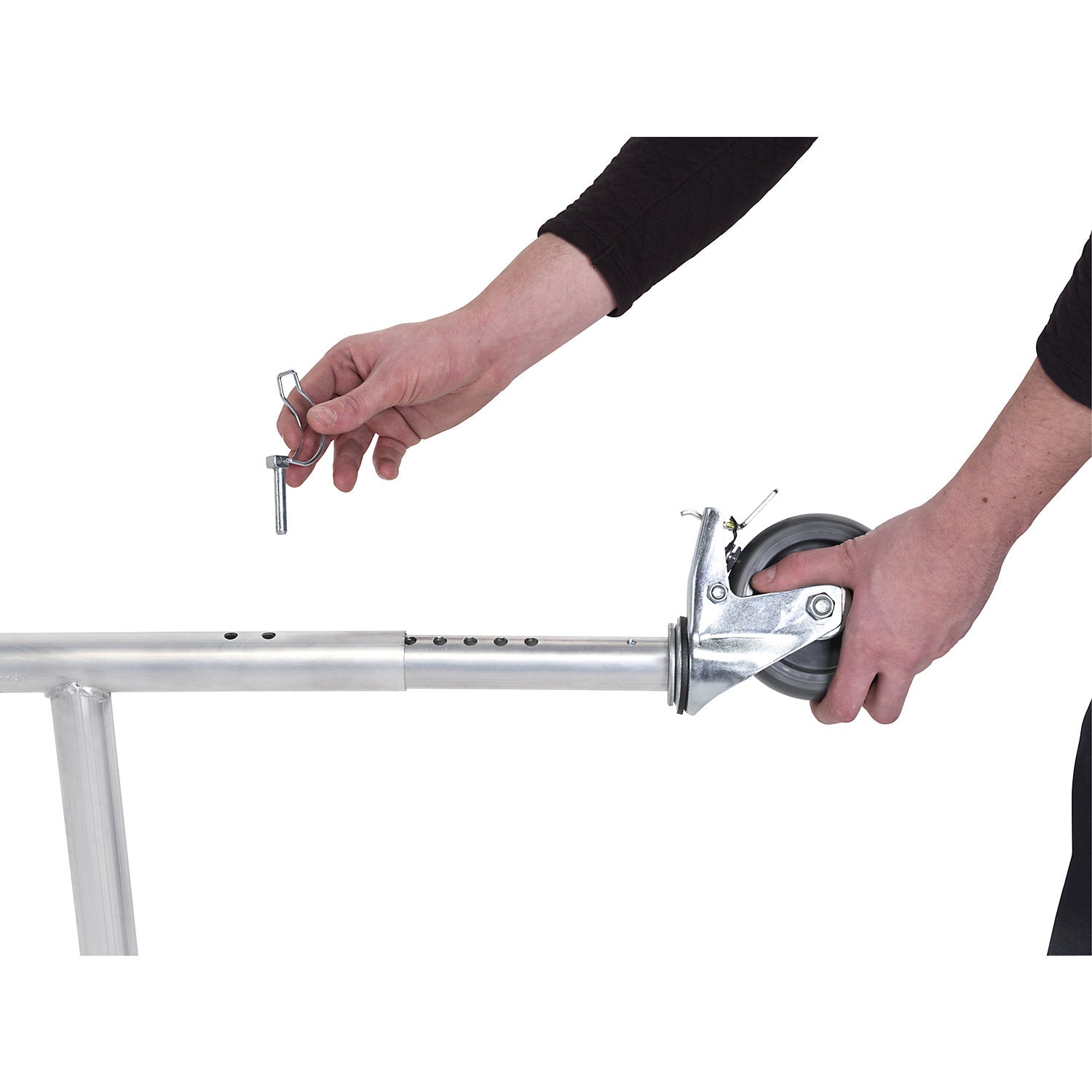

• The castor wheels (Ø 125 mm) are adjustable and have a double stop - for a secure and stable stand
• The system is modular
• Module 1 (max. working height 2.70 m) can be used individually
• For modules 2 and 3, module 1 is required for further assembly
• The combination of modules 1 + 2 allows for a max. total working height of 3.80 m
• The combination of modules 1 + 2 + 3 allows for a max. total working height of 5.80 m
• KK Art. 686426: Module 1 includes: 1 6-rung folding section, 1 platform with hatch, 1 horizontal brace, 4 triangular stabilisers (Module 1), 4 wheels Ø 125 mm (adjustable) KK Art. 686427: Module 2 includes: 4 flanged tubes, 2 guardrail frames, 1 diagonal brace, 2 horizontal braces, 1 double guardrail brace, 1 set of toe boards, 4 triangular stabilisers KK Art. 686428: Module 3 includes: 4 flanged tubes, 2 vertical frames, 1 platform with hatch, 2 diagonal braces, 2 double guardrail braces
