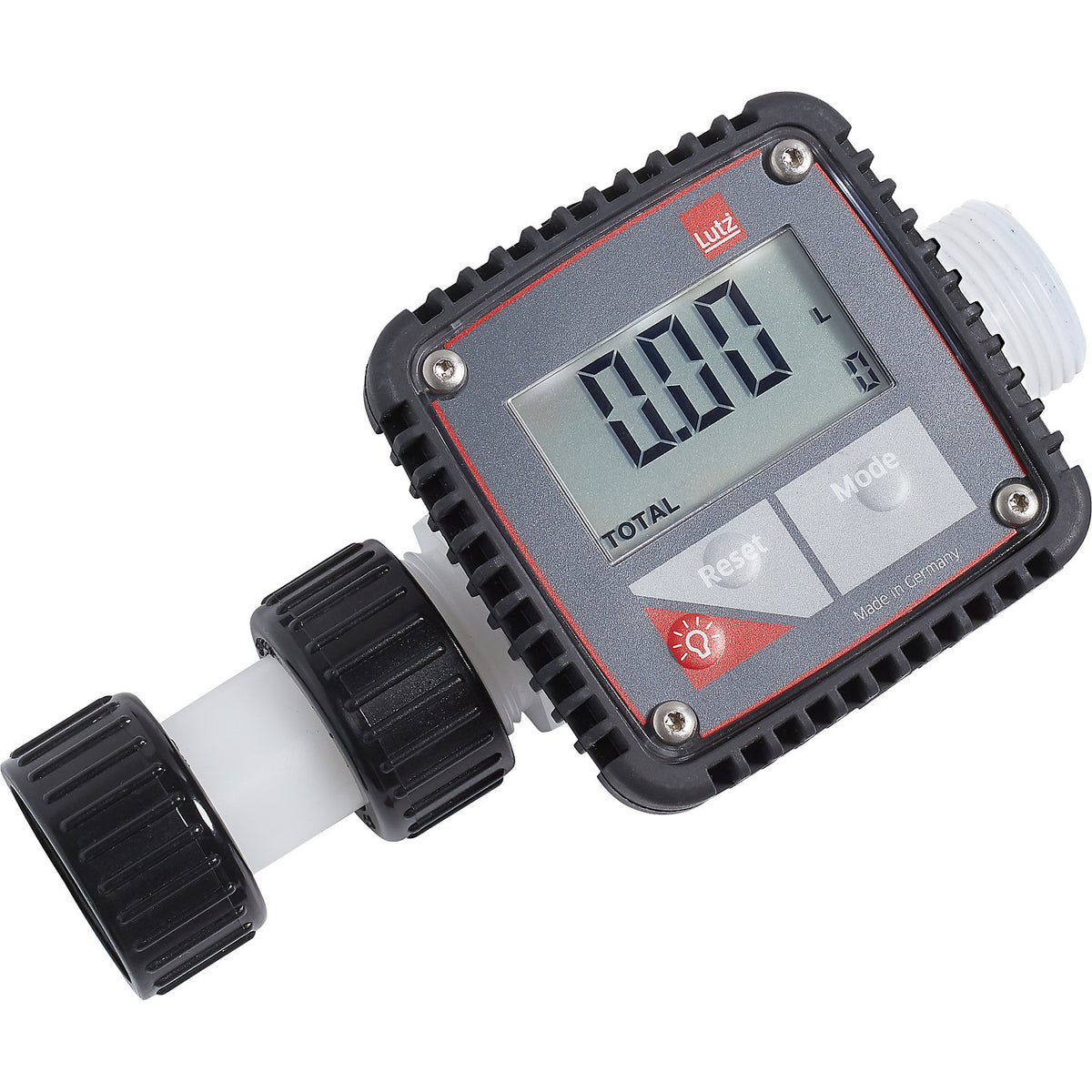

TR3 flow meter, PVDF, G 1 inch.

Estimated delivery: 41 days

TR3 flow meter, PVDF, G 1 inch

• Supplied = assembled
• For media = highly aggressive acids and alkaline solutions, sulphuric acid, nitric acid, chlorine bleaching agents
• Max. operating pressure = 10 bar
• External connection = 1 inch
• Measuring range = 5 - 120 l/min
• Colour = grey
• Accuracy = ± 1 %
• Material = PVDF
• Product type = flow meters
• Customs tariff number = 90282000
• Country of origin = DEU
• Gross weight = 0.585 kg
• Weight = 0.245 kg
• Sustainability = CO 2 footprint calculated
• For highly aggressive non-gassing acids and alkaline solutions and many non-flammable liquids
• Operation with standard 1.5 V batteries (AAA)
• Variable display alignment - easy to rotate when installed
• Reliable volume recording according to the turbine wheel measuring principle
• Illuminated, two-line LED display
• Total memory and eight partial volume memories for tracking individual dispensing operations
• Flow meter TR3 - digital flow meter with flexible display The TR3 flow meter enables reliable and clear recording of liquid volumes
• As a digital flow meter with an illuminated LED display and eight partial volume memories, it supports the precise control and documentation of dispensing operations in professional use
• The flow meter operates according to the proven measuring principle of a turbine wheel meter
• In this process, the movement of a turbine wheel is used to determine the volume of liquid flowing through
• This enables controlled volume recording and facilitates the monitoring of filling and conveying processes
• For convenient operation, the flow meter features an illuminated, two-line LED display
• This displays the current dispensed volume as well as the total memory or one of the eight partial volume memories
• This allows individual dispensing operations to be clearly recorded and total volumes to be tracked
• This facilitates volume control during recurring workflows
• The flexible orientation of the display is particularly practical
• The display can be adjusted to the respective viewing angle during installation or moved even when installed
• As a result, the flow meter remains easy to read and convenient to operate, even in different installation positions
• Power is supplied via standard 1.5 V AAA batteries
• This enables straightforward battery replacement and makes operation independent of an external power supply
• The flow meter is suitable for applications in industry, workshops and technical operating areas where liquid volumes must be reliably recorded
• The combination of a digital display, variable display orientation and multiple volume memories supports transparent control of dispensed and flow volumes
• Measuring accuracy: Better than ±1% Nominal operating pressure: 10 bar
• Flow meters ideal for measuring highly aggressive non-gassing acids and alkaline solutions and many other non-flammable liquids.
