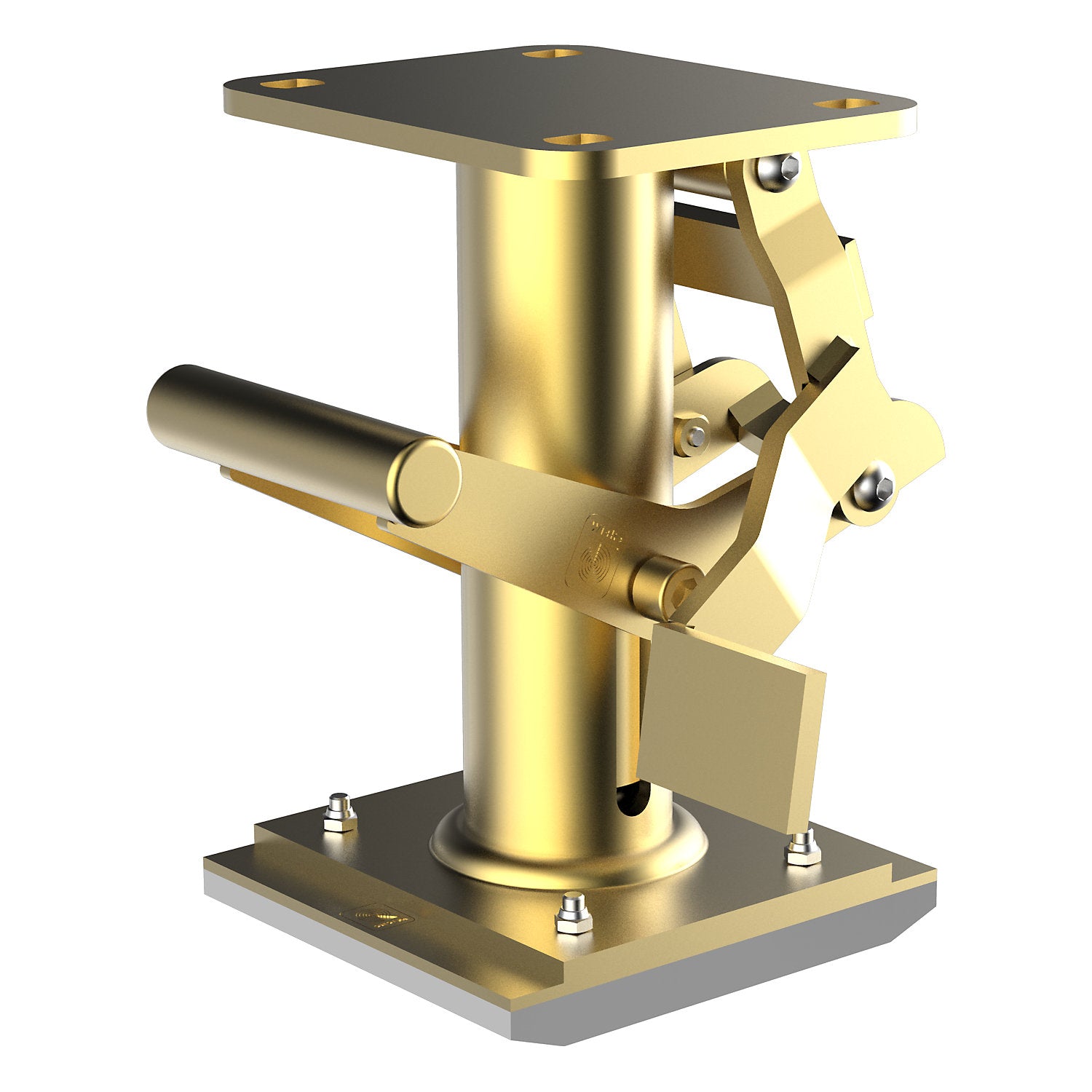

Locking foot, plate dimensions 135 x 110 mm, overall height in operation 250 mm.

Estimated delivery: 34 days

Locking foot, plate dimensions 135 x 110 mm, overall height in operation 250 mm

• Supplied = assembled
• Plate dimensions = 135x110 mm
• Screw hole spacing = 105x75/80 mm
• Screw hole diameter = 11 mm
• Operating force = 300 N
• Dissolving capacity = 100 N
• Ground compression force = 1250 N
• Type of mounting = with top plate
• Product type = locking feet
• Customs tariff number = 87169090
• Country of origin = CHN
• Gross weight = 5.6 kg
• Weight = 4.6 kg
• The locking foot is an aid that is used to secure a mobile unit in a fixed position there and then
• It is only used for keeping units in place, and does not include a lift function
• The locking foot is usually installed on the bottom of a unit next to a castor, or right in the middle between two castors
• The distance between the top edge of the base plate and the floor should be 245 mm
• When the foot lever is actuated, the height of the unit changes, placing the rubber element in contact with the floor
• A compressive force of 125 daN then keeps the unit in place on the floor
• When actuated, the castor(s) at the sides cannot be swivelled
• The height is changed by means of a toggle lever system
• The knee lever system is used to switch the foot lever over dead centre, allowing it to maintain an overall height of 245 mm with a corresponding load of 125 daN of its own accord
• Overall height in operation: 250 mm
• Overall height when not in operation: 201 mm
• The force that needs to be applied to reach dead centre is approx. 30 daN
• Briefly pressing the release lever at the side by applying a force of approx. 10 daN returns the locking foot to its initial position
• Painted squirrel grey (RAL 7000).
