Double diaphragm pump 1'', plastic, PPT, PP / PTFE, 175 l/min, 8 bar.

Estimated delivery: 34 days

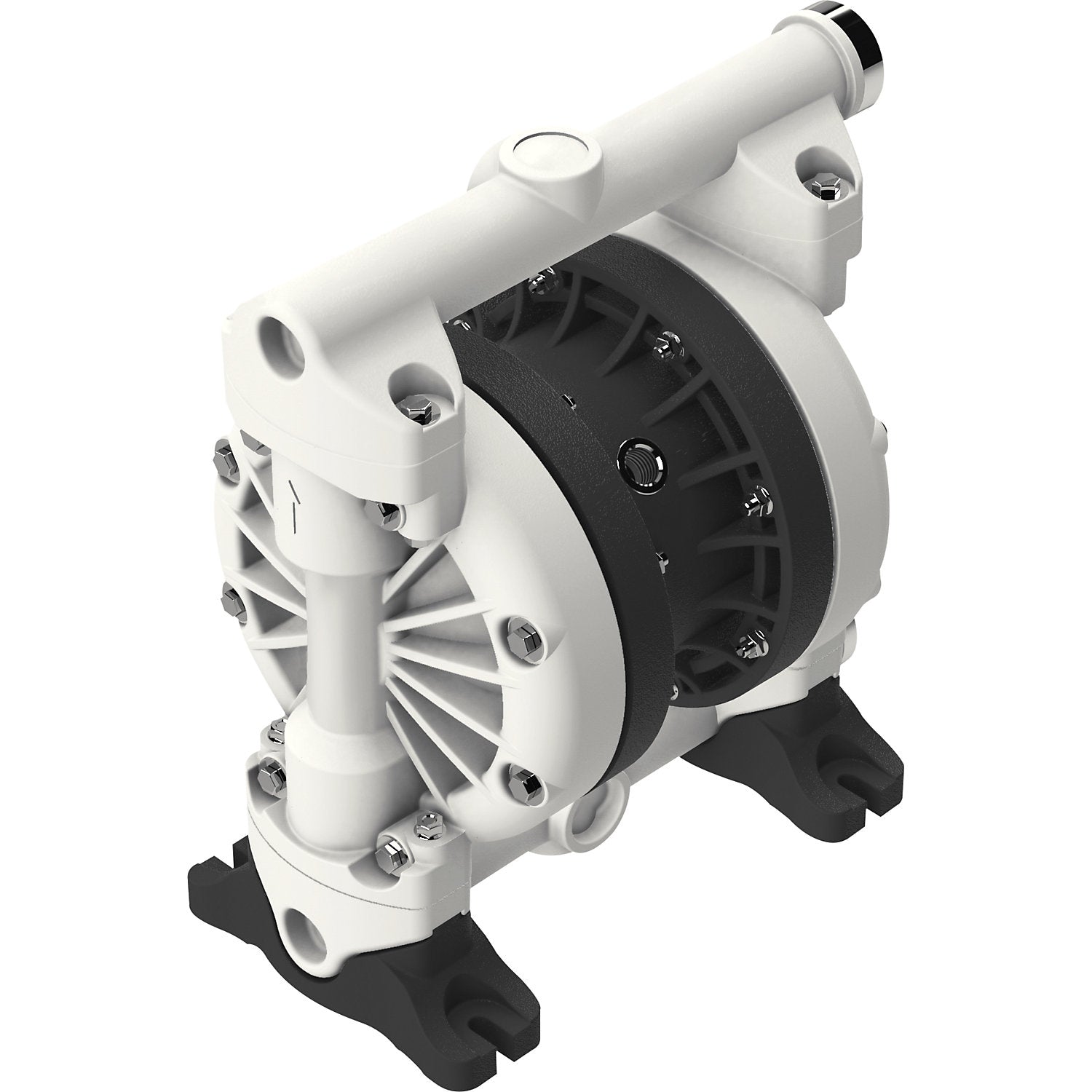

Double diaphragm pump 1'', plastic, PPT, PP / PTFE, 175 l/min, 8 bar

• Supplied = assembled
• Connection type = 1 inch
• Pump rate = 175 l/min
• Operating pressure min./max. = 8 bar
• Material of membrane = TPC-ET + TFM (PTFE)
• Seal material = PTFE
• For pumping solid particles with max. diameter = 6 mm
• Pumping temperature = 60 °C
• For media = corrosive media, chemicals
• Material of pump = polypropylene (PP)
• Pumping height = 80 m wc
• Max. viscosity at +20 °C = 10000 mPas
• Dry suction height = 4.5 m
• Colour = white, black
• Product type = compressed air pumps
• Customs tariff number = 84135080
• Country of origin = ITA
• Gross weight = 7.165 kg
• Weight = 6.415 kg
• Sustainability = CO 2 footprint calculated
• Self-priming (even when dry)
• Maintenance-optimized design and easy installation
• The double diaphragm pump is suitable for industrial applications as well as for emptying drums, IBC containers and tanks
• Explanation of materials: EPDM = ethylene propylene diene rubber FPM = fluorine rubber NBR = acrylonitrile butadiene rubber PP = polypropylene PTFE = polytetrafluoroethylene TPC-ET = thermoplastic polyester elastomer TFM (PTFE) = modified polytetrafluoroethylene TPV (EPDM-PP) = EPDM/PP compound
