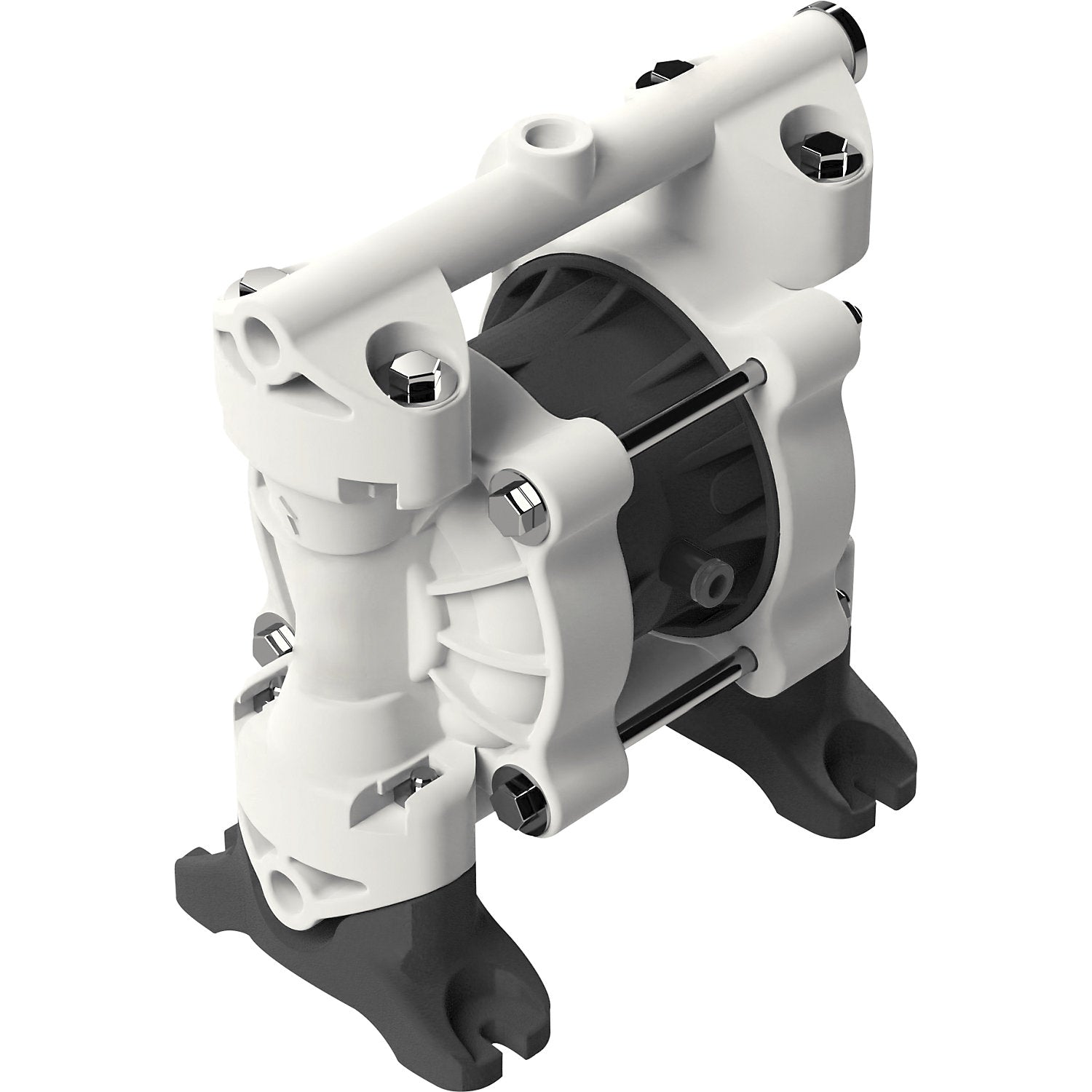

Double diaphragm pump 1/4'', plastic, PPT, PP / PTFE, 52 l/min, 8 bar.

Estimated delivery: 34 days

Double diaphragm pump 1/4'', plastic, PPT, PP / PTFE, 52 l/min, 8 bar

• Supplied = assembled
• Connection type = 1/4 inch
• Pump rate = 52 l/min
• Operating pressure min./max. = 8 bar
• Material of membrane = TPC-ET + TFM (PTFE)
• Seal material = PTFE
• For pumping solid particles with max. diameter = 3 mm
• Pumping temperature = 60 °C
• For media = chemicals, paints, electroplating liquids
• Material of pump = polypropylene (PP)
• Pumping height = 80 m wc
• Max. viscosity at +20 °C = 3500 mPas
• Dry suction height = 4.5 m
• Colour = white, black
• Product type = compressed air pumps
• Customs tariff number = 84135080
• Country of origin = ITA
• Gross weight = 1.85 kg
• Weight = 1.605 kg
• Sustainability = CO 2 footprint calculated
• For small plants or the laboratory
• Self-priming (even when dry)
• Maintenance-optimized design and easy installation
• The double diaphragm pump is suitable for pumping small quantities, for laboratory work and for occasional filling operations
• Explanation of materials: EPDM = ethylene propylene diene rubber FPM = fluorine rubber NBR = acrylonitrile butadiene rubber PP = polypropylene PTFE = polytetrafluoroethylene TPC-ET = thermoplastic polyester elastomer TFM (PTFE) = modified polytetrafluoroethylene TPV (EPDM-PP) = EPDM/PP compound
