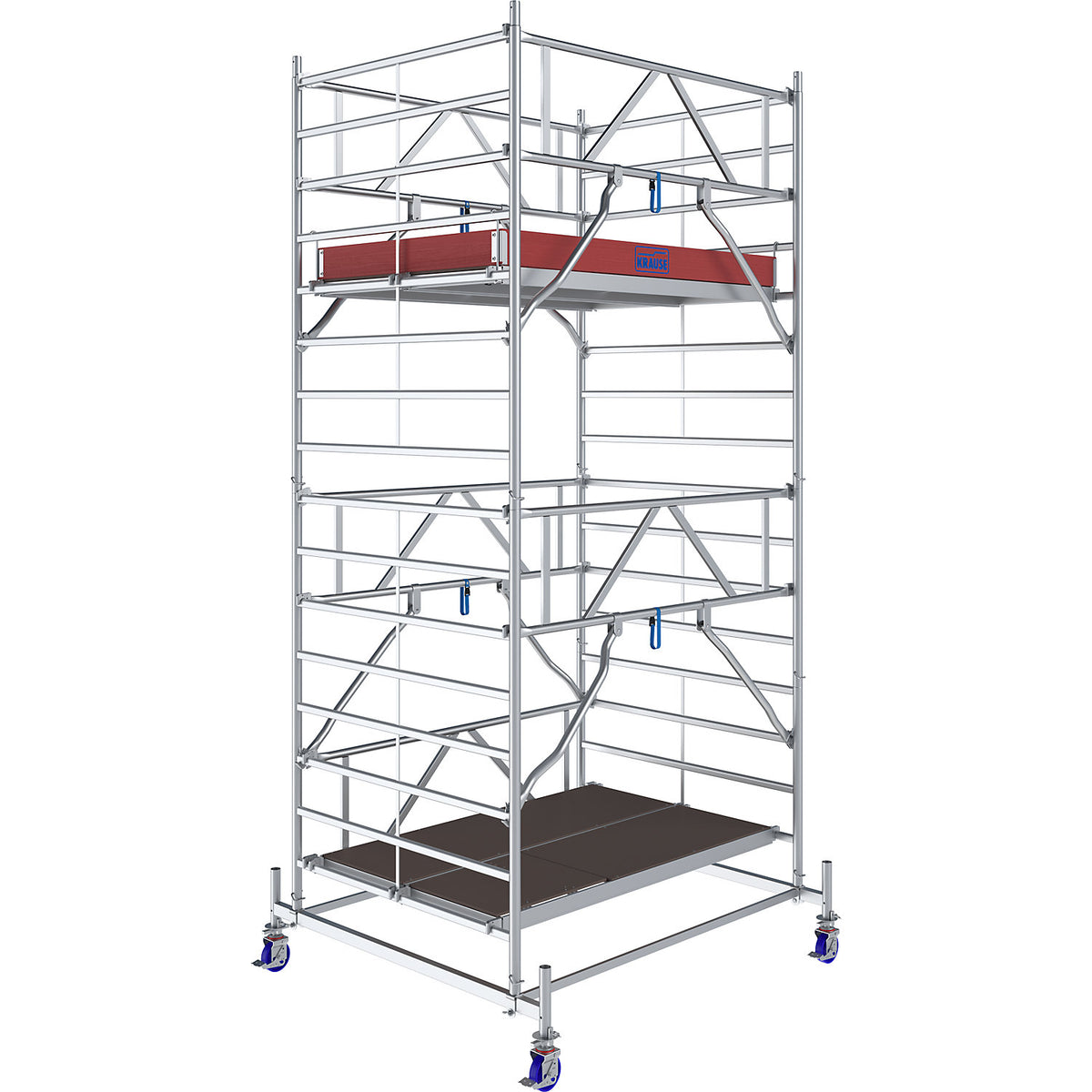

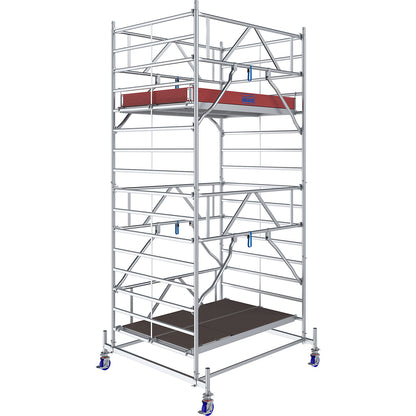

STABILO Series 50 mobile access tower, platform length 2 m, working height 5.40 m.

Estimated delivery: 42 days

STABILO Series 50 mobile access tower, platform length 2 m, working height 5.40 m

• Supplied = flat pack
• Platform length = 2000 mm
• Platform width = 1500 mm
• Platform height = 3400 mm
• Working height = 5.4 m
• Standing height = 3.4 m
• Material = aluminium
• Weight = 192 kg
• Max. load = 200 kg/m²
• Conforms to = DIN EN 1004-1
• Length = 2.05 m
• Width = 1.9 m
• Height = 4.5 m
• Wheel diameter = 150 mm
• Product type = standard mobile access towers
• Customs tariff number = 76109090
• Country of origin = HUN
• Gross weight = 202.62 kg
• Weight = 192 kg
• Sustainability = CO 2 footprint calculated
• Maximum platform clearance of 2 m for convenient and safe assembly without tools
• Tested by TÜV, load capacity 200 kg/m² (scaffolding group 3) in accordance with EN 1004-21
• The professional aluminium mobile access tower with double work surface
• Tested by TÜV, load capacity 200 kg/m² (scaffolding group 3) in accordance with EN 1004-1
• Safe assembly is ensured by securing the GuardMatic system guardrail frame before suspending the next platform level
• When climbing through the platform, there is a complete guardrail to prevent falls
• The integration of diagonals into the GuardMatic system ensures easy and safe assembly
• For transport or storage, the guardrail frame can be folded to save space
• The 6-point fastener for the GuardMatic system ensures maximum stability at heights
• The unique self-locking KRAUSE locking system with a form-fitting connection allows easy, fast and safe assembly and disassembly
• The innovative shape of the diagonals maximises the space available on the platform to use, and they are never in the way
• Maximum platform clearance of 2 m for convenient and safe assembly without tools
• Sturdy steel guide bars ensure a safe footing (from working height 4.40 m)
• Height adjustable castors (Ø 150 mm) also allow use on uneven ground due to the integrated spindle thread (infinitely variable adjustment from 220 - 335 mm)
• The large surface area offers plenty of space for personnel and materials
• Stabilisers that are easy to fit with an infinitely telescopic swivel foot (adjustment range up to 230 mm) provide a secure support, and stability when ascending, from a working height of 6.40 m on any ground.
