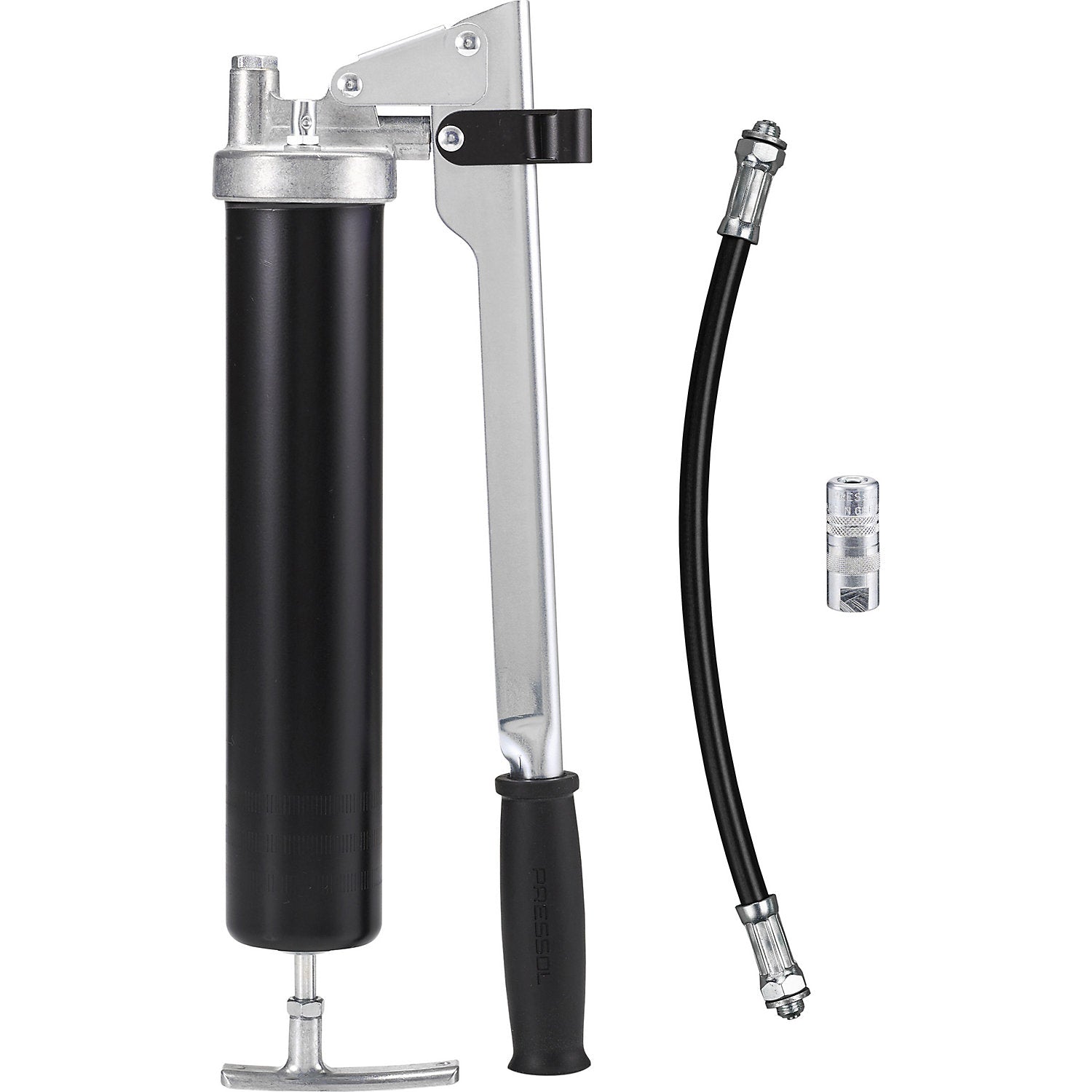

PRELIxx PRO hand lever grease gun, for greases up to NLGI 3, LxWxH 395 x 140 x 66 mm.

Estimated delivery: 41 days

PRELIxx PRO hand lever grease gun, for greases up to NLGI 3, LxWxH 395 x 140 x 66 mm

• Supplied = assembled
• For media = greases NLGI 3 at 20 °C
• Method of operation = manual
• Fill capacity = 0.5 l
• Filling options = 400 g grease cartridge, DIN 1284, grease filler or bulk grease by means of spatula
• Pump rate = 0.1 l/min
• Burst pressure = 900 bar
• Length = 395 mm
• Width = 140 mm
• Height = 66 mm
• Finish = metal
• Grease cartridge diameter = 52 mm
• Material of pump = die-cast zinc, steel
• Colour = black, silver
• Product type = lever-operated grease guns
• Customs tariff number = 82055980
• Country of origin = CZE
• Gross weight = 1.59 kg
• Weight = 1.44 kg
• Because it is easy to disassemble, cleaning is never a problem
• The device operates using NLGI 3 greases at 20 °C
• Quick venting by rotating the grease gun tube half a turn
• Technical details: - Grease gun connection on pressure side M10, filling nipple M10 - Fill capacity: 500 cm³ - Diameter of grease pump piston: 9 mm - Delivery volume/stroke: 1.2 cm³ at a grease density of 0.92 kg/dm³ - Pump pressure: up to 600 bar - Dimensions LxWxH: 395 x 140 x 66 mm - With hose holder - Zinc plated components: hand lever, pull tab, safety catch, cover - Removable and movable push rod system, T handle, grip and pressure optimised - Reinforced hose M10x1 a, 11 x 300 mm, with sealing ring and precision mouthpiece 4 BA, M10x1 Ergonomic handle, anti-slip, very good transmission of force and handling
• In the event of high counterpressure, e.g. a resinous lubrication point, the short stroke allows the lubrication point to be overcome with far less pressure
• Optimum lever ratios for operating the hand lever, ensuring the force required to operate the hand lever is as low as possible
• Damaged cartridges are easy to remove
• Push rod can be locked in any position - the push rod does not have to be pulled all the way back to release the grease from the spring pressure (no grease saponification)
• Designed for use in tough conditions .
