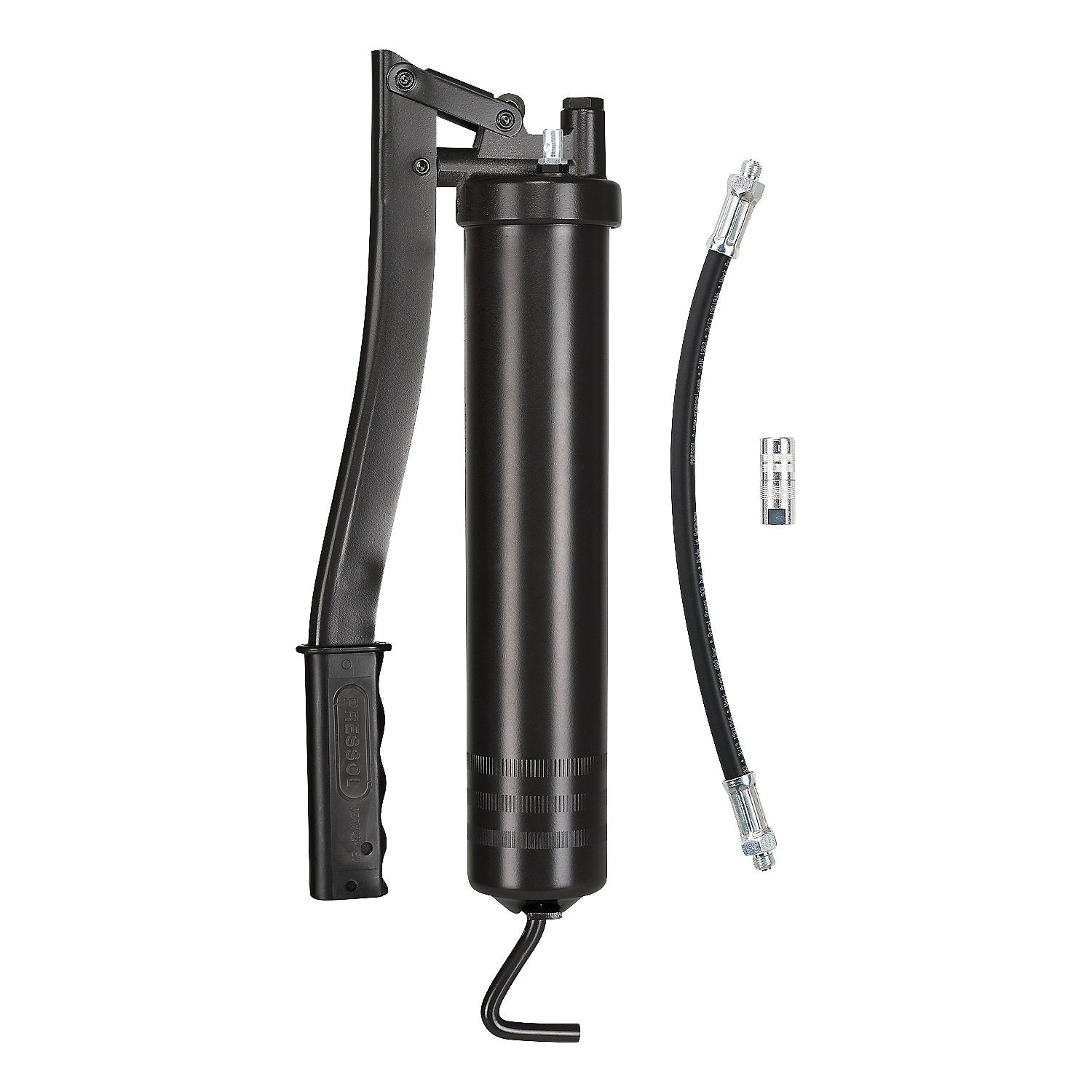

Industrial hand lever grease gun, for greases up to NLGI 2, LxWxH 390 x 120 x 66 mm.

Estimated delivery: 47 days

Industrial hand lever grease gun, for greases up to NLGI 2, LxWxH 390 x 120 x 66 mm

• Supplied = assembled
• For media = greases up to NLGI 2 at 20 °C
• Method of operation = manual
• Fill capacity = 0.5 l
• Filling options = 400 g grease cartridge, DIN 1284, grease filler or bulk grease by means of spatula
• Pump rate = 0.1 l/min
• Burst pressure = 850 bar
• Length = 390 mm
• Width = 120 mm
• Height = 66 mm
• Finish = metal
• Grease cartridge diameter = 52 mm
• Material of pump = die-cast zinc, steel
• Colour = black
• Product type = hand lever grease guns
• Customs tariff number = 82055980
• Country of origin = CZE
• Gross weight = 1.47 kg
• Weight = 1.36 kg
• Can be used with greases up to NLGI 2 at 20 °C
• Performance unchanged after 40000 working cycles
• Quick venting by rotating the grease gun tube half a turn
• High delivery pressure up to 400 bar
• Reliable operation even at hard-to-reach lubrication points
• Flexible filling with cartridge, grease filling device or bulk grease
• TÜV-certified industrial model for regular use
• The industrial manual lever grease gun is designed for the professional lubrication of machinery, vehicles and systems with greases up to NLGI 2 at 20 °C
• The robust model is suitable for regular maintenance and servicing work in workshops, production, agriculture and vehicle fleets
• The precisely fitting pump piston with a tolerance of 6 µm supports reliable grease delivery without false lubrication
• The sealing system consisting of an O-ring and valve ball prevents grease that has already been compressed from escaping back out of the grease gun head
• As a result, the lubricant reaches the intended lubrication point in a controlled manner
• Even hard-to-reach grease nipples can be reached
• Grease is reliably primed and delivered even at a small opening angle of the hand lever
• The non-slip handle enables safe operation
• The delivery rate can be metered proportionally to the hand lever travel
• The maximum delivery pressure of 400 bar supports greasing even at high back pressure
• The grease gun can be filled with 400 g grease cartridges, a grease filling device or bulk grease
• A moulded sleeve ensures a tight fit in the process
• The loose lid with clamping piece allows manual assistance of the spring force in any position to compress bulk grease or to press the sleeve into damaged cartridges
• The push rod can be locked in any position
• This means it does not need to be pulled back completely to relieve the grease from spring pressure (grease does not saponify)
• A half turn of the grease gun tube enables quick venting
• According to the manufacturer, performance remains unchanged even after 40,000 work cycles
• Technical details: - Grease gun connection on the pressure side via metal adapter - Filling nipple M10x1 - Filling volume 500 cm³ - Grease pump piston diameter 9 mm - Actuation of grease pump piston via hand lever - Delivery volume/lifting proportional to hand lever travel, max. 1.6 cm³ - Delivery pressure up to 400 bar - Push rod actuation via L-grip, loose sealing cap - Dimensions LxWxH: 390 x 120 x 66 mm - Filling nipple (FN), M10x1 a - Reinforced hose, M10x1 a, 11 x 300 mm with hydraulic coupler, M10x1 i - Moulded sleeve with tight fit for bulk grease or cartridge - TÜV-certified - Pump piston, cylinder and O-ring with 6 µ fit precision (no false lubrication) - O-ring and valve ball sealing system prevent backflow in the grease gun head - Filling and venting valve in the grease gun head - Non-slip handle on the grease gun lever
