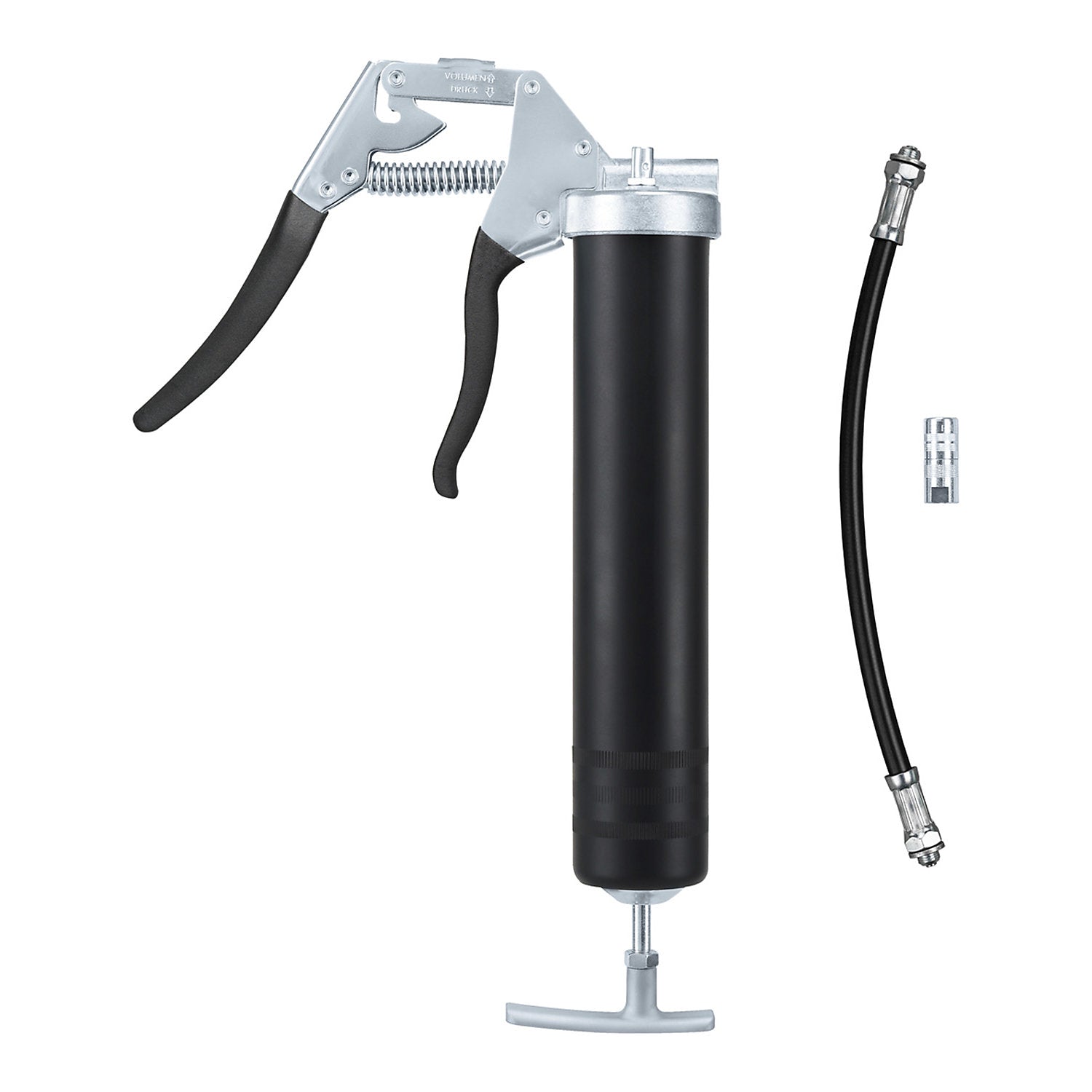

Single-hand grease gun, for 400 g grease cartridge / bulk grease, LxWxH 400 x 165 x 75 mm.

Estimated delivery: 47 days

Single-hand grease gun, for 400 g grease cartridge / bulk grease, LxWxH 400 x 165 x 75 mm

• Supplied = assembled
• For media = greases up to NLGI 2 at 20 °C
• Method of operation = manual
• Fill capacity = 0.5 l
• Filling options = 400 g grease cartridge, DIN 1284, grease filler or bulk grease by means of spatula
• Pump rate = 0.07 l/min
• Length = 400 mm
• Width = 165 mm
• Height = 75 mm
• Finish = metal
• Grease cartridge diameter = 52 mm
• Material of pump = die-cast zinc, steel
• Colour = black, silver
• Product type = single-hand grease guns
• Customs tariff number = 82055980
• Country of origin = CZE
• Gross weight = 1.53 kg
• Weight = 1.38 kg
• Sustainability = CO 2 footprint calculated
• The design allows lubrication using just one hand
• Grease delivery can be switched from high volume to high pressure using the handle
• Ease of disassembly makes cleaning problem free
• Push rod can be locked in any position
• Ergonomic, anti-slip handle for good power transmission
• Free hand for secure positioning at the lubrication point
• The one-hand grease gun enables convenient and precise lubrication with just one hand
• It is suitable for use with 400 g grease cartridges as well as with loose grease, thereby supporting flexible maintenance work in the workshop, production and vehicle fleet
• The sophisticated design facilitates lubrication at hard-to-reach lubrication points
• While one hand securely guides the grease gun, the other remains free for positioning on the grease nipple or for further work steps
• This allows the maintenance process to be made more efficient and safer
• The handle can be used to switch between high-volume grease delivery and pressure delivery
• This allows grease dispensing to be adapted to the respective lubrication point and the required working pressure
• The ergonomic, anti-slip handle ensures good power transmission and controlled operation
• The push rod can be locked in any position
• This facilitates refilling and prevents unnecessary travel when handling cartridges or loose grease
• Thanks to its easy dismantling, the one-hand grease gun can be cleaned quickly and thoroughly after use
• The robust model is designed for regular maintenance work in an operational environment
• Due to the mobility of the push rod , the plunger can also be inserted even if the cartridge is damaged or not true to size
• Damaged cartridges can be easily removed
• Specification: - Grease gun connection on pressure side M10x1, filling nipple M10x1 - Filling capacity 500 cm³ - Manual actuation of grease pump piston via pressure handle - Delivery volume/lifting 1.1 cm³ - Delivery pressure max. 200 bar - Dimensions LxWxH 400 x 165 x 66 mm - Filling nipple, M10x1 a - Dismountable and movable push rod system - T-grip, optimised for gripping and pressing, ergonomic handle, anti-slip , very good power transmission and handling - Zinc plated parts: handle, lever, pull tab, pawl, lid, push rod - With precision nozzle M10x1 i, reinforced hose, M10x1 a, 11 x 300 mm and sealing ring
