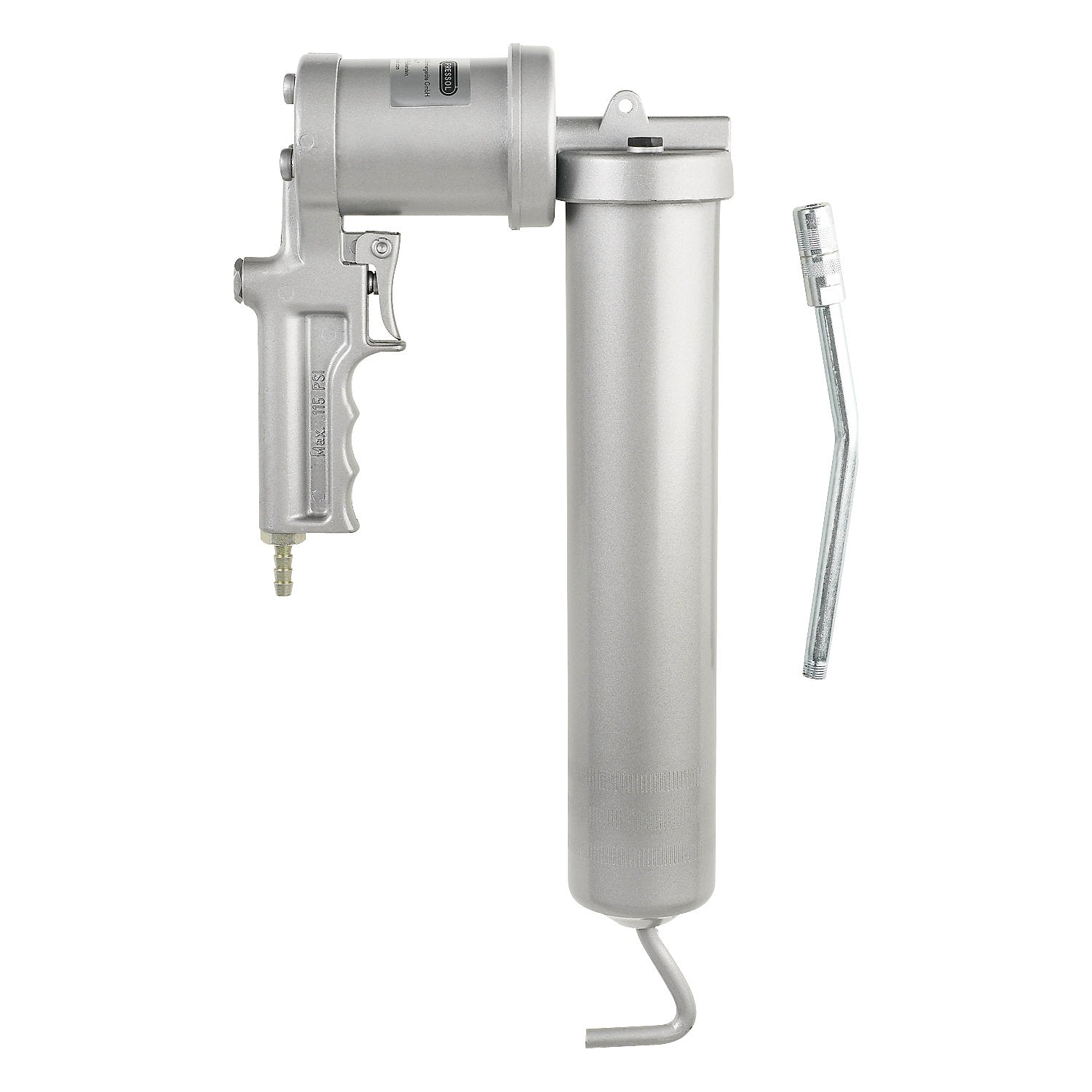

Pneumatic grease gun, for greases up to NLGI 2 at 20 °C, LxWxH 402 x 171 x 84 mm.

Estimated delivery: 41 days

Pneumatic grease gun, for greases up to NLGI 2 at 20 °C, LxWxH 402 x 171 x 84 mm

• Supplied = assembled
• For media = greases up to NLGI 2 at 20 °C
• Method of operation = manual
• Fill capacity = 0.5 l
• Filling options = 400 g grease cartridge, DIN 1284, grease filler or bulk grease by means of spatula
• Pump rate = 0.05 l/min
• Burst pressure = 850 bar
• Length = 402 mm
• Width = 171 mm
• Height = 84 mm
• Finish = metal
• Grease cartridge diameter = 52 mm
• Material of pump = die-cast zinc, steel
• Colour = silver
• Product type = pneumatic grease guns
• Customs tariff number = 84671900
• Country of origin = CZE
• Gross weight = 1.99 kg
• Weight = 1.84 kg
• The device operates using greases up to NLGI 2 at 20 °C
• Quick venting by rotating the grease gun tube half a turn
• Safe handle on the push rod
• Performance unchanged after 40000 working cycles
• Specification: - Grease gun connection on pressure side M10x1, filling nipple M10x1 - Fill capacity 500 cm³ - Filling options are a 400 g grease cartridge, grease filler or bulk grease, transformation ratio 50:1, grease pumped into the head of the grease gun by spring force - Diameter of grease pump piston 6 mm - Grease pump piston operated by single stroke grease delivery - Delivery volume/stroke 0.8 cm³ - Recommended air pressure 6 bar, minimum air pressure 2 bar, maximum air pressure 8 bar - Push bar operated using L-handle, cover enclosed loose - Filling nipple M10x1 a, nozzle pipe with bend M10x1, 150 mm and mouthpiece 4 BA, M10x1 Loose cover with clamp allows manual support for the spring force in any position for compression of bulk grease or for pressing the cuff into damaged cartridges
• Contoured cuff with tight fit for bulk grease or cartridge
• Pump piston with high precision fit on the cylinder ( no fake lubrication ).
