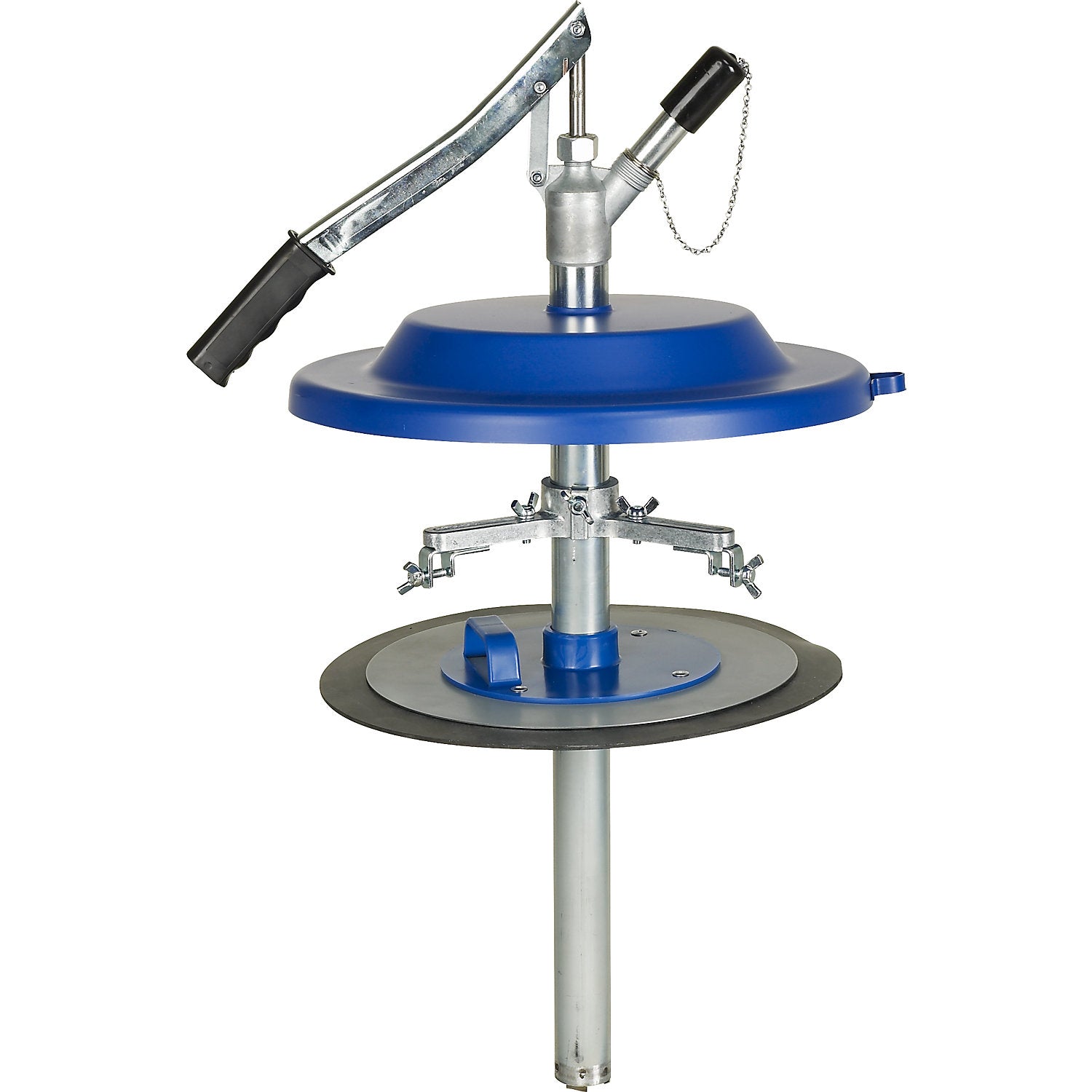

Grease filler, for greases up to NLGI 2, for 20 kg container, manual operation.

Estimated delivery: 41 days

Grease filler, for greases up to NLGI 2, for 20 kg container, manual operation

• Supplied = assembled
• For media = greases up to NLGI 2
• Method of operation = manual
• Fill capacity = 22.2 l
• Filling options = greases up to NLGI 2
• Pump rate = 30 cm³/Hub l/min
• Max. operating pressure = 8 bar
• Length = 670 mm
• Width = 420 mm
• Height = 100 mm
• Finish = metal
• Suction tube length = 510 mm
• Material of pump = steel
• Colour = blue
• Product type = grease filers
• Customs tariff number = 84132000
• Country of origin = CZE
• Gross weight = 4.92 kg
• Weight = 4.38 kg
• Sustainability = CO 2 footprint calculated
• Filling nipple M10x1, enclosed loose, for retooling for grease guns made by other manufacturers
• For filling up lever, single-hand and pneumatic grease guns
• Specification: - Pump unit with suction pipe and filling nipple M10x1 - Dust cover - Container securing mechanism and grease follower piston - Dust cap on filling coupling, secured with chain Technical details: - Delivery volume/stroke: 30 cm³, grease delivery using hand pump - Grease follower piston for 20 kg containers, Ø grease follower piston 270 - 310 mm - Length of suction tube 510 mm, connection on suction side for grease guns, with filling nipple - Pump pressure up to 8 bar - Pump body material steel
