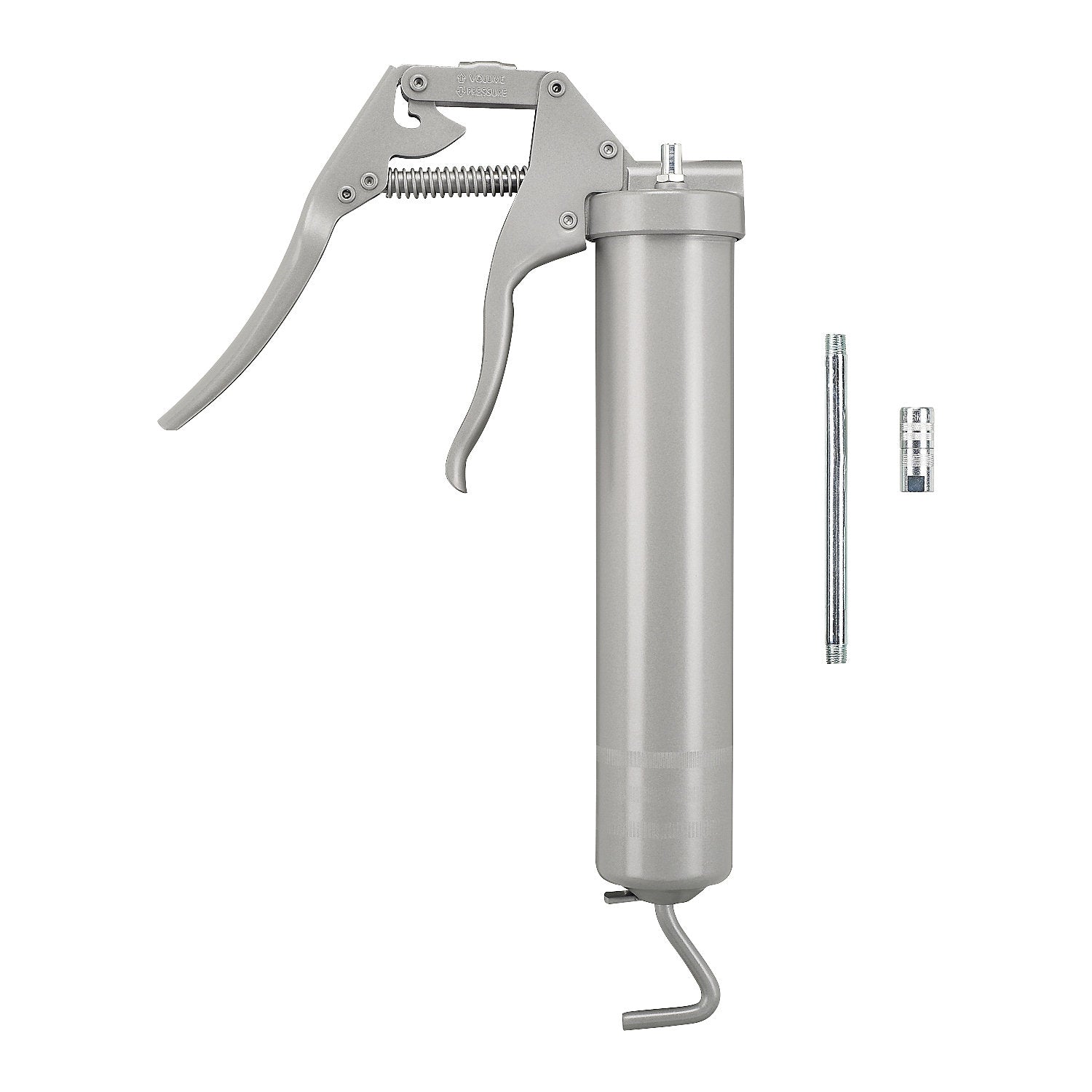

Single-hand grease gun, with nozzle tube and hydraulic mouthpiece, for greases up to NLGI 2 at 20 °C.

Estimated delivery: 41 days

Single-hand grease gun, with nozzle tube and hydraulic mouthpiece, for greases up to NLGI 2 at 20 °C

• Supplied = assembled
• For media = greases up to NLGI 2 at 20 °C
• Method of operation = manual
• Fill capacity = 0.5 l
• Filling options = 400 g grease cartridge, grease filler or bulk grease
• Pump rate = 0.05 l/min
• Length = 400 mm
• Width = 165 mm
• Height = 75 mm
• Finish = metal
• Grease cartridge diameter = 52 mm
• Material of pump = die-cast zinc, steel
• Colour = silver
• Product type = single-hand grease guns
• Customs tariff number = 82055980
• Country of origin = CZE
• Gross weight = 1.43 kg
• Weight = 1.3 kg
• Can be used with greases up to NLGI 2 at 20 °C
• Quick venting by rotating the grease gun tube half a turn
• Easy to clean due to ease of disassembly
• Push rod can be locked in any position
• Specification: - Grease gun connection on pressure side M10x1 and filling nipple M10x1 - Fill capacity 500 cm³, filling options 400 g grease cartridge, grease filler or bulk grease - Manual actuation of grease pump piston by means of push handle - Delivery volume/stroke 1.1 cm³ - Max. delivery pressure 200 bar - With filling nipple M10x1 a Removable and movable push rod system
• Ergonomic handle with straight nozzle tube M10x1, 150 mm and hydraulic mouthpiece M10x1 i
• The design allows lubrication using just one hand
• This makes it easier to work at lubrication points that are difficult to access
• Grease delivery can be switched from high volume to high pressure using the handle
• Damaged cartridges are easy to remove
• Designed for use in tough conditions
• Dimensions LxWxH: 400 x 165 x 66 mm Ergonomic handle with straight nozzle tube M10x1, 150 mm and hydraulic mouthpiece M10x1 i.
