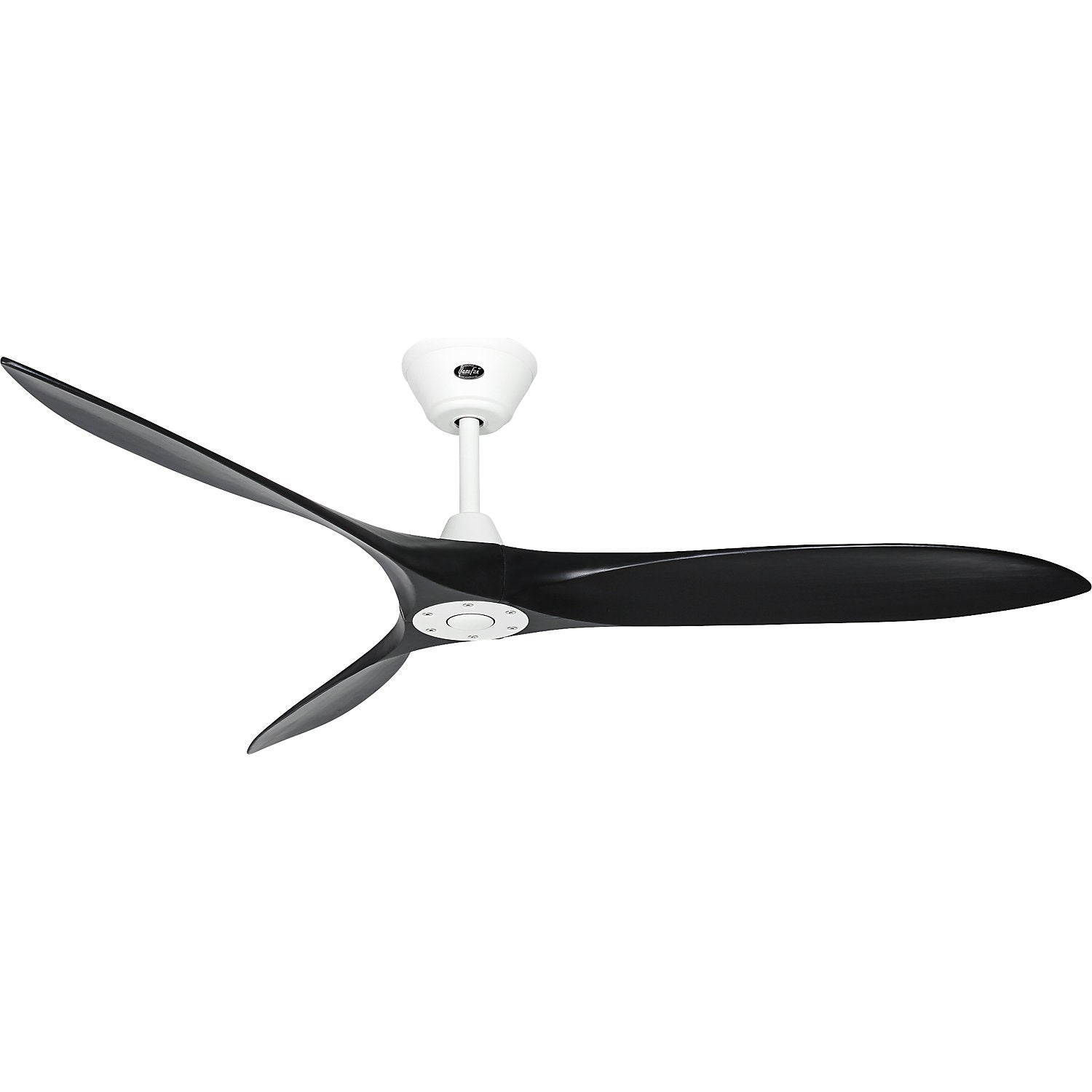

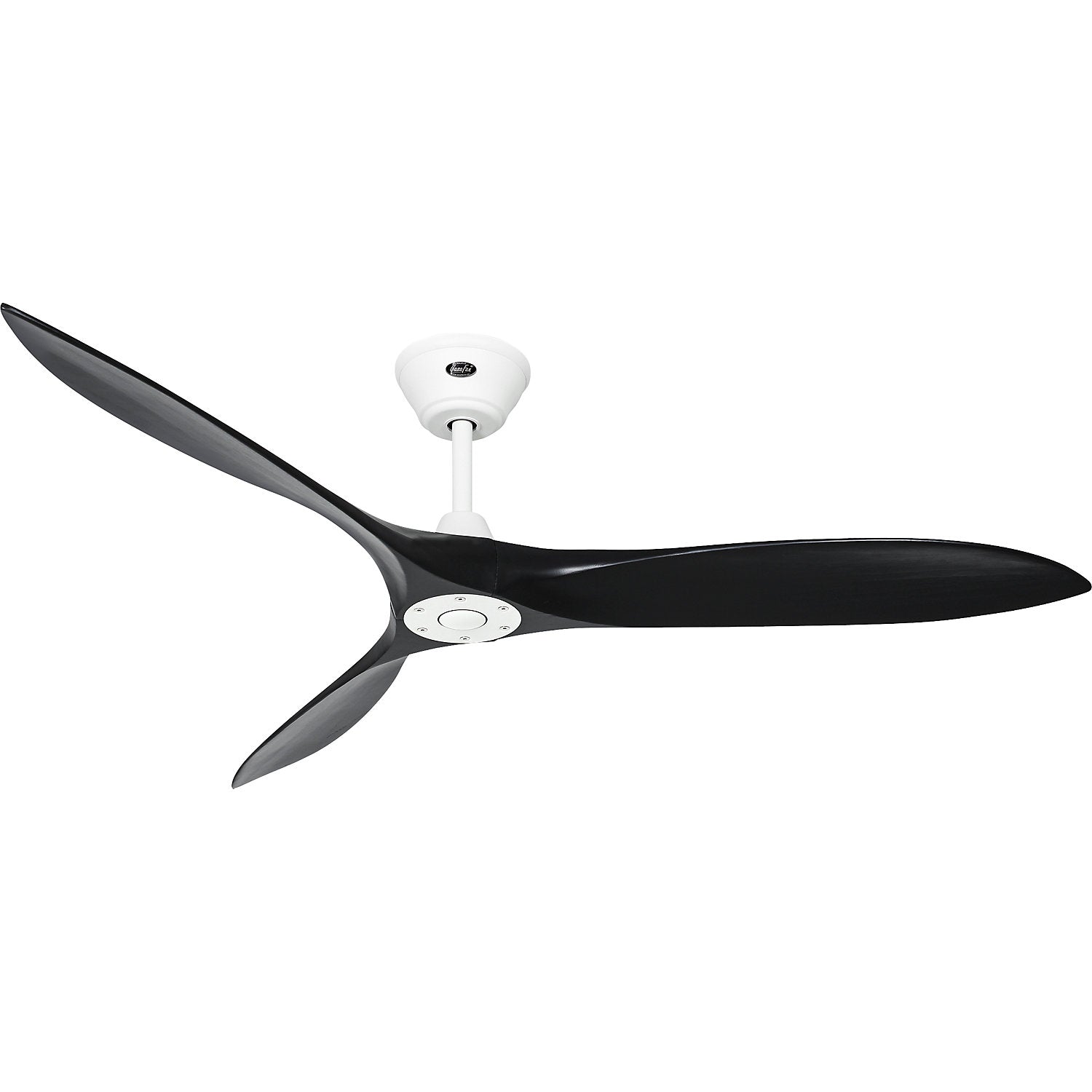

ECO AIRSCREW ceiling fan, rotor blade Ø 1520 mm, matt black / matt white.

Estimated delivery: 34 days

ECO AIRSCREW ceiling fan, rotor blade Ø 1520 mm, matt black / matt white

• Supplied = flat pack
• Material = metal, wood
• Rotor blade diameter = 1520 mm
• Colour = matt white, matt black
• Number of speed settings = 6
• Max. speed = 125 rpm
• Max. air volume = 11712 m³/h
• Power = 0.028 kW
• Sound pressure LPA (-3 m) = 15 dB(A)
• Sound power LWA = 34.4 dB(A)
• Fittings = remote control, wall switch
• Protection type = IP00
• Height = 360 mm
• Width = 1520 mm
• Depth = 1520 mm
• Mains voltage = 220 - 240 V / ~50 Hz

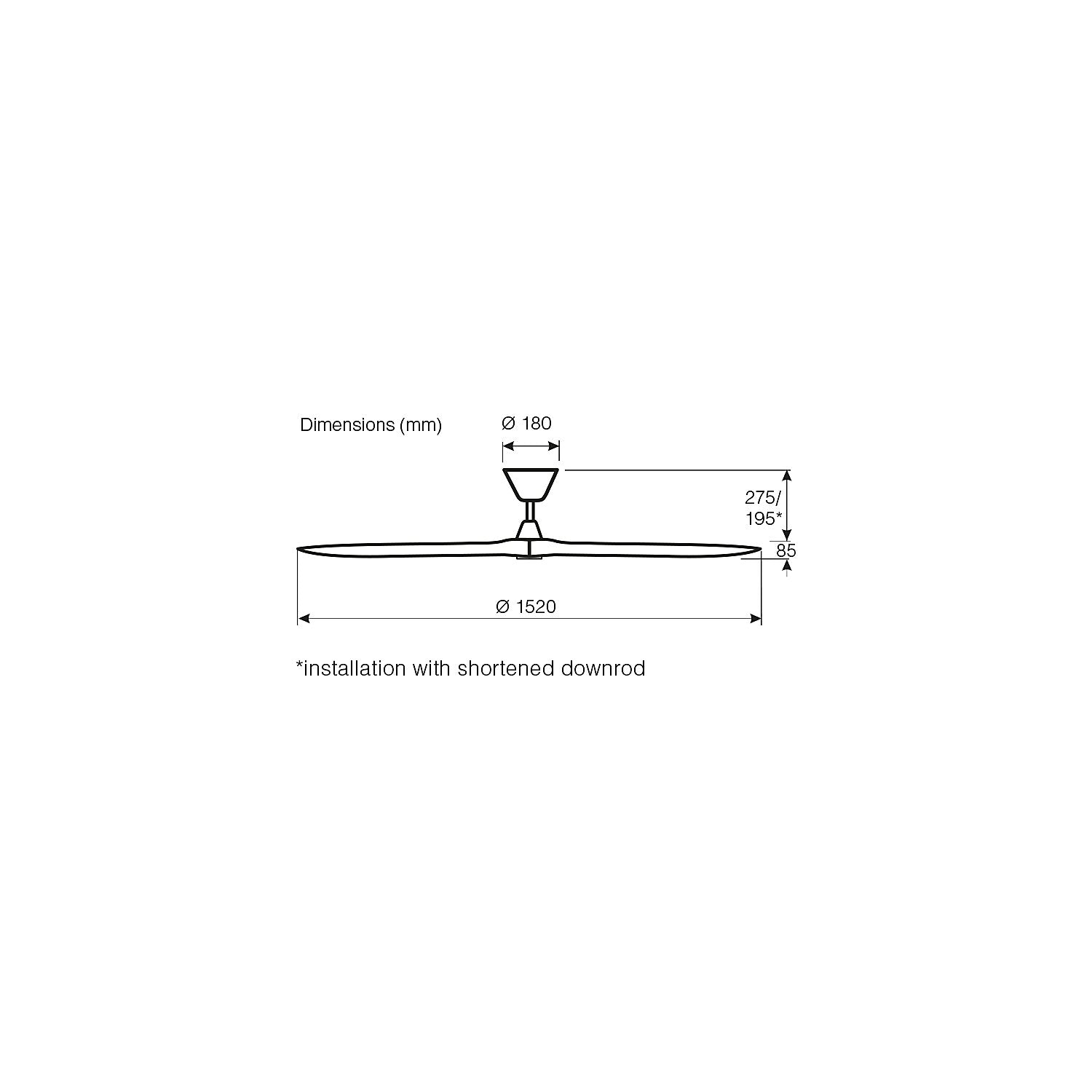

• Ceiling-blade spacing = 275 mm
• Number of blades = 3 pcs
• Number of blades included with delivery = 3 pcs
• Product type = ceiling fans
• Customs tariff number = 84145100
• Country of origin = TWN
• Gross weight = 8.671 kg
• Weight = 7 kg
• Sustainability = Energy efficient, CO 2 footprint calculated. 3 handmade solid wood blades in classic propeller shape
• For rooms from 28 to 40 m², high output of 11712 m³/h. 6 speed settings, forwards/reverse rotation (summer and winter mode) selected using remote control
• Very energy efficient, service ratio 7.0 (m³/min.)/W in accordance with EU Directive 206/2012
• Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter
• Can be installed at angles up to 12°. 25-year manufacturer warranty on the motor
• An eyecatcher for any room, whether in the office or at home
• State-of-the-art, energy saving DC/EC motor
• For rooms with a normal height, the distance between the ceiling and blades is 360 mm
• Includes remote control with sleep timer, slow motion setting
• Supplied with wall bracket and 200 mm ceiling rod
• Integration of a lamp not possible
• Performance data: Speed setting 1 = 50 rpm / power consumption setting 1 = 4.4 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 2 = 61 rpm / power consumption setting 2 = 5.9 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 3 = 81 rpm / power consumption setting 3 = 11 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 4 = 98 rpm / power consumption setting 4 = 18.7 watts / sound power level L W = < 32.4 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 5 = 117 rpm / power consumption setting 5 = 27.3 watts / sound power level L W = < 34.1 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 6 = 125 rpm / power consumption setting 6 = 28 watts / sound power level L W = < 34.4 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Air speed 1.5 m above floor = 2.24 m/s
• The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high
• This will help you estimate draughts that will occur at head height when sitting under the ceiling fan
• This specification refers to the highest speed
• Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling. ²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach
• The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power L W and 15 dB(A) for the sound pressure L P -3 m. ³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power L W and sound pressure L P -3 m.
