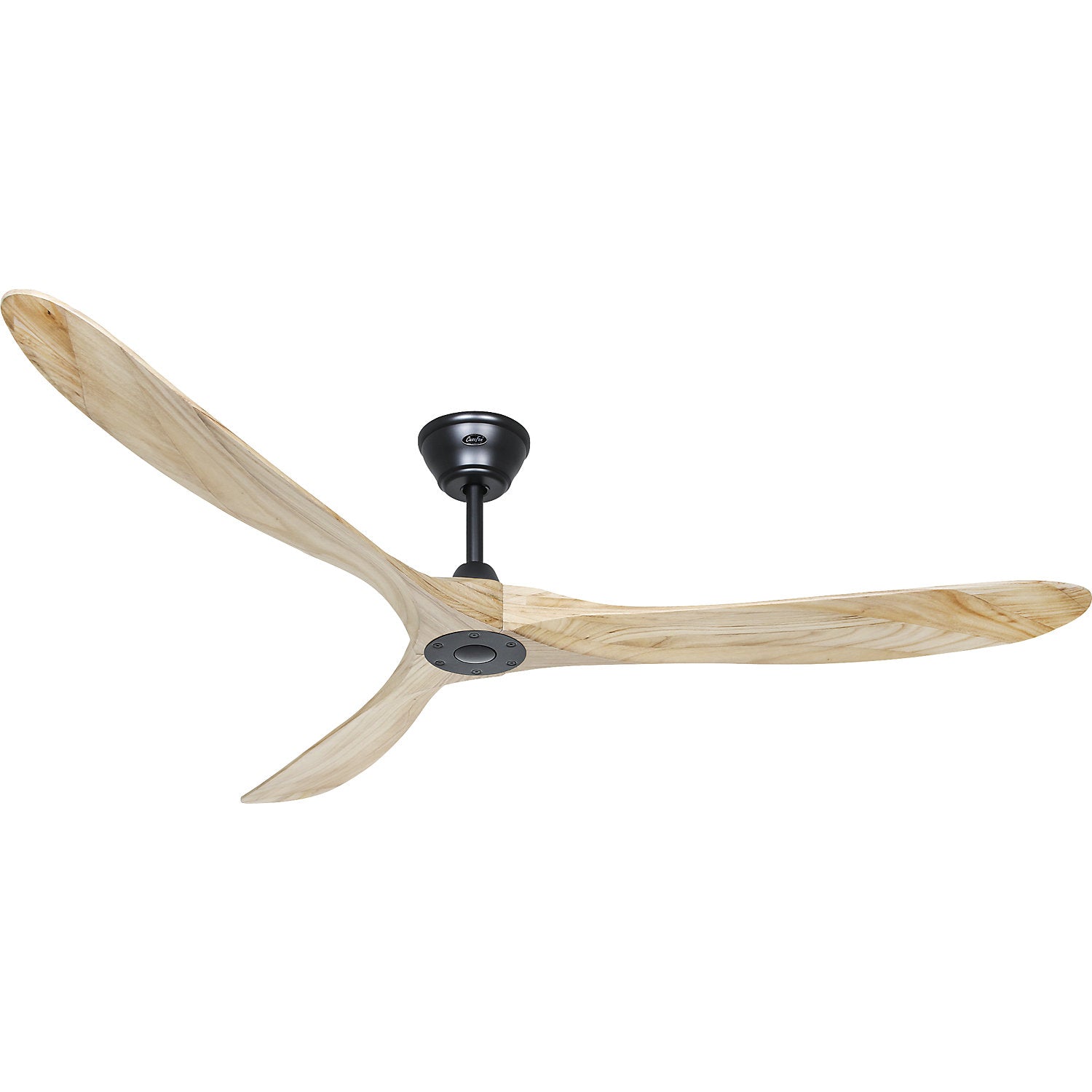

ECO GENUINO ceiling fan, rotor blade Ø 1800 mm, natural finish / matt black.

Estimated delivery: 34 days

ECO GENUINO ceiling fan, rotor blade Ø 1800 mm, natural finish / matt black

• Supplied = flat pack
• Material = metal, wood
• Rotor blade diameter = 1800 mm
• Colour = matt black, natural
• Number of speed settings = 6
• Max. speed = 132 rpm
• Max. air volume = 14382 m³/h
• Power = 0.03 kW
• Sound pressure LPA (-3 m) = 22 dB(A)
• Sound power LWA = 42.5 dB(A)
• Fittings = remote control, wall switch
• Protection type = IP00

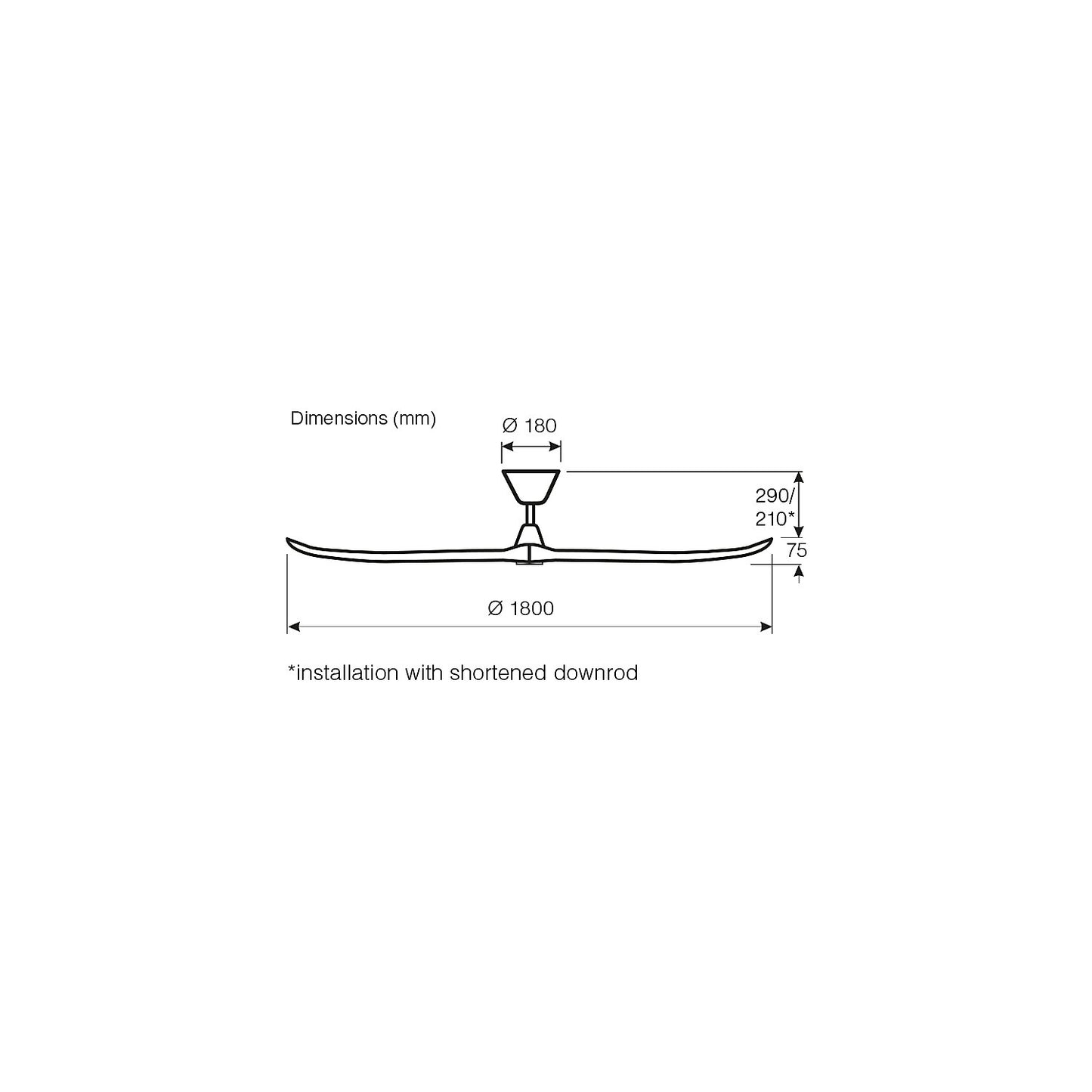

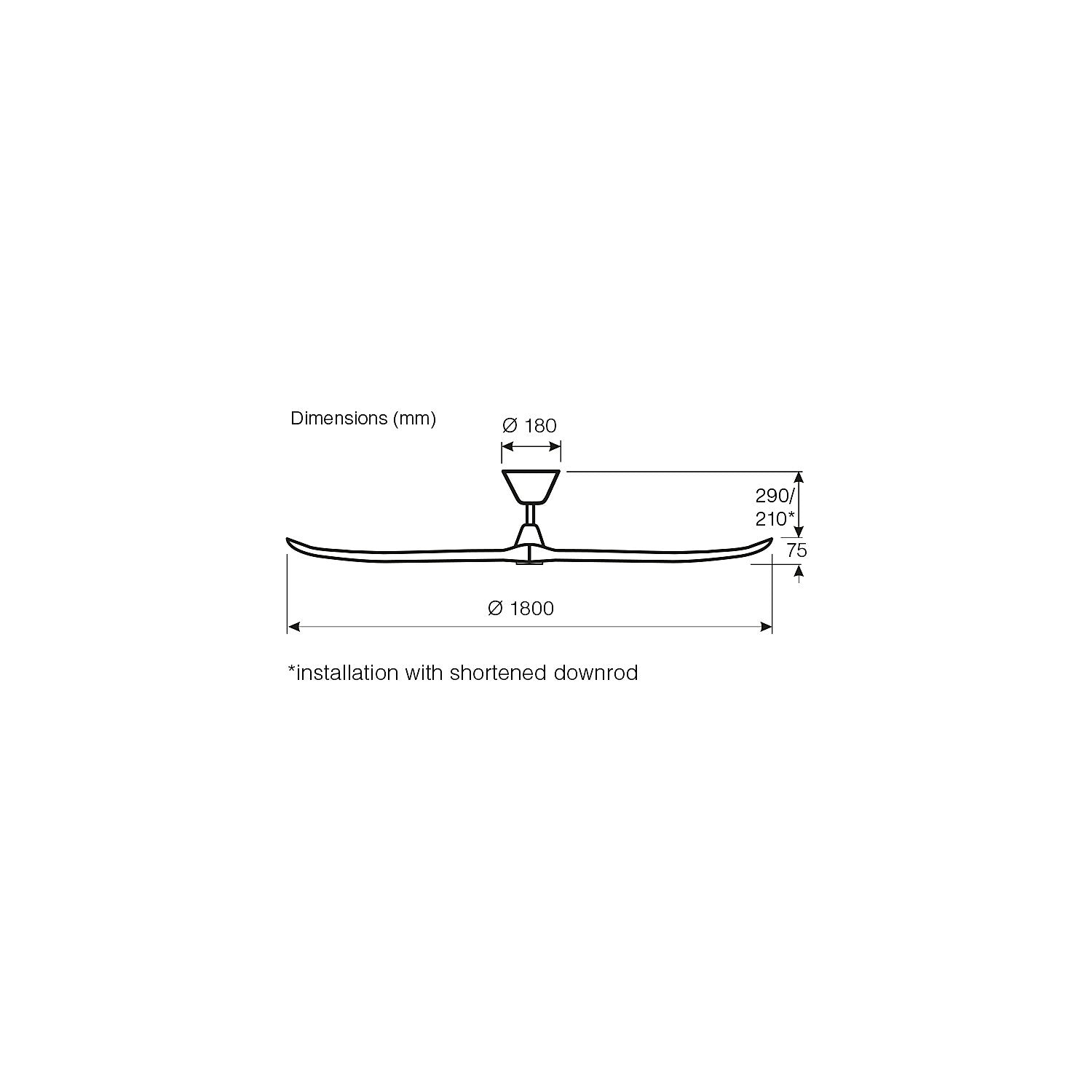

• Height = 365 mm
• Width = 1800 mm
• Depth = 1800 mm
• Mains voltage = 220 - 240 V / ~50 Hz
• Ceiling-blade spacing = 365 mm
• Number of blades = 3 pcs
• Number of blades included with delivery = 3 pcs
• Product type = ceiling fans
• Customs tariff number = 84145100
• Country of origin = TWN
• Gross weight = 9.29 kg
• Weight = 7.6 kg
• Sustainability = Energy efficient, CO 2 footprint calculated
• For rooms from 35 to 45 m², very high output of 14382 m³/h

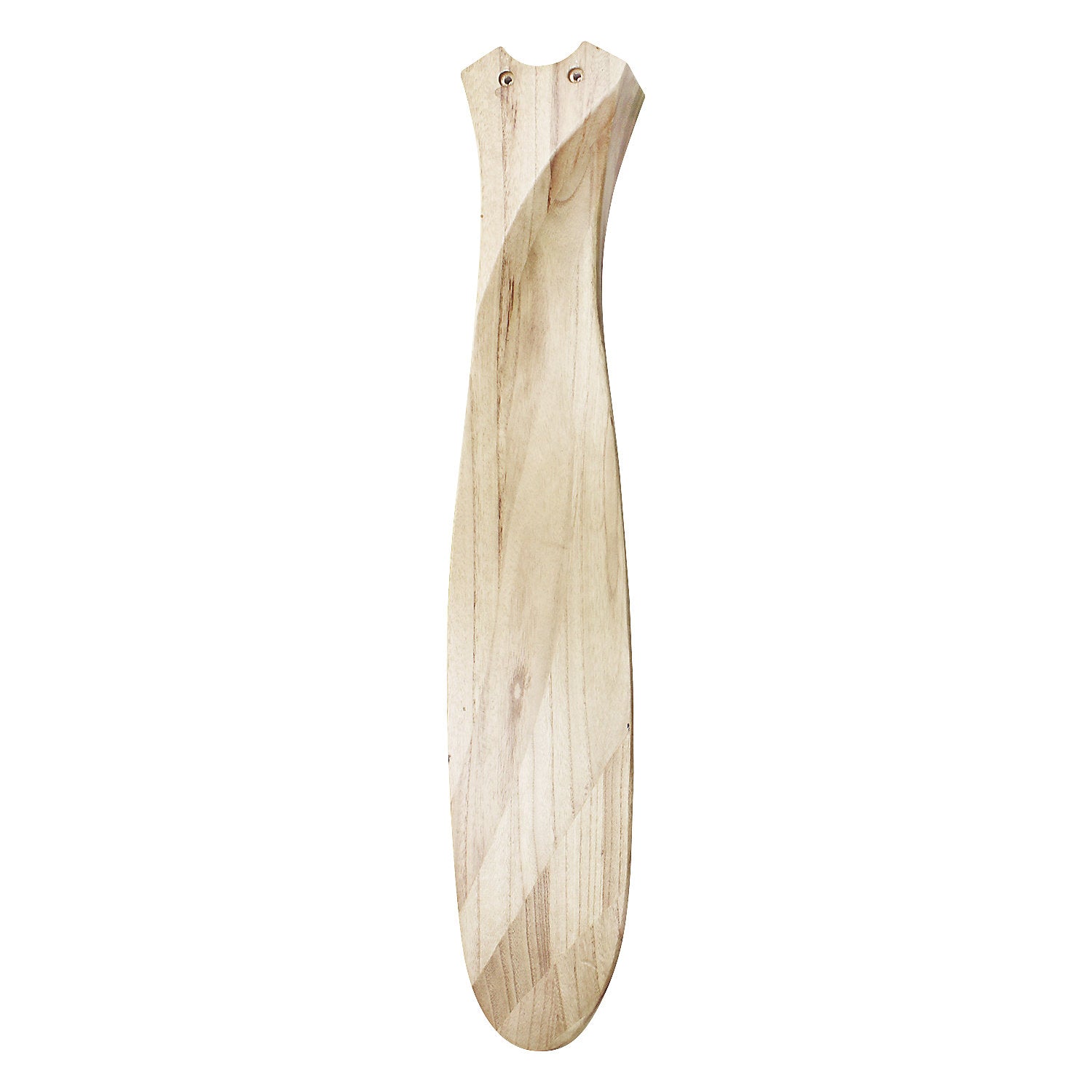

• Very energy efficient, service ratio 8.0 (m³/min)/W in accordance with EU Directive 206/2012. 3 hand-made solid wood blades - an eyecatcher for any room, whether in the office or at home. 6 forwards/reverse rotation speed settings (summer and winter mode) selected using remote control
• Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter
• Can be installed at angles up to 12°. 25-year manufacturer warranty on the motor
• State-of-the-art, energy saving DC/EC motor
• Includes remote control with sleep timer, slow motion setting
• Supplied with wall bracket and 200 mm ceiling rod
• For rooms of normal height, the distance between ceiling and blades is 365 mm
• Performance data: Speed setting 1 = 50 rpm / power consumption setting 1 = 4.1 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 2 = 57 rpm / power consumption setting 2 = 4.8 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 3 = 77 rpm / power consumption setting 3 = 7.5 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 4 = 95 rpm / power consumption setting 4 = 12.7 watts / sound power level L W = < 33.7 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 5 = 114 rpm / power consumption setting 5 = 19.8 watts / sound power level L W = < 39.4 dB(A) ² ³ / sound pressure level L P -3 m = < 18.9 dB(A)² ³ Speed setting 6 = 132 rpm / power consumption setting 6 = 30.0 watts / sound power level L W = < 42.5 dB(A) ² ³ / sound pressure level L P -3 m = < 22.0 dB(A)² ³ Air speed 1.5 m above floor = 1.96 m/s
• The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high
• This will help you estimate draughts that will occur at head height when sitting under the ceiling fan
• This specification refers to the highest speed
• Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling. ²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach
• The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power L W and 15 dB(A) for the sound pressure L P -3 m. ³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power L W and sound pressure L P -3 m.
