ECO GENUINO-L ceiling fan, rotor blade Ø 1520 mm, walnut / matt white.

Estimated delivery: 34 days

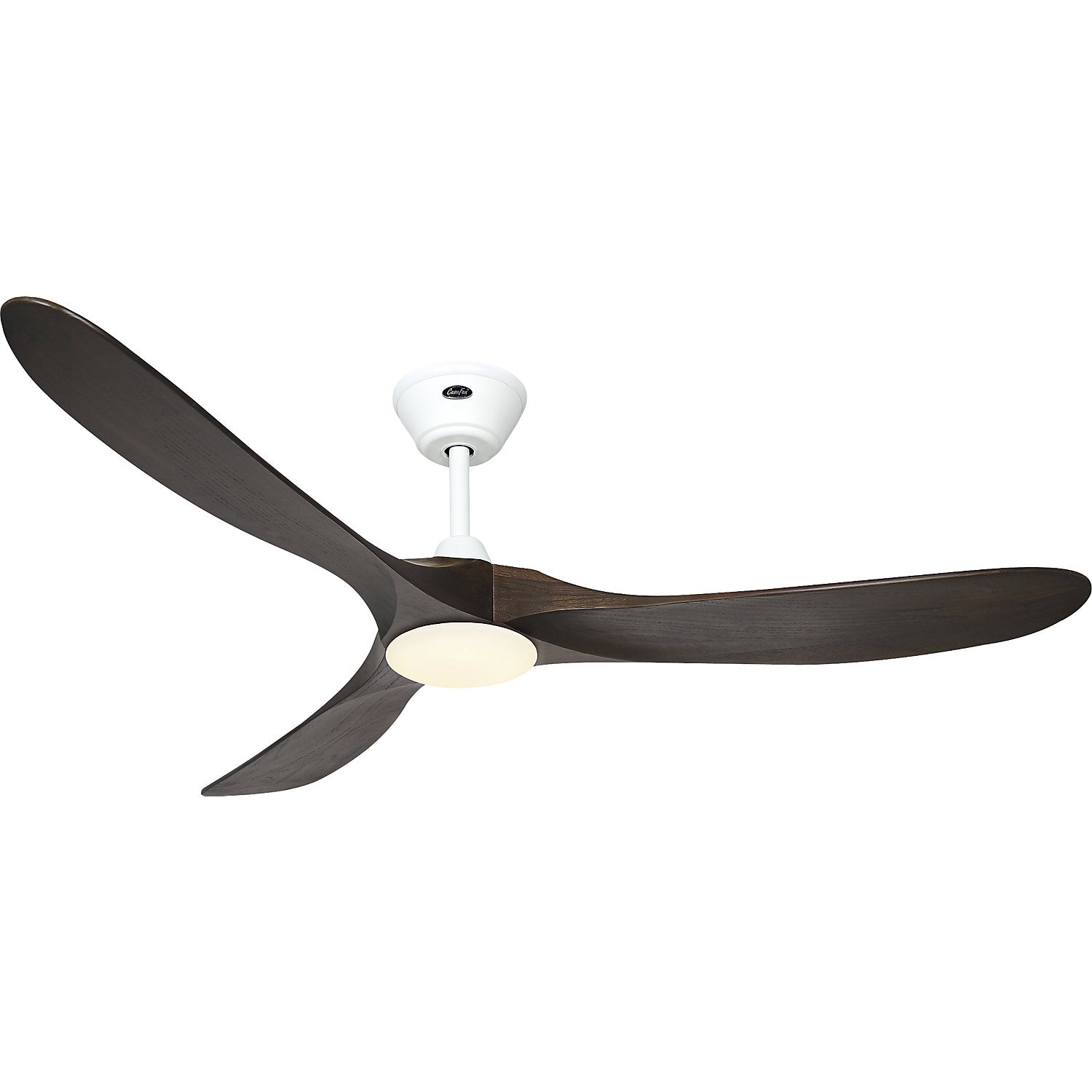

ECO GENUINO-L ceiling fan, rotor blade Ø 1520 mm, walnut / matt white

• Supplied = flat pack
• Material = metal, wood
• Rotor blade diameter = 1520 mm
• Colour = matt white, nut
• Number of speed settings = 6
• Max. speed = 144 rpm
• Max. air volume = 9176 m³/h
• Power = 0,0165 (Motor) + 0,017 (Leuchte) kW
• Sound pressure LPA (-3 m) = 20.1 dB(A)
• Sound power LWA = 40.6 dB(A)
• Fittings = lighting, wall switch, remote control
• Protection type = IP00

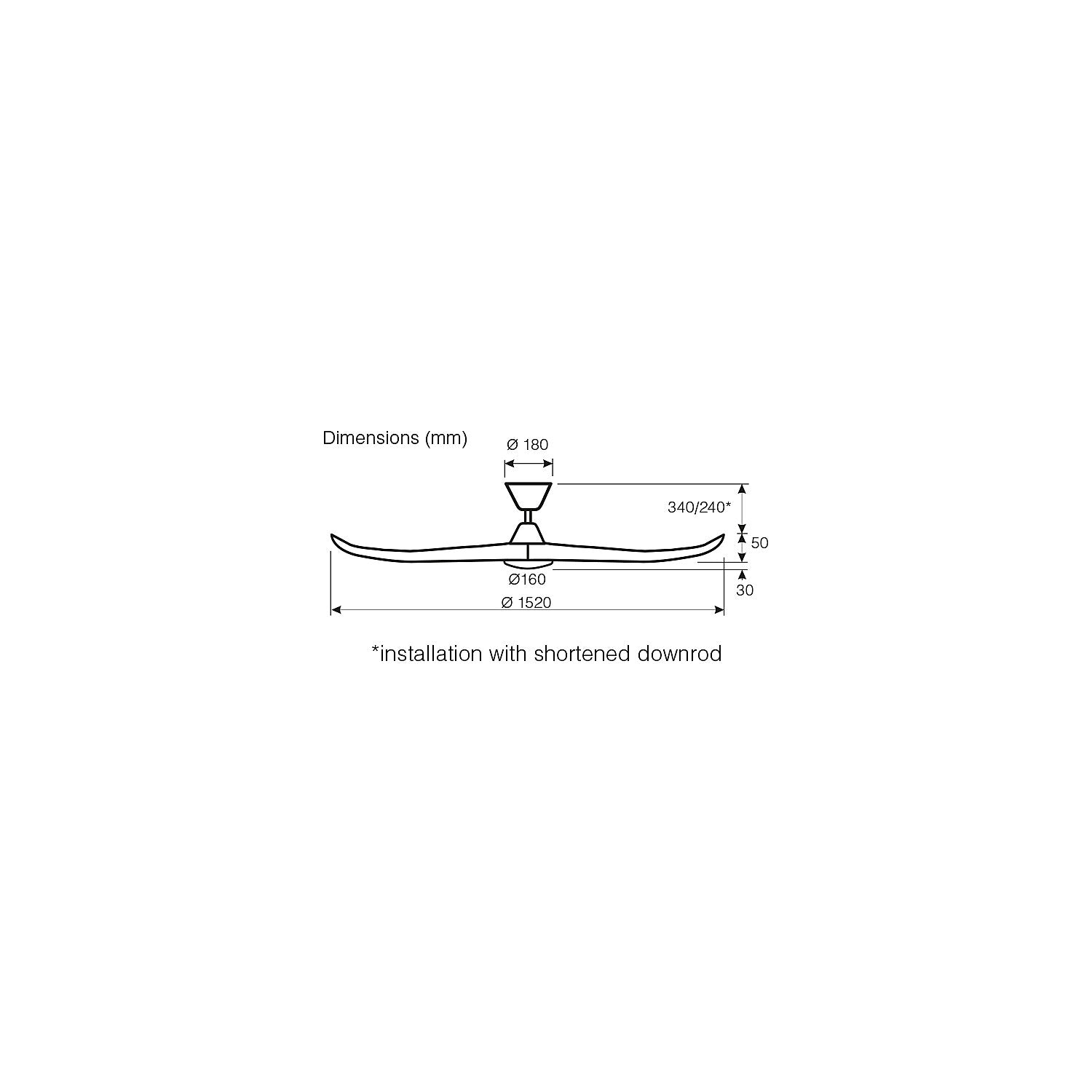

• Height = 420 mm
• Width = 1520 mm
• Depth = 1520 mm
• Mains voltage = 220 - 240 V / ~50 Hz
• Ceiling-blade spacing = 390 mm
• Number of blades = 3 pcs
• Number of blades included with delivery = 3 pcs
• Product type = ceiling fans
• Customs tariff number = 84145100
• Country of origin = TWN
• Gross weight = 10.865 kg
• Weight = 8.9 kg
• Sustainability = Energy efficient, CO 2 footprint calculated. 3 hand-made solid wood blades and dimmable LED lamp
• For rooms up to 40 m², high output of 9176 m³/h
• Very energy efficient, service ratio 9.3 (m³/min.)/W in accordance with EU Directive 206/2012. 6 forwards/reverse rotation speed settings (summer and winter mode) selected using remote control
• Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter
• Can be installed at angles up to 18°. 25-year manufacturer warranty on the motor
• An eyecatcher for any room, whether in the office or at home
• State-of-the-art, energy saving DC/EC motor
• For rooms of normal height, the distance between ceiling and blades is 390 mm
• Includes remote control with sleep timer, slow motion setting
• Supplied complete with wall bracket and 200 mm ceiling rod
• Includes dimmable LED lamp 17 W LED module ML095A-1, light colour warm white, 3000 K, 1800 lm, beam angle 120°, service life 20000 h, CRI 80, energy efficiency class F (spectrum G to A)
• The lamp contains integrated LED bulbs
• The bulbs in the lamp cannot be replaced in the lamp
• Replacement LED panels are available
• Performance data: Speed setting 1 = 50 rpm / power consumption setting 1 = 3.3 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 2 = 57 rpm / power consumption setting 2 = 3.6 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 3 = 77 rpm / power consumption setting 3 = 4.8 watts / sound power level L W = < 32 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 4 = 96 rpm / power consumption setting 4 = 6.6 watts / sound power level L W = < 32.4 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 5 = 114 rpm / power consumption setting 5 = 9.4 watts / sound power level L W = < 35.4 dB(A) ² ³ / sound pressure level L P -3 m = < 15 dB(A)² ³ Speed setting 6 = 144 rpm / power consumption setting 6 = 16.5 watts / sound power level L W = < 40.6 dB(A) ² ³ / sound pressure level L P -3 m = < 20.1 dB(A)² ³ Air speed 1.5 m above floor = 1.78 m/s
• The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high
• This will help you estimate draughts that will occur at head height when sitting under the ceiling fan
• This specification refers to the highest speed
• Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling. ²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach
• The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power L W and 15 dB(A) for the sound pressure L P -3 m. ³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power L W and sound pressure L P -3 m.
