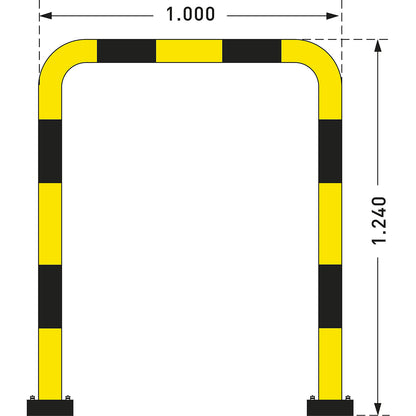

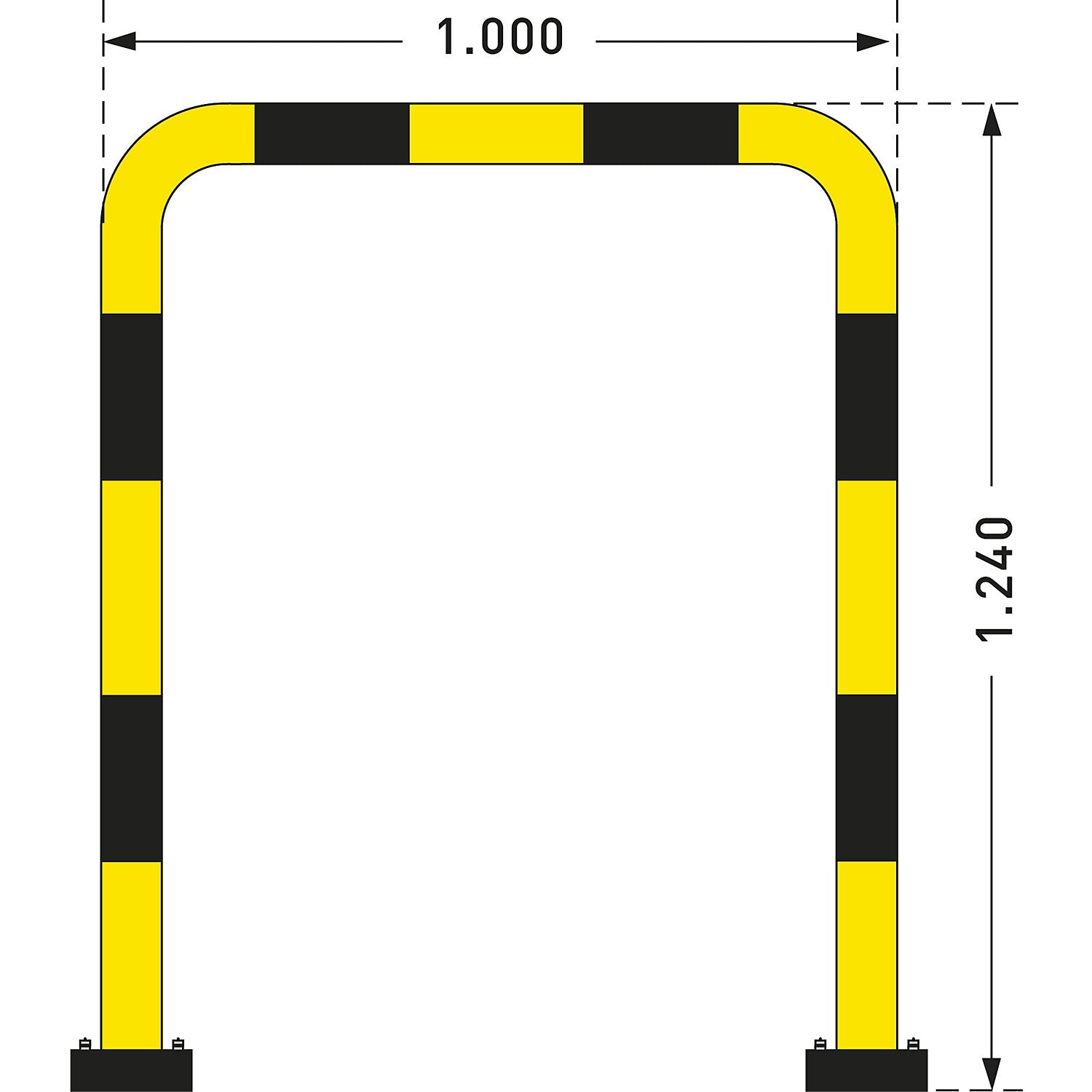

Impact protection guard, steel, Ø 76 mm, with spring element, for outdoor use, HxW 1240 x 1000 mm.

Estimated delivery: 33 days

Impact protection guard, steel, Ø 76 mm, with spring element, for outdoor use, HxW 1240 x 1000 mm

• Supplied = assembled
• Height = 1240 mm
• Width = 1000 mm
• Type of mounting = with base plate for bolting in place
• Tube diameter = 76 mm
• Base plate length = 160 mm
• Base plate width = 140 mm
• Model = versatile
• Material = steel
• Finish = hot dip galvanised and plastic coated
• Height above ground = 1240 mm
• Colour = traffic yellow RAL 1023, jet black RAL 9005
• Panel thickness = 3 mm
• Slope = 10°
• Place of use = outdoor use
• Weight = 21.5 kg
• Product type = barrier rails
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 22.3 kg
• Weight = 21.5 kg
• Sustainability = CO 2 footprint calculated
• For outdoor use
• Non-marking due to energy absorbing spring element
• Reduction in repair costs as plugs can no longer be yanked out
• Flexible spring element minimises collision damage - inclines upon impact by up to max. 10°
• Can be retrofitted to crash protection bars that are already installed
• TÜV tested in accordance with DGUV 108-007 and patented
• Large range of different heights and widths

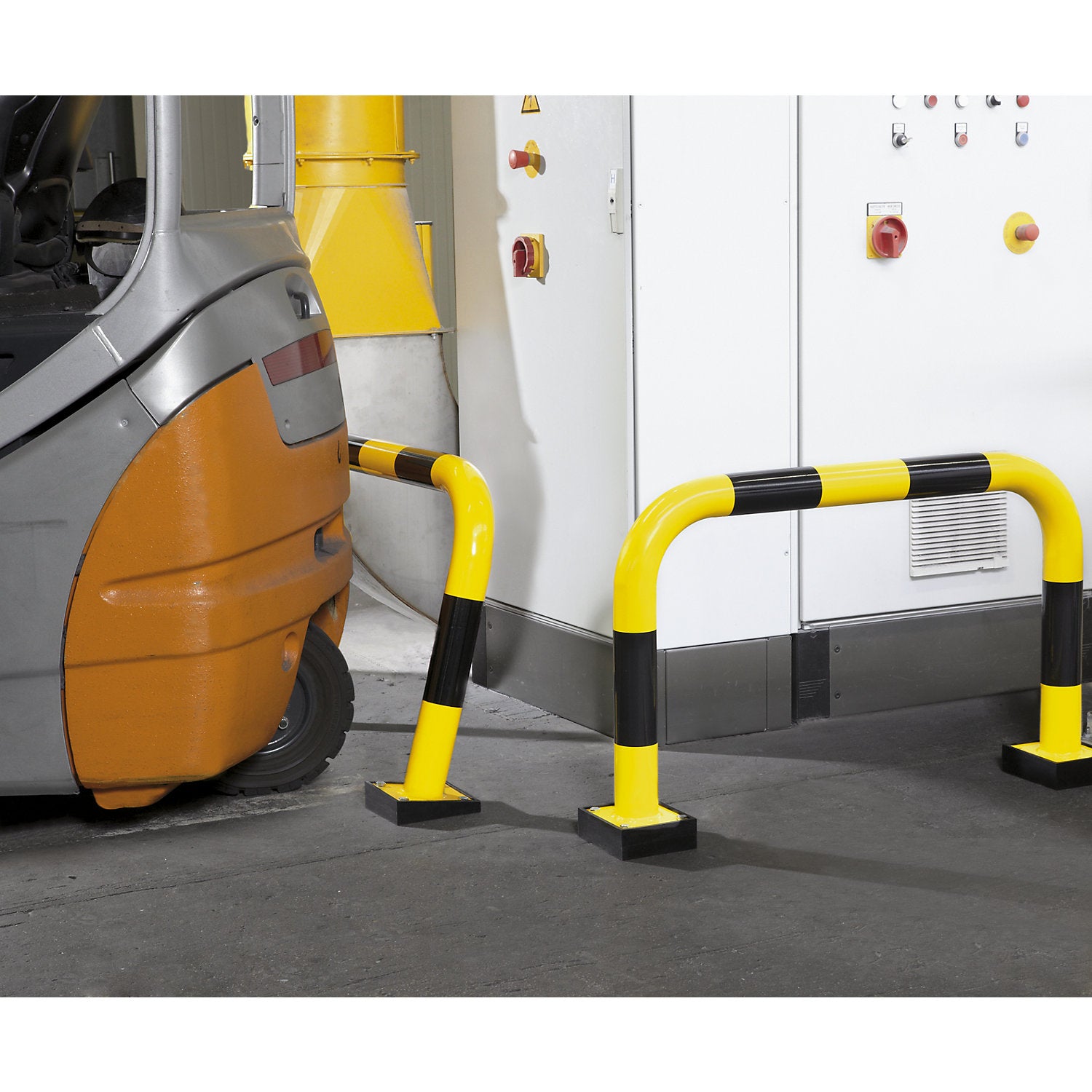

• The robust steel crash protection barrier offers effective safety in working environments where vehicles, transport equipment and machines manoeuvre in confined spaces
• The particularly durable construction ensures stability even under high loads
• The barrier rail is made of high-quality grade steel and is evenly bent, without welded seams
• This continuous design avoids weak points and increases its resilience
• Energy-absorbing PU spring elements form the connection to the base
• They are UV-resistant, permanently elastic and protect the ground even during repeated impacts
• The spring-loaded design allows for inclinations of up to 10° and prevents dowels from being torn out
• This keeps the floor permanently intact, minimises damage to vehicles and reduces repair costs
• The signal colour traffic yellow RAL 1023 with warning stripes in jet black RAL 9005 ensures clear visibility and supports safe traffic management on-site

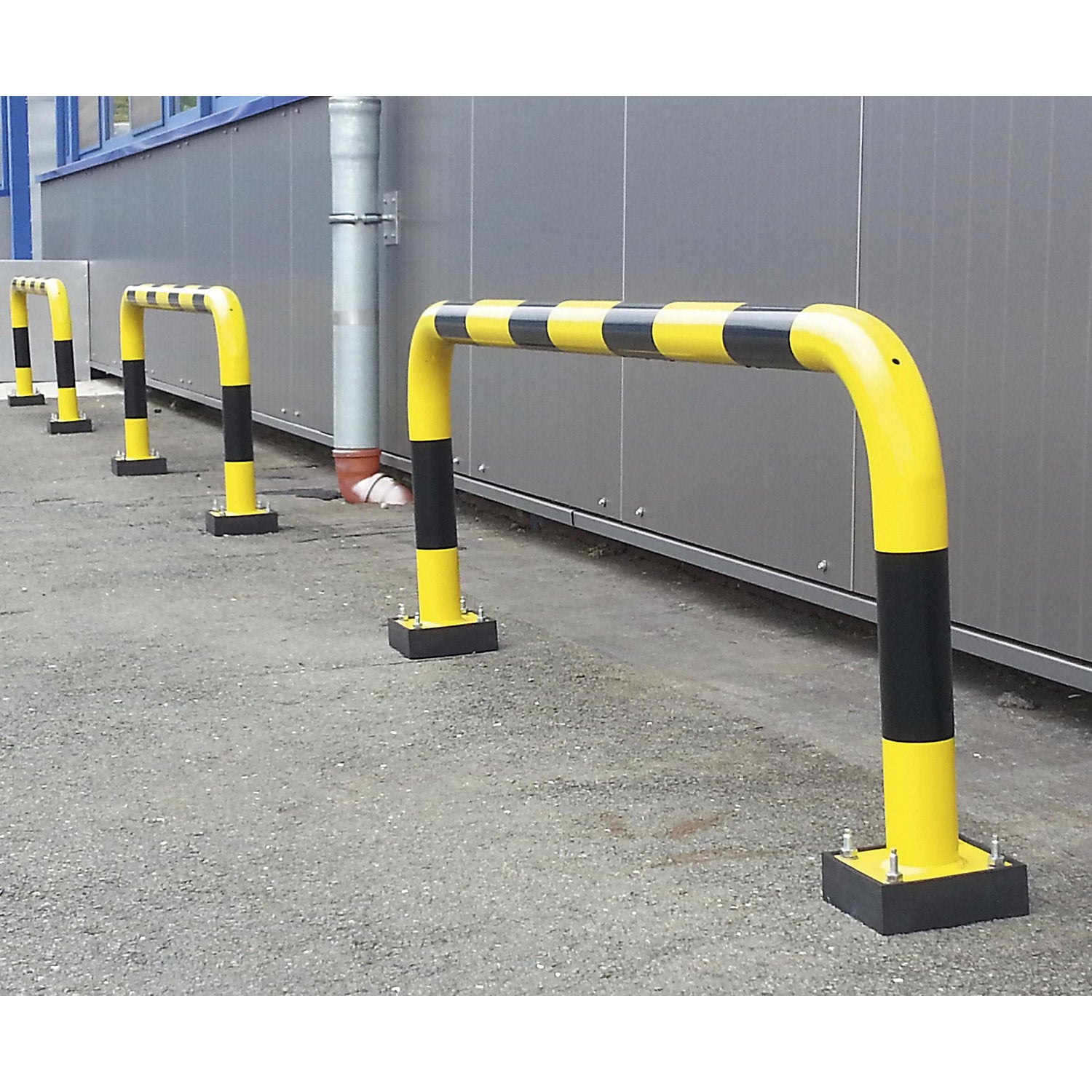

• The barrier rail is ideal for storage areas, production areas and traffic routes where effective protection against collisions is required
• Dimensions: Rail Ø: 76 mm Wall thickness: 3 mm Base plates for dowelling: LxW 200 x 140 mm Quality product manufactured in accordance with DIN EN 1461, EN 1090-2 and ISO/TR 15608
• Hot dip galvanised and additionally plastic coated in yellow with black stripes
• The mounting material can be found under Accessories
• Supplied without fixing material.
