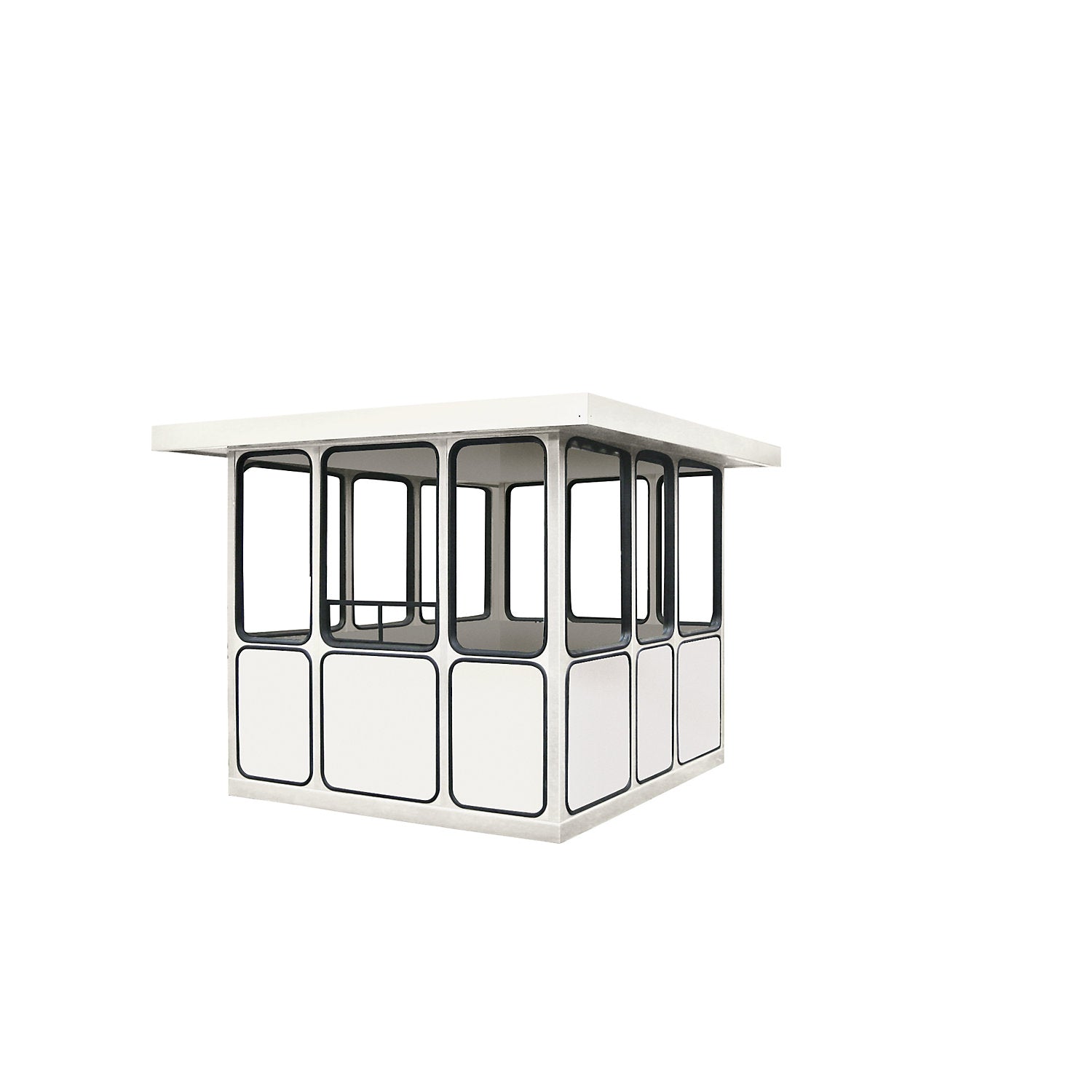

Multi-purpose building, panelling with rounded square pattern, for outdoor areas, LxW 3280 x 2220 mm.

Estimated delivery: 61 days

Multi-purpose building, panelling with rounded square pattern, for outdoor areas, LxW 3280 x 2220 mm

• Supplied = pre-assembled, final assembly by customer
• Place of use = outdoor use
• Length = 3280 mm
• Width = 2220 mm
• Height = 2500 mm
• Design of multi-purpose buildings / office buildings = 4 sides, free-standing
• Material = sheet steel, painted
• Internal length = 3170 mm
• Internal width = 2110 mm
• Railing height = 1030 mm
• Design of ceiling = steel frame with rain gutter, covered with trapezoidal sheet metal (can be walked on), without ceiling panels and insulation
• Section glazing = float glass, 5 mm
• Door type = double walled door with window
• Door material = sheet steel
• Grid dimensions = 1060 mm
• Colour = blue, grey, white
• Customs tariff number = 94069038
• Country of origin = DEU
• Gross weight = 1040 kg
• Weight = 1000 kg
• Sustainability = CO 2 footprint calculated
• For outdoor use
• Projects with 1 to 2 storeys, with steel support frames and stairs, wall fastening materials etc
• Versatile configuration options for wall sections
• Standard model 4-sided free standing unit, with roof, without floor, assembly frame
• Wall sections Rounded square pattern
• Height 2500 mm, grid 1060 mm
• Railing height 1030 mm
• Lower part made of sheet steel, painted on both sides in RAL colour specified by customer
• Upper part with single pane 5 mm float glass
• Wall sections without glazing available on request
• Door design Double walled sheet metal door with window
• Complete with door handle, lock and profile cylinder
• Solid panel and custom doors available on request
• Roof for outdoor installations Steel frame with rain gutter, covered with trapezoidal sheet metal (can be walked on), without ceiling panels and insulation
• Ideal for a wide range of uses due to the modular construction: In outdoor areas as service rooms, smoking rooms, porter's lodges and cashier's offices
• Supplied flat pack for self-assembly according to assembly instructions
• On request, optionally delivered fully assembled directly from the manufacturer or can be assembled on-site by plant technicians
• Must be assembled on a firm and flat surface
• Delivered by a freight company
• A forklift or crane with a load capacity of at least 2.5 t is required for unloading
• All multi-purpose buildings are fitted with crane eyelets
• On request, crane unloading service available at extra cost
• Custom models Sound and heat insulation, different types of glazing, electrical equipment, heating and air conditioning, ventilation systems, bathroom facilities, cable channels etc. are available on request
• Please enquire, we would be happy to advise you.
