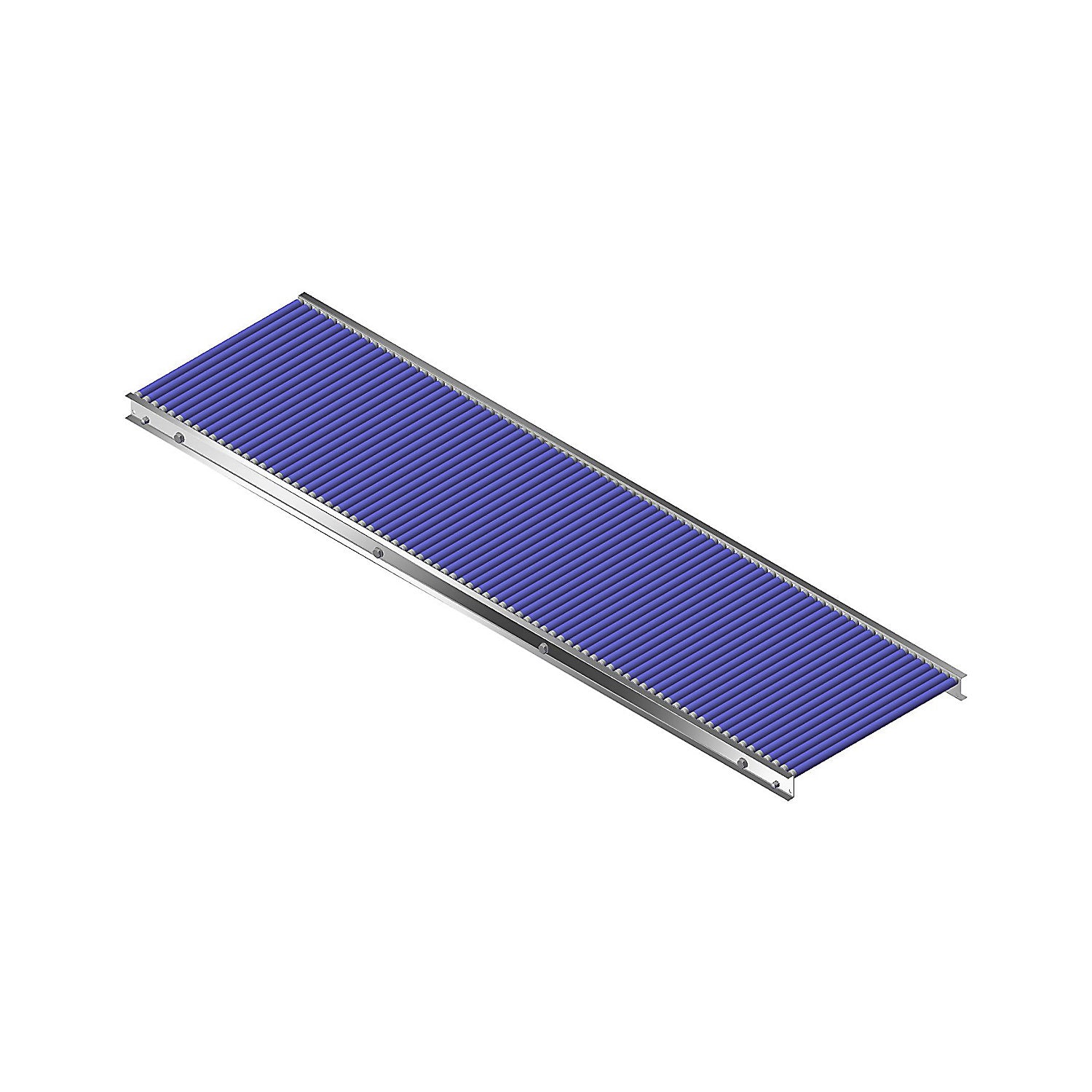

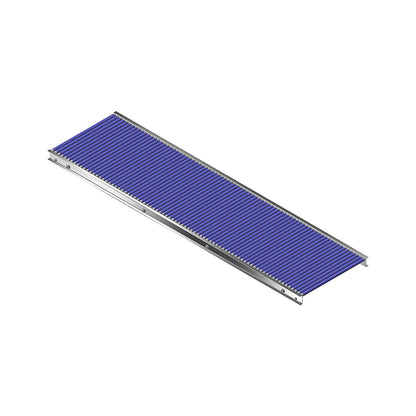

Small roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 25 mm, length 2.0 m.

Estimated delivery: 41 days

Small roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 25 mm, length 2.0 m

• Supplied = assembled
• Design of frame = aluminium
• Track width = 500 mm
• Overall height = 61.5 mm
• Width = 540 mm
• Length = 2 m
• Roller diameter = 20 mm
• Roller material = plastic
• Axle spacing = 25 mm
• Length of goods conveyed = > 75 mm
• Max. load with 1 m frame support spacing = 50 kg
• Frame colour = silver
• Model = straight
• Product type = small roller conveyors
• Customs tariff number = 84283920
• Country of origin = DEU
• Gross weight = 23.91 kg
• Weight = 18.8 kg
• Sustainability = CO 2 footprint calculated
• Optimises the material flow in the company
• Modular system, making it individually adjustable
• Transport flow also possible on a slight pitch
• This small roller conveyor from GURA improves the material flow within a company quickly and easily
• The versatile modular system allows individual adjustment to suit your requirements
• For transport goods with a min. length or min. Ø of 75 mm (= 3x axle spacing)
• Technical details: Overall height 61.5 mm
• Rollers protrude 1.5 mm above upper edge of sides
• Modular system allows for expansion to build a complete conveyor system
• Sides: Aluminium U-profile, 20 x 60 x 20 x 2.5 mm
• Conveyor rollers: Made of blue plastic tubing, Ø 20 mm. 40 rollers per metre
• Sprung axle, Ø 6 mm
• Ball bearings
• Use our individual CAD planning service for comprehensive complete planning
• Track section completely assembled
• Prices without frame supports
• Additional track widths, lengths, passages, as well as galvanised rollers and 45° curves on request.
