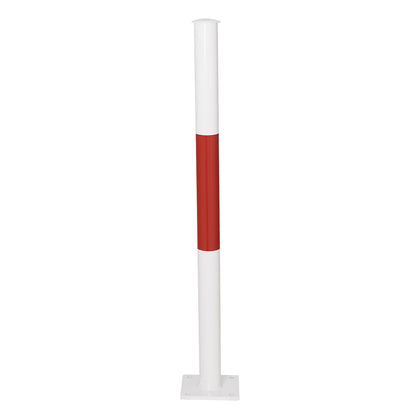

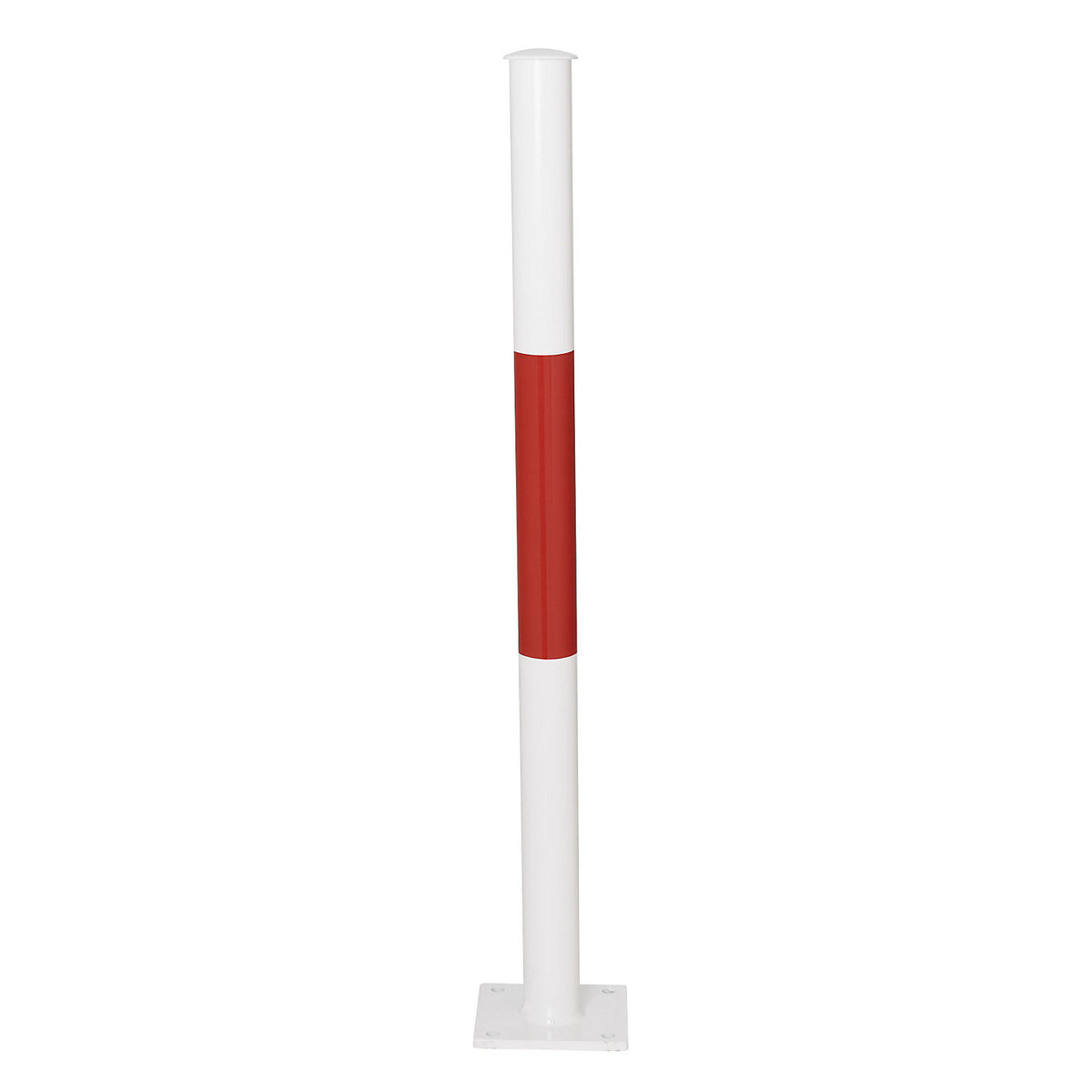

Railing system, upright with base plate, red/white.

Estimated delivery: 46 days

Railing system, upright with base plate, red/white

• Supplied = flat pack
• Material = tubular steel, galvanised
• Colour = red, white
• Type of mounting = with base plate for bolting in place
• Height = 1000 mm
• Height above ground = 1000 mm
• Model = standing pipe
• Base plate length = 160 mm
• Base plate width = 140 mm
• Finish = plastic coated
• Tube diameter = 60 mm
• Product type = system railings
• Customs tariff number = 73089098
• Country of origin = DEU
• Gross weight = 5.425 kg
• Weight = 5.3 kg
• Sustainability = CO 2 footprint calculated
• Supplied disassembled, easy assembly
• Any angular position up to 90°
• Gradients up to 45° can be bridged
• TÜV-tested in accordance with DGUV 208-061
• Flexible modular system
• The durable railing system is suitable for use in demanding environments
• The sturdy construction and high adaptability enable secure cordoning off in a wide variety of application areas
• The guard rail is designed as a flexible modular system and can be extended as required
• This creates a tailor-made barrier for individual requirements
• The variably adjustable connecting elements enable any horizontal angle between 90° and 270° as well as vertical angles of up to 45°
• This high flexibility allows for height compensation on uneven ground or the bridging of gradients, ensuring continuous safety without interruptions
• Thanks to the easy-to-assemble model, the individual elements can be connected quickly
• The simple assembly saves time and reduces installation effort

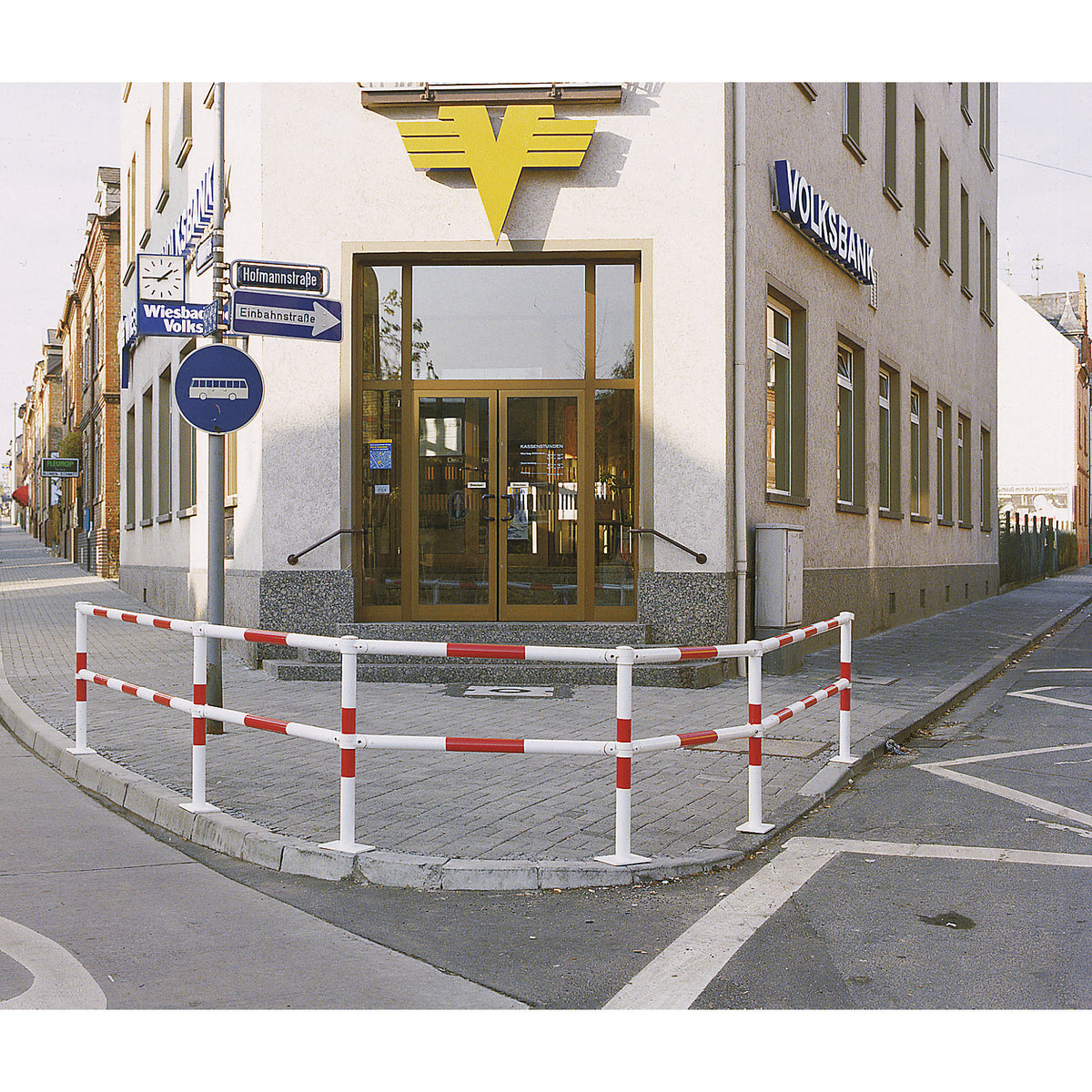

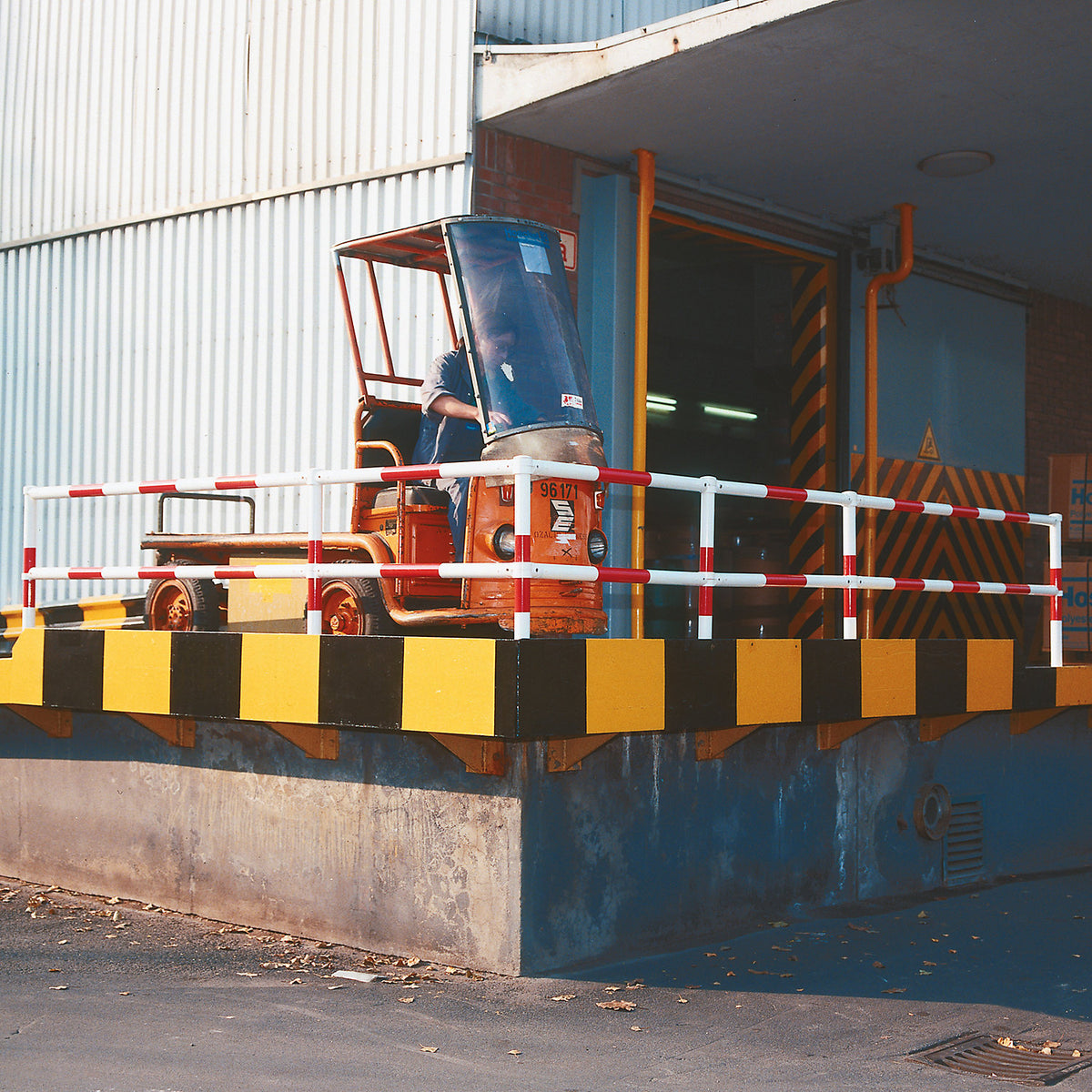

• The railing system is suitable for securing operational traffic routes as well as for public roads and squares
• It serves to clearly separate carriageways and traffic types, such as around stops
• Also as a chicane barrier or pedestrian guidance system, the barrier ensures structured processes and increased safety in heavily frequented areas
• The upright tubes are hot dip galvanised or provided with an additional safety coating in red/white or yellow/black
• The post is finished with a flat cap made of aluminium.
